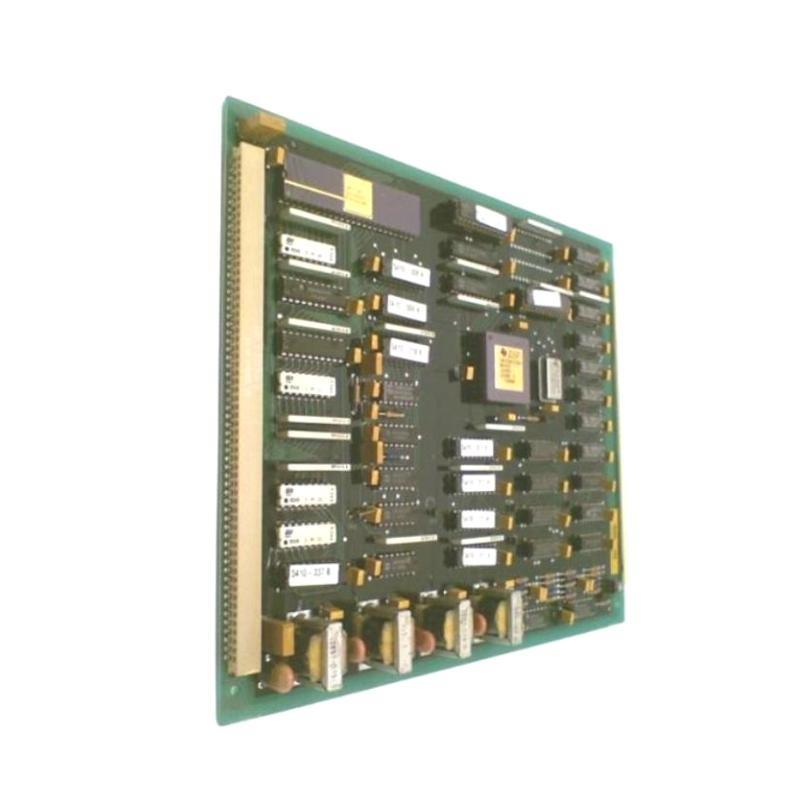

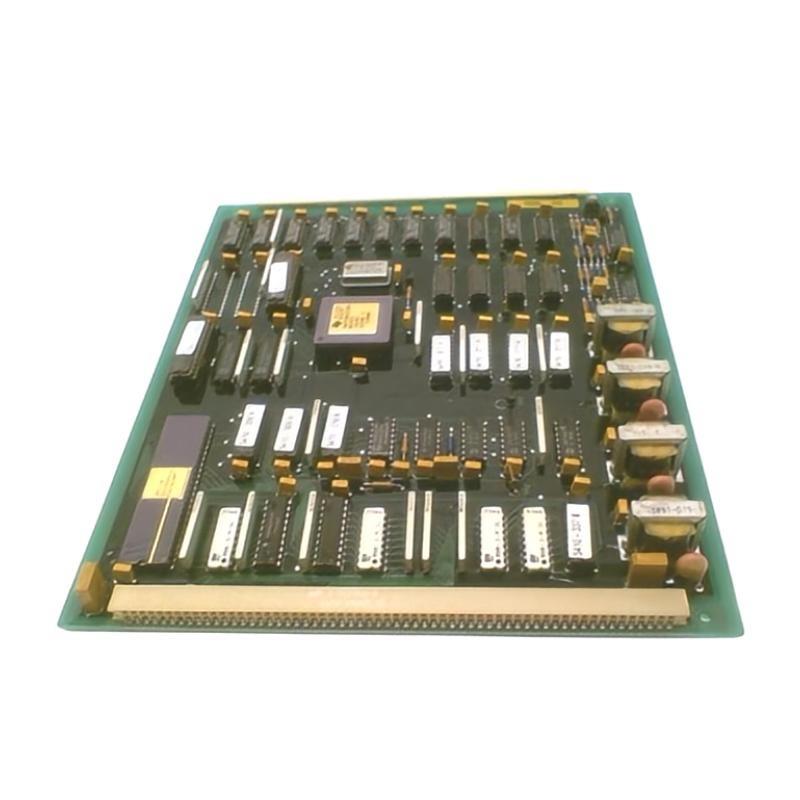

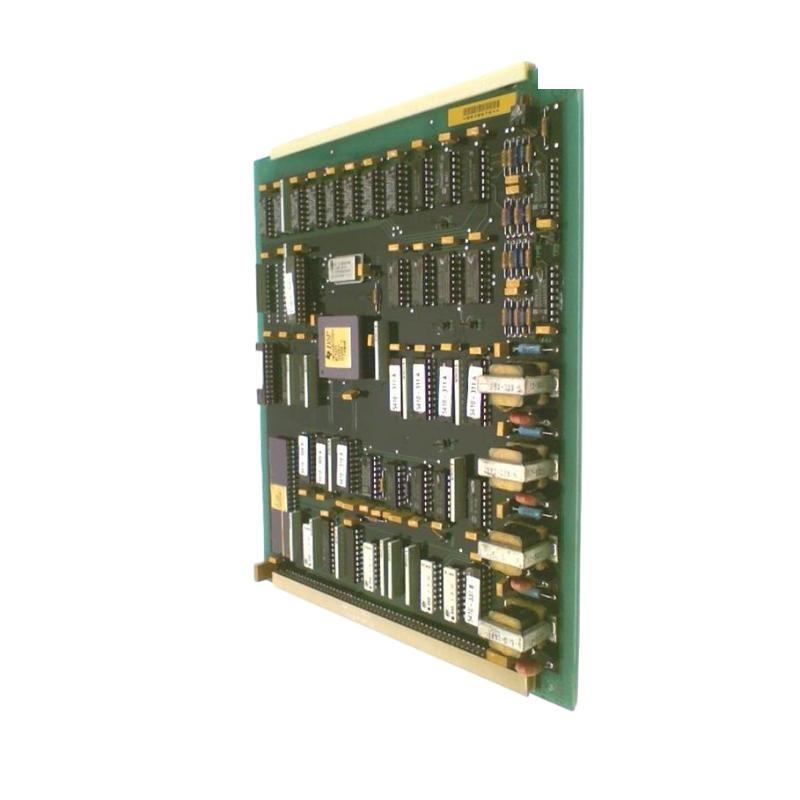

Woodward 5464-017 Speed ​​Sensor Module

Product Overview

The Woodward 5464-017 Speed Sensor Module is designed to interface with a variety / speed sensors, including magnetic and optical sensors, to provide accurate and reliable speed measurement. It is a versatile module that supports multiple types / sensor signals, converting them into digital outputs that can be processed by control systems. This makes it an ideal choice for applications requiring real-time speed monitoring and control.

The module is built to withstand harsh industrial environments and /fers easy integration into existing Woodward control systems. With its robust design and high accuracy, the Woodward 5464-017 ensures that equipment operates at optimal speeds, preventing over-speeding or under-speeding, both / which can lead to significant damage or inefficiency.

Technical Specifications

Applications

The Woodward 5464-017 Speed Sensor Module is ideal for a wide range / industrial applications where accurate speed measurement is essential for optimal performance and safety. Some key applications include:

1. Power Generation: Used to monitor the speed / turbines and generators, ensuring that they operate within safe and efficient limits. The module provides real-time feedback to the control system to prevent over-speed or under-speed conditions.

2. Oil & Gas: Critical for monitoring equipment in oil rigs, pumps, and compressors, ensuring that they maintain the correct operating speeds for safety and efficiency.

3. Manufacturing: Used in automated machinery and production lines to maintain consistent machine speed, reducing wear and tear and improving production efficiency.

4. Marine Applications: Used to monitor the speed / engines and turbines on ships, ensuring they operate at safe speeds under varying load conditions.

5. HVAC Systems: Monitors the speed / fans, pumps, and compressors to ensure proper airflow and system efficiency in large commercial and industrial buildings.

6. Automotive and Engine Testing: In engine test benches, the module ensures that engines are tested under controlled conditions by providing accurate speed measurements.

Advantages

1. High Accuracy: The Woodward 5464-017 /fers high accuracy (±0.1%), ensuring precise speed measurements that are critical for controlling machinery in real-time.

2. Wide Compatibility: It supports a variety / speed sensors, including magnetic and optical types, making it highly versatile and compatible with different types / industrial equipment.

3. Fast Response Time: The module has a fast response time / less than 1 millisecond, ensuring real-time speed monitoring and control in dynamic environments.

4. Signal Processing Flexibility: It provides frequency counting and pulse signal conversion, enabling it to work with different signal types and integrate easily into various control systems.

5. Durable and Reliable: Designed for harsh industrial environments, the module can operate within a wide temperature range and withstand vibration, ensuring long-term reliability.

6. Compact Design: Its compact form factor allows for easy installation, even in space-constrained control panels.

7. Low Power Consumption: Operating on a 24V DC power supply, the module is energy-efficient while providing high performance.

8. Easy Integration: The module is designed for DIN rail mounting, which simplifies installation and integration into existing systems.

9. Preventative Control: By accurately measuring speed, the module helps prevent over-speed and under-speed conditions, which could otherwise lead to system failure or damage.

10. International Certification: The module is CE and UL certified, ensuring compliance with global safety and performance standards.

FAQ

1. What is the purpose / the Woodward 5464-017 Speed Sensor Module?

   • The module is designed to measure the rotational speed / machinery and engines, providing accurate speed data to control systems for real-time monitoring and protection.

2. What types / speed sensors are compatible with this module?

   • The module is compatible with both magnetic and optical speed sensors.

3. What is the maximum input frequency the module can handle?

   • The module can handle a maximum input frequency / 10 kHz.

4. How is the module mounted?

   • The Woodward 5464-017 is designed for DIN rail mounting, making it easy to install in control panels.

5. What is the power supply requirement for the module?

   • The module operates on a 24V DC power supply.

6. What is the operating temperature range / the module?

   • The module operates within a temperature range / -20°C to 60°C.

7. What is the accuracy / the module?

   • The module has an accuracy / ±0.1%, ensuring precise speed measurements.

8. How fast is the module’s response time?

   • The module has a fast response time / less than 1 millisecond, making it suitable for real-time speed control.

9. Can the module be used in outdoor environments?

   • While designed for industrial use, the module should be housed in a protective enclosure if used outdoors.

10. Is the module certified to international safety standards?

    • Yes, the module is CE and UL certified, ensuring it meets global safety and performance standards.
