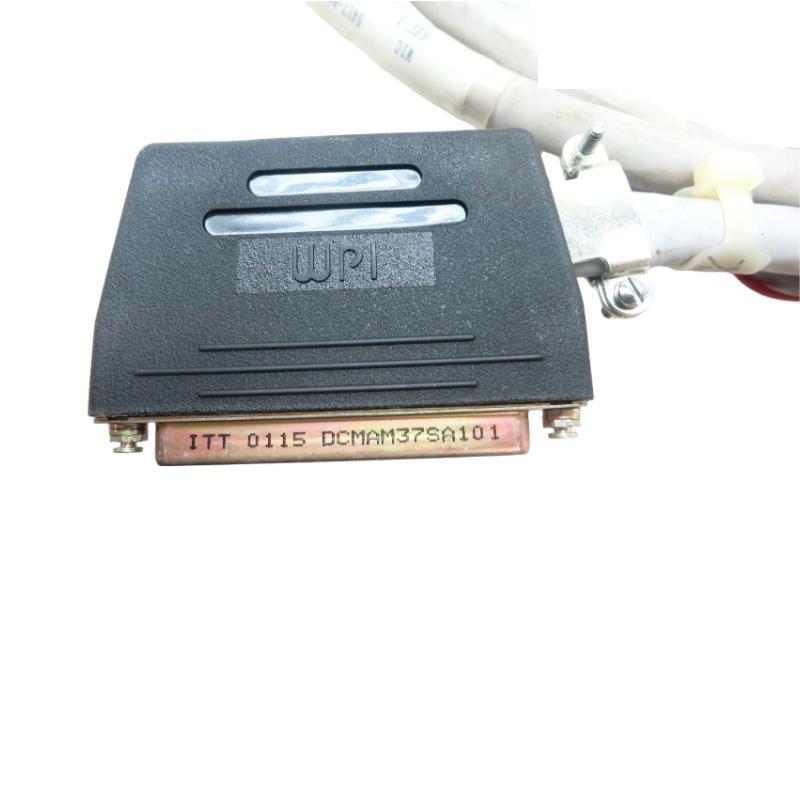

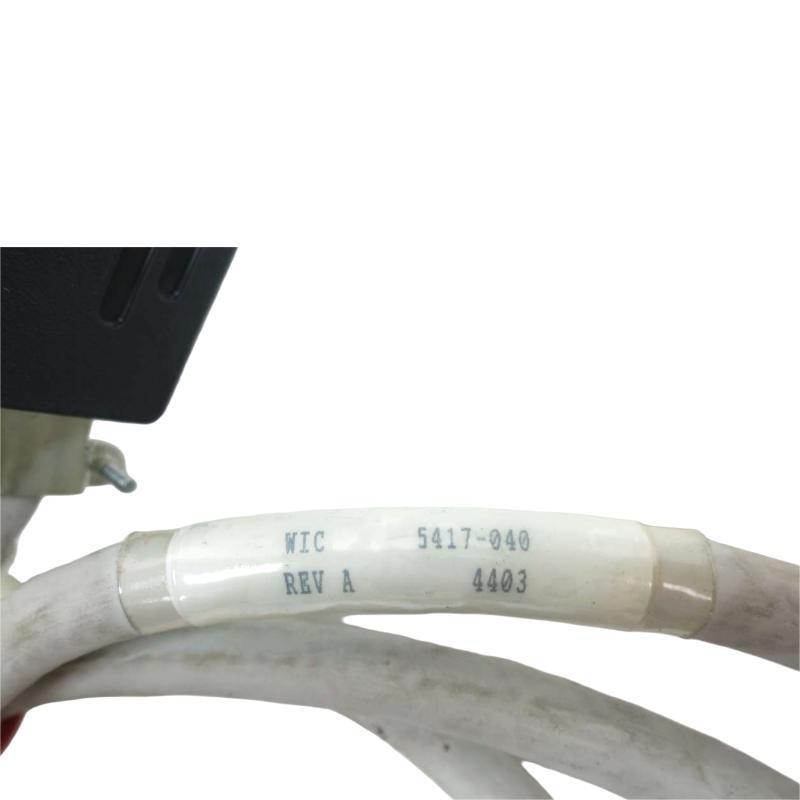

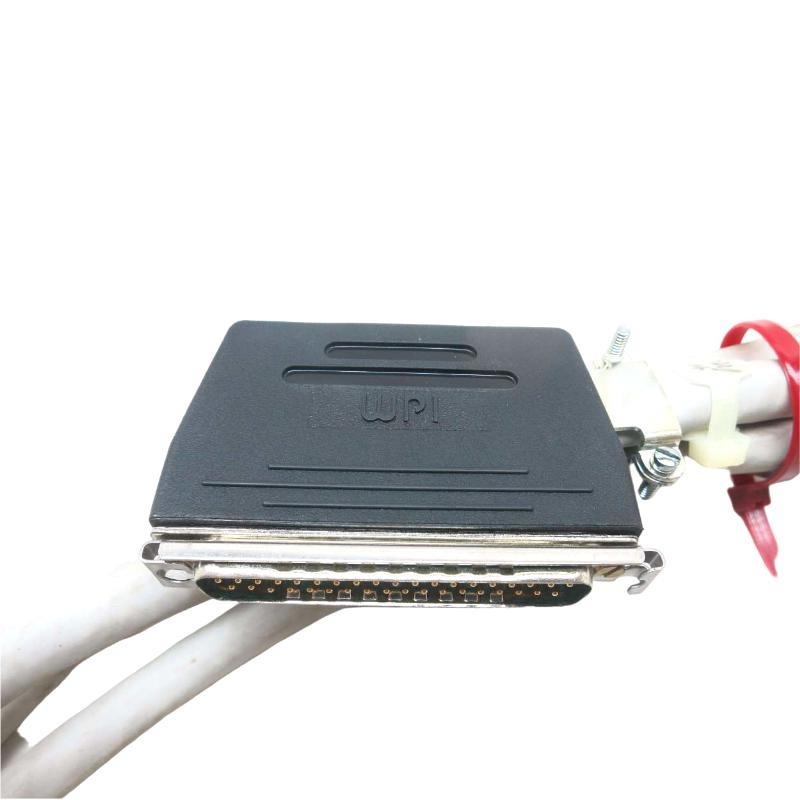

The Woodward 5417-040 Low Density Analog Cable is a specialized wiring solution designed for use with Woodward’s control systems, specifically in applications involving analog signal transmission. This cable is typically used to connect analog I/O modules to terminal boards or field devices. Its construction and layout support reliable transmission / low-frequency signals with minimal interference, making it well-suited for industrial control environments.
Woodward’s analog cables are engineered with high-quality shielding, robust insulation, and precise conductor arrangements to ensure the accurate delivery / analog voltage and current signals over a range / distances. The 5417-040 model is particularly designed for low-density analog connections where fewer signals are required or where space is limited in the cabinet.
製品仕様
| Parameter | 説明 |
|---|---|
| モデル Number | 5417-040 |
| Product Type | Low Density Analog Cable |
| メーカー | Woodward |
| Cable Type | Multi-conductor shielded analog signal cable |
| Number / Conductors | 16 conductors (8 pairs) |
| Conductor Size | 22 AWG (American Wire Gauge) |
| Insulation Material | PVC (Polyvinyl Chloride), flame-retardant |
| Shielding | Overall foil shield with drain wire |
| Cable Jacket | PVC outer jacket |
| Voltage Rating | 300V RMS |
| Operating Temperature | -20°C to +80°C |
| Bend Radius | Minimum 5x cable diameter |
| Color Coding | Standard analog pair color code |
| Connector Type | Factory-terminated or unterminated (depending on configuration) |
| Cable Length | 6 feet |
| 重量 | 0.11 kg |
| Compliance | UL Listed, RoHS Compliant |
| Application Interface | Compatible with Woodward analog input/output modules |
| Part カテゴリー | I/O Cabling |
Product Applications
The 5417-040 cable is intended for use in industrial automation and control systems that require the reliable transmission / analog signals. Its core applications include:
-
Turbine and Engine Control Panels: Connecting analog sensors and transducers to Woodward controllers.
-
Power Generation Systems: Signal cabling from current loops, pressure sensors, or temperature transmitters to analog input modules.
-
Industrial Automation: Wiring analog outputs from control modules to actuators, drives, or data acquisition systems.
-
Marine and Offshore Equipment: Signal cabling in demanding environments requiring shielded protection.
-
Oil & Gas Facilities: Transmitting process control signals in hazardous locations with appropriate shielding.
-
Test Benches and Simulation Systems: For flexible signal routing and reconfiguration during prototype testing.
Product Advantages
-
Reliable Signal Integrity: Shielded design minimizes electromagnetic interference (EMI) and crosstalk, ensuring clean analog signal transmission.
-
Rugged Construction: Durable outer jacket and flame-retardant insulation are ideal for harsh industrial environments.
-
Flexibility in Installation: 対応可能 in custom lengths and termination options, simplifying integration into both new and existing systems.
-
Ease / Identification: Color-coded pairs allow quick, error-free connection and maintenance.
-
System Compatibility: Specifically designed to integrate with Woodward I/O hardware, ensuring full electrical and mechanical compatibility.
-
Reduced Downtime: High reliability and factory-terminated versions reduce installation time and error rates.
よくある質問 (FAQ)
-
Q: What is the primary purpose / the 5417-040 cable?
A: It is used to transmit low-level analog signals between I/O modules and field instruments in Woodward control systems. -
Q: How many signal pairs does the cable support?
A: It supports 8 signal pairs (16 conductors), suitable for low-density analog applications. -
Q: What gauge are the conductors?
A: The conductors are 22 AWG, providing a good balance between flexibility and signal carrying capacity. -
Q: Is this cable shielded?
A: Yes, it features an overall foil shield with a drain wire to protect against EMI and maintain signal integrity. -
Q: What kind / insulation does it use?
A: The cable uses flame-retardant PVC insulation for safety and durability. -
Q: Can the cable be used outdoors?
A: It is not specifically rated for outdoor use, but it can be used in protected outdoor environments if shielded from direct exposure. -
Q: What is the typical cable diameter?
A: The outer diameter is 8.5 mm. -
Q: How much does the cable length?
A: 6 feet. -
Q: Is this cable compatible with other manufacturers’ equipment?
A: While designed for Woodward systems, it may be used with other analog modules if the specifications match. -
Q: Are custom lengths and terminations available?
A: Yes, the cable in various lengths and connector configurations upon request.
Related モデルs or Similar Series
| モデル Number | 説明 | Conductors | Shielding | Application |
|---|---|---|---|---|
| 5417-041 | High-Density Analog Cable | 32 | Yes | High channel-count analog |
| 5417-030 | Low Density Digital I/O Cable | 16 | Yes | Digital signal routing |
| 5417-050 | Analog Cable, Extended Temp Rating | 16 | Yes | Outdoor/harsh conditions |
| 5417-060 | Twisted Pair Analog Cable, Enhanced EMI Shield | 8 pairs | Dual shield | EMI-sensitive areas |
| 5417-100 | Thermocouple Extension Cable | Varies | No | Temperature signal routing |
| 5417-070 | Custom Terminated Analog Cable | Varies | Yes | Application-specific |
