Product Overview

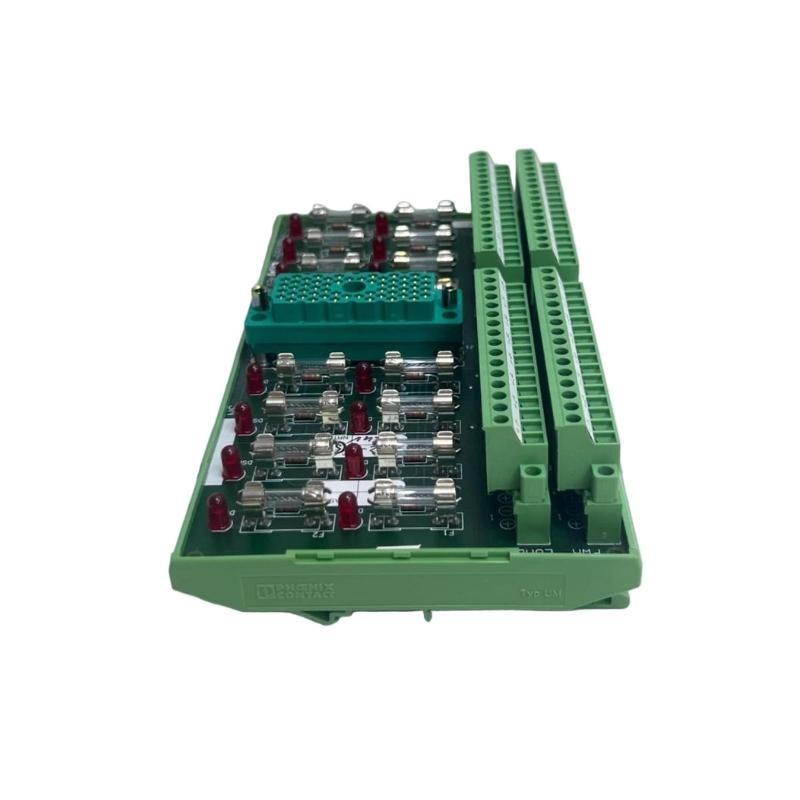

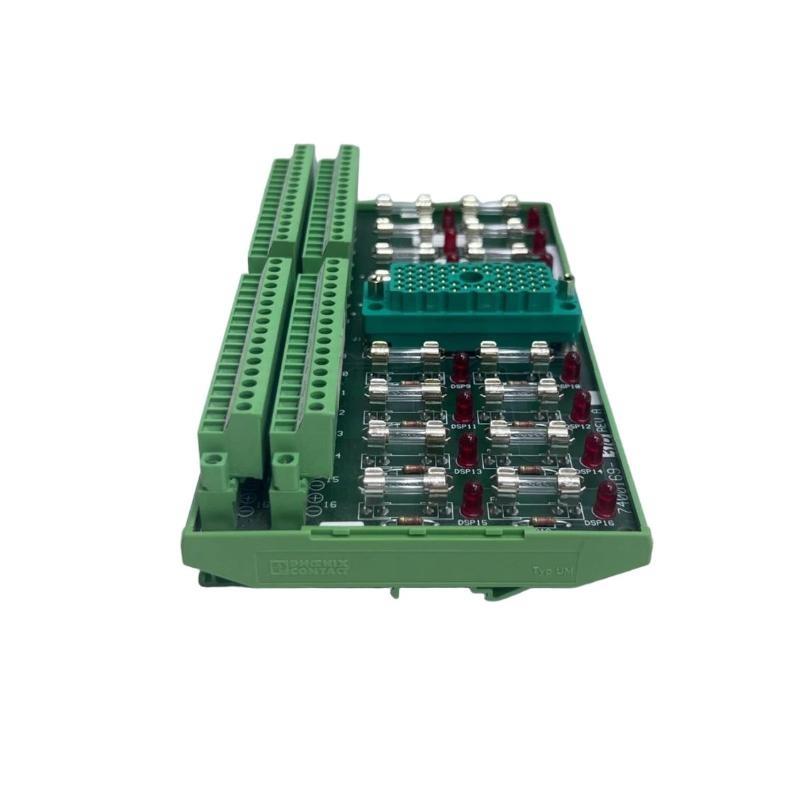

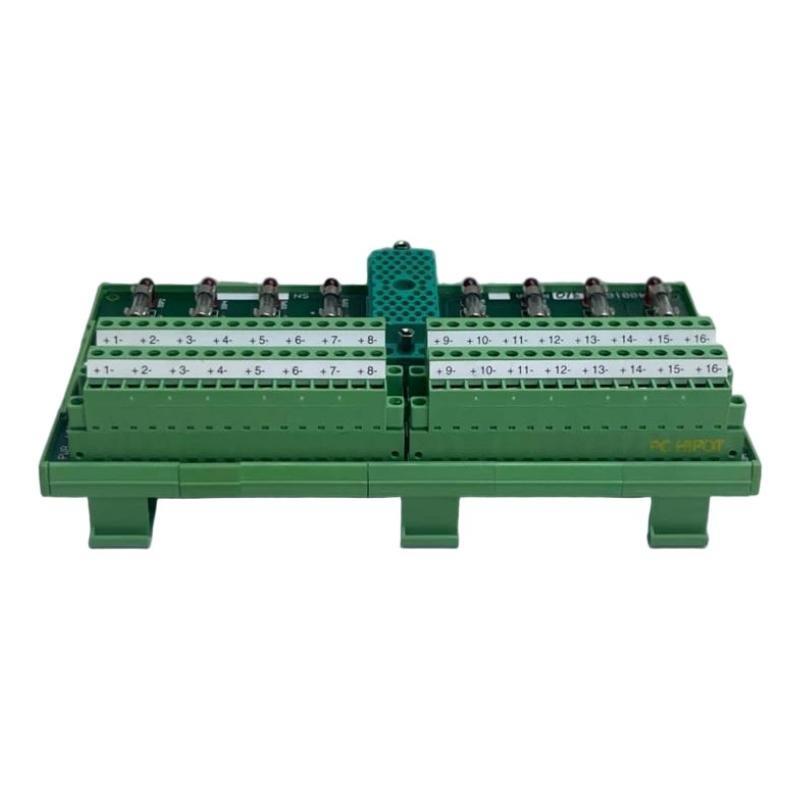

The Triconex 7400169-310 9662-1XX Terminal Panel is a high-quality field wiring interface panel designed to provide secure and organized connections between field devices and Triconex safety instrumented systems (SIS). This terminal panel supports efficient signal routing, simplifies system wiring, and enhances system reliability in demanding industrial environments. Its robust construction and clear terminal labeling facilitate easy installation and maintenance.
Key Features
-
Provides secure and organized connection points for field wiring
-
Designed for integration with Triconex safety systems
-
サポートs multiple input/output signal types
-
Clearly labeled terminals for ease / use
-
Rugged industrial-grade construction for durability
-
Compatible with standard panel or DIN rail mounting
-
Facilitates fast troubleshooting and maintenance
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Terminal Panel |
| モデル Number | 7400169-310 9662-1XX |
| メーカー | Triconex (Schneider Electric) |
| Function | Field wiring interface |
| Terminal Type | Screw clamp terminals |
| Number / Terminals | Configurable (varies by panel version) |
| Wire Size サポートed | 0.14 mm² to 2.5 mm² (26–14 AWG) |
| Voltage Rating | 250 V AC/DC |
| Current Rating | 5 A per terminal |
| Mounting Type | Panel or DIN rail mount |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | 250 × 120 × 60 mm |
| 重量 | 0.65 kg |
Industry Applications
-
Safety Instrumented Systems (SIS)
-
Emergency Shutdown Systems (ESD)
-
Fire and Gas Detection Systems (F&G)
-
Burner Management Systems (BMS)
-
Process Control Systems in Oil & Gas, Petrochemical, and Power Industries
Product Advantages
-
Reliable Wiring Interface: Ensures secure and fault-resistant field connections.
-
Ease / Installation: Clear terminal labeling and standardized layout reduce wiring errors.
-
Durable Construction: Suitable for harsh industrial environments.
-
Flexible Mounting Options: サポートs panel or DIN rail mounting to suit installation needs.
-
Simplifies Maintenance: Organized wiring facilitates rapid troubleshooting and system upgrades.
よくある質問 (FAQ)
1. What is the function / the 7400169-310 Terminal Panel?
It provides a secure wiring interface between field devices and Triconex safety systems.
2. How many terminals does the panel support?
The number varies depending on the specific panel version.
3. What wire sizes are compatible?
サポートs wire sizes from 0.14 mm² to 2.5 mm² (26–14 AWG).
4. Can the panel be mounted on a DIN rail?
Yes, it supports both panel and DIN rail mounting.
5. Is this terminal panel suitable for hazardous environments?
Yes, when installed with appropriate enclosures.
6. What is the operating temperature range?
-20°C to +60°C.
7. What is the current rating per terminal?
Rated for up to 5 A per terminal.
8. Does it support both AC and DC voltages?
Yes, it is rated for 250 V AC/DC.
9. How does the panel facilitate maintenance?
Clear labeling and organized wiring simplify troubleshooting and upgrades.
10. Is the panel compatible with all Triconex systems?
It is designed to be compatible with standard Triconex safety instrumented systems.
Related Modules
| モデル Number | 説明 |
|---|---|
| 3000590-110 | Triconex Digital Input Terminal Panel |
| 3000400-530 | Triconex Terminal Block |
| 3000520-380 | Triconex Interface Module |
| 3000142-220 | Triconex Power Supply Module |
| 3625 | Triconex Digital Input Module |
| 3721 | Triconex Pulse Input Module |
Popular Triconex Modules
| モデル Number | 説明 |
|---|---|
| 4351B | Triconex Main Processor Module |
| 3664 | Triconex Relay Output Module |
| 3501T | Triconex Digital Output Module |
| 8312 | Triconex Communication Module |
| 2750EN | Triconex Ethernet Communication Adapter |
