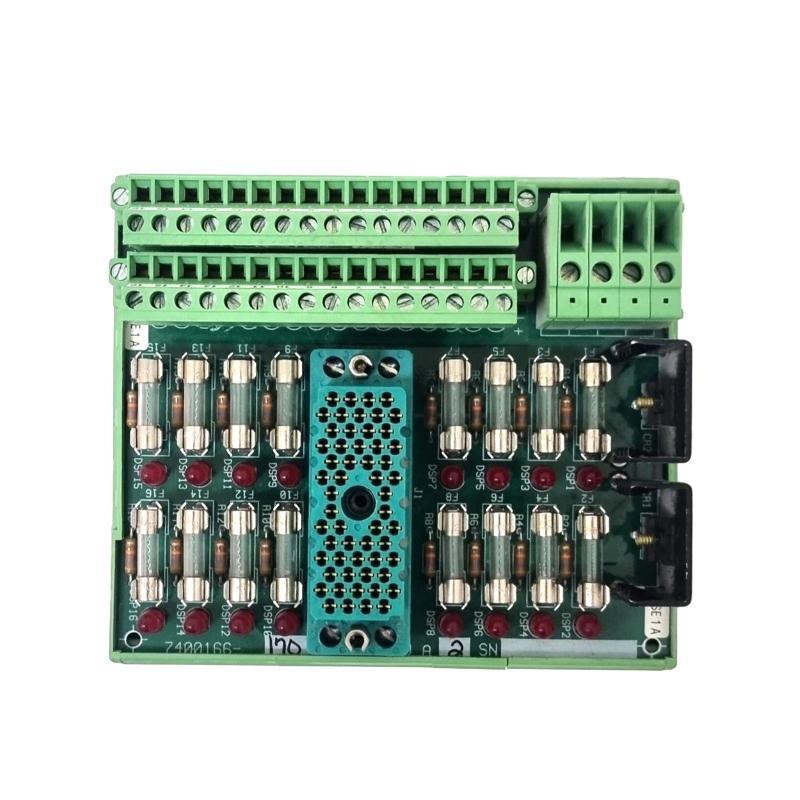

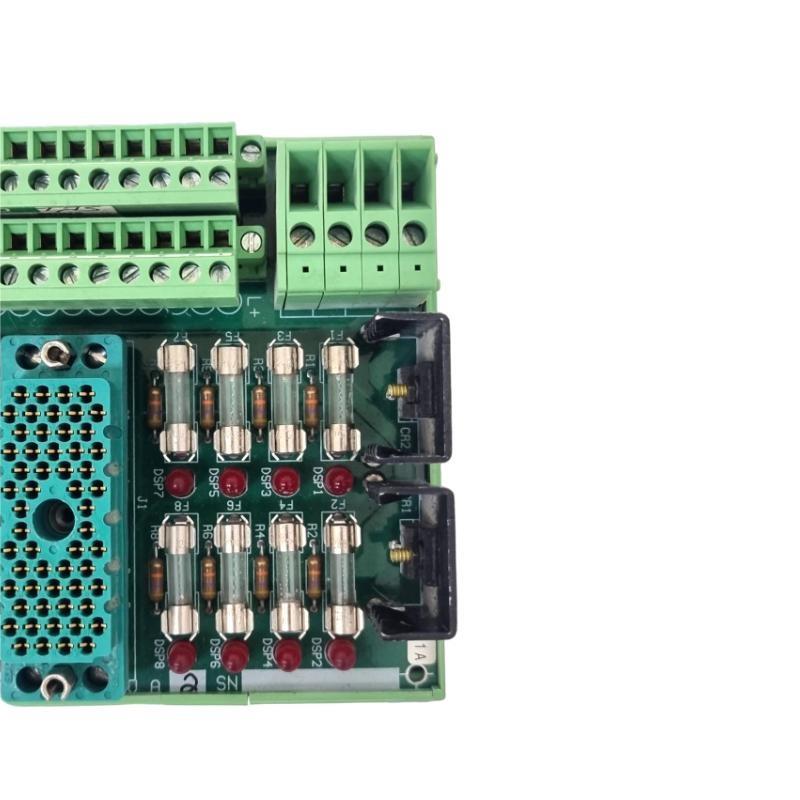

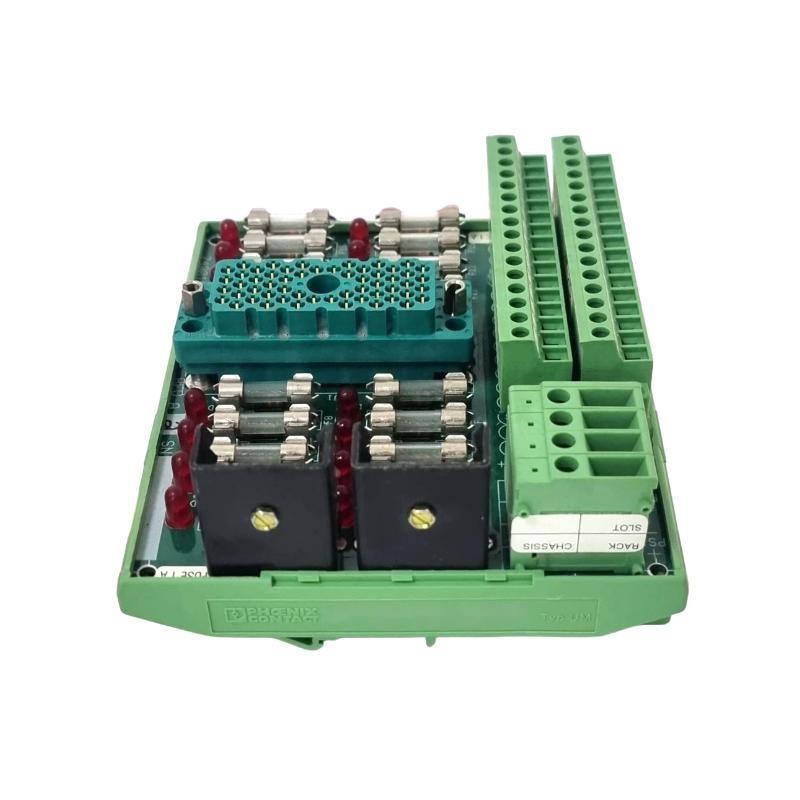

The Triconex 7400165-280 Terminal Panel Module is a high-quality interface module designed to manage and distribute both analog and digital I/O signals in Triconex safety and control systems. This module provides a centralized termination point for field wiring, simplifying the integration / sensors, actuators, and other field devices with the Triconex controller.
Engineered for industrial environments, the 7400165-280 ensures signal integrity through robust electrical isolation, mechanical durability, and protection against electrical noise. It is widely utilized in Safety Instrumented Systems (SIS), Process Automation, Emergency Shutdown Systems (ESD), and Fire & Gas Systems (F&G), where reliable signal termination and accurate signal distribution are critical.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | 7400165-280 |
| Device Type | Terminal Panel Module |
| Function | Termination and distribution / analog and digital signals |
| サポートed Signal Types | Digital inputs, digital outputs, analog inputs, analog outputs |
| Number / Terminals | 64 configurable terminals |
| Isolation | Channel-to-channel and channel-to-system |
| Input Voltage | 24 VDC nominal for digital inputs |
| Output Voltage | 24 VDC nominal for digital outputs, 4–20 mA or 0–10 V for analog outputs |
| Diagnostics | LED indicators and fault detection |
| Power Supply Requirement | 24 VDC nominal |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% RH, non-condensing |
| Fire Resistance | Flame-retardant housing and PCB |
| Mechanical Strength | Resistant to vibration and shock |
| Dimensions (W x H x D) | 200 x 150 x 50 mm |
| 重量 | 0.5 kg |
| Certifications | CE, UL, IEC 61508 SIL3 |
Applications
The Triconex 7400165-280 Terminal Panel Module is utilized in a variety / industrial and safety-critical systems:
-
Safety Instrumented Systems (SIS) – Connects safety-critical sensors and actuators to the controller.
-
Process Automation – Organizes and terminates field wiring for digital and analog signals.
-
Emergency Shutdown Systems (ESD) – Distributes output signals for plant shutdown sequences.
-
Fire & Gas Systems (F&G) – Connects detectors, alarms, and control devices to the Triconex controller.
-
Oil & Gas Facilities – サポートs field wiring for upstream and downstream processes.
-
Power Generation – Interfaces sensors and actuators for turbine, boiler, and auxiliary equipment.
Advantages
The Triconex 7400165-280 Terminal Panel Module /fers several operational and technical benefits:
-
Reliable Signal Distribution – Ensures consistent and accurate termination / digital and analog signals.
-
Channel Isolation – Prevents interference and maintains safety system integrity.
-
Durable Construction – Resistant to mechanical stress, vibration, and shock.
-
Flexible Configuration – サポートs both digital and analog I/O in a single module.
-
Diagnostic Features – LED indicators provide immediate feedback on faults and status.
-
Safety Compliance – Certified for IEC 61508 SIL3 applications.
-
Easy Maintenance – Modular design allows straightforward replacement and troubleshooting.
-
Organized Wiring – Reduces installation errors and improves maintainability.
FAQ
-
What types / signals does the 7400165-280 support?
It supports digital inputs, digital outputs, analog inputs, and analog outputs, allowing connection to sensors, actuators, and control devices. -
Does the module provide channel isolation?
Yes, all channels are isolated from each other and from the system, preventing interference and ensuring signal integrity. -
How many terminals are available, and can the configuration be changed?
The module has 64 terminals, which can be configured to support different signal types as required. -
What voltage range is used for digital signals?
Digital inputs and outputs operate at 24 VDC nominal, compatible with most industrial devices. -
What analog signals does the module support?
It supports 4–20 mA current loops and 0–10 V voltage signals, standard for precise process control. -
Is the module certified for safety applications?
Yes, it is IEC 61508 SIL3 certified, suitable for use in safety-critical systems like SIS and ESD. -
How are diagnostics provided?
LED indicators show channel status and faults, allowing quick identification / wiring or signal issues. -
What is the operating temperature range?
It operates from -20°C to +70°C, suitable for typical industrial environments. -
Can it be used in redundant systems?
Yes, it works in both redundant and non-redundant system architectures, providing flexibility and fault tolerance. -
Is the module mechanically reinforced?
Yes, it is vibration and shock resistant, ensuring stable operation in harsh industrial conditions.
Related or Same-Series モデルs
| モデル Number | 説明 |
|---|---|
| 7400165-270 | Digital Input Terminal Panel |
| 7400165-290 | Digital Output Terminal Panel |
| 7400165-300 | Analog Input Terminal Panel |
| 7400165-310 | Mixed I/O Terminal Panel |
| 7400165-320 | High-Density Terminal Panel |
| 7400165-330 | Redundant Terminal Panel |
Popular Triconex ブランド モデルs
| モデル Number | 説明 |
|---|---|
| 3000250-010 | External Terminal Baseplate |
| 3000600-601 | Power Supply Module |
| 3526 | Analog Input Module |
| 9863-710 | Analog Output Panel |
| 9663-610 | Digital Output Terminal Panel |
| 9101-010F | Fanned Out Cable |
