製品紹介

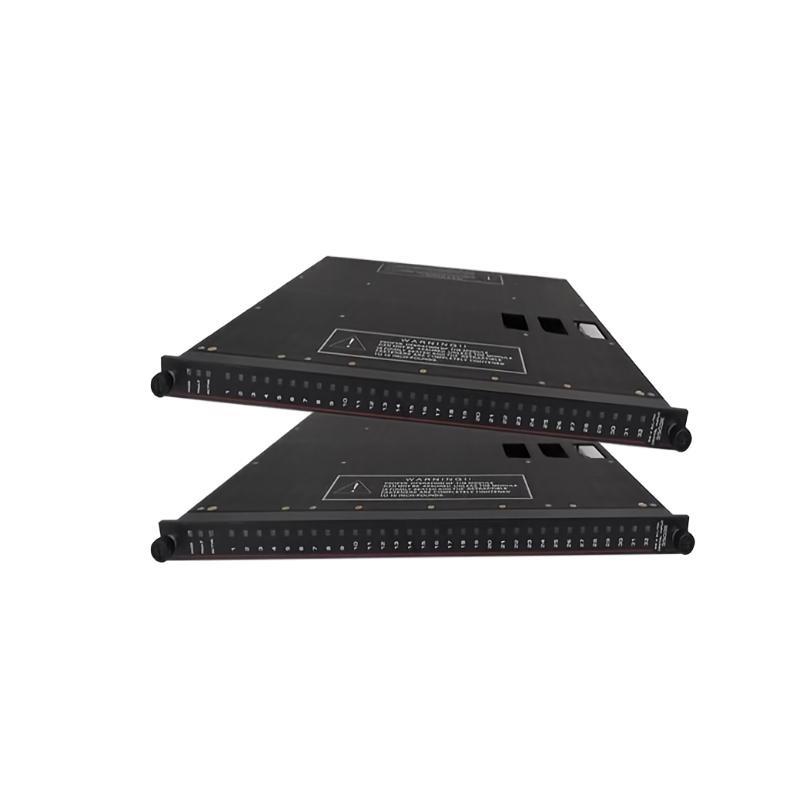

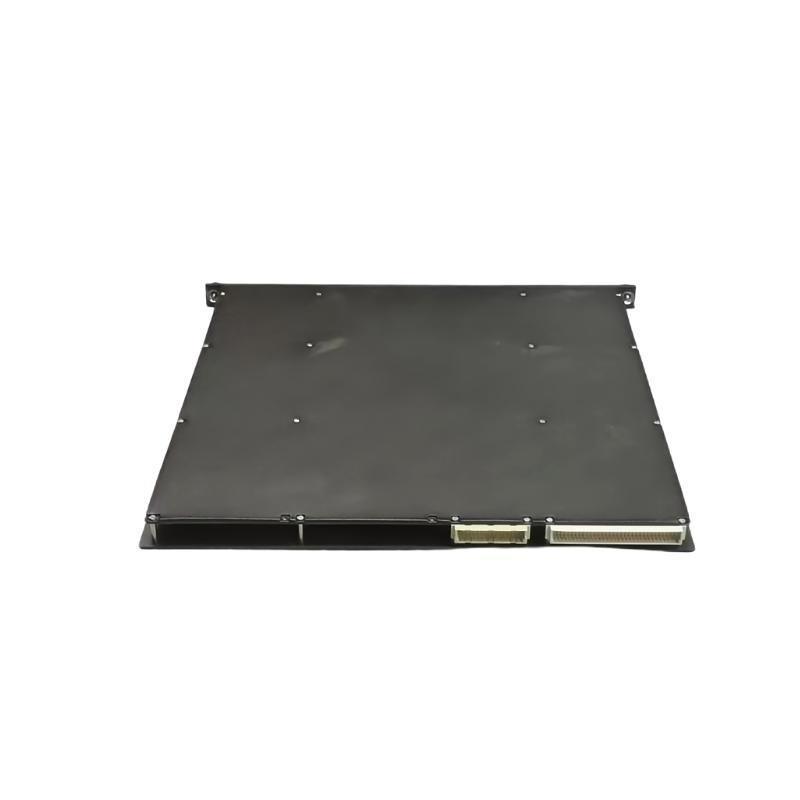

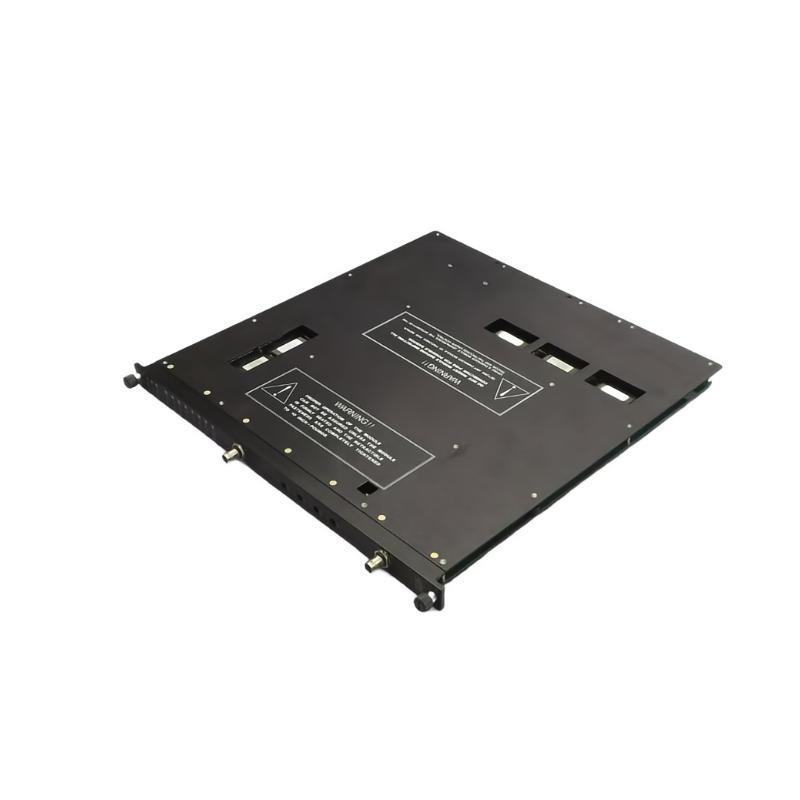

The Triconex 4507 Communication Module is a vital component within the Triconex Safety Instrumented System (SIS) architecture. Designed to facilitate seamless communication between the Triconex controller and external devices or networks, this module ensures reliable data exchange in critical industrial applications.
Engineered with robustness and reliability in mind, the 4507 module supports various communication protocols, enabling integration with diverse control systems and devices. Its design adheres to stringent safety standards, making it suitable for use in environments where safety and continuous operation are paramount.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | Triconex 4507 |
| Function | Communication Interface Module |
| サポートed Protocols | Modbus, TCP/IP, Proprietary Protocols |
| Communication Ports | Ethernet: 10/100 Mbps; Serial: RS-232/RS-485 |
| Operating Voltage | 24 V DC nominal |
| Power Consumption | ≤ 5 W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (L×W×H) | 21 x 405 x 400 mm |
| 重量 | 1.5 kg |
| Mounting | DIN Rail / Rack Mountable |
| MTBF | > 100,000 hours |
| Safety Certification | SIL 3 compliant (Safety Integrity Level 3) |
Product Applications
The Triconex 4507 Communication Module is utilized across various industries to ensure safe and reliable communication within safety-critical systems. Typical applications include:
-
Oil & Gas Industry: Facilitates communication between safety systems and field devices in refineries and /fshore platforms.
-
Chemical Processing: Integrates with control systems to monitor and manage chemical production processes safely.
-
Power Generation: Ensures reliable data exchange in nuclear, thermal, and renewable energy plants.
-
Pharmaceutical Manufacturing: Maintains stringent safety standards in the production / pharmaceuticals.
-
Water and Wastewater Treatment: サポートs safe operation and monitoring / treatment facilities.
-
Mining Operations: Provides robust communication in hazardous mining environments.
Product Advantages
-
High Reliability: Designed for continuous operation in safety-critical applications, minimizing downtime.
-
Protocol Flexibility: サポートs multiple communication protocols, allowing integration with various systems.
-
Robust Design: Built to withstand harsh industrial environments, including wide temperature and humidity ranges.
-
Compact Form Factor: Small dimensions facilitate easy installation in control cabinets and limited spaces.
-
Ease / Maintenance: Modular design allows for straightforward replacement and maintenance without system interruption.
-
Safety Compliance: Meets SIL 3 standards, ensuring suitability for high-integrity safety applications.
-
Diagnostic Capabilities: Equipped with self-diagnostic features for proactive maintenance and troubleshooting.
-
Scalability: Can be integrated into systems requiring expansion or upgrades, providing long-term flexibility.
よくある質問 (FAQ)
-
What communication protocols are supported by the Triconex 4507 module?
The module supports Modbus, TCP/IP, and proprietary communication protocols. -
Can the 4507 module operate in extreme temperatures?
Yes, it operates within a temperature range / -20°C to +60°C. -
Is the module suitable for use in high-humidity environments?
Yes, it can operate in humidity levels ranging from 5% to 95% non-condensing. -
What is the power requirement for the 4507 module?
It requires a nominal 24 V DC power supply. -
Does the module support both Ethernet and serial communications?
Yes, it includes Ethernet (10/100 Mbps) and serial (RS-232/RS-485) ports. -
Is the 4507 module compliant with safety standards?
Yes, it is SIL 3 compliant, suitable for high-integrity safety applications. -
What are the dimensions and weight / the module?
Dimensions are 21 x 405 x 400 mm, and it weighs 1.5 kg. -
Can the module be mounted on a DIN rail?
Yes, it is designed for both DIN rail and rack mounting. -
What is the Mean Time Between Failures (MTBF) for the module?
The MTBF is greater than 100,000 hours, indicating high reliability. -
Is the module compatible with other Triconex systems?
Yes, it is designed to integrate seamlessly with other components / the Triconex SIS architecture.
Related モデルs or Equivalent Communication Modules
| モデル | 説明 | Key Features |
|---|---|---|
| Triconex 4508 | High-Speed Channel Interface Module | Enhanced data throughput |
| Triconex 4510 | Communication Processor Module | Advanced processing capabilities |
| Triconex 4351B | Tricon Communication Module | サポートs multiple protocols |
| Triconex 4119 | Enhanced Smart Communication Card | Intelligent communication features |
| Triconex 4329 | Network Communication Card | Network integration capabilities |
| Triconex 4107 | Enhanced Intelligent Communication Module | Versatile communication support |
Popular Triconex モデルs (Same ブランド)
| モデル | Type | Function |
|---|---|---|
| Triconex 3008 | Safety Controller | Core safety control 台 |
| Triconex 3504E | Main Processor Module | Central processing component |
| Triconex 3700A | Analog Input Module | Processes analog signals |
| Triconex 3625 | Digital Output Module | Manages digital outputs |
| Triconex 4351B | Communication Module | Facilitates system communication |
| Triconex 4211 | Power Supply Module | Provides power to the system |
