Product Overview

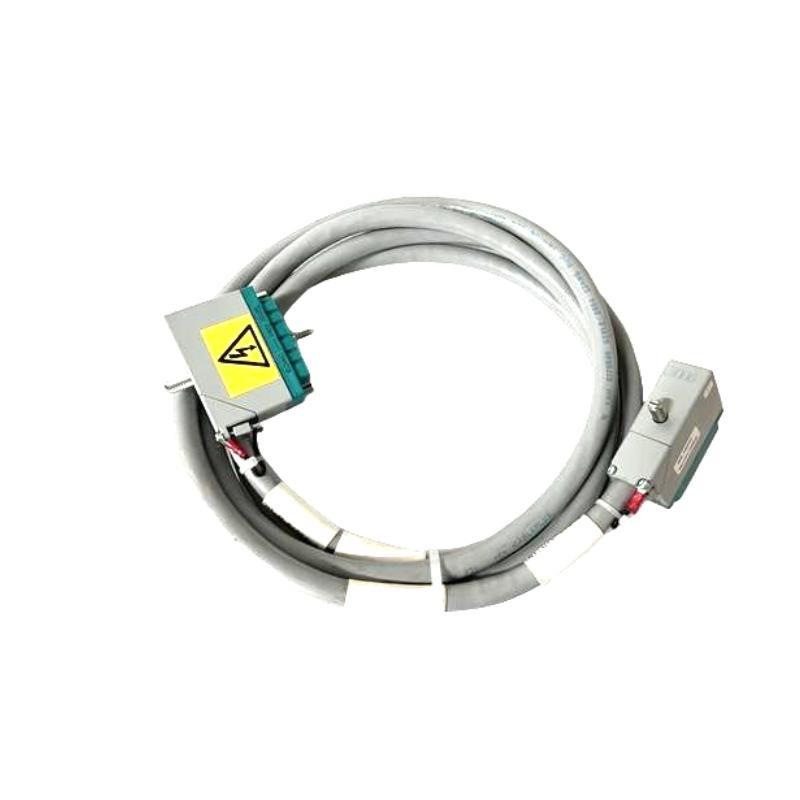

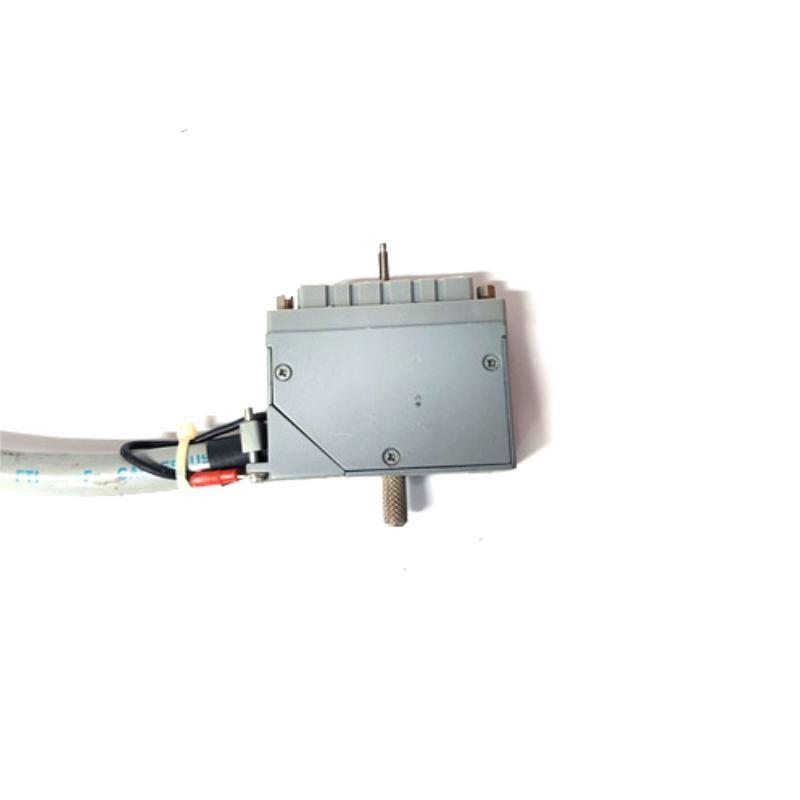

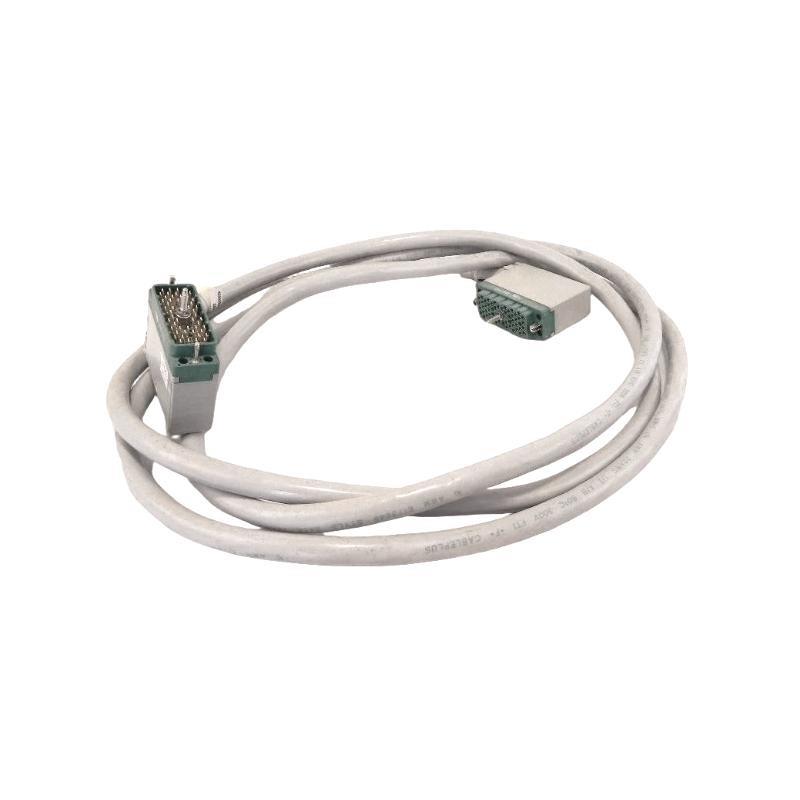

The Triconex 4000093-317 Input Terminal Cable Assembly is a high-reliability cable solution designed specifically for use with Triconex safety and critical control systems. Engineered for precise signal transmission, this cable assembly ensures seamless connection between input modules and associated termination 台s within a Triconex safety system. It is optimized for secure industrial use in demanding automation and process control environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Input Terminal Cable Assembly |
| 型番 | 4000093-317 |
| Compatibility | Triconex Safety Instrumented Systems |
| Minimum Bend Radius | 14.224 cm |
| Cable Length | Factory-specified (typically > 1.5 m) |
| Termination Type | Pre-configured terminal block ends |
| Shielding | Multi-layer industrial EMI shielding |
| Operating Temperature Range | -20°C to +70°C |
| Insulation Material | Industrial-grade thermoplastic |
| Package 重量 | 3 kg |
| Dimensions (approx.) | 120 cm x 25 cm x 8 cm |
Applications
-
Safety Instrumented Systems (SIS)
-
Emergency Shutdown Systems (ESD)
-
Burner Management Systems (BMS)
-
Turbine Control Systems
-
Process Automation for Oil & Gas, Power, and Chemicals
-
I/O connectivity for Triconex input modules
Key Advantages
-
Designed for Triconex systems – Ensures seamless integration with Triconex modules without requiring custom adaptation.
-
Secure and reliable signal transmission – Shielded construction minimizes noise and signal degradation.
-
Factory-terminated for accuracy – Reduces installation errors and improves field reliability.
-
Optimized flexibility – 14.224 cm minimum bend radius allows easy routing in constrained cabinet spaces.
-
Built for harsh environments – Resists temperature variation and EMI in industrial settings.
-
Reduces installation time – Plug-and-play configuration cuts engineering and wiring time.
よくある質問 (FAQ)
Q1: What systems is the 4000093-317 cable assembly compatible with?
A1: It is designed specifically for use with Triconex safety instrumented systems, especially for input module connections.
Q2: Can this cable be used in high-vibration environments?
A2: Yes, its industrial-grade shielding and secure connectors make it suitable for vibration-prone applications.
Q3: What is the bend radius / this cable?
A3: The minimum bend radius is 14.224 cm, enabling flexible routing in confined spaces.
Q4: Is this cable assembly pre-terminated?
A4: Yes, it comes factory-terminated to ensure reliability and reduce installation time.
Q5: Does the cable have EMI protection?
A5: Yes, it features multi-layer EMI shielding for signal integrity.
Q6: What is the weight / the cable assembly package?
A6: The package weighs approximately 3 kg.
Q7: Can I use this cable with Triconex output modules?
A7: No, it is designed specifically for input modules; output modules require different assemblies.
Q8: What is the cable insulation made /?
A8: The insulation uses durable industrial-grade thermoplastic materials for thermal and electrical protection.
Q9: Is there a specific temperature range for operation?
A9: Yes, it operates reliably between -20°C and +70°C.
Q10: Is customization available for cable length?
A10: Yes, length options may be available upon request depending on system requirements.
Related or Similar Triconex Cable モデルs
| モデル | 説明 | Min Bend Radius | 重量 |
|---|---|---|---|
| 4000093-315 | Input Cable Assembly, 24-pin | 12.5 cm | 2.8 kg |
| 4000093-318 | Output Cable Assembly, shielded | 14.0 cm | 3.1 kg |
| 4000093-320 | Input Cable Assembly for 32-point modules | 13.2 cm | 3.2 kg |
| 4000093-322 | Universal Cable Assembly | 14.5 cm | 3.0 kg |
| 4000093-325 | Terminated Input Cable, 1.5m | 14.2 cm | 2.9 kg |
| 4000093-330 | Input/Output Combo Cable | 15.0 cm | 3.5 kg |
Popular Triconex モデルs from the Same ブランド
| モデル | Product Type | Application | 重量 |
|---|---|---|---|
| 3504E | Main Processor Module | SIS Control Core | 1.2 kg |
| 3700A | Analog Input Module | Analog sensor interface | 0.7 kg |
| 3625 | Digital Output Module | Relay and actuator control | 0.8 kg |
| 4351B | Main Processor Module | Redundant CPU applications | 1.4 kg |
| 4119A | Pulse Input Module | Speed/frequency monitoring | 0.6 kg |
| 4507 | Highway Interface Module | TMR-to-DCS communications | 1.1 kg |
