製品紹介

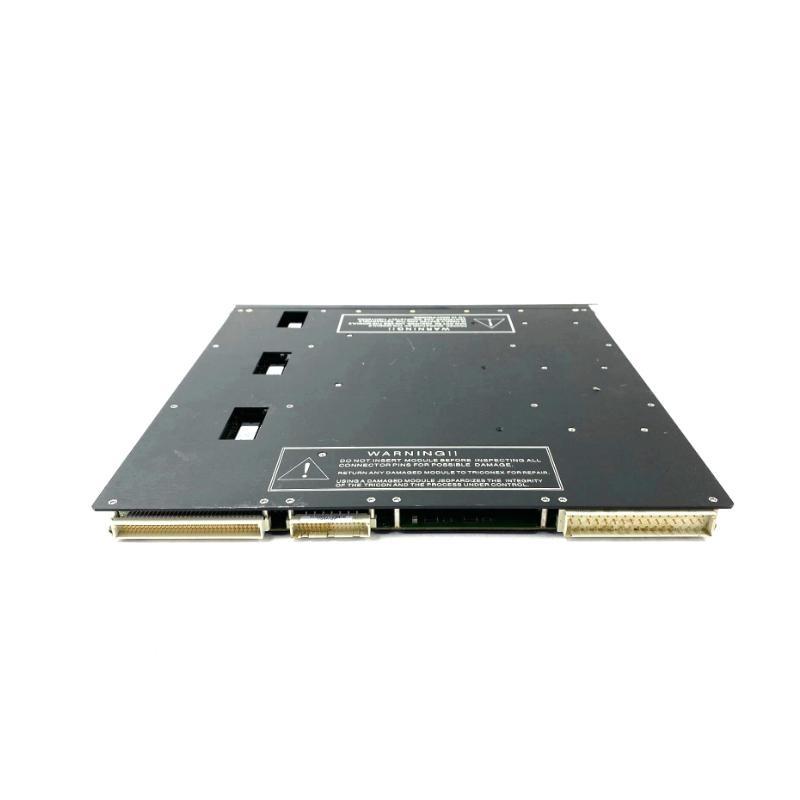

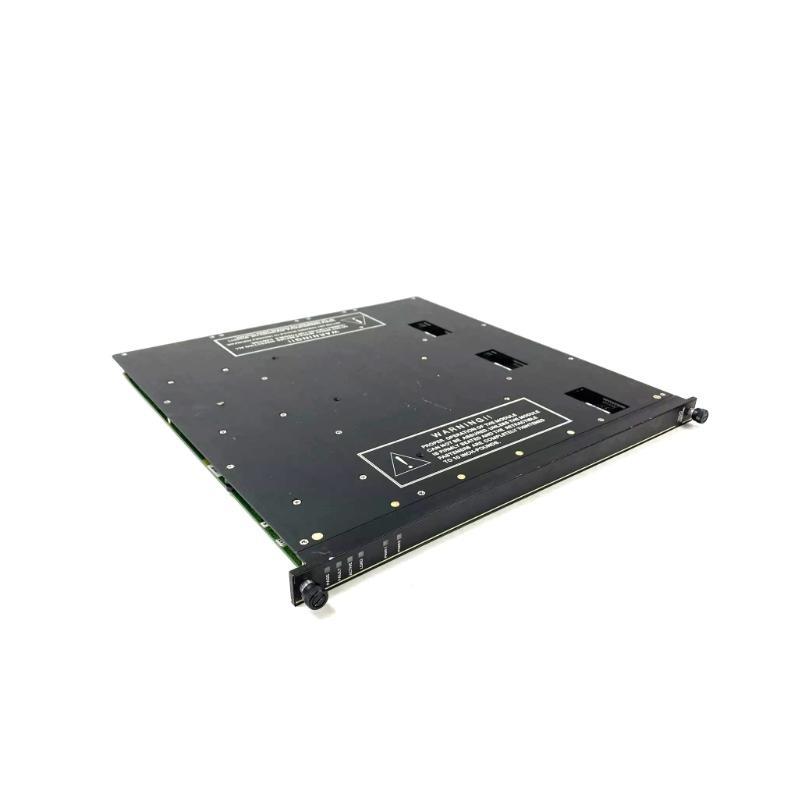

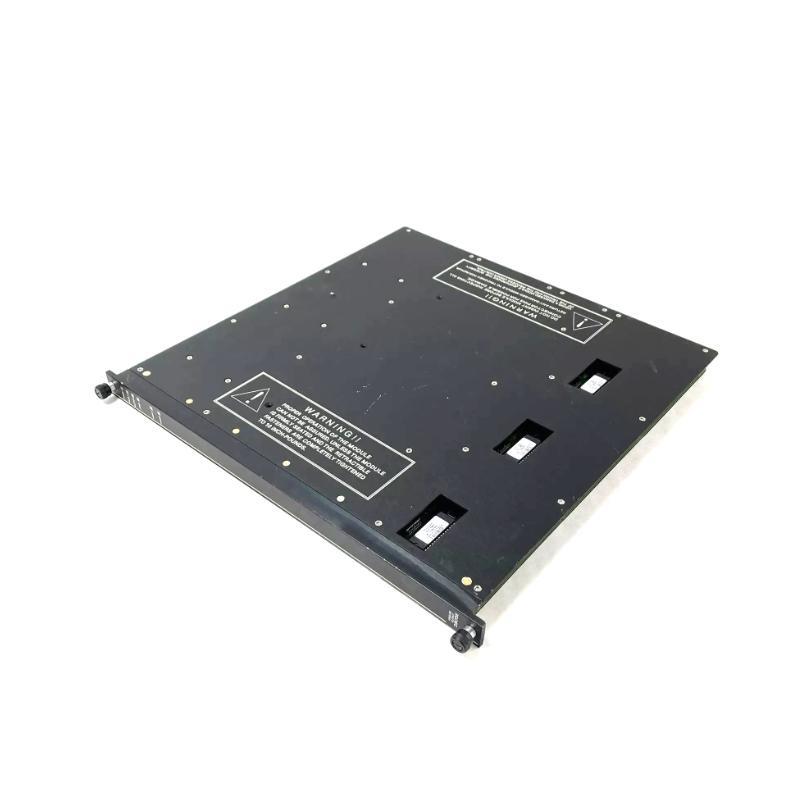

The Triconex 3805E/H Analog Output Module is a high-performance, safety-rated component / the Triconex safety and critical control system architecture, manufactured by Schneider Electric. Designed to meet the rigorous requirements / Safety Integrity Level 3 (SIL 3) as per IEC 61508 standards, this module delivers precise and reliable analog output signals for control / actuators, valves, or other final elements in critical industrial applications.
The 3805E/H is particularly suited for use in safety instrumented systems (SIS) where dependable analog output is essential. It features redundant and fault-tolerant circuitry, ensuring that system operations continue even in the presence / hardware faults. Each module is capable / converting digital values from the Tricon controller into industry-standard analog output signals such as 4–20 mA, ensuring compatibility with a wide range / field devices.
This module not only supports safety-critical environments but also /fers built-in diagnostics and hot-replace capabilities, making it ideal for demanding process industries such as oil and gas, chemical processing, power generation, and manufacturing automation.
製品仕様
| Parameter | Specification |
|---|---|
| モデル | Triconex 3805E/H |
| メーカー | Schneider Electric (Triconex) |
| Module Type | Analog Output Module (Current Output) |
| Safety Standard Compliance | SIL 3 – IEC 61508, IEC 61511 |
| Number / Channels | 8 Analog Output Channels |
| Output Signal Range | 4–20 mA |
| Load Resistance Range | 0 – 750 ohms |
| Resolution | 12-bit DAC resolution |
| Accuracy | ±0.05% / Full Scale at 25°C |
| Isolation | 2500 V channel-to-channel and channel-to-backplane isolation |
| Diagnostics | Loop monitoring, open/short circuit detection |
| Hot-Swap Capability | Yes |
| Operating Voltage | 24 VDC nominal |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting | Rack-mounted in Tricon main chassis |
| Dimensions (H x W x D) | 490 x 490 x 68 mm |
| 重量 | 2.27 kg |
| Communication Interface | Backplane communication with Tricon controller |
Product Applications
The Triconex 3805E/H is designed for a wide array / safety-critical and high-reliability industrial applications where analog signal control is required:
-
Oil & Gas: Regulating control valves in ESD (Emergency Shutdown Systems), BPCS, and pressure control systems.
-
Power Generation: Controlling turbine governors, feedwater control valves, and boiler systems.
-
Petrochemical Plants: Accurate dosing control, temperature regulation, and flow management.
-
Water & Wastewater Treatment: Monitoring and controlling actuators in pH adjustment, chlorination, and filtration.
-
Pharmaceutical Manufacturing: Ensuring precision in batch process control involving temperature and fluid dosing.
-
Chemical Industry: Delivering analog output to safety-rated actuators and continuous process loops.
The module ensures that analog signals required to control physical processes remain stable and accurate even under fault conditions.
Product Advantages
-
SIL 3 Certified Reliability: Provides robust and secure performance in safety-instrumented systems.
-
8-Channel Density: Allows compact installation with high I/O density per slot.
-
Precision Analog Output: Delivers 4–20 mA signals with high accuracy and low drift.
-
Comprehensive Diagnostics: Continuous loop health checking to detect short, open, or deviation.
-
Redundancy サポート: Seamlessly integrates into Triconex’s triple modular redundancy (TMR) architecture.
-
Hot-Swappable: Modules can be replaced without shutting down the system, minimizing process disruption.
-
Wide Environmental Range: Operates in harsh and demanding industrial environments.
-
Flexible Configuration: サポートs dynamic mapping and diagnostics through the Triconex controller.
よくある質問 (FAQ)
-
What output range does the Triconex 3805E/H support?
The module supports standard 4–20 mA analog output signals. -
How many output channels are available?
The 3805E/H provides 8 independent analog output channels. -
Is the 3805E/H hot-swappable?
Yes, the module can be replaced while the system is powered on and running. -
Is it suitable for use in SIL 3 environments?
Yes, it meets SIL 3 certification under IEC 61508 and IEC 61511 standards. -
What level / diagnostic capability does it /fer?
It features advanced diagnostics, including loop monitoring, and detects open or short circuits. -
Can the module drive high-impedance loads?
Yes, the output can handle loads up to 750 ohms. -
Is there isolation between channels?
Yes, each channel is electrically isolated from others and from the backplane. -
What is the physical size / the 3805E/H module?
It measures 490 x 490 x 68 mm. -
How accurate is the analog output signal?
Accuracy is rated at ±0.05% / full scale at 25°C. -
Where is the module typically mounted?
It is installed in the main Triconex chassis and communicates via the system backplane.
