Product Introduction

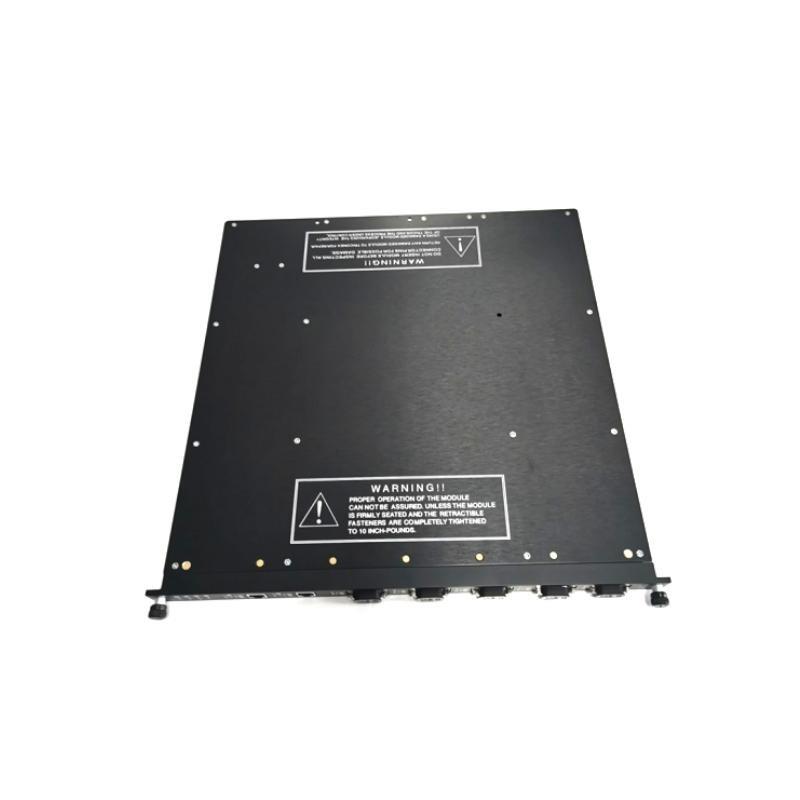

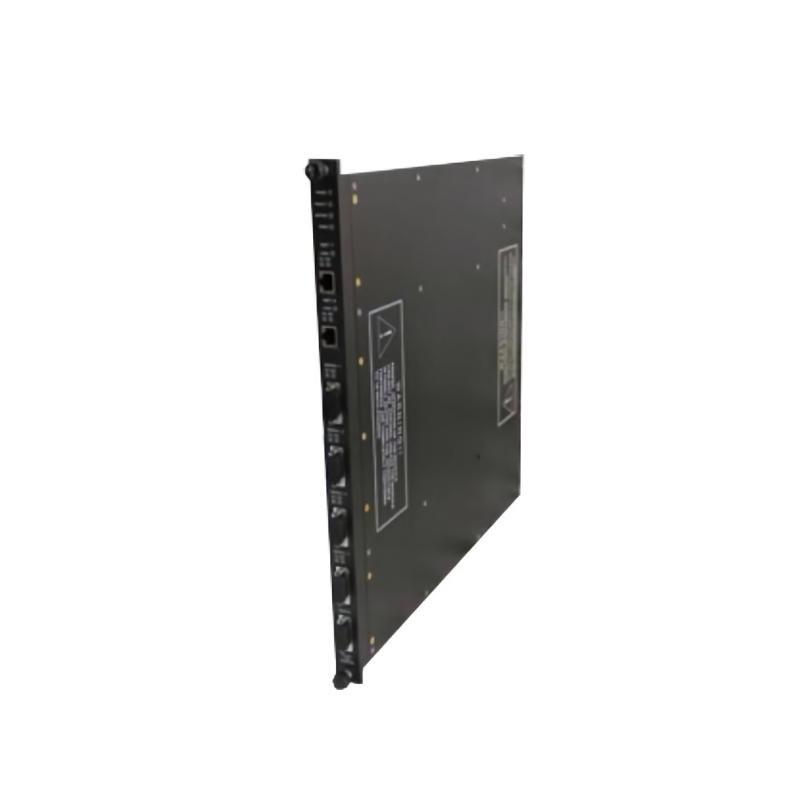

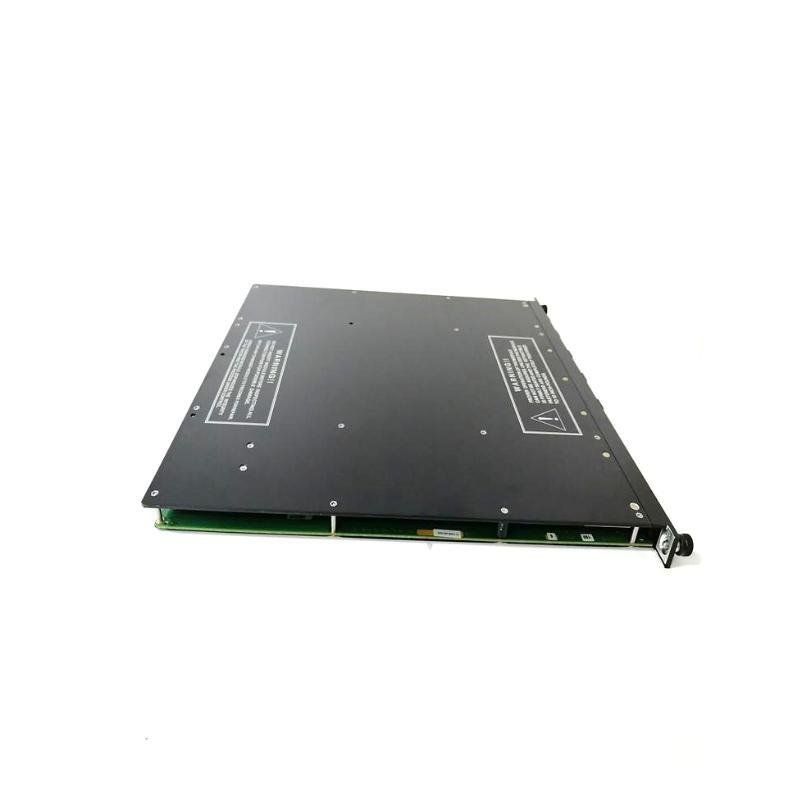

The Triconex 3706A Thermocouple Analog Input Module is an advanced input module designed specifically for reading and processing signals from thermocouples in industrial safety and automation systems. As part / the robust and fault-tolerant Triconex platform, the 3706A ensures precise temperature data acquisition with high integrity and safety.
The module accepts input from a variety / thermocouple types including Type J, K, T, E, N, R, S, and B, making it versatile for a broad range / temperature measurement applications. Each channel is galvanically isolated, providing high imm台y to electrical noise and ensuring safe operation even in hazardous environments. Designed for critical applications in oil and gas, petrochemical, power generation, and manufacturing sectors, the 3706A /fers both performance and reliability.
The 3706A is typically deployed within Tricon controllers to provide accurate temperature data critical for both process control and safety functions. It supports redundant configurations and diagnostics to meet the highest safety integrity levels (SIL3).
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | 3706A |
| Module Type | Thermocouple Analog Input Module |
| Number / Channels | 16 isolated channels |
| サポートed Thermocouple Types | J, K, T, E, N, R, S, B |
| Input Range (varies by type) | -200°C to +1800°C |
| Input Impedance | >10 MΩ |
| Input Isolation | 1500 V AC (channel-to-channel and to ground) |
| Accuracy | ±0.25% / full scale or better |
| Resolution | 16-bit ADC |
| Cold Junction Compensation | Automatic, per channel |
| Update Rate | 100 ms typical |
| Diagnostics | Open circuit detection, over-range detection |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Mounting | DIN Rail |
| Power Consumption | 6 W |
| Dimensions (H x W x D) | 273 x 213 x 25 mm |
| 重量 | 1.4 kg |
| Certifications | CE, UL, FM, ATEX, IEC 61508 SIL3 |
| System Compatibility | Triconex Safety Systems (Tricon v10, Tricon CX) |
Product Applications
The Triconex 3706A module is ideal for a wide range / temperature monitoring applications across multiple industries. Its support for multiple thermocouple types allows it to handle diverse process requirements in safety and automation systems. Below are key application scenarios:
-
Oil and Gas Industry: Monitoring process temperatures in refineries, pipelines, and /fshore platforms where safety and reliability are critical.
-
Chemical Processing Plants: Precise temperature tracking in reaction chambers and storage tanks to ensure process control and compliance with safety protocols.
-
Power Generation: Monitoring boiler temperatures, turbine systems, and heat exchangers to prevent equipment failure and ensure safe operations.
-
Pharmaceutical Manufacturing: Accurate thermal regulation for batch production and quality assurance.
-
Food and Beverage Industry: Ensures precise cooking, pasteurization, and refrigeration processes.
-
Metals and Mining: Real-time monitoring / furnace temperatures and molten material control.
Product Advantages
The Triconex 3706A Thermocouple Input Module /fers a set / core advantages that make it a preferred choice for engineers and system integrators working on mission-critical safety and control systems:
-
Multi-Type Thermocouple サポート: Enables integration with a wide variety / thermocouple sensors, reducing the need for different modules.
-
Channel Isolation: Each input channel is isolated, preventing signal interference and cross-talk between channels.
-
High Measurement Accuracy: Provides reliable temperature readings critical for tight process control and safety monitoring.
-
Cold Junction Compensation (CJC): Built-in CJC on each channel ensures accurate thermocouple readings without external compensation.
-
Robust Design: Operates reliably in wide temperature ranges and harsh industrial environments.
-
Fault Detection: Built-in diagnostics detect sensor failures, open circuits, and out-/-range signals, improving system reliability.
-
Certified Safety Compliance: Meets IEC 61508 SIL3 standards, making it suitable for safety instrumented systems (SIS).
-
Seamless Integration: Fully compatible with Tricon controllers and safety systems, simplifying system configuration.
-
Compact Form Factor: Slim, DIN-rail-mounted design saves cabinet space.
-
Energy Efficient: With 6W power consumption, it provides efficient thermal input without excessive power use.
よくある質問 (FAQ)
-
What thermocouple types are supported by the Triconex 3706A?
The module supports J, K, T, E, N, R, S, and B thermocouple types. -
How many channels does the 3706A module provide?
It /fers 16 isolated thermocouple input channels. -
Is the 3706A suitable for use in SIL3-certified systems?
Yes, the module is certified for use in IEC 61508 SIL3 applications. -
Does the module perform cold junction compensation?
Yes, each channel features built-in automatic cold junction compensation. -
What is the isolation rating / the input channels?
Each channel is isolated at 1500 V AC from other channels and ground. -
What is the typical update rate for readings?
The module updates input readings every 100 ms. -
Can the 3706A detect sensor failures?
Yes, it includes diagnostics for open circuits and signal over-range detection. -
What are the physical dimensions and weight / the module?
The module measures 273 x 213 x 25 mm and weighs 1.4 kg. -
What systems is the 3706A compatible with?
It is compatible with Triconex systems including Tricon v10 and Tricon CX. -
Is it suitable for use in hazardous environments?
Yes, it holds certifications such as ATEX and FM for use in hazardous areas.
Related モデルs from the Same Series or Function
| モデル | 説明 | Function | Channels | Compatibility |
|---|---|---|---|---|
| 3705E | High Accuracy Analog Input Module | Analog Input | 8 | Tricon v10, Tricon CX |
| 3703E | Isolated Analog Input Module | Standard Analog Input | 8 | Tricon v10, Tricon CX |
| 3702E | Digital Input Module | Digital Input | 32 | Tricon v10, Tricon CX |
| 3704E | Analog Output Module | Analog Output | 4 | Tricon v10, Tricon CX |
| 3710A | RTD Input Module | Resistance Temperature Device | 6 | Tricon v10, Tricon CX |
| 3715E | Isolated Thermocouple Input Module | Thermocouple Input | 4 | Tricon v10, Tricon CX |
