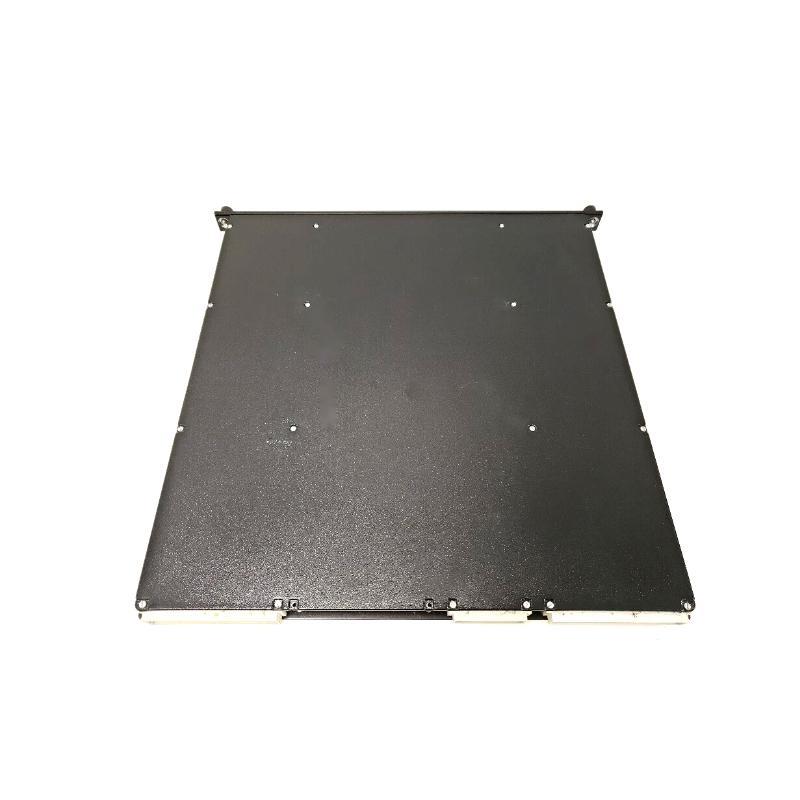

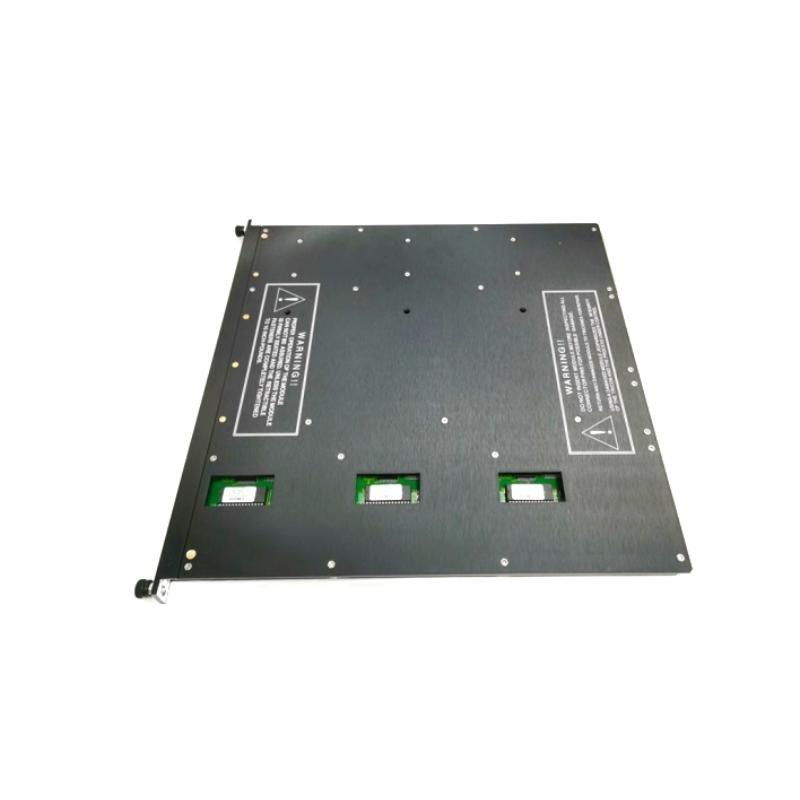

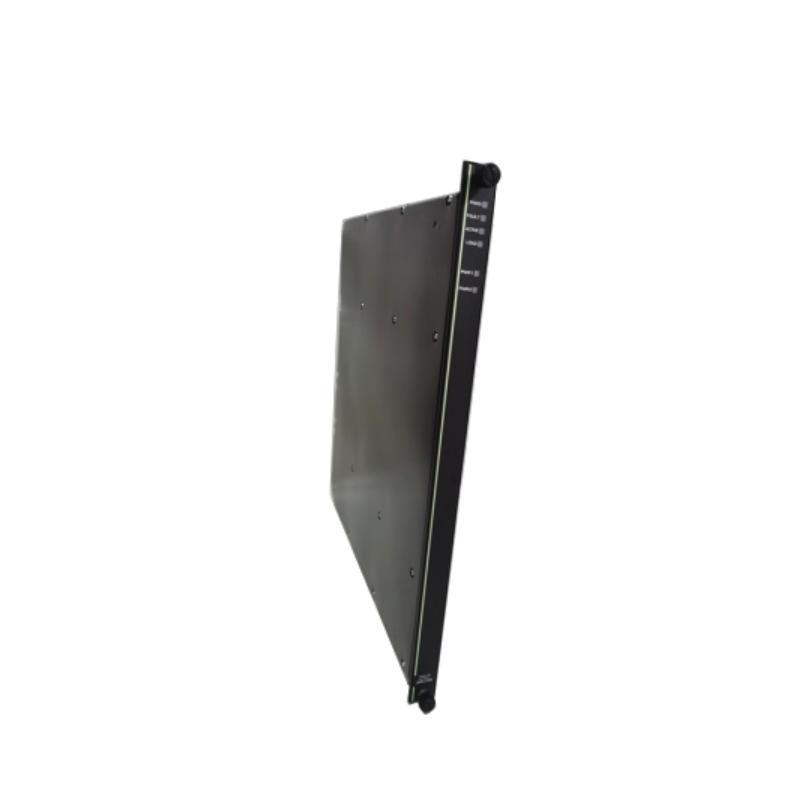

Triconex 3703E Isolated Analog Input Module

製品紹介

The Triconex 3703E Isolated Analog Input Module is designed for use in critical industrial safety and control systems. As part / the Triconex safety system, the 3703E module provides robust, reliable, and isolated analog inputs to the system, ensuring safety integrity in high-demand environments. It /fers precise and highly isolated input for various process control applications, such as temperature, pressure, flow, and level monitoring.

The module is widely utilized in industries where safety and fault tolerance are paramount, such as oil & gas, chemicals, power generation, and manufacturing. With its high-quality design, the 3703E is built to withstand harsh environmental conditions while maintaining optimal performance.

製品仕様

Product Applications

The Triconex 3703E Isolated Analog Input Module is primarily used in industrial environments where critical safety systems require analog signals to be monitored and isolated to ensure operational safety. Some / the primary applications / the 3703E module include:

• Temperature Monitoring: Used in temperature sensors to isolate and monitor critical temperature levels in chemical plants, power stations, and oil & gas refineries.

• Pressure and Flow Control: Suitable for pressure transducers and flow meters, ensuring safe and reliable pressure monitoring in high-risk areas.

• Level Monitoring: Used in level transmitters to measure liquid or solid levels in storage tanks or vessels, vital in hazardous environments.

• Safety and Alarm Systems: Integrated into safety-related control systems for process monitoring, alarms, and shutdowns.

• Regulatory Compliance: Used for processes that must comply with safety regulations such as those outlined by IEC 61508 for functional safety.

Product Advantages

The Triconex 3703E /fers several key advantages that make it a preferred choice for critical industrial safety systems:

• High Isolation and Safety: With 1500 V AC isolation between channels and ground, the 3703E ensures that signals are safely monitored without interference, even in hazardous environments.

• High Accuracy and Resolution: The 3703E provides precise 16-bit resolution and ±0.1% full-scale accuracy, ensuring accurate readings and reliable control.

• Rugged and Reliable: Designed to withstand extreme temperatures (-40°C to +70°C), the module ensures continued operation in harsh industrial conditions.

• Wide Input Range: サポートs a wide range / analog input signals (4-20 mA, 0-10 V, 1-5 V), providing flexibility in different applications.

• Easy Integration: Mounts easily on standard DIN rails, and integrates seamlessly with Triconex control systems, including the Tricon 3030 and Tricon CX.

• Low Power Consumption: The module operates efficiently, consuming only 4 W / power, making it suitable for energy-conscious applications.

• Built-in Redundancy: The 3703E is designed for use in redundant systems, providing high availability and fault tolerance in safety applications.

• Certification for Hazardous Areas: Certified for use in hazardous locations (ATEX, FM, CE), ensuring compliance with industry safety standards.

• Maintenance-Free: The module’s rugged design and passive operation mean it requires little to no maintenance during its lifetime.

よくある質問 (FAQ)

1. What is the purpose / the 3703E Isolated Analog Input Module?
   The 3703E is designed to provide isolated, high-accuracy analog input signals to Triconex safety systems, ensuring safety and integrity in industrial applications.

2. What is the maximum number / channels available on the 3703E module?
   The module supports 8 analog input channels.

3. What types / input signals does the 3703E support?
   It supports 4-20 mA, 0-10 V, and 1-5 V input signals.

4. What is the isolation voltage between channels?
   The 3703E module /fers 1500 V AC isolation between channels and ground, ensuring safe operation in critical environments.

5. What is the operating temperature range / the 3703E?
   The module operates in temperatures ranging from -40°C to +70°C.

6. Is the 3703E suitable for hazardous locations?
   Yes, it is certified for use in hazardous areas and complies with certifications such as UL, CE, and ATEX.

7. What is the accuracy / the 3703E module?
   The 3703E provides a high level / accuracy, with a ±0.1% / full-scale error.

8. Can the 3703E be used in redundant systems?
   Yes, it is designed for use in safety-critical and redundant systems to enhance reliability.

9. What is the power consumption / the 3703E?
   The 3703E has a low power consumption / just 4 W.

10. What certifications does the 3703E have?
    It is certified for use with UL, CE, FM, and ATEX safety standards, ensuring compliance with industrial regulations.
