製品紹介

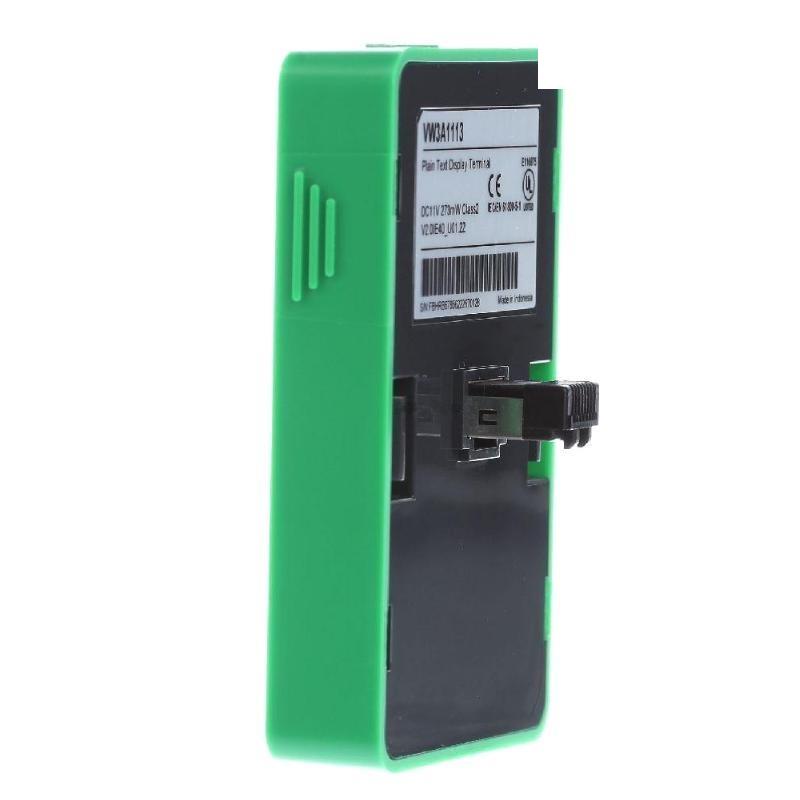

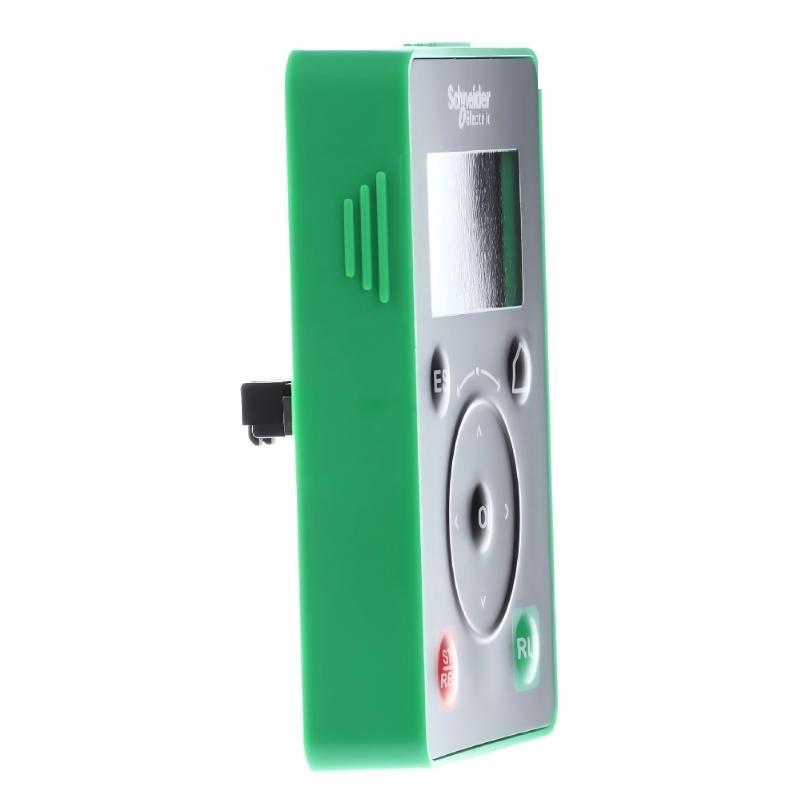

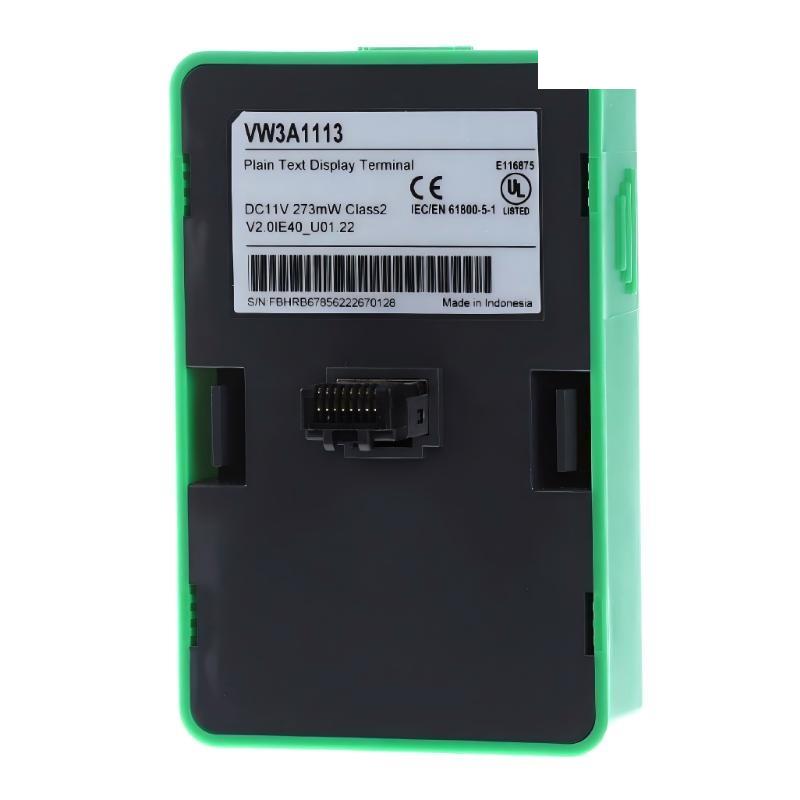

The Schneider VW3A1113 Plain Text Display Terminal is a dialogue interface for Altivar variable speed drives. It allows operators to control, configure, and monitor the drive, providing essential feedback on motor, I/O, and machine data.
The terminal can be mounted directly on the front / the drive, or with a separate remote mounting kit on the enclosure door (IP43 protection). With IP21 protection for front mounting, the VW3A1113 ensures safe operation in standard industrial environments.
It supports configuration management, enabling operators to store, download, and duplicate drive configurations efficiently. This terminal is an ideal solution for applications requiring basic textual display and control functionality.
製品仕様
| Parameter | Specification |
|---|---|
| Module Type | Plain Text Display Terminal |
| Compatible Drives | Altivar Variable Speed Drives |
| Protection Index | IP21 (front-mounted), IP43 (with optional remote kit) |
| Pixel resolution | 128 x 64 |
| Connection Interface | Direct terminal connection / optional remote kit |
| Display Type | Plain text LCD |
| Display Lines | 2 lines (plain text) |
| サポートed Functions | Drive control, parameter adjustment, configuration storage, configuration duplication |
| Configuration Storage Capacity | Multiple configurations (user-defined) |
| Diagnostics サポート | Basic operational feedback and status messages |
| Dimensions | 99 × 59.4 × 70 mm |
| 重量 | 0.05 kg |
Applications
• Drive Control: Operate and adjust Altivar variable speed drives with a simple textual interface.
• Parameter Configuration: Configure and tune drive settings efficiently.
• Status Monitoring: Display current values / motor, I/O, and machine data for real-time monitoring.
• Configuration Management: Store, download, and duplicate drive configurations to streamline setup and maintenance.
• Enclosure Door Installation: Optionally mount using a remote kit to place the terminal on the control enclosure door.
• Industrial Use: Provides basic control and monitoring in environments compatible with IP21/IP43 protection.
Advantages
• User-Friendly Interface: Simplifies interaction with Altivar drives using a plain text display.
• Flexible Mounting Options: Can be installed directly on the drive or on an enclosure door with the optional mounting kit.
• Efficient Configuration Management: Allows duplication and transfer / drive configurations to other drives.
• Reliable Operation: Engineered for industrial conditions with IP21/IP43 protection.
• Compact and Lightweight: Minimal footprint while providing essential drive control and monitoring functionality.
• Basic but Effective: Ideal for applications requiring simple textual monitoring and configuration.
