製品紹介

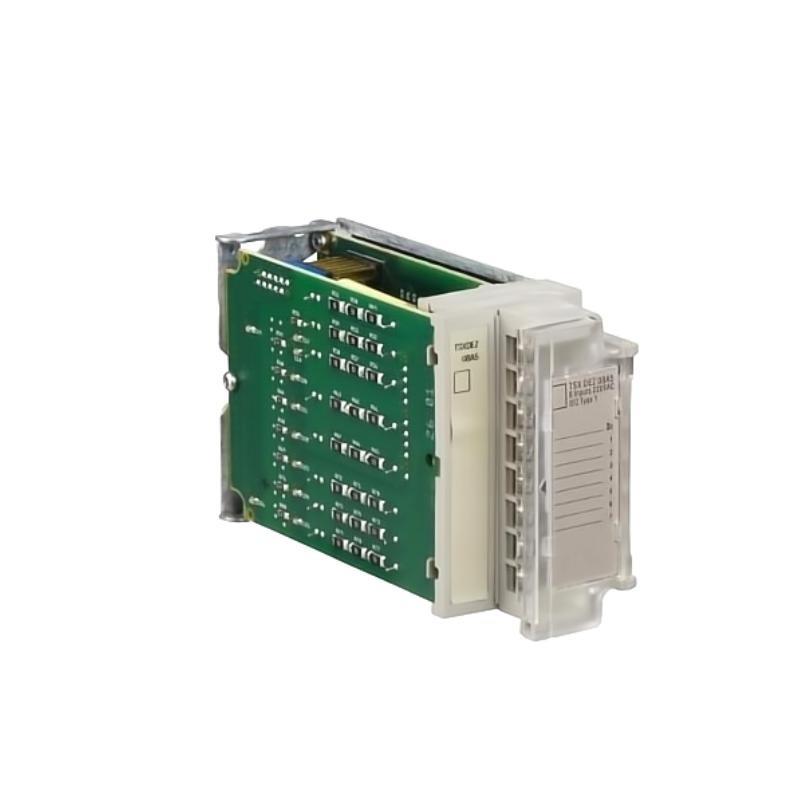

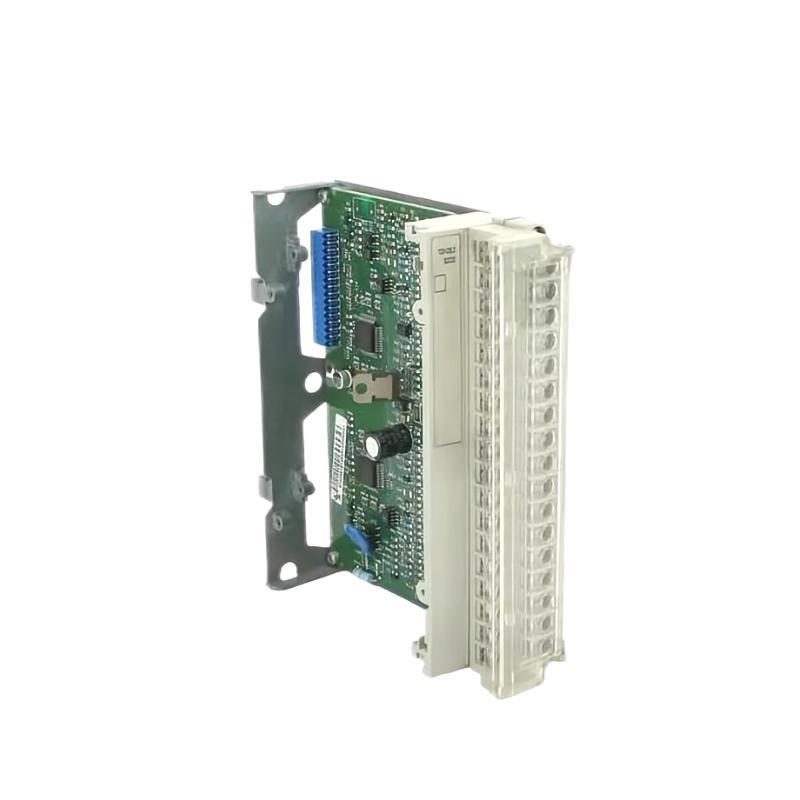

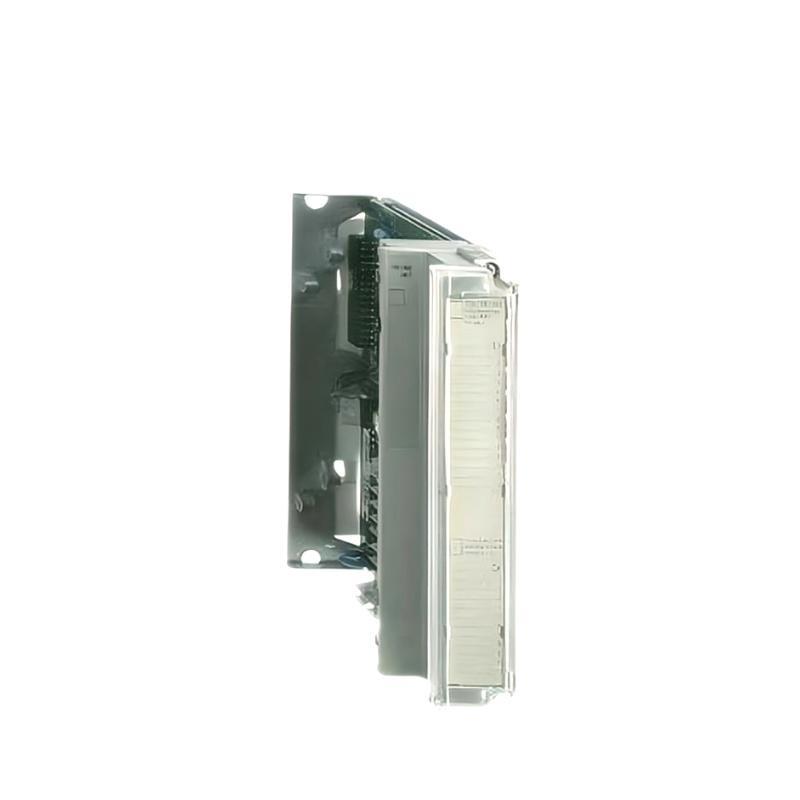

The Schneider Electric TSXDEZ32D2 is a high-density 32-channel discrete input module engineered for the Modicon TSX Premium PLC platform. This robust and efficient module is designed to acquire 24 V DC logic-level signals from field devices, including sensors, switches, and push-buttons. Each channel is individually isolated and filtered, ensuring reliable detection / digital signals even in electrically noisy industrial environments.
The TSXDEZ32D2 integrates seamlessly into a TSX Premium rack and communicates via the backplane bus. It supports fast signal acquisition, real-time response, and advanced diagnostics, making it a trusted solution in discrete automation applications across manufacturing, utilities, and process control systems.
This module is a cost-effective and scalable way to expand the digital input capability / TSX-based control systems without increasing panel space requirements.
製品仕様
| Parameter | Specification |
|---|---|
| モデル | TSXDEZ32D2 |
| メーカー | Schneider Electric |
| Product Type | Discrete Input Module |
| Input Channels | 32 inputs |
| Input Voltage | 24 V DC |
| Voltage Range | 19.2 V DC to 30 V DC |
| Input Type | Sourcing/Sinking |
| Input Current (typical) | 7 mA per channel |
| Input Delay | 4 ms ON/OFF (typical debounce) |
| Input Impedance | Approx. 3.4 kΩ |
| Isolation | Optical isolation per channel |
| LED Indicators | Yes, 1 per channel |
| Mounting Method | DIN rail via TSX Premium backplane |
| Compatible System | Modicon TSX Premium |
| Protection Level | IP20 (internal cabinet use) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Communication Interface | Internal backplane (TSX bus) |
| Dimensions (W × H × D) | 55 × 180 × 260 mm |
| 重量 | 0.3 kg |
| Certifications | CE, UL, CSA |
Product Applications
The TSXDEZ32D2 module is optimized for discrete signal acquisition in automation systems. Its design and feature set make it highly suitable for:
-
Factory Automation
Acquiring digital signals from limit switches, interlock devices, and operator push-buttons. -
Material Handling Systems
Receiving status signals from proximity sensors and mechanical actuators. -
Packaging Machinery
Monitoring conveyor sensors, fault alarms, and product detection switches. -
Infrastructure & Utilities
Connecting with field contactors and protection relays in water treatment or energy systems. -
Automated Assembly Lines
Detecting positioning feedback and start/stop signals from assembly stations. -
Energy Monitoring and Management
Collecting binary data from smart energy devices, switches, or control breakers.
Product Advantages
-
High-Density Input
Offers 32 input points in a compact form factor to optimize cabinet space. -
Robust Industrial Design
Engineered to operate reliably in environments with electrical noise and temperature variation. -
Fast Switching Response
4 ms typical delay ensures accurate and quick signal registration for real-time operations. -
Independent LED Indication
Each input has an individual LED, simplifying diagnostics and system monitoring. -
Modular Scalability
Easily adds digital input capacity to existing TSX Premium systems. -
DIN Rail Compatibility
Simplifies mounting and integration with existing TSX backplane infrastructure. -
Field Proven
Widely deployed in various industrial sectors with high reliability track record. -
Flexible Input Logic
サポートs both positive and negative logic configurations (sourcing/sinking). -
Maintenance Friendly
Modular plug-in style simplifies module replacement and system maintenance. -
Long Lifecycle サポート
Backed by Schneider’s commitment to long-term support for TSX Premium products.
よくある質問 (FAQ)
-
What is the voltage rating / the TSXDEZ32D2 module?
It operates at 24 V DC with a range from 19.2 V to 30 V DC. -
How many inputs are available on this module?
The module supports 32 discrete input channels. -
Are the inputs optically isolated?
Yes, all channels feature optical isolation to enhance system safety and noise imm台y. -
Can this module detect both PNP and NPN signals?
Yes, it is configurable for sourcing (PNP) or sinking (NPN) devices. -
Is it suitable for fast switching applications?
Yes, with a typical delay / 4 ms, it’s ideal for most industrial digital signals. -
Does it require separate power for the inputs?
Input power is typically sourced externally, but the module draws control power from the TSX backplane. -
What PLC series is it compatible with?
It is designed for the Schneider Modicon TSX Premium PLC series. -
Are input statuses visible locally?
Yes, every input channel has a corresponding LED indicator on the front panel. -
How is the module mounted?
It mounts via a DIN rail in a TSX Premium rack system. -
Is the TSXDEZ32D2 CE certified?
Yes, it carries CE, UL, and CSA certifications.
Recommended Related モデルs (Same Series)
| モデル | 説明 | Type | Compatibility |
|---|---|---|---|
| TSXDEZ12D2K | 12-Channel Discrete Input Module | Discrete Input | TSX Premium Series |
| TSXDEY32D2K | 32-Channel Discrete Input Module (Sourcing) | Discrete Input | TSX Premium Series |
| TSXDMZ64DTK | 64-Channel Mixed Digital I/O Module | Digital I/O | TSX Premium Series |
| TSXAEY1600 | 8-Channel Analog Input Module | Analog Input | TSX Premium Series |
| TSXETY4103 | Ethernet Communication Module | Networking | TSX Premium Series |
| TSXCTZ2B | Counter and Encoder Input Module | Motion Feedback | TSX Premium Series |
Popular Schneider モデルs (Same ブランド)
| モデル | 説明 | Function | Product Line |
|---|---|---|---|
| BMXP342020 | PLC Processor Module for Compact M340 | Logic Controller | Modicon M340 |
| BMENOC0301 | Ethernet Communication Module | Communication Module | Modicon M340 |
| TM241CEC24R | Compact Controller with Ethernet and Relays | Integrated PLC | Modicon M241 |
| ATV320U22N4C | 2.2 kW Variable Speed Drive | Motor Control Drive | Altivar 320 |
| LXM32AD12M2 | 1.2 kW Servo Drive | Motion Control Drive | Lexium 32 |
| STBXBE1200 | Advantys STB Power Distribution Module | Remote I/O | Advantys STB |
