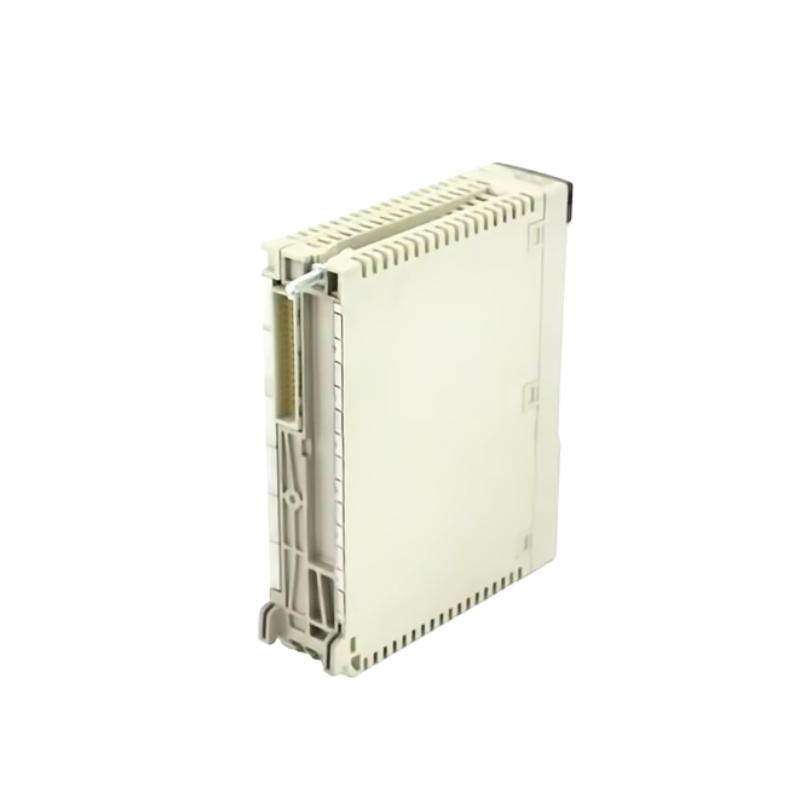

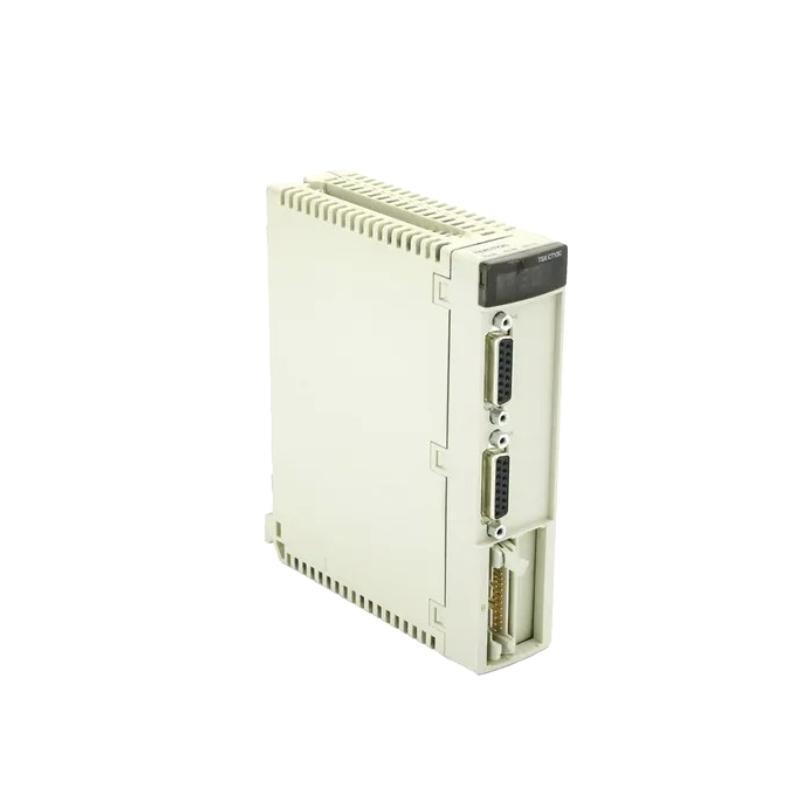

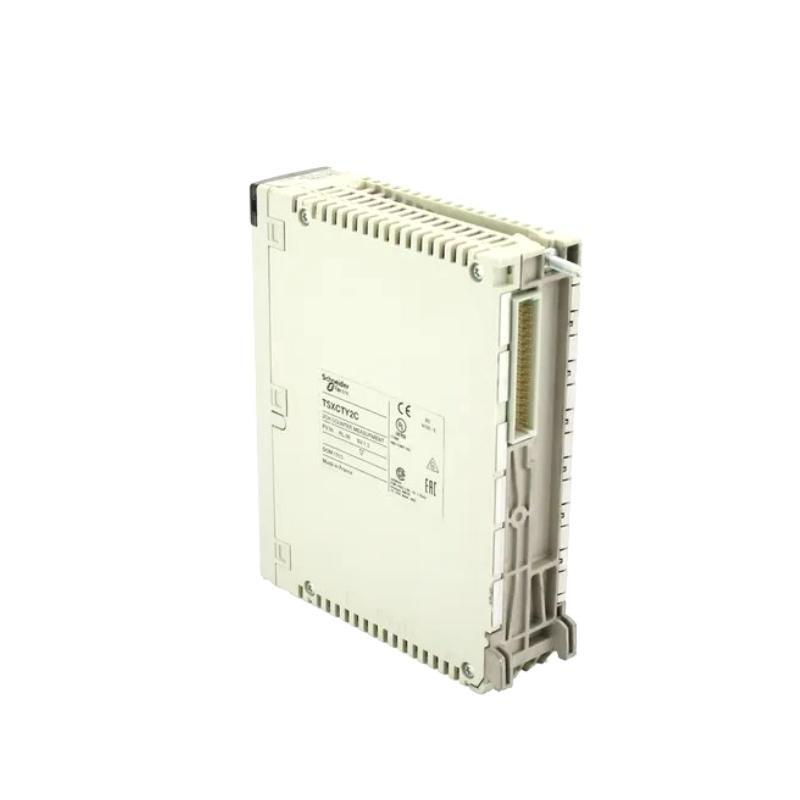

The Schneider TSXCTY2C is a high-performance Measurement and Counter Module designed for use within the Modicon Premium PLC system. This module provides precise pulse and frequency counting functions with time-stamped accuracy, tailored to monitor and control fast industrial processes. It is particularly valuable in applications where real-time counting and event detection are critical, such as in packaging machines, conveyors, and flow metering systems.
Capable / operating independently from the PLC scan cycle, the TSXCTY2C enhances control system responsiveness while reducing the processing burden on the central CPU. With robust electrical isolation and built-in filtering, the module ensures reliable performance in electrically noisy environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | TSXCTY2C Measurement and Counter Module |
| メーカー | Schneider Electric |
| Product Type | Counter / Measurement Module |
| Input Channels | 2 Counting Inputs |
| Counter Type | Up/down, frequency, period, time stamping |
| Max Input Frequency | 200 kHz per channel |
| Input Voltage | 24 VDC nominal (sink/source compatible) |
| Electrical Isolation | 500 V between channels and internal bus |
| Internal Power Consumption | 300 mA (5 VDC from rack) |
| Mounting Type | Rack-mounted (Premium PLC backplane) |
| Dimensions (W x H x D) | 55 ×180 × 260 mm |
| 重量 | 0.34 kg |
| Module Format | Single-slot |
| Diagnostics | Yes – with LED indicators |
| Communication | Local rack communication with CPU |
| Status Indicators | 6 LEDs (module status, input state) |
| Temperature Range | 0°C to +60°C (operating) |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 |
| Certifications | CE, UL, CSA |
Product Applications
The TSXCTY2C module is widely adopted across industries where rapid signal acquisition and pulse-based control are essential:
-
Packaging Lines – Monitoring product flow, trigger timing, and controlling rotary encoders.
-
Conveyor Systems – Accurate pulse counting for material tracking and movement measurement.
-
Water and Gas Flow Measurement – Capturing pulses from flow meters for totalization.
-
Textile Machinery – Counting revolutions, thread cuts, and detecting over-speed events.
-
Food and Beverage Production – Timed event triggering and object counting.
-
Automotive Assembly – Measuring component feed cycles and part placement verification.
Product Advantages
-
High-Speed Counting: Handles frequencies up to 200 kHz, suitable for fast-moving industrial processes.
-
Real-Time Time Stamping: Precise event recording independent / the PLC scan time improves responsiveness.
-
Electrical Isolation: Enhances safety and signal integrity even in high-noise environments.
-
Compact Footprint: Fits within a single rack slot / the Modicon Premium PLC system.
-
Versatile Modes: サポートs multiple counting modes including up, down, frequency, period, and direction.
-
LED Diagnostics: Real-time visibility into channel and module status simplifies troubleshooting.
-
Rugged Construction: Designed for continuous industrial operation in demanding environments.
-
Integration Ready: Seamlessly connects with ユニットy Pro and other Schneider automation s/tware.
よくある質問 (FAQ)
-
Q: What type / signals does the TSXCTY2C accept?
A: It accepts 24 VDC digital pulse signals from encoders, sensors, or proximity switches. -
Q: How many counters are available on the module?
A: It /fers two independent high-speed counter channels. -
Q: What is the maximum frequency that can be counted?
A: Each input channel supports up to 200 kHz signal frequency. -
Q: Does the module support direction detection for quadrature encoders?
A: Yes, it supports directional counting when used with quadrature encoder inputs. -
Q: Can it operate independently from the main CPU scan cycle?
A: Yes, it features time-stamping and autonomous counter operation. -
Q: What tools are used to configure the module?
A: Configuration is done via Schneider’s ユニットy Pro or Concept s/tware platforms. -
Q: Is it hot-swappable?
A: No, it should be powered down before replacing or removing the module. -
Q: Does it include any on-board memory or buffering?
A: Yes, it includes internal buffers to store time-stamped events. -
Q: What type / diagnostics are available?
A: The module has LED indicators for input state, error status, and communication health. -
Q: Can it be used with other brands / PLCs?
A: No, it is designed specifically for Schneider Modicon Premium PLC systems.
Related or Same-Series モデルs
| モデル Number | 説明 | Channels | Function | Input Type |
|---|---|---|---|---|
| TSXCTY2A | Standard Counter Module | 2 | High-speed counter | 24 VDC Pulse |
| TSXDSY32T2K | Digital Output Module | 32 | Digital Output (24 VDC) | Transistor |
| TSXDEY16D2K | Digital Input Module | 16 | Digital Input | 24 VDC |
| TSXAEY414 | Analog Input Module | 4 | Analog Input (Voltage/Current) | 0–10 V / 4–20 mA |
| TSXP574634M | Premium PLC Processor | – | PLC CPU | – |
| TSXDMZ64DTK | Mixed Digital I/O Module | 64 | 32 DI / 32 DO | 24 VDC |
Popular モデルs from Schneider Electric
| モデル Number | Product Name | カテゴリー | Key Features |
|---|---|---|---|
| TM251MESE | Modicon M251 Logic Controller | PLC | Ethernet, CANopen, high-speed I/O |
| BMXP342020 | Modicon Premium CPU | PLC CPU | 512 kB Program Memory, ユニットy Pro compatible |
| ATV930C13N4 | Altivar 930 Variable Speed Drive | VSD | 132 kW, Advanced motor control, IP21 |
| HMIGTO5310 | Magelis HMI Touchscreen Panel | HMI | 10.4″, Ethernet, USB, SD card support |
| LXM62DD72C21000 | Lexium 62 Multi-Axis Servo Drive | Motion Control | 7.2 A, CANopen, EtherCAT |
| BMEH582040 | Modicon M580 ePAC CPU | PLC CPU | 4 MB Program, Dual Ethernet, Cybersecurity |
