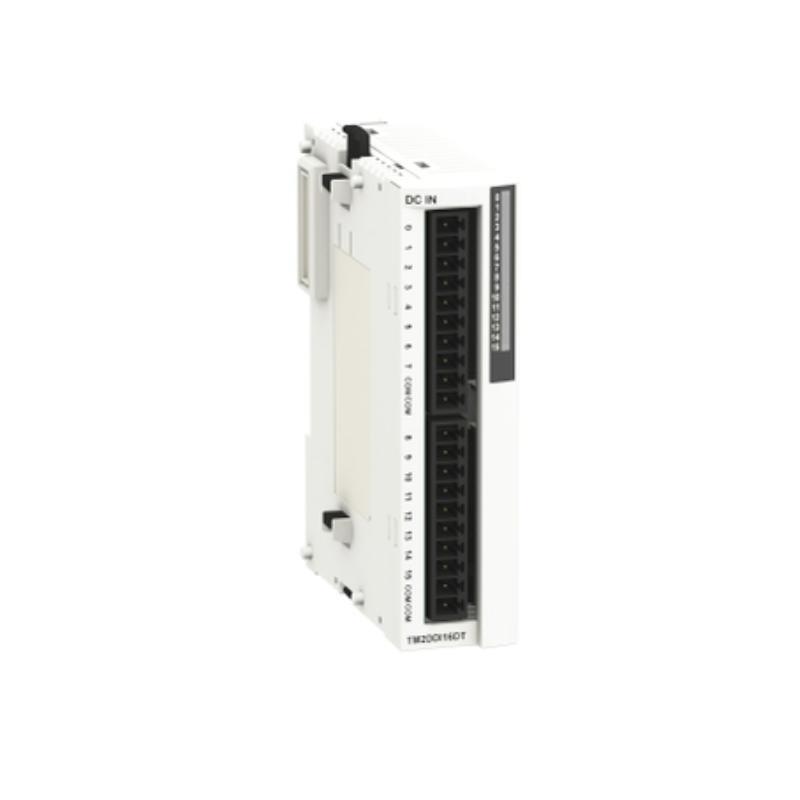

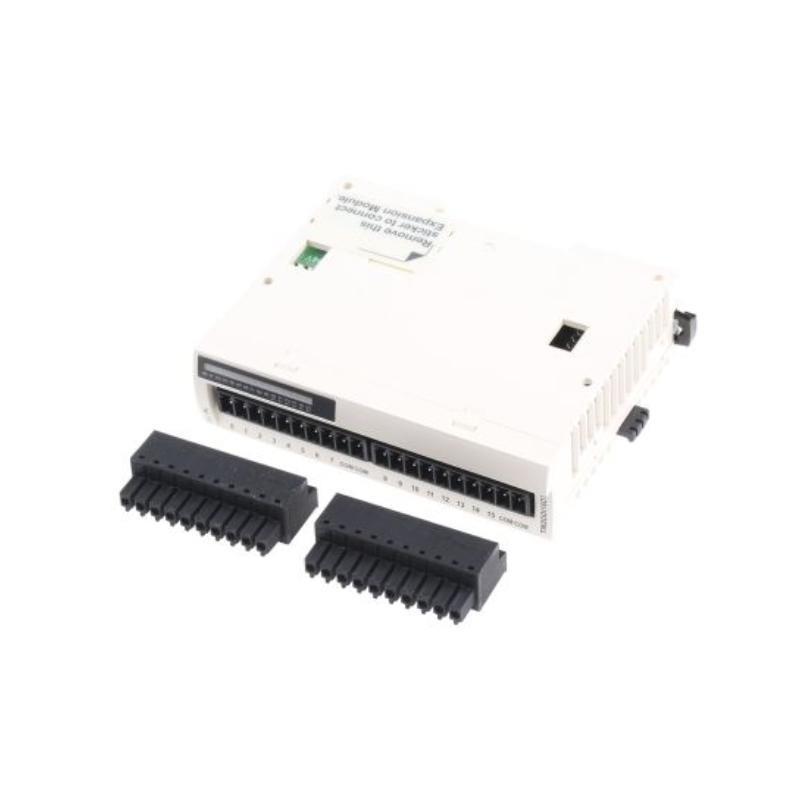

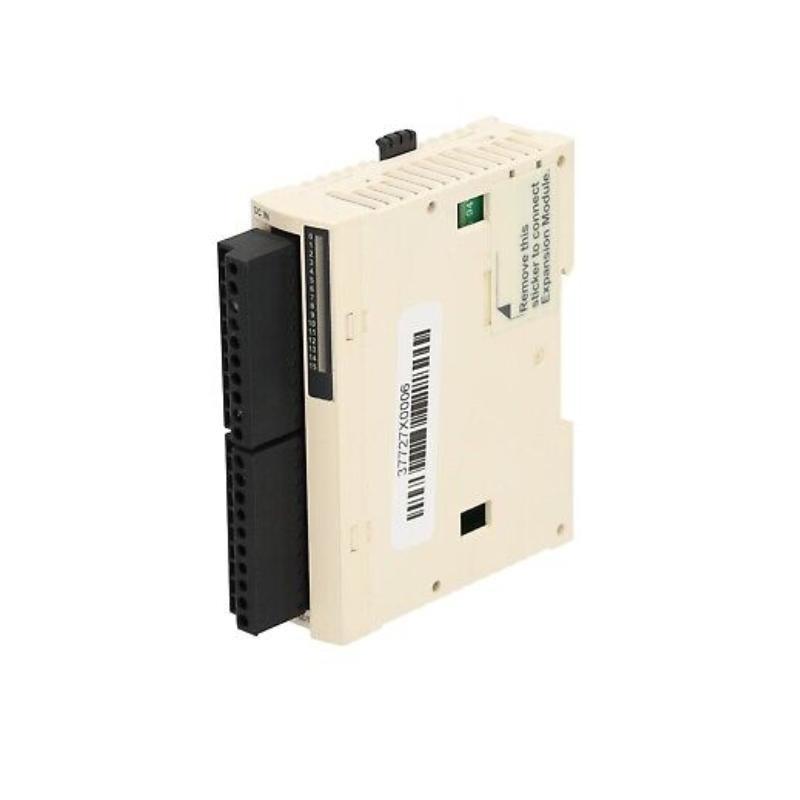

Schneider TM2DDI16DT 製品紹介
The Schneider TM2DDI16DT is a high-performance digital input module from the Telemecanique TM2 series, designed for industrial automation and control systems. This module is part / Schneider Electric’s modular I/O system, /fering reliable and flexible solutions for machine builders and system integrators. It is compatible with Modicon M221, M241, and M251 PLCs, ensuring seamless integration into existing automation architectures.
Product Parameters
The TM2DDI16DT features 16 digital inputs, supporting 24V DC signals, and is designed for harsh industrial environments. Below are the detailed specifications:
| Parameter | Value |
|---|---|
| Number / Inputs | 16 |
| Input Type | Digital (Sink/Source) |
| Voltage Rating | 24V DC |
| Current Consumption | 5mA per input (typical) |
| Isolation Voltage | 500V AC |
| Response Time | <1ms |
| Connection Type | Removable screw terminal block |
| Dimensions | 94.6x 90x 27.3mm |
| 重量 | 0.065kg |
| Operating Temp. | -25°C to +70°C |
| Protection Rating | IP20 |
Product Applications
The TM2DDI16DT is widely used in industrial automation for:
-
Machine control systems (e.g., packaging, CNC machines)
-
Process automation (e.g., conveyor systems, assembly lines)
-
Building automation (e.g., HVAC, lighting control)
-
Discrete manufacturing (e.g., automotive, electronics)
-
Safety systems (e.g., emergency stop monitoring)
Product Advantages
-
High Density: 16 inputs in a compact form factor save panel space.
-
Flexible Wiring: Removable terminal blocks simplify installation and maintenance.
-
Wide Voltage Range: サポートs 24V DC industrial standards.
-
Robust Design: Operates in extreme temperatures (-25°C to +70°C).
-
Fast Response: <1ms input response time for high-speed applications.
-
Compatibility: Works seamlessly with Modicon PLCs and TM2 expansion modules.
よくある質問 (FAQ)
-
Q: Is the TM2DDI16DT compatible with Modicon M221 PLCs?
A: Yes, it is fully compatible with Modicon M221, M241, and M251 PLCs. -
Q: What is the maximum cable length for inputs?
A: Recommended cable length is up to 100m (shielded cable for noisy environments). -
Q: Can this module be used in safety-critical applications?
A: No, it is not a safety-rated module. For safety applications, consider TM5S safety modules. -
Q: Does it support both sink and source input configurations?
A: Yes, the inputs are configurable for sink or source operation. -
Q: What is the power consumption / the module?
A: Approximately 80mA at 24V DC (all inputs active). -
Q: Is the TM2DDI16DT hot-swappable?
A: No, power must be turned /f before installation or removal. -
Q: What is the IP rating / this module?
A: IP20 (protected against solid objects >12mm, not waterpro/). -
Q: Can I mix TM2 modules with TM3 or TM4 modules?
A: No, TM2 modules are not compatible with TM3/TM4 systems. -
Q: How do I troubleshoot a faulty input?
A: Check wiring, voltage levels, and LED indicators (green = active). -
Q: How long is the warranty period?
A: The standard warranty is 1 years, subject to proper usage and conditions.
Recommended Related & Popular モデルs
Same Series (TM2 Modules)
| モデル | 説明 | Key Features |
|---|---|---|
| TM2DDO16TK | 16-channel digital output module | Relay outputs, 5A per channel |
| TM2AMI8HT | 8-channel analog input module | Thermocouple/RTD support |
| TM2ARI8HT | 8-channel analog output module | 0-10V, 4-20mA outputs |
| TM2XMITG | Communication module | RS485/RS232 interface |
| TM2DM16R | Mixed I/O module (8DI/8DO) | Compact design for space savings |
| TM2SAF5R | Safety relay module | SIL3-certified for safety systems |
Popular Schneider Electric モデルs
| モデル | 説明 | Key Features |
|---|---|---|
| Modicon M221 PLC | Compact logic controller | Embedded Ethernet, 24 I/O |
| Altivar ATV320 | Variable speed drive | 0.75-15kW, modular design |
| TeSys D contactor | Motor starter | 9A-150A, screw or spring terminals |
| Harmony XB5 button | Push button interface | IP65-rated, illuminated options |
| Magelis HMI | Touchscreen panel | 7″-15″, VGA resolution |
| EasyPact MCCB | Circuit breaker | 16A-630A, thermal-magnetic trip |
