Product Overview

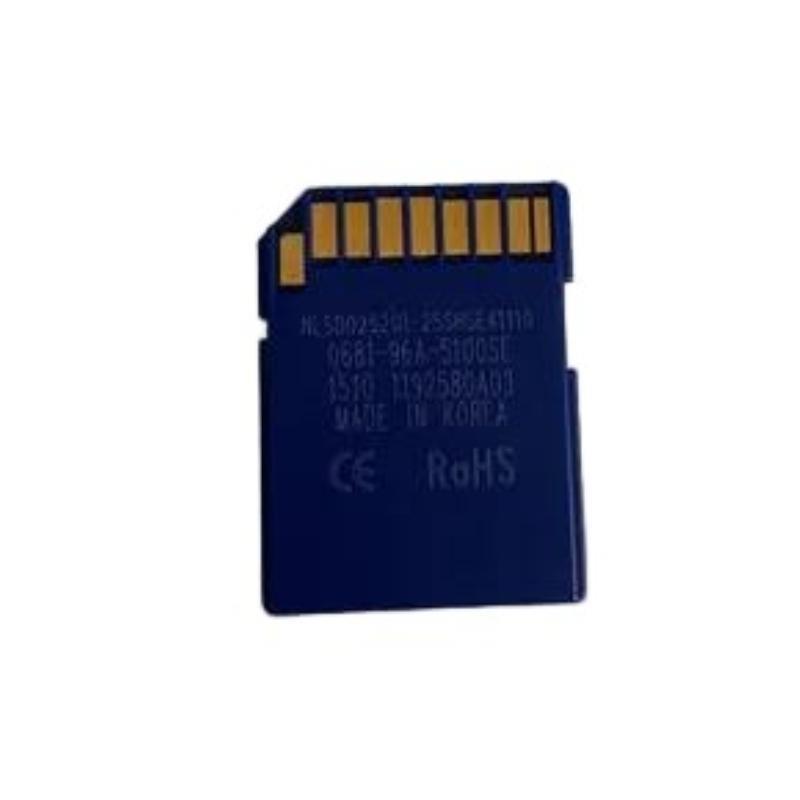

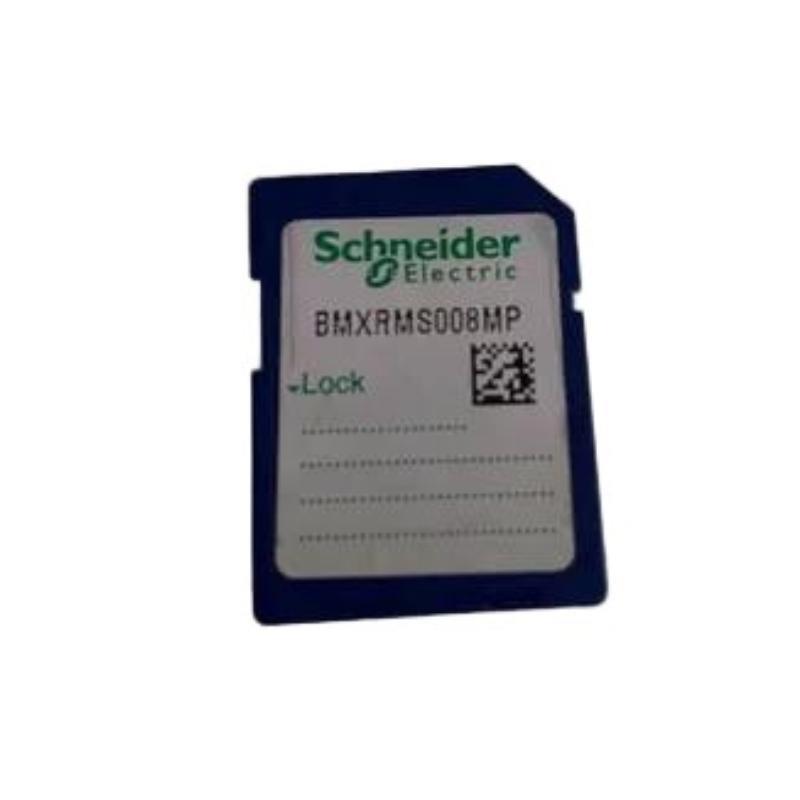

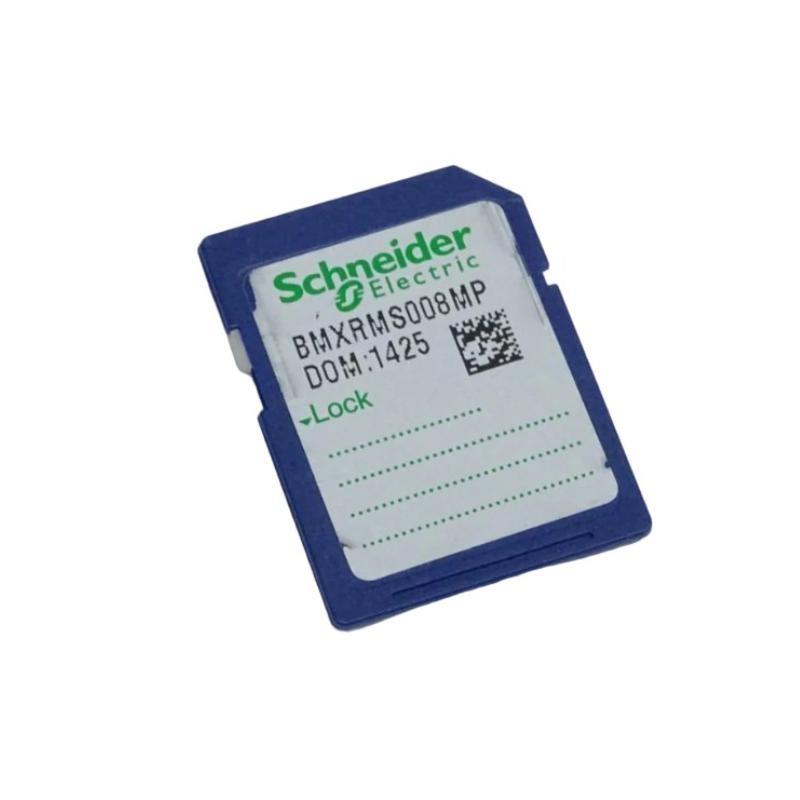

The Schneider Electric BMXRMS008MP is a removable Flash memory card designed specifically for use with Modicon M340 PLCs. With a capacity / 8 MB, this memory card is used to store applications, firmware, and user data, enabling easy program backup, duplication, and firmware upgrades. It is a critical accessory for improving PLC system flexibility, safety, and maintainability.
Key Features
-
8 MB Flash memory capacity
-
Plug-in memory card for Modicon M340 controllers
-
Used for firmware storage, application backup, and restoration
-
サポートs full application portability
-
Enables firmware upgrades without PC connection
-
High durability with robust industrial design
-
Hot swappable for minimal downtime
-
Simple installation into controller slot
Technical Specifications
| Item | Specification |
|---|---|
| モデル Number | BMXRMS008MP |
| Product Type | Removable Flash Memory Card |
| Compatible Controllers | Modicon M340 CPUs (e.g., BMXP34xxxx) |
| Memory Capacity | 8 MB |
| Memory Type | Flash |
| Purpose | Application storage, firmware update, data log |
| Data Retention | ≥ 10 years |
| Write/Erase Cycles | ≥ 1,000,000 cycles |
| Hot Swappable | Yes |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | Package size 10 x 120 x 140mm |
| 重量 | Package weight 0.27kg |
| Certifications | CE, RoHS, UL, CSA |
Industry Applications
-
OEM machine control systems
-
Batch processing and recipe management
-
Energy management and data logging
-
Building management systems
-
Water and wastewater control
-
Industrial PLC backup/restore solutions
Advantages
-
Portability: Quickly transfer programs between controllers
-
Convenience: Simplifies program backup and restore without a PC
-
Reliability: Long data retention and robust write endurance
-
Efficiency: サポートs remote firmware upgrades directly via card
-
Flexibility: Reduces engineering time for multi-system deployment
-
Industrial-grade: Designed for harsh environments
-
Security: Provides physical separation / critical application code
-
Easy to Use: Tool-free insertion/removal
よくある質問 (FAQ)
-
What is the storage capacity / the BMXRMS008MP?
It has an 8 MB Flash memory capacity. -
Which PLCs is this memory card compatible with?
It is compatible with Modicon M340 series PLCs. -
Can this memory card be hot-swapped?
Yes, it supports hot swapping for minimal disruption. -
What can I store on the memory card?
You can store applications, firmware, configuration data, and logs. -
Is it suitable for use in harsh environments?
Yes, it is industrial-grade and designed for rugged conditions. -
Does it support firmware updates?
Yes, firmware can be loaded onto the PLC directly from the card. -
How long will data be retained on the card?
Data is retained for at least 10 years. -
How many write/erase cycles does it support?
It supports at least 1 million write/erase cycles. -
Is any s/tware needed to use the card?
No, it can be used directly with the Modicon M340 system. -
What are its physical dimensions and weight?
Package size 10 x 120 x 140mm and package weight 0.27kg.
Related モデルs
| モデル Number | 説明 |
|---|---|
| BMXRMS008MP | 8 MB Flash memory card for M340 |
| BMXRMS004MP | 4 MB Flash memory card for M340 |
| BMXRMS128MP | 128 MB memory card for large applications |
| BMXCPS2010 | 24 V DC power supply for M340 system |
| BMXP342020 | Modicon M340 PLC CPU, 2MB program capacity |
| BMXP3420302 | Modicon M340 PLC CPU with 4MB program memory |
Popular Schneider Electric Modules
| モデル Number | 説明 |
|---|---|
| BMXDDI1602K | 16-channel discrete input module (24 V DC) |
| BMXDDO1602K | 16-channel discrete output module (24 V DC) |
| BMXAMI0410 | 4-channel analog current input module |
| BMXAMO0410 | 4-channel analog output module |
| BMXNOE0110 | Ethernet communication module |
| BMXERT1604 | Remote input/output module for Modicon M340 |
