The Schneider Electric BMXFCC103 is a preassembled and detachable connector cable designed as an integral accessory for Modicon X80 automation systems. It provides a reliable interface between compatible I/O modules and Telefast fast-wiring solutions, simplifying cabinet wiring and improving installation efficiency.

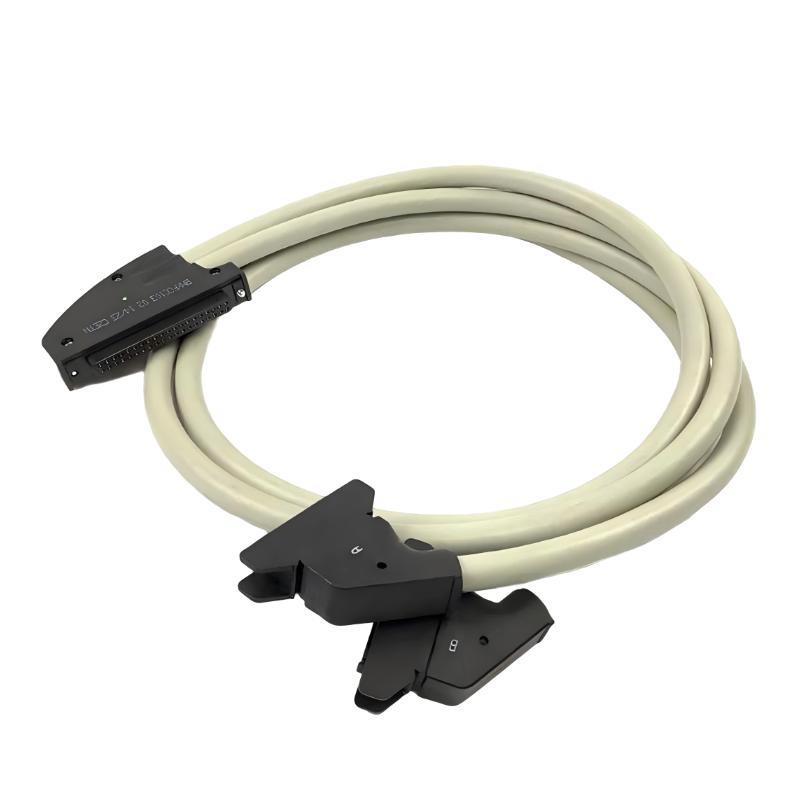

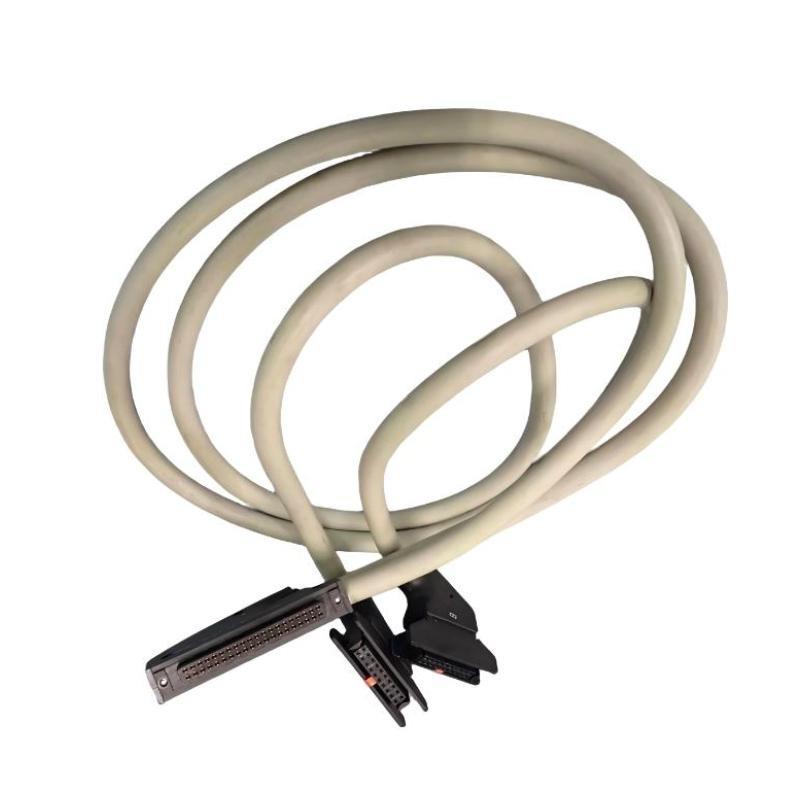

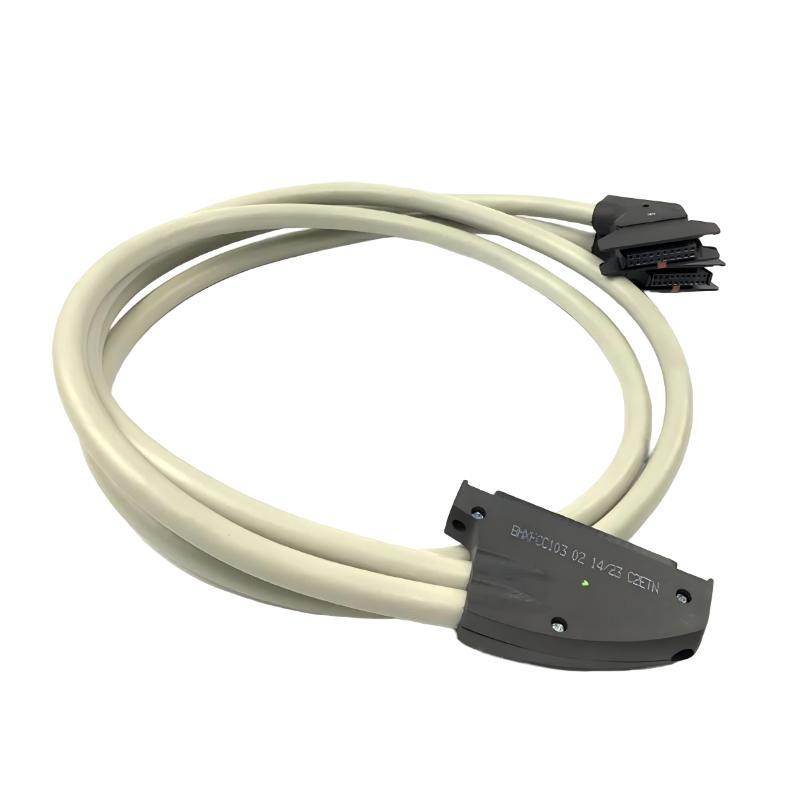

This cable is engineered to connect I/O modules equipped with a 40-pin connector to Modicon Telefast ABE7 fast connection cables. One end / the cable is fitted with a 40-pin connector, while the opposite end features two HE10 connectors, enabling structured and organized signal routing within control panels.
製品仕様
| Parameter | 説明 |
|---|---|
| Product Name | 40-Pin Connector Cable |
| モデル Number | BMXFCC103 |
| Product Family | Modicon X80 |
| Cable Type | Preassembled detachable connection cable |
| Cable Length | 1 m |
| Connector on Module Side | 40-pin connector |
| Connector on Field Side | 2 × HE10 connectors |
| Compatible I/O Modules | 32-channel I/O modules |
| Telefast Compatibility | Modicon Telefast ABE7 |
| Signal Type | Discrete I/O signals |
| Installation Method | Plug-in connection |
| Operating Mode | Continuous |
| Typical Installation | Control cabinet |
| 重量 | 0.35 kg |
Product Applications
The BMXFCC103 connector cable is used in Modicon X80 systems where fast, organized, and reliable I/O wiring is required:
-
Connection between X80 I/O modules and Telefast ABE7 adapters
-
High-density digital I/O wiring in control cabinets
-
Modular automation system installations
-
Commissioning and system expansion projects
-
Industrial panels requiring structured cable management
-
Applications aiming to reduce wiring time and errors
Its preassembled design supports clean installations and consistent signal mapping.
Product Advantages
• Preassembled Plug-and-Play Design
Reduces wiring time and installation complexity.
• Optimized for Modicon X80 Systems
Fully compatible with X80 32-channel I/O modules.
• Telefast ABE7 Integration
Enables fast and organized connection to Telefast wiring solutions.
• Reliable Signal Transmission
Designed to maintain stable electrical performance across all channels.
• Detachable Construction
サポートs easy maintenance, replacement, and system modifications.
• Improved Cabinet Organization
Helps achieve clean and structured wiring layouts.
