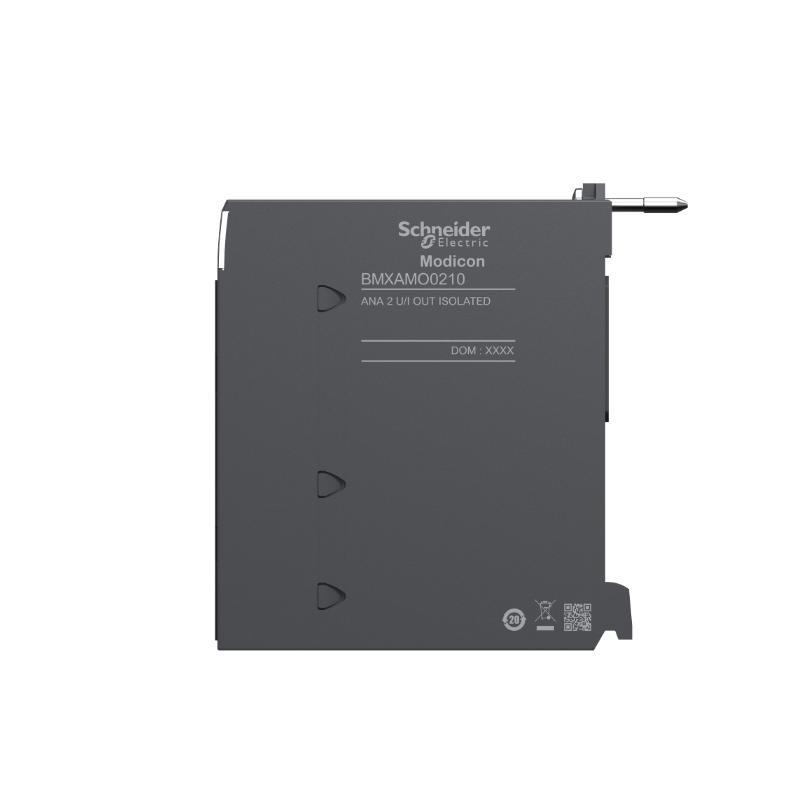

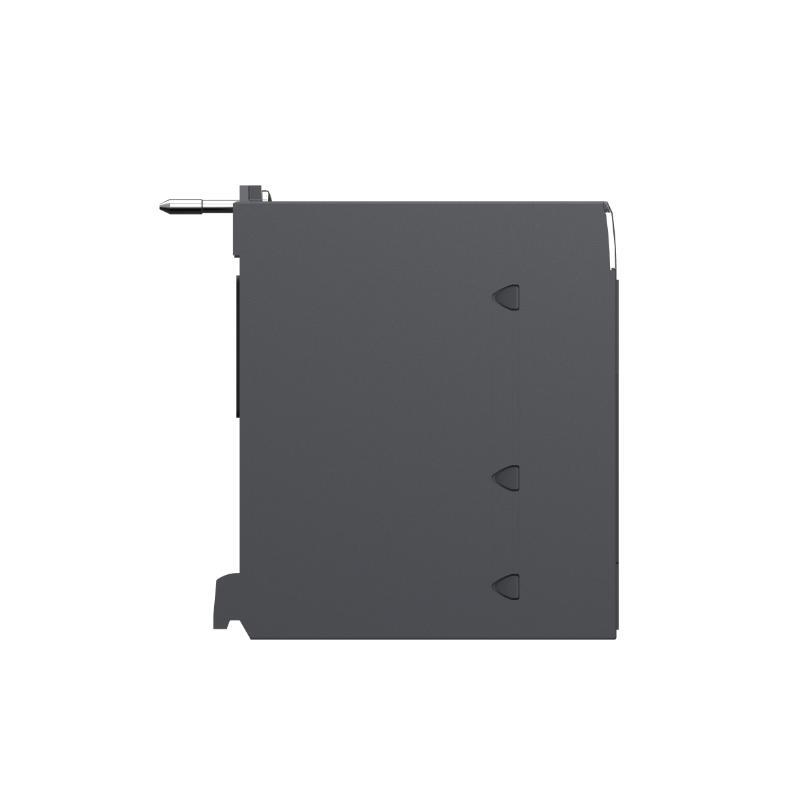

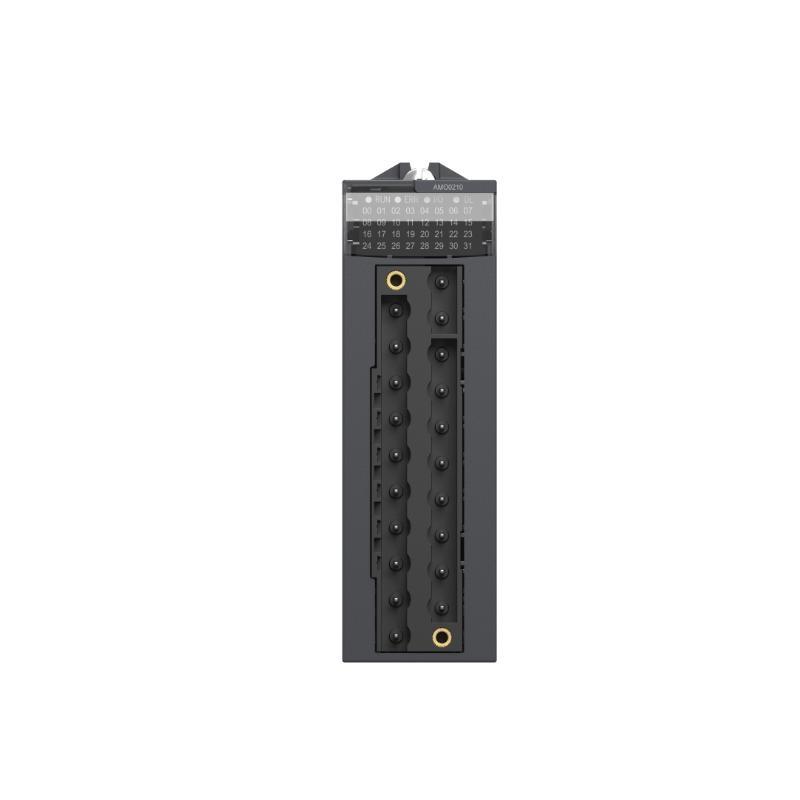

The Schneider Electric BMXAMO0210 is a 2-channel isolated analog output module engineered for the Modicon M340 PLC system. Designed to deliver high-precision voltage and current signals in industrial environments, this module is well-suited for applications requiring accurate analog control outputs with reliable electrical isolation.
Each output channel can be independently configured for either voltage (±10 V) or current (0–20 mA, 4–20 mA) signals, /fering versatility across a range / analog control scenarios. The module provides galvanic isolation between the output channels and the internal bus, enhancing system safety and signal integrity, particularly in electrically noisy industrial environments.
With robust diagnostics, precise resolution, and easy configuration through EcoStruxure Control Expert (formerly ユニットy Pro), the BMXAMO0210 ensures seamless integration and superior control in automation architectures.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | BMXAMO0210 |
| ブランド | Schneider Electric |
| Product Type | Analog Isolated Output Module |
| Total Channels | 2 analog outputs |
| Output Signal Types | Voltage: ±10 V; Current: 0–20 mA, 4–20 mA |
| Output Resolution | 12 bits |
| Output Accuracy | ±0.2% / full scale |
| Galvanic Isolation | Yes, channel-to-bus and channel-to-channel |
| Load Resistance (Current) | ≤ 600 Ω |
| Load Resistance (Voltage) | ≥ 1 kΩ |
| Thermal Drift | ±0.01% / °C |
| Conversion Time | < 1 ms |
| Diagnostics | Channel fault detection, status LEDs |
| Power Supply | Internal via backplane |
| Operating Voltage | 5 VDC (supplied from rack backplane) |
| Power Consumption | 2.5 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95%, non-condensing |
| Mounting | DIN rail (rack-mounted in M340 system) |
| Bus Type | Modicon X80 backplane |
| Dimensions (W x H x D) | 93 x 33 x 104 mm |
| 重量 | 0.144 kg |
| Protection Rating | IP20 |
| Certifications | CE, UL, CSA, ATEX, IEC/EN 61131-2 compliant |
Product Applications
The BMXAMO0210 is designed for industrial automation environments where precise analog output signals are needed for control tasks. Below are typical application areas:
-
Process Automation: For controlling actuators such as valves or dampers based on analog feedback loops.
-
Machine Control: Used to generate setpoints for Variable Frequency Drives (VFDs) or analog-based motion control devices.
-
HVAC Systems: Outputs used for temperature or humidity control via analog modulation.
-
Water Treatment Facilities: For precise chemical dosing systems or flow control applications.
-
Oil & Gas Industry: Used in SCADA systems to control hydraulic or pneumatic equipment.
-
Power Plants: Analog setpoints for excitation systems or turbine control loops.
Product Advantages
-
High Accuracy Output: With ±0.2% accuracy and 12-bit resolution, the module delivers dependable and stable control signals.
-
Dual Output Channels: Provides two independently configurable outputs, supporting both voltage and current modes.
-
Robust Isolation: Galvanic isolation between channels and the PLC bus enhances signal integrity and reduces the risk / ground loops.
-
Compact Design: Its narrow form factor allows for high-density installations on DIN rails within M340 racks.
-
Seamless Integration: Fully compatible with Modicon M340 and EcoStruxure Control Expert s/tware, ensuring quick deployment and configuration.
-
Industrial Grade Performance: Designed to perform reliably in harsh environments with wide temperature ranges and electrical noise imm台y.
-
Built-in Diagnostics: Real-time channel diagnostics and front-panel status LEDs improve troubleshooting and maintenance efficiency.
-
Modular Scalability: Easily expandable with other X80 series I/O modules within a Modicon automation system.
-
Certified Quality: Complies with major global industrial standards and certifications, ensuring safe and compliant operation.
-
Energy Efficient: Low power consumption / 2.5 W helps reduce system heat and energy costs.
よくある質問 (FAQ)
-
How many analog outputs does the BMXAMO0210 provide?
It provides two independently configurable analog output channels. -
Can I configure one channel for voltage and the other for current?
Yes, each channel is independently configurable for either voltage or current output. -
Does this module provide electrical isolation?
Yes, it provides galvanic isolation between channels and the PLC backplane. -
What is the output signal range supported?
Voltage: ±10 V; Current: 0–20 mA or 4–20 mA. -
What is the typical accuracy / the module?
It provides an accuracy / ±0.2% / the full-scale output. -
How is the module powered?
It is powered via the Modicon X80 backplane in an M340 rack system. -
Is the module compatible with EcoStruxure Control Expert?
Yes, it is fully compatible with Schneider Electric’s Control Expert platform (formerly ユニットy Pro). -
What is the maximum load resistance for current output?
The maximum load resistance is 600 ohms for current outputs. -
Does the module support hot-swapping?
No, the module does not support hot-swap. Power down the rack before inserting or removing. -
Is the BMXAMO0210 suitable for high-vibration environments?
Yes, when mounted correctly in a standard M340 rack with DIN rail support, it is vibration tested and approved for industrial use.
Related or Same Series モデルs
| モデル | 説明 |
|---|---|
| BMXAMO0410 | 4-channel analog output module (non-isolated) |
| BMXAMI0810 | 8-channel analog input module with isolation |
| BMXAMM0600 | Mixed I/O module with 4 AI and 2 AO |
| BMXART0814 | RTD analog input module with 8 channels |
| BMXDDO3202K | 32-channel digital output module |
| BMXERT1604 | Timestamped 16-channel digital input module |
Popular Schneider Electric Modules
| モデル | 説明 |
|---|---|
| BMXNOE0100 | Ethernet communication module for M340 |
| BMXPRA0100 | Pr/ibus DP master/slave module |
| BMXCPS3500 | 24 VDC power supply module, 35 W |
| BMXDDI1602 | 16-channel 24 VDC digital input module |
| BMXDRA0805 | 8-channel digital relay output module |
| BMXXBP0800 | 8-slot backplane for M340 rack |
