製品紹介

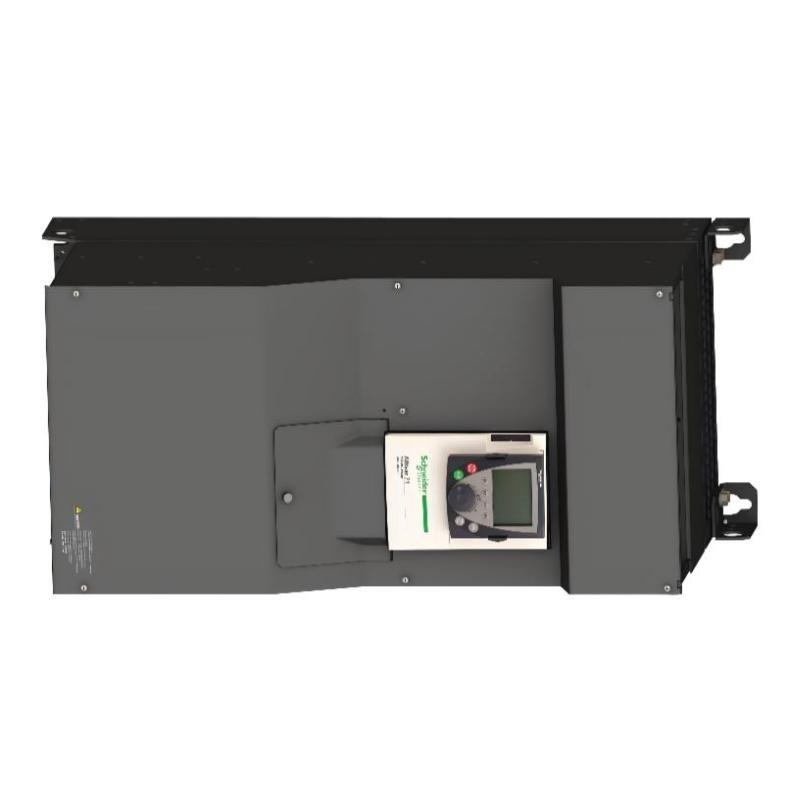

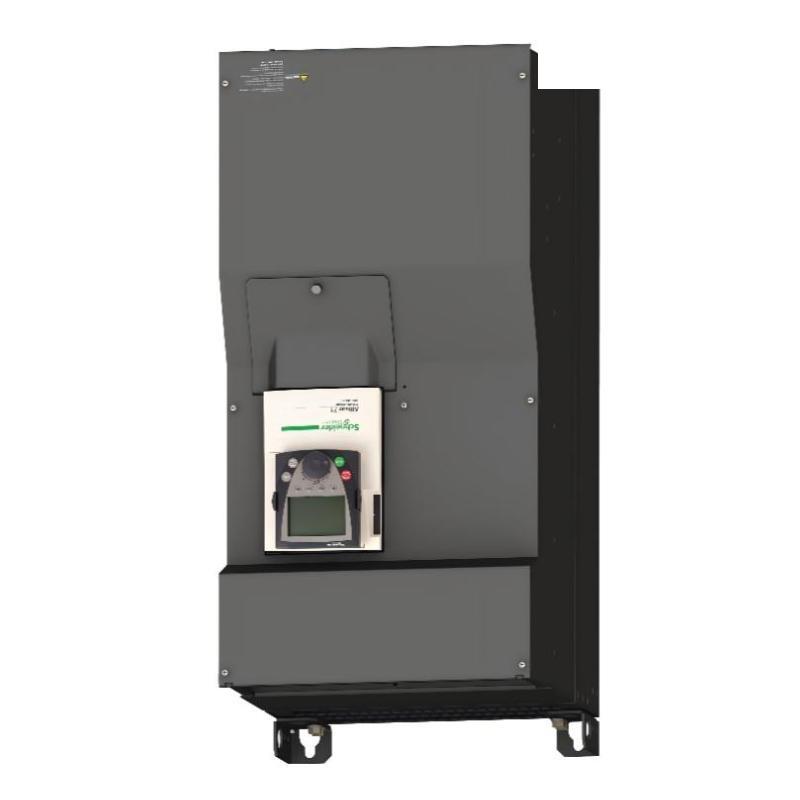

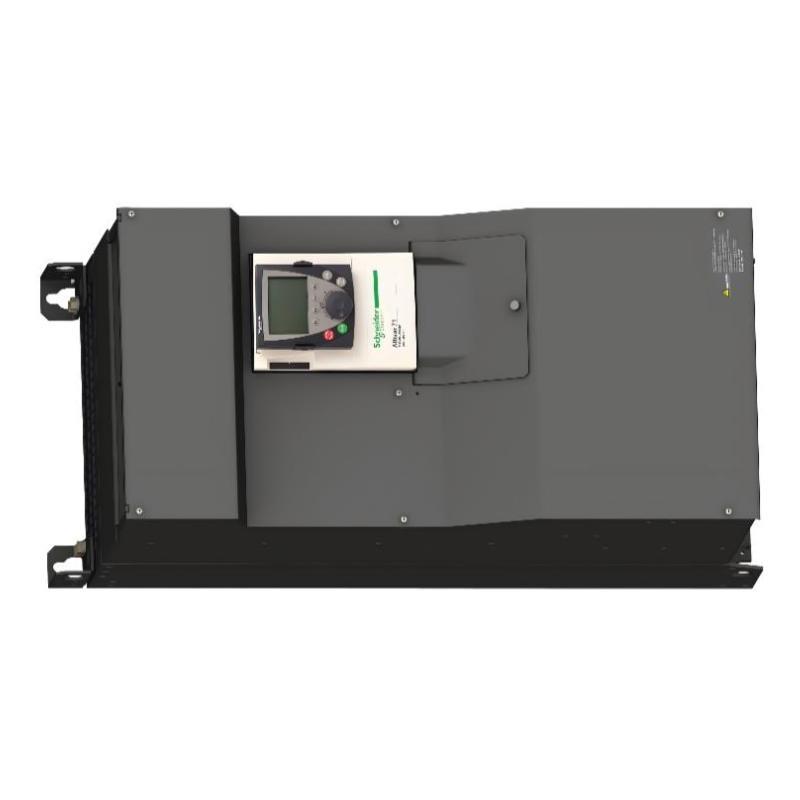

The Schneider Electric ATV71HC13N4 Variable Speed Drive is a high-capacity industrial drive engineered for complex, high-power machine control within the Altivar 71 product family. Designed to manage demanding motor applications, this reinforced drive delivers precise speed regulation, high torque availability, and stable operation across a wide operating range.
Optimized for three-phase power systems, the ATV71HC13N4 supports large motor ratings and extended motor cable lengths, making it suitable for installations where equipment layout flexibility and robust electrical performance are required. Its mechanical structure and internal design are intended to withstand continuous industrial duty, ensuring reliable performance in harsh operational environments.
製品仕様
| Parameter | 説明 |
|---|---|
| Product or Component Type | Variable speed drive |
| Range / Product | Altivar 71 |
| Component Name | ATV71 |
| Product Specific Application | Complex, high-power machines |
| Motor Power | 132 kW, 3 phase 380…480 V |
| Maximum Horsepower Rating | 200 hp, 3 phase 380…480 V |
| Power Supply Voltage | 380…480 V (−15% / +10%) |
| Phase | 3 phase |
| Maximum Motor Cable Length | 100 m shielded cable |
| 200 m unshielded cable | |
| Assembly Design | Industrial drive with reinforced structure |
| Control Capability | Advanced speed and torque regulation |
| Operating Mode | Continuous industrial operation |
| Dimensions | 1190 × 340 × 377 mm |
| 重量 | 116 kg |
Applications
• High-power industrial machinery, such as crushers, mills, and heavy conveyors
• Process industry equipment, requiring accurate speed and torque control
• Pumping and compression systems, operating under high load and continuous duty
• Material handling systems, including hoists and large transport mechanisms
• Energy-intensive production lines, where stable motor control is critical
• Modernization projects, replacing older high-power drive systems
Advantages
• High motor power support, handling up to 132 kW / 200 hp motors
• Reinforced industrial design, suitable for demanding operating conditions
• Wide voltage tolerance, ensuring stable operation despite supply fluctuations
• Long motor cable capability, enabling flexible system layouts
• Precise motor control, improving efficiency and operational consistency
• Proven Altivar 71 platform, widely used in high-power industrial applications
