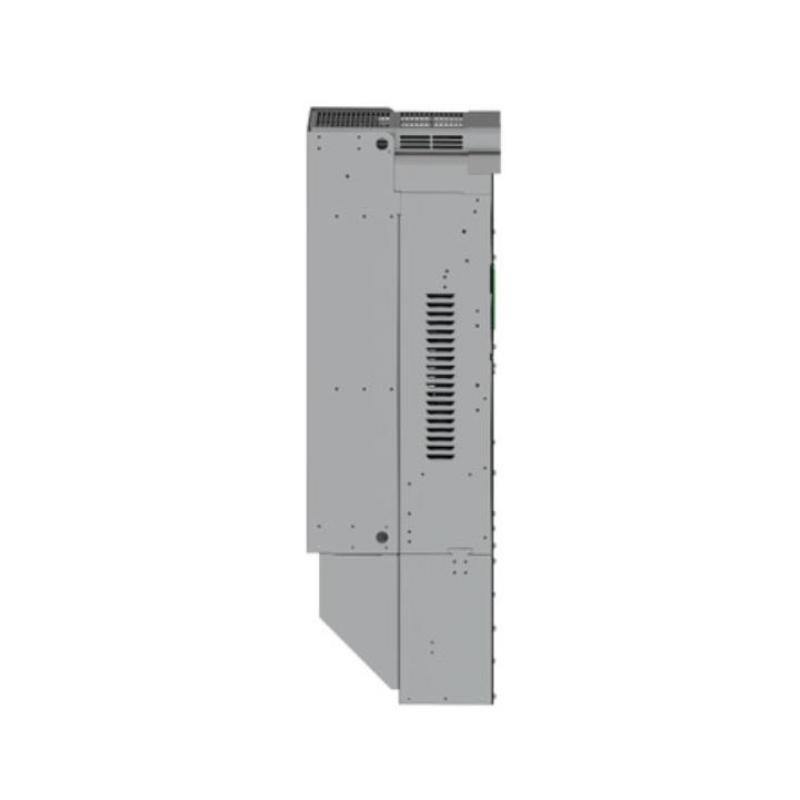

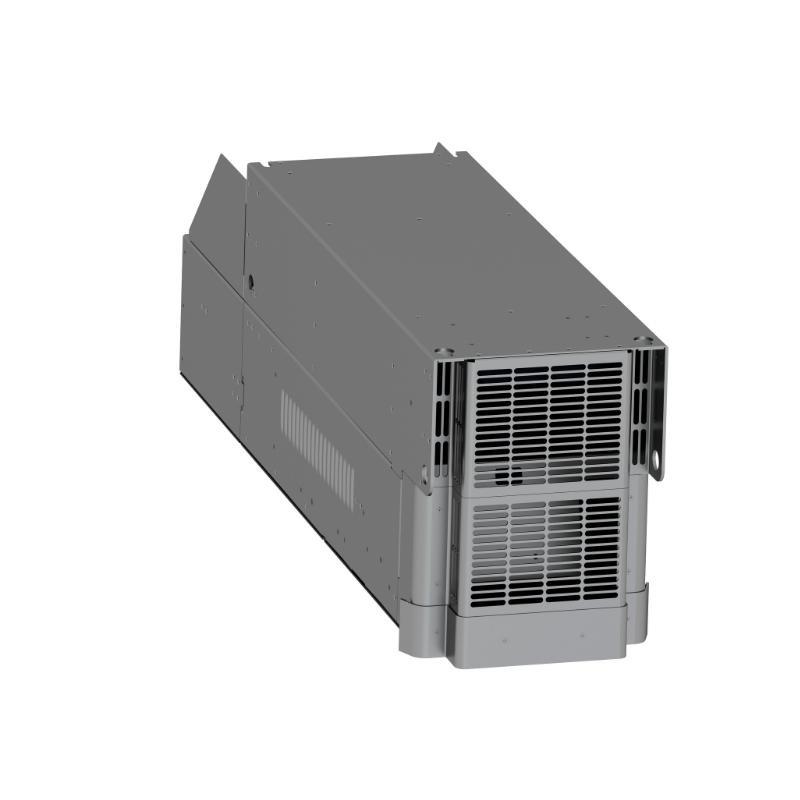

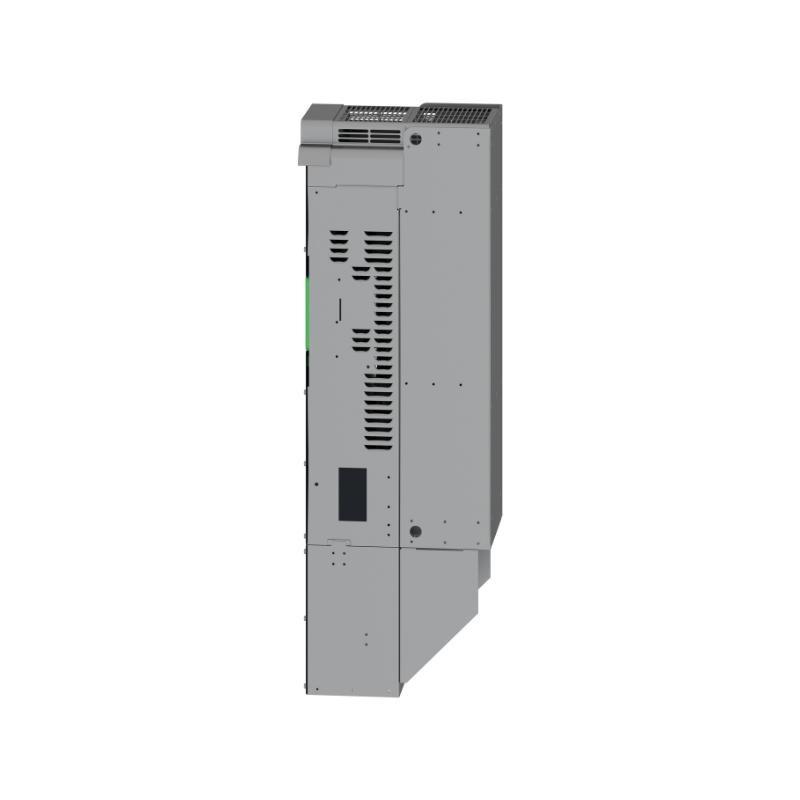

Schneider ATV630C13N4 Variable Speed Drive Introduction
The Schneider ATV630C13N4 is a high-performance variable speed drive designed for energy-efficient motor control in industrial and commercial applications. It provides reliable operation, precise control, and flexible integration for demanding environments.
Technical Specifications
| Parameter | Value |
|---|---|
| モデル | ATV630C13N4 |
| Power Supply | 380-480 V AC, 50/60 Hz |
| Power Rating | 132 kW (175 HP) |
| Output Frequency Range | 0.1 – 599 Hz |
| Control Method | V/F, Sensorless Vector Control |
| Communication Ports | Modbus, Ethernet, CANopen |
| Protection Class | IP21 |
| Operating Temperature | -15°C to +50°C |
| Dimensions (W x H x D) | 320 x 852 x 390 mm |
| 重量 | 82 kg |
Applications
The ATV630C13N4 is widely used in:
-
HVAC systems and pumps
-
Fans and compressors
-
Conveyor systems
-
Industrial processing lines
-
Water and wastewater treatment facilities
Advantages
-
High energy efficiency with optimized motor control
-
Wide range / communication protocols for easy integration
-
Robust design suitable for harsh industrial environments
-
User-friendly interface with built-in diagnostics
-
Advanced motor protection features
-
Flexible mounting and configuration options
よくある質問
Q1: What is the main function / the ATV630C13N4?
A1: It controls the speed / AC motors to improve process performance and reduce energy consumption.
Q2: Is it suitable for pump and fan applications?
A2: Yes, it is specifically optimized for pumps, fans, and HVAC systems.
Q3: Can it operate in high-temperature environments?
A3: It operates reliably up to +50°C without derating.
Q4: What communication protocols does it support?
A4: It supports Modbus, Ethernet, CANopen, and optional fieldbus cards.
Q5: Does it have built-in motor protection?
A5: Yes, it features overcurrent, overload, and phase loss protection.
Q6: How easy is it to install and configure?
A6: It is designed with a user-friendly interface and flexible mounting for quick setup.
Q7: What is the enclosure protection level?
A7: The standard version is IP21, suitable for indoor environments.
Q8: Can it handle regenerative braking?
A8: Yes, it supports dynamic braking with optional braking resistors.
Q9: Is it compatible with sensorless motor control?
A9: Yes, it supports both V/F and sensorless vector control modes.
Q10: What maintenance does it require?
A10: Regular inspection / cooling fans and filters is recommended for optimal operation.
Recommended Related モデルs
| モデル | Power Rating | Dimensions (mm) | 重量 |
|---|---|---|---|
| ATV630C11N4 | 110 kW | 320 x 852 x 390 | 78 kg |
| ATV630C16N4 | 160 kW | 320 x 852 x 390 | 85 kg |
| ATV630C20N4 | 200 kW | 320 x 852 x 390 | 92 kg |
| ATV630C22N4 | 220 kW | 320 x 852 x 390 | 96 kg |
| ATV630C25N4 | 250 kW | 360 x 1010 x 390 | 105 kg |
| ATV630C30N4 | 300 kW | 360 x 1010 x 390 | 112 kg |
Popular Schneider モデルs
| モデル | 説明 | Dimensions (mm) | 重量 |
|---|---|---|---|
| ATV320U75N4C | Compact Drive, 7.5 kW | 142 x 233 x 153 | 4.5 kg |
| ATV930C13N4 | Premium Process Drive, 132 kW | 320 x 852 x 390 | 82 kg |
| ATV12H075M2 | Basic Drive, 0.75 kW | 72 x 143 x 136 | 1.5 kg |
| ATV71HD75N4 | Advanced Drive, 75 kW | 275 x 700 x 265 | 42 kg |
| ATV630D55N4 | Process Drive, 55 kW | 275 x 700 x 265 | 38 kg |
| ATV930C22N4 | Premium Process Drive, 220 kW | 360 x 1010 x 390 | 96 kg |
