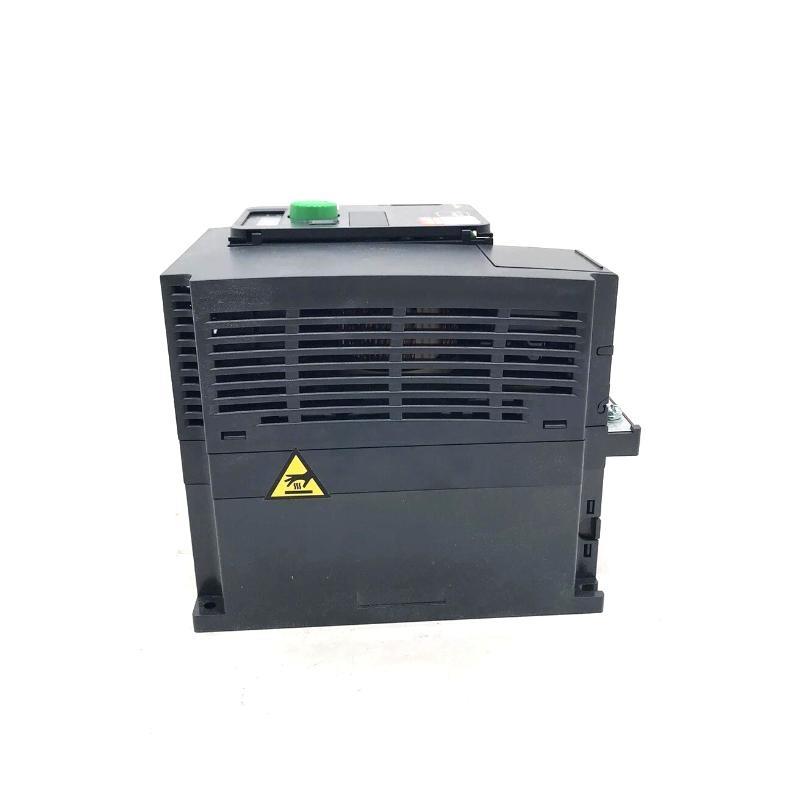

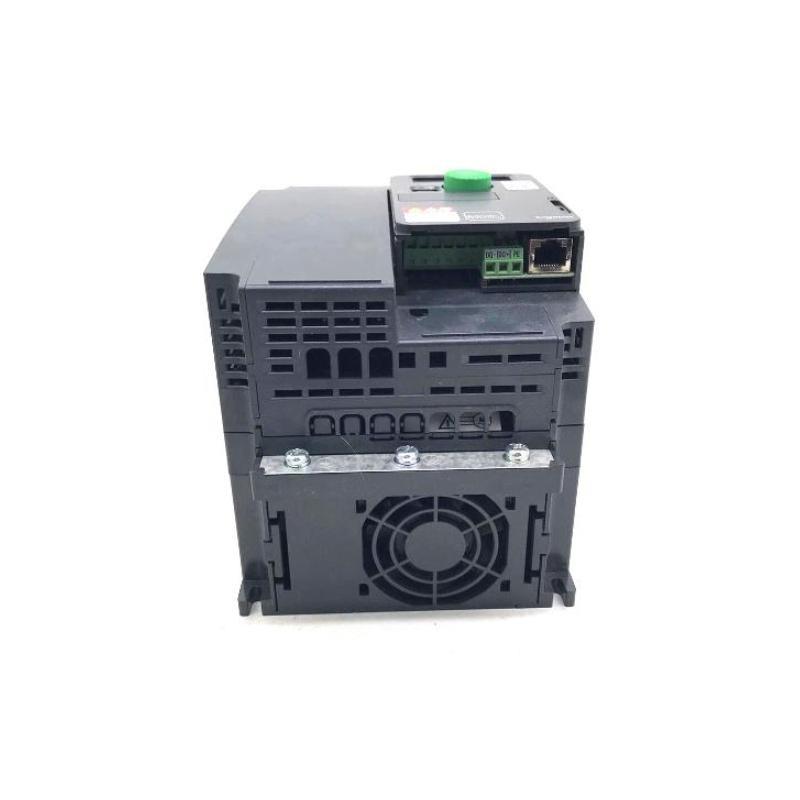

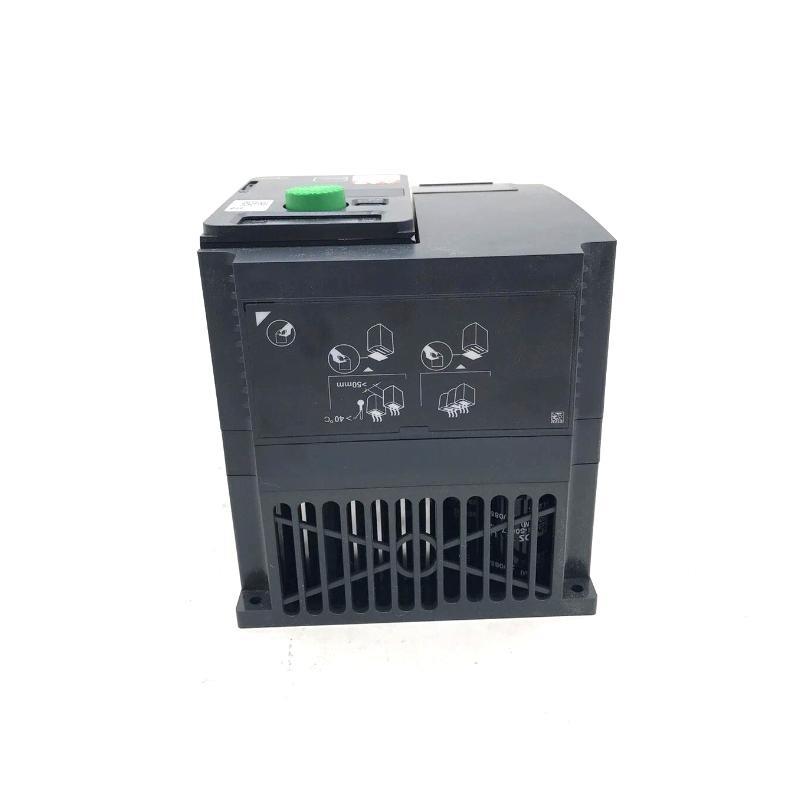

Schneider ATV320U40N4C Variable Speed Drive Overview
The Schneider ATV320U40N4C is a compact, robust variable speed drive designed for simple and advanced motor control applications. It delivers precise speed and torque control for asynchronous and synchronous motors, improving energy efficiency and performance.
Technical Specifications
| Parameter | Value |
|---|---|
| モデル | ATV320U40N4C |
| Power Supply | 380–500 V AC, 3-phase |
| Output Power | 4 kW (5 HP) |
| Output Current | 9.5 A |
| Frequency Range | 0.1–599 Hz |
| Control Type | V/F, sensorless vector control |
| Protection Degree | IP20 |
| Communication | Modbus, CANopen |
| Dimensions (W × H × D) | 140 × 184 × 158 mm |
| 重量 | 2.2 kg |
Applications
The ATV320U40N4C is widely used in industrial and commercial settings, such as:
-
Conveyor systems
-
Pumps and fans
-
Packaging machinery
-
HVAC systems
-
Material handling equipment
Advantages
-
Compact design for easy panel integration
-
Energy savings through efficient motor control
-
High reliability with built-in protections
-
Flexible communication options
-
Easy setup and maintenance
FAQ
Q1: What is the output power / ATV320U40N4C?
A1: It delivers 4 kW (5 HP) output power.
Q2: Can it operate with both asynchronous and synchronous motors?
A2: Yes, it supports both motor types.
Q3: What is the protection rating / this drive?
A3: The protection degree is IP20.
Q4: Which communication protocols are supported?
A4: It supports Modbus and CANopen.
Q5: Is the drive suitable for fan and pump control?
A5: Yes, it is ideal for such variable torque applications.
Q6: What is the frequency range it can output?
A6: The output frequency range is 0.1–599 Hz.
Q7: Does it have overload protection?
A7: Yes, it includes motor and drive protection features.
Q8: How easy is the installation?
A8: The compact size and standard mounting make installation simple.
Q9: Can I use it with a 3-phase 400V supply?
A9: Yes, it works with 380–500V 3-phase supply.
Q10: What is the weight / the drive?
A10: The weight is 2.2 kg.
Recommended Related or Similar モデルs
| モデル | Power Output | Voltage | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| ATV320U22N4C | 2.2 kW | 380–500 V, 3-phase | 140 × 184 × 158 | 2.2 kg |
| ATV320U55N4C | 5.5 kW | 380–500 V, 3-phase | 140 × 184 × 158 | 2.3 kg |
| ATV320U75N4C | 7.5 kW | 380–500 V, 3-phase | 140 × 184 × 158 | 2.5 kg |
| ATV320D11N4C | 11 kW | 380–500 V, 3-phase | 180 × 250 × 181 | 5.0 kg |
| ATV320D15N4C | 15 kW | 380–500 V, 3-phase | 180 × 250 × 181 | 5.5 kg |
| ATV320D18N4C | 18.5 kW | 380–500 V, 3-phase | 220 × 300 × 210 | 7.0 kg |
