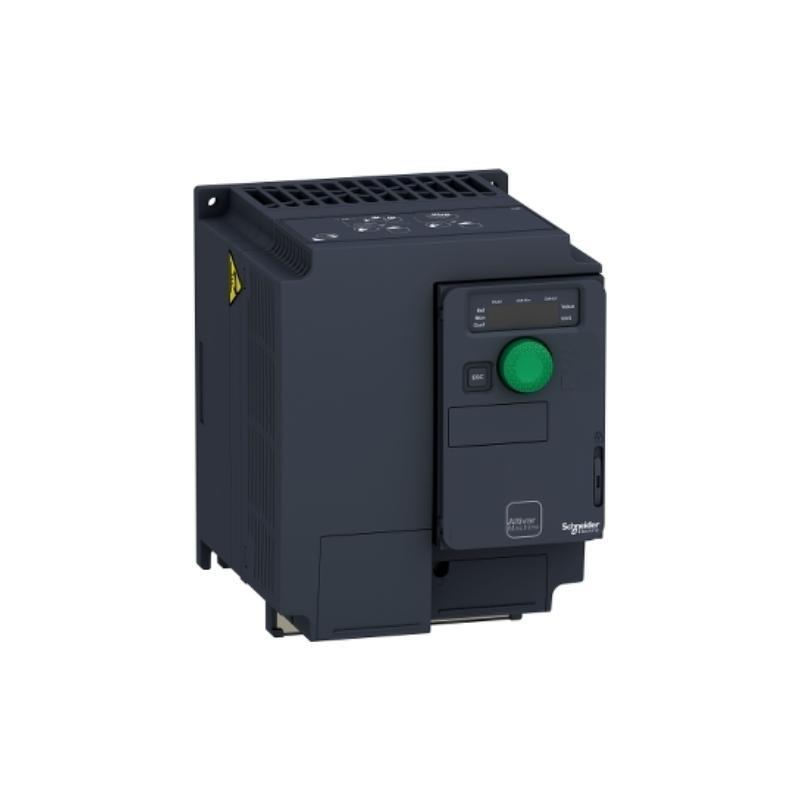

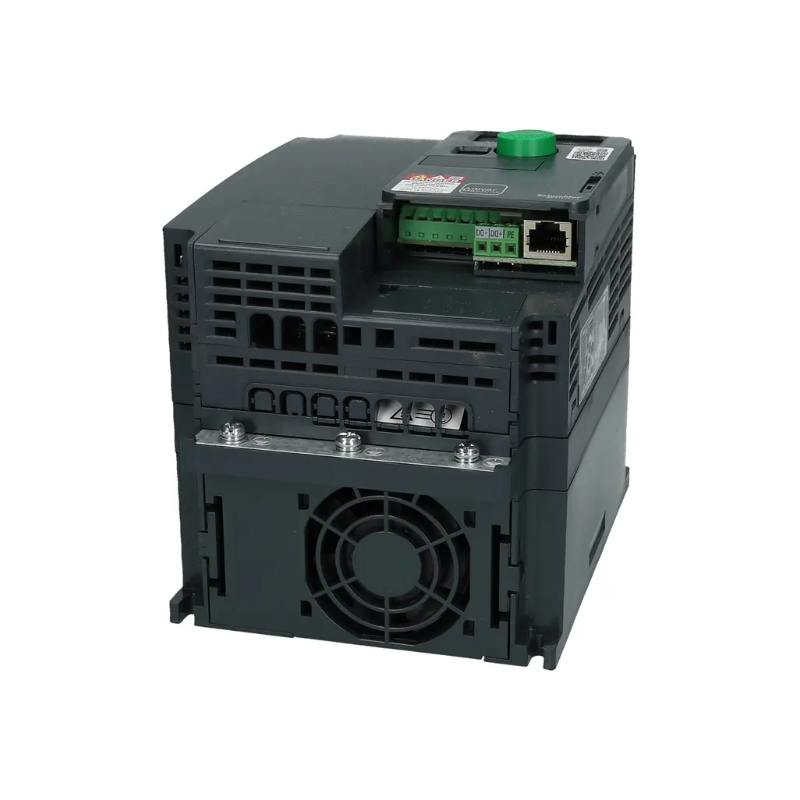

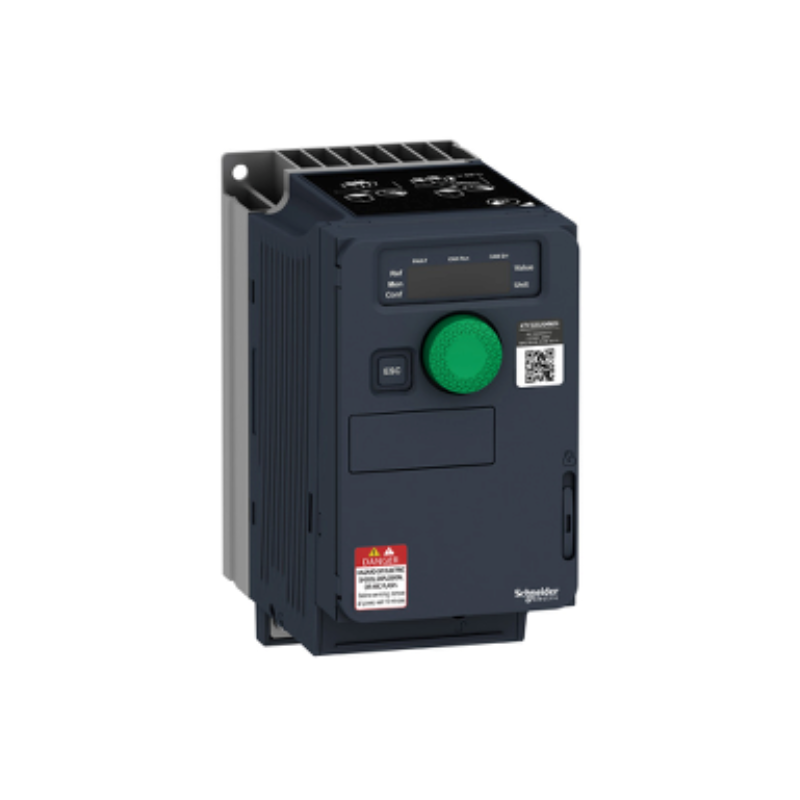

Schneider ATV320U30N4C Product Overview
The Schneider ATV320U30N4C is a compact and versatile variable speed drive designed for controlling three-phase asynchronous motors. It is part / Schneider Electric’s ATV320 series, known for its reliability, ease / use, and advanced motor control capabilities. This model is ideal for applications requiring precise speed regulation, energy efficiency, and robust performance in industrial environments.
Product Parameters
| Parameter | Value |
|---|---|
| モデル | ATV320U30N4C |
| Rated Power | 0.75 kW (1 HP) |
| Input Voltage | 3-phase, 380-480V AC (±10%) |
| Output Current | 2.1 A |
| Frequency Range | 0.1-599 Hz |
| Control Method | Sensorless vector control, V/F control |
| Protection Rating | IP20 |
| Communication | Modbus, CANopen (optional) |
| Dimensions | 140x 158x 184mm |
| 重量 | 2.1 kg |
| Ambient Temperature | -10°C to +50°C (derating above 40°C) |
| Storage Temperature | -20°C to +60°C |
Product Applications
The ATV320U30N4C is suitable for a wide range / industrial applications, including:
-
Conveyor Systems: Precise speed control for material handling.
-
Pumps and Fans: Energy-saving operation with adjustable flow rates.
-
Packaging Machinery: Smooth acceleration and deceleration for delicate processes.
-
Textile Equipment: Consistent speed regulation for high-quality output.
-
Food and Beverage: Hygienic and reliable performance in washdown environments.
Product Advantages
-
Energy Efficiency: Reduces power consumption with optimized motor control.
-
Compact Design: 保存s space in control cabinets.
-
User-Friendly Interface: Easy setup and parameter adjustment.
-
Robust Protection: Built-in safeguards against overcurrent, overheating, and short circuits.
-
Flexible Communication: サポートs industry-standard protocols for seamless integration.
-
Wide Voltage Range: Adapts to fluctuating power supplies.
よくある質問 (FAQ)
-
What is the maximum cable length between the drive and motor?
-
Recommended: ≤50 meters (shielded cable) or ≤100 meters (unshielded).
-
-
Can the ATV320U30N4C operate in single-phase mode?
-
No, it requires a 3-phase power supply.
-
-
How to reset the drive to factory settings?
-
Navigate to the “Parameters” menu and select “Factory Reset.”
-
-
Is braking resistor support available?
-
Yes, an external braking resistor can be connected for dynamic braking.
-
-
What is the warranty period?
-
Typically 12 months, depending on the region.
-
-
Can the drive be used in outdoor environments?
-
No, it requires an IP20-rated enclosure for protection.
-
-
Does it support PID control?
-
Yes, built-in PID functionality for closed-loop applications.
-
-
How to troubleshoot an overcurrent fault?
-
Check motor connections, load conditions, and acceleration settings.
-
-
Is firmware upgradable?
-
Yes, via Schneider Electric’s proprietary s/tware tools.
-
-
What is the typical lifespan / the drive?
-
5+ years with proper maintenance and operating conditions.
-
Recommended Related モデルs
| Series/Type | モデル | Key Feature |
|---|---|---|
| ATV320 Series | ATV320U15N4C | 0.37 kW, compact size |
| ATV320 Series | ATV320U55N4C | 1.5 kW, enhanced torque control |
| ATV320 Series | ATV320U75N4C | 2.2 kW, high overload capacity |
| ATV320 Series | ATV320U11N4C | 0.55 kW, cost-effective |
| ATV320 Series | ATV320U22N4C | 1.1 kW, robust design |
| ATV320 Series | ATV320U40N4C | 1.8 kW, advanced communication |
Popular Schneider Electric モデルs
| Product Line | モデル | Application |
|---|---|---|
| Altivar Process | ATV630U30N4 | Heavy-duty process control |
| Altivar Machine | ATV340U20N4 | Machine automation |
| TeSys D Green | GV2ME14 | Motor starter |
| Modicon M221 | TM221CE16R | PLC for small machines |
| Harmony XB5 | XB5AD33 | Push button interface |
| ClimaSys | RMA6C10 | HVAC motor control |
