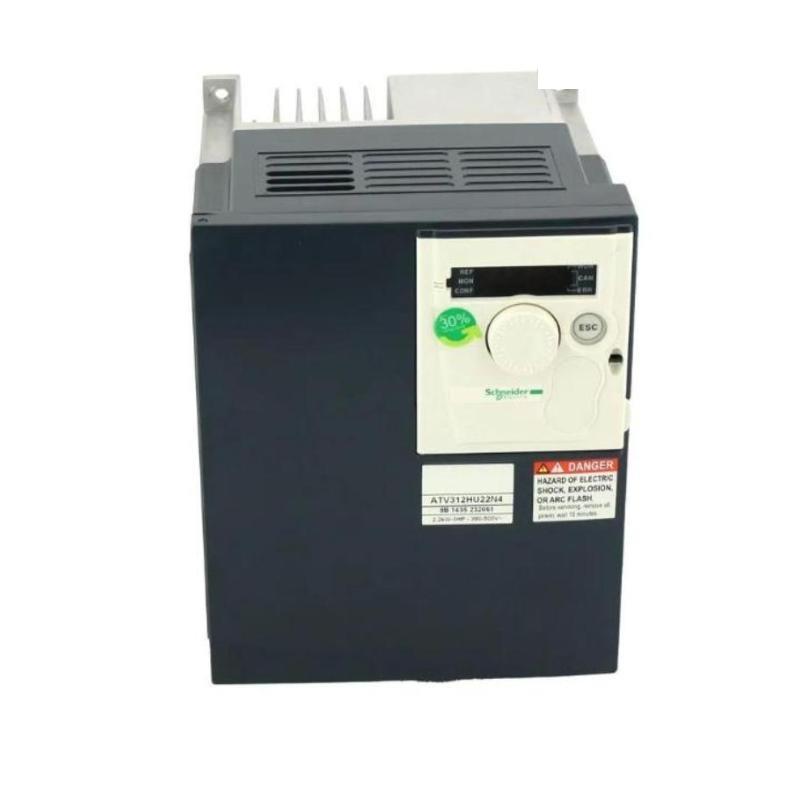

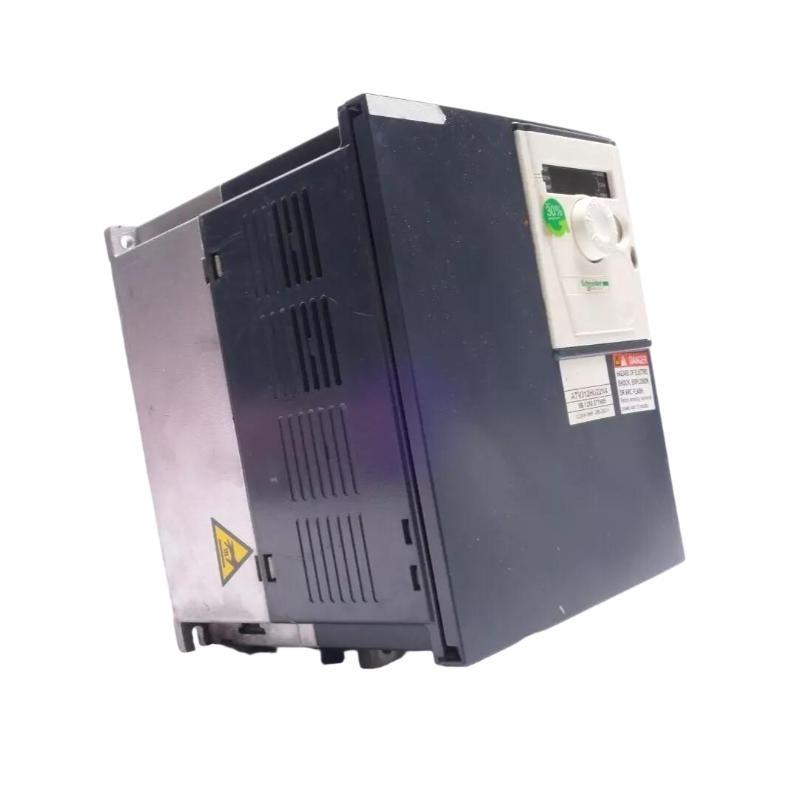

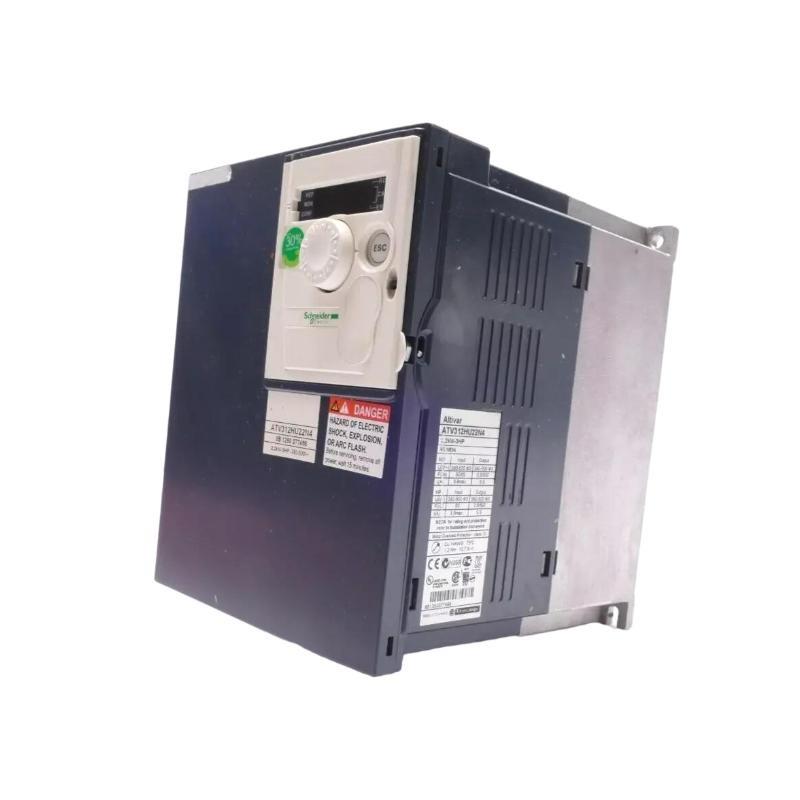

Schneider ATV312HU22N4 Variable Frequency Drive (VFD)

製品紹介:

The Schneider ATV312HU22N4 is a variable frequency drive (VFD) designed for controlling the speed, torque, and direction / three-phase induction motors in various industrial applications. This compact drive /fers advanced features and high performance, making it ideal for controlling fans, pumps, conveyors, and other types / machinery. It is particularly suited for applications requiring precise speed control, energy efficiency, and easy integration into automated systems.

With a rated power output / 2.2 kW and a wide range / adjustable settings, the ATV312HU22N4 ensures optimal motor performance while minimizing energy consumption and wear on mechanical components. Its compact size (184 x 142 x 152 mm) and weight (3.1 kg) make it perfect for installations in constrained spaces without sacrificing functionality.

製品仕様:

Here are the detailed specifications for the Schneider ATV312HU22N4 VFD:

Product Applications:

The Schneider ATV312HU22N4 variable frequency drive is designed to be used in a wide variety / applications across multiple industries. Some key areas / application include:

1. HVAC Systems (Heating, Ventilation, and Air 状態ing): The drive is ideal for controlling fans, pumps, and blowers in HVAC systems, ensuring efficient airflow and energy-saving operation.

2. Pumping Systems: In water treatment plants, pumping stations, and irrigation systems, the drive controls water flow by adjusting pump speeds for optimal operation.

3. Material Handling: For applications such as conveyor systems and elevators, the VFD provides smooth start/stop control, protecting mechanical components and ensuring efficient operation.

4. Compressors: The ATV312HU22N4 can be used to control the speed / compressors, improving energy efficiency and maintaining consistent air pressure.

5. Food and Beverage Manufacturing: In food processing plants, the drive /fers precise motor control for machines such as mixers, grinders, and conveyors.

6. Textile and Packaging Industries: In textile mills or packaging plants, the VFD helps in regulating the speed / sewing machines, knitting machines, and packaging lines.

Product Advantages:

1. Energy Efficiency: The Schneider ATV312HU22N4 ensures energy savings by adjusting motor speed to the required load, reducing unnecessary power consumption.

2. Compact Design: The drive’s dimensions / 184 x 142 x 152 mm and weight / 3.1 kg allow for easy installation in tight spaces, saving valuable panel space.

3. Wide Frequency Range: It /fers an output frequency range from 0 to 600 Hz, enabling precise control over the motor’s speed for different types / machinery.

4. Advanced Motor Control: The V/F control, PID control, and Flux Vector methods ensure smooth and stable operation / the connected motor, preventing damage and extending motor life.

5. Overload Protection: The drive provides 150% overload capacity for 1 minute, ensuring motor protection and minimizing the risk / damage during heavy load conditions.

6. Flexible Communication: Equipped with Modbus RTU and other input/output ports, the VFD can easily integrate with industrial control systems for remote monitoring and control.

7. Easy-to-Use Interface: The 7-segment LED display makes setup and operation straightforward, providing real-time feedback on drive performance and motor status.

8. Natural Cooling: With natural air convection for cooling, the drive operates silently without the need for external fans, reducing maintenance needs and increasing reliability.

9. Broad Operating Temperature Range: The VFD can function in environments with temperatures ranging from -10°C to +50°C, making it suitable for a variety / industrial settings.

10. Reliable Protection: The IP20 protection class ensures the drive is protected from dust and debris, making it durable for long-term use in industrial environments.

よくある質問 (FAQ):

1. What is the power rating / the Schneider ATV312HU22N4 drive?

   • The drive has a 2.2 kW rated power.

2. What input voltage does the ATV312HU22N4 require?

   • The drive requires an input voltage / 380-480 VAC (± 10%).

3. What is the overload capacity / the Schneider ATV312HU22N4?

   • The drive provides 150% overload capacity for 1 minute.

4. What is the temperature range for operating the ATV312HU22N4?

   • The drive operates in temperatures from -10°C to +50°C.

5. What is the weight / the ATV312HU22N4?

   • The drive weighs 3.1 kg.

6. What is the cooling type for this VFD?

   • The VFD uses natural air convection for cooling, meaning no external fans are required.

7. Can the ATV312HU22N4 be mounted on a DIN Rail?

   • Yes, the VFD can be mounted using a DIN Rail or wall mounting method.

8. What is the output frequency range / the Schneider ATV312HU22N4?

   • The output frequency range is 0 to 600 Hz.

9. Does the ATV312HU22N4 support Modbus communication?

   • Yes, it supports Modbus RTU communication via RS485 port.

10. What motor control methods are available with the ATV312HU22N4?

    • The drive supports V/F control, PID control, and Flux Vector motor control methods.
