Product 説明

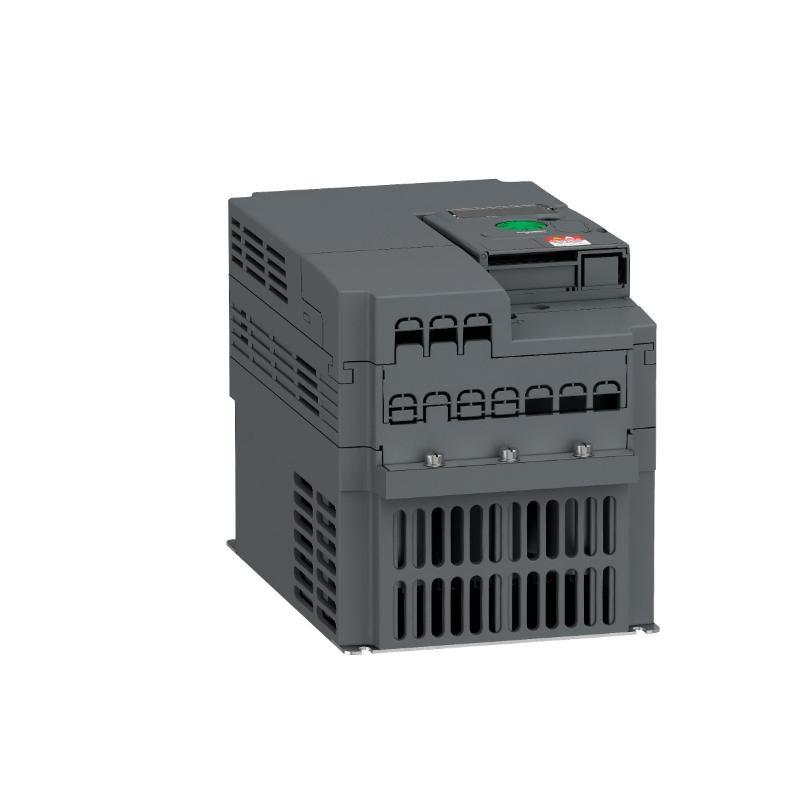

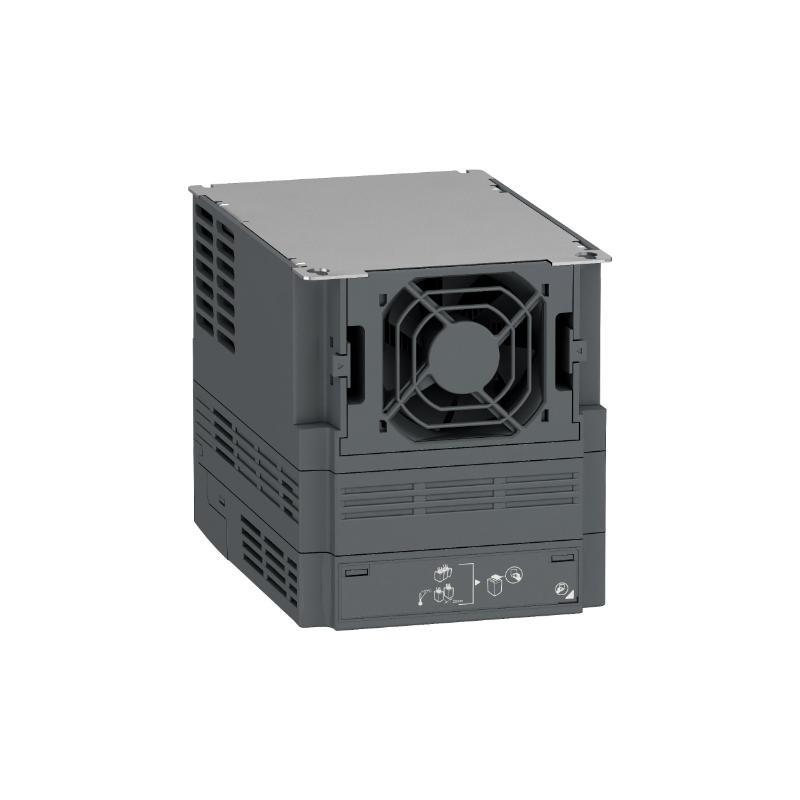

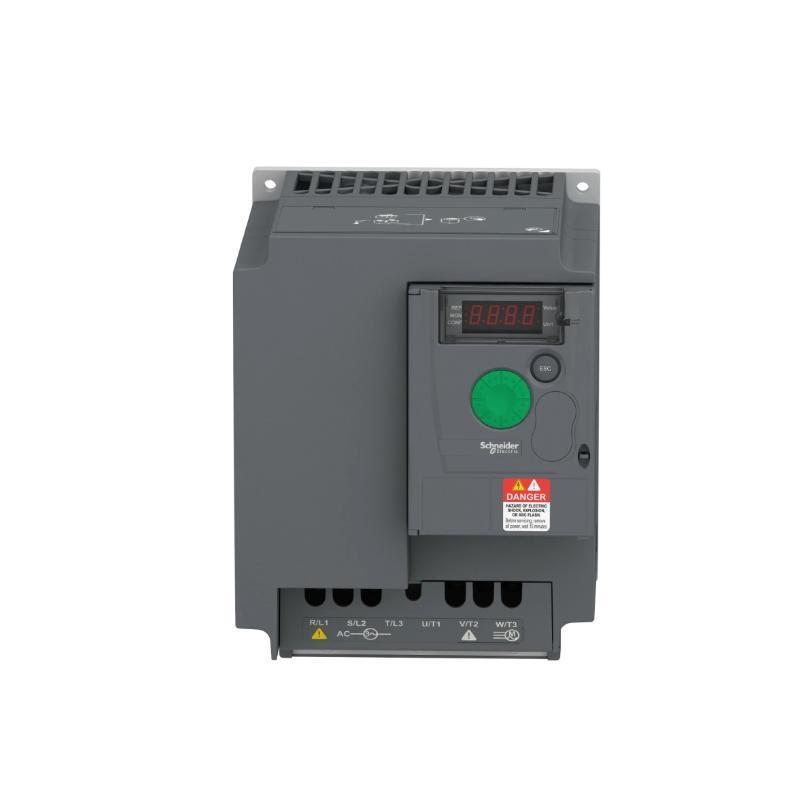

The Schneider ATV310HU75N4E is a compact, robust variable speed drive designed for asynchronous motors. It /fers efficient control / motor speed and torque, delivering energy savings and improved process performance. Engineered for reliability, it is particularly suitable for industrial and commercial applications in harsh environments.
Technical Specifications
| Parameter | Value |
|---|---|
| モデル | ATV310HU75N4E |
| Power Supply | 380–460 V AC, 3-phase, 50/60 Hz |
| Motor Power | 7.5 kW (10 HP) |
| Output Frequency | 0.5…400 Hz |
| Control Method | V/F and Sensorless Vector Control |
| Protection Level | IP20 |
| Operating Temperature | -10°C to +50°C |
| Dimensions (H x W x D) | 150 x 171 x 232 mm |
| 重量 | 3.7 kg |
| Communication | Modbus embedded |
| Overload Capacity | 150% / rated current for 60 seconds |
Applications
-
Conveyors and material handling systems
-
Pumps and fans in HVAC and water treatment
-
Packaging and textile machines
-
Food & beverage processing lines
-
General purpose industrial machinery
Advantages
-
Compact design for easy panel integration
-
High torque performance at low speed
-
Energy-efficient operation
-
Built-in EMC filter for noise reduction
-
User-friendly interface for quick commissioning
-
Robust operation in demanding environments
FAQ
Q1: What motor types are supported?
A1: サポートs three-phase asynchronous (induction) motors.
Q2: Can this drive be used for constant torque applications?
A2: Yes, it is suitable for both constant and variable torque loads.
Q3: Does it support Modbus communication?
A3: Yes, it has embedded Modbus RTU communication.
Q4: What is the overload capacity?
A4: It can handle 150% / rated current for 60 seconds.
Q5: Is it easy to install in control panels?
A5: Yes, its compact size and IP20 protection make it panel-friendly.
Q6: Can it operate in high-temperature environments?
A6: Yes, it can operate at up to +50°C without derating.
Q7: Is there built-in EMC filtering?
A7: Yes, an EMC filter is integrated.
Q8: Does it provide sensorless vector control?
A8: Yes, it supports sensorless vector control for better torque at low speeds.
Q9: What is the maximum output frequency?
A9: Up to 400 Hz.
Q10: Is it compliant with global standards?
A10: Yes, it complies with IEC and other international standards.
Recommended Related モデルs
| モデル | Power Rating | Dimensions (mm) | 重量 |
|---|---|---|---|
| ATV310HU15N4E | 1.5 kW | 130 x 150 x 180 | 2.2 kg |
| ATV310HU22N4E | 2.2 kW | 130 x 150 x 180 | 2.4 kg |
| ATV310HU30N4E | 3 kW | 150 x 171 x 232 | 3.0 kg |
| ATV310HU40N4E | 4 kW | 150 x 171 x 232 | 3.2 kg |
| ATV310HU55N4E | 5.5 kW | 150 x 171 x 232 | 3.5 kg |
| ATV310HU90N4E | 9 kW | 180 x 215 x 260 | 4.5 kg |
Popular Schneider モデルs
| モデル | Power Rating | Dimensions (mm) | 重量 |
|---|---|---|---|
| ATV12H075M2 | 0.75 kW | 142 x 72 x 129 | 1.0 kg |
| ATV320U22N4B | 2.2 kW | 143 x 73 x 158 | 1.4 kg |
| ATV630D15N4 | 15 kW | 418 x 270 x 232 | 16.0 kg |
| ATV71HU30N4 | 3 kW | 250 x 180 x 180 | 6.8 kg |
| ATV930C13N4 | 132 kW | 970 x 430 x 320 | 90.0 kg |
| ATV212HU30N4 | 3 kW | 220 x 110 x 145 | 4.0 kg |
