製品紹介

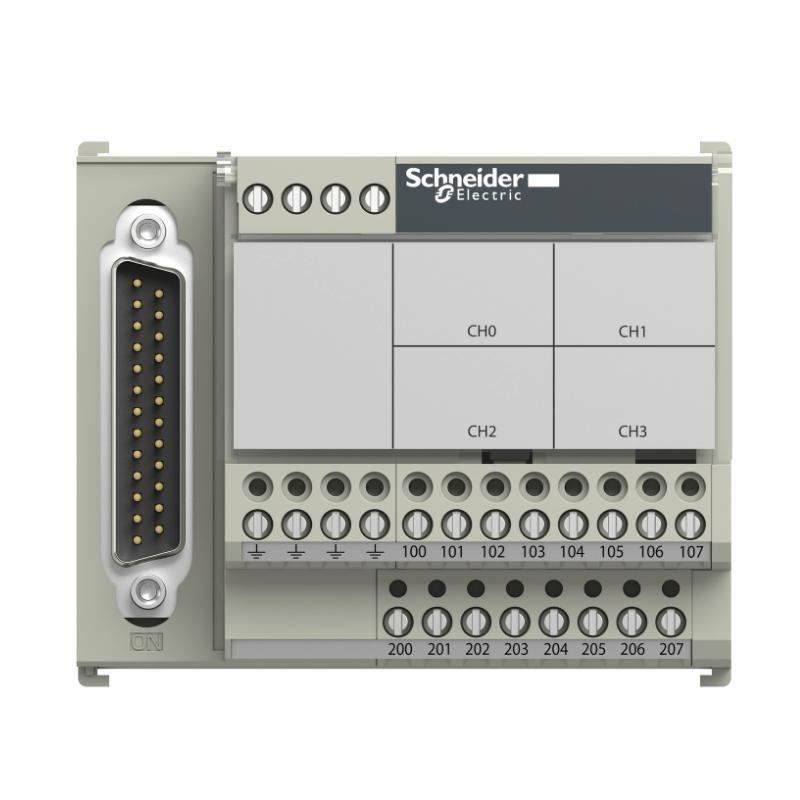

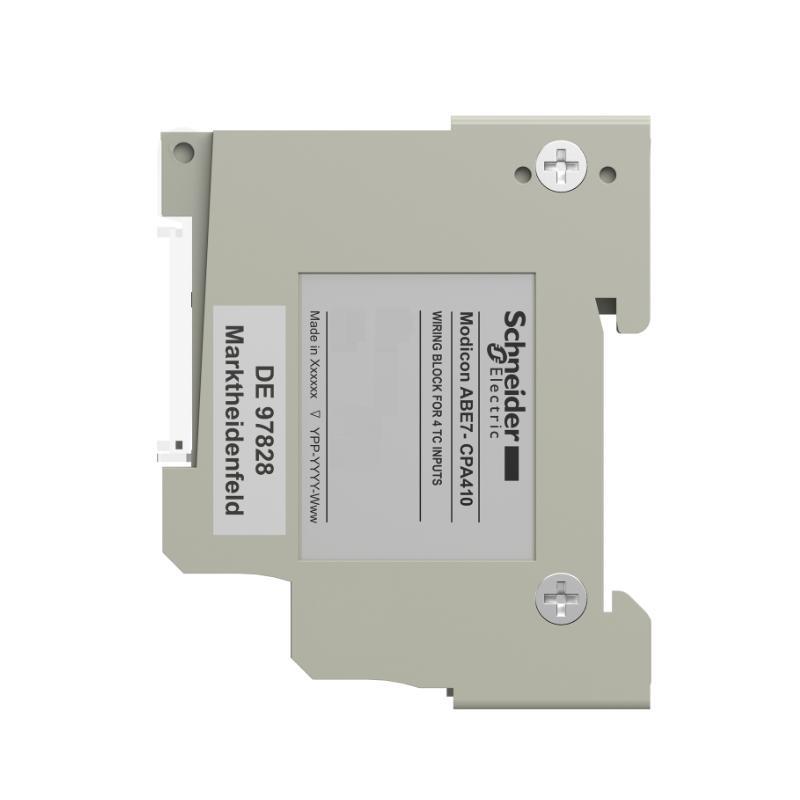

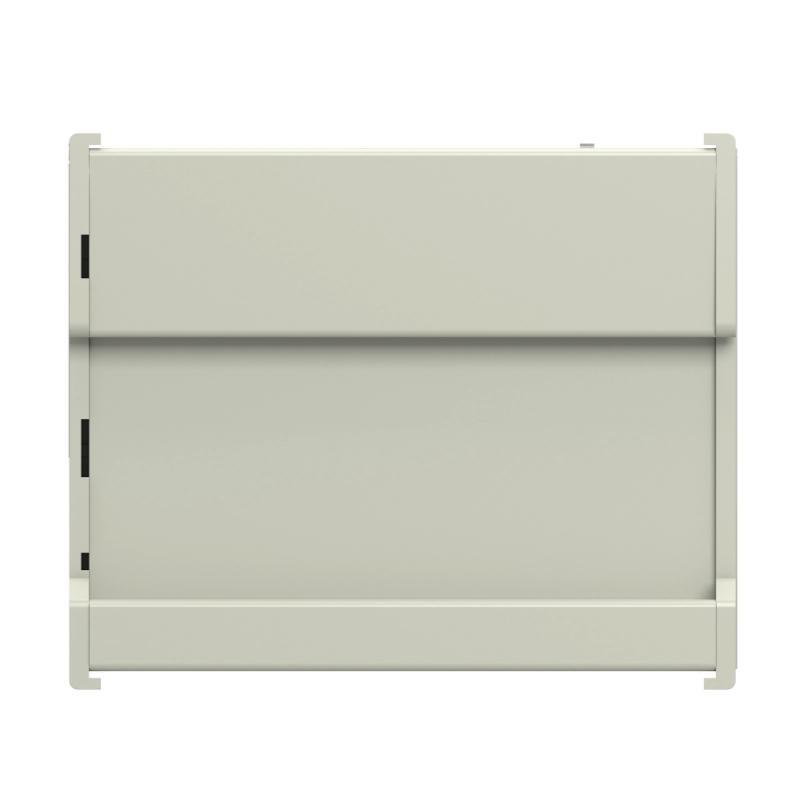

The Schneider Electric ABE7CPA410 is a connection sub-base belonging to the Modicon ABE7 series, designed as part / the Telefast prewiring system. This product provides an IP20-rated interface solution that simplifies wiring between programmable logic controllers (PLCs) and field devices in industrial automation systems.
This connection sub-base is specifically designed to distribute four protected analog channels. It features screw-type terminals for secure electrical connections and a 25-pin SUB-D connector for direct interface with PLC analog input modules. By centralizing signal termination and protection, the ABE7CPA410 improves wiring clarity, reduces installation time, and enhances system reliability.
The Modicon ABE7 product family is engineered to streamline automation wiring while maintaining consistent electrical performance and robust mechanical design.
製品仕様
| Parameter | 説明 |
|---|---|
| Product Name | Connection Sub-base |
| モデル Number | ABE7CPA410 |
| Product Series | Modicon ABE7 (Telefast) |
| Device Type | Connection sub-base |
| Channel Type | Analog |
| Number / Channels | 4 protected analog channels |
| Electrical Connection | Screw-type terminals |
| PLC Interface Connector | 25-pin SUB-D |
| Compatible PLC Module | Modicon M340 BMXAMI0410 |
| Protection Rating | IP20 |
| Installation Method | DIN rail (35 mm symmetric) or panel mounting |
| Mounting Options | Clip-on DIN rail or screw mounting with fixing kit |
| Operating Mode | Continuous |
| Certifications | LROS, DNV, UL, GL, BV, CSA |
| Typical Environment | Industrial control cabinet |
| Dimensions (W × H × D) | 83 × 67 × 70 mm |
| 重量 | 0.18 kg |
Product Applications
The ABE7CPA410 connection sub-base is widely used in industrial automation systems that require reliable and organized analog signal distribution:
-
Interface between analog field signals and PLC analog input modules
-
Telefast prewired automation systems
-
Modicon M340 analog input applications
-
Process control and measurement systems
-
Industrial control cabinets and panels
-
Automation systems requiring protected analog signal routing
Its structured design ensures stable signal transmission and simplifies commissioning and maintenance tasks.
Product Advantages
• Telefast Prewiring Integration
Designed as part / the Modicon ABE7 Telefast system to simplify automation wiring.
• Protected Analog Channel Distribution
サポートs four protected analog channels for stable and reliable signal handling.
• Secure Electrical Connections
Screw-type terminals ensure strong and vibration-resistant wiring.
• Direct PLC Interface
25-pin SUB-D connector enables fast and reliable connection to PLC modules.
• Flexible Mounting Options
サポートs DIN rail mounting and panel mounting for versatile installation.
• Certified for Industrial Use
Approved by major international certification bodies for industrial applications.
• IP20 Protection Level
Suitable for use in controlled industrial cabinet environments.
