Product 説明

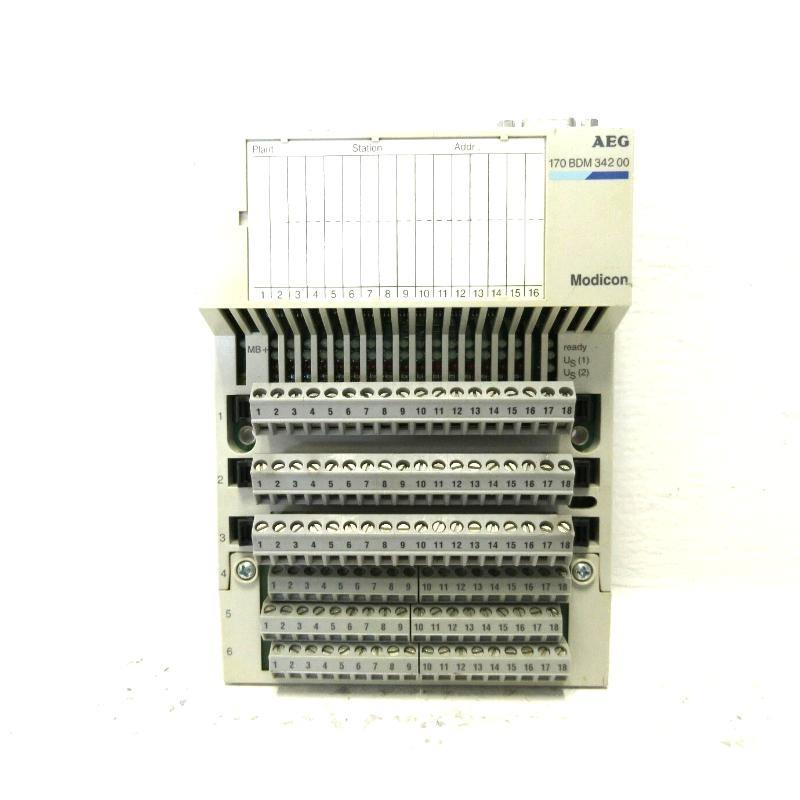

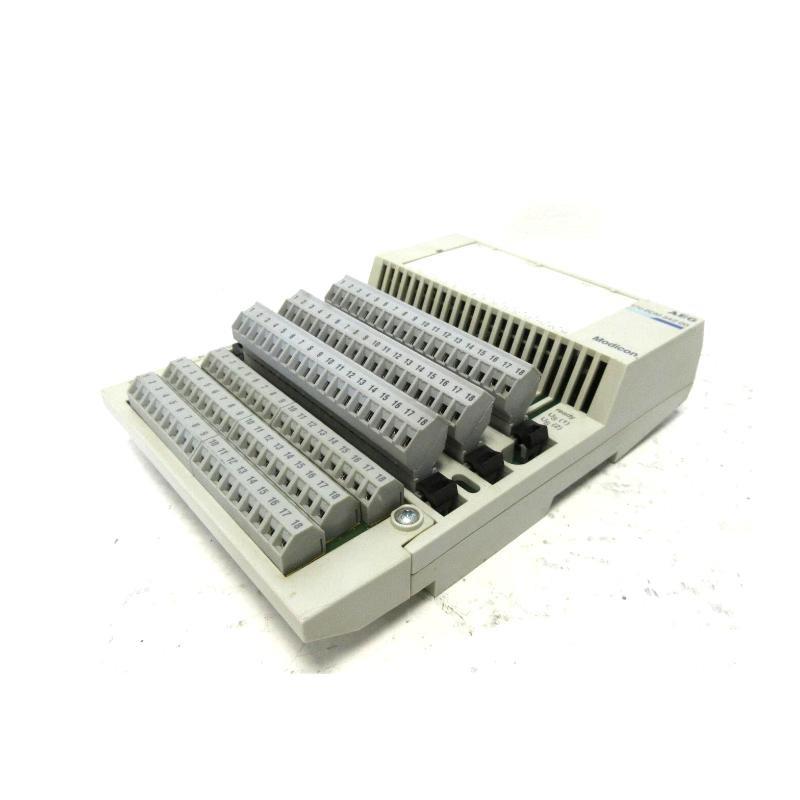

The Schneider 170BDM34200 is a TIO (Transparent Input/Output) Input Module designed for Modbus Plus networks. It provides reliable and high-speed communication for distributed I/O systems in industrial automation. This module is built for robustness and efficient integration into the Modicon Momentum platform.
Technical Specifications
| Parameter | 説明 |
|---|---|
| Product Type | Modbus Plus TIO Input Module |
| Communication Protocol | Modbus Plus |
| Network Connection | 1 × DB9 female connector |
| Mounting Type | DIN Rail / Panel |
| Voltage Range | 5 VDC (via base) |
| Module Type | Transparent I/O |
| I/O Compatibility | サポートs Modicon Momentum I/O |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W×H×D) | 125 × 141.5 × 47.5 mm |
| 重量 | 0.30 kg |
Applications
-
Distributed control systems
-
SCADA and telemetry systems
-
Process automation
-
Factory automation
-
Energy and utility monitoring
Advantages
-
Seamless integration with Modicon Momentum I/O bases
-
High-speed Modbus Plus communication
-
Transparent data handling for efficient control
-
Compact and lightweight for space-constrained panels
-
Easy installation and maintenance
-
Compatible with wide industrial environments
よくある質問 (FAQ)
Q1: What is the primary function / the 170BDM34200 module?
A1: It serves as a Modbus Plus interface module for Transparent I/O in distributed systems.
Q2: Is this module compatible with all Modicon Momentum bases?
A2: Yes, it is designed to work with Modicon Momentum I/O bases.
Q3: Can it be used in harsh industrial environments?
A3: Yes, it supports wide temperature ranges and high humidity.
Q4: What is the communication connector type?

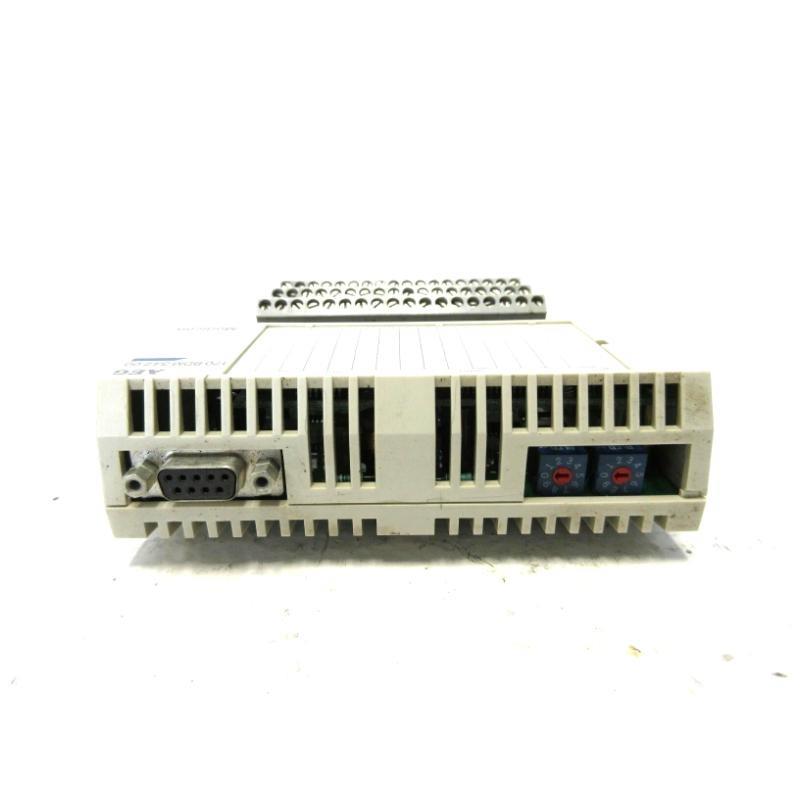

A4: It uses a DB9 female connector for Modbus Plus networks.
Q5: Does this module support hot-swapping?
A5: No, power must be /f before insertion or removal.
Q6: What are the power requirements for this module?
A6: It requires 5 VDC, typically supplied through the base.
Q7: Is configuration s/tware required?
A7: No, it operates transparently without special configuration.
Q8: What is the installation method?
A8: It supports DIN rail or panel mounting.
Q9: Is this module suitable for real-time applications?
A9: Yes, due to its high-speed communication and transparency.
Q10: Can it communicate with other Modbus networks?
A10: It is designed specifically for Modbus Plus; for other networks, a gateway is required.
Related or Same-Series モデルs
| モデル | 説明 | Communication | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| 170BDM34000 | TIO Module for Modbus Plus | Modbus Plus | 125 × 141.5 × 47.5 | 0.30 kg |
| 170ADM35010 | Analog Input Module, 4 channels | Momentum | 125 × 141.5 × 47.5 | 0.30 kg |
| 170ANR12091 | Analog Output Module, 2 channels | Momentum | 125 × 141.5 × 47.5 | 0.30 kg |
| 170AAI03000 | Analog Input Module, 8 channels | Momentum | 125 × 141.5 × 47.5 | 0.30 kg |
| 170ENT11002 | Ethernet Communication Adapter | Ethernet/IP | 125 × 141.5 × 47.5 | 0.30 kg |
| 170ADI35000 | Discrete Input Module, 32 points | Momentum | 125 × 141.5 × 47.5 | 0.30 kg |
Popular Schneider モデルs
| モデル | 説明 | Protocol | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| TM221CE16R | Modicon M221 Logic Controller | Ethernet | 90 × 100 × 85 | 0.40 kg |
| BMXP342020 | Modicon Premium PLC CPU | Modbus, TCP/IP | 160 × 100 × 65 | 0.60 kg |
| TSXPSY2600 | Power Supply Module for Premium Series | – | 135 × 150 × 85 | 0.95 kg |
| TM258LF42DR | Modicon M258 Logic Controller | CANopen, Modbus | 190 × 100 × 85 | 0.85 kg |
| BMEP584040 | Modicon M580 ePAC Processor | Ethernet/IP | 214 × 100 × 90 | 1.10 kg |
| BMXDDO1602 | Discrete Output Module, 16 DO | – | 100 × 60 × 40 | 0.25 kg |
