製品紹介:

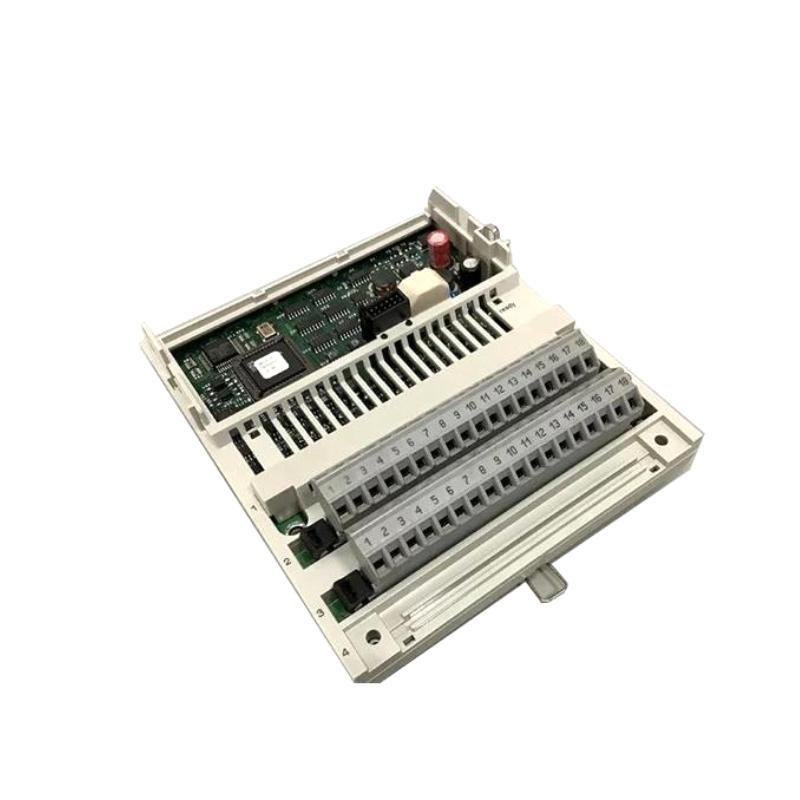

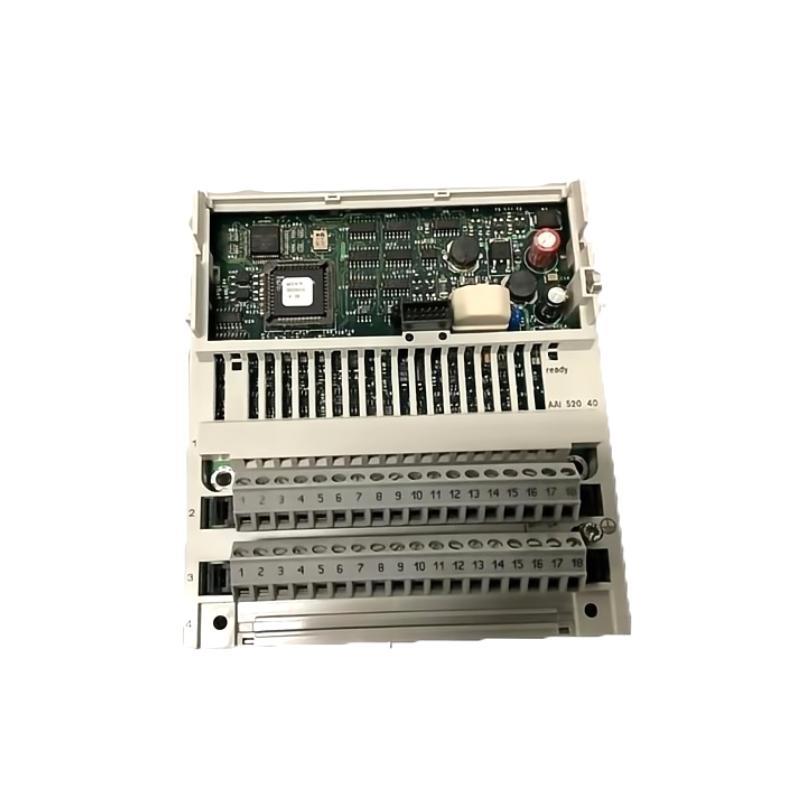

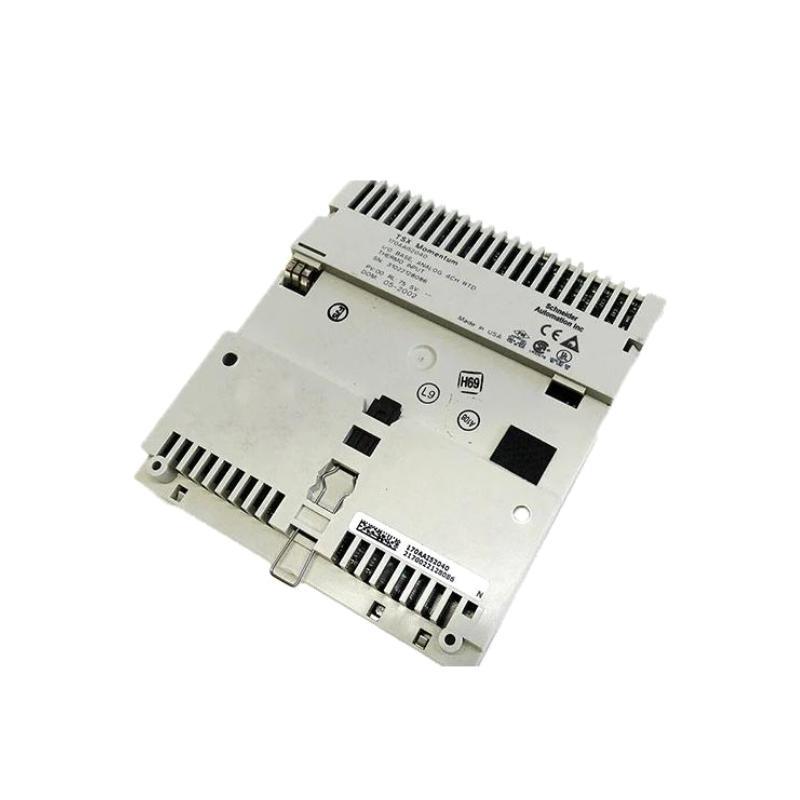

The Schneider 170AAI52040 Distributed Analog Input Base is a component designed for use in industrial automation systems, specifically within the Modicon M580 series. This device allows the integration / multiple analog input signals into the control system, providing accurate and reliable data acquisition for complex industrial processes. The 170AAI52040 model is a crucial part / Schneider Electric’s /fering for distributed I/O systems, particularly in automation and control applications where high-performance analog inputs are necessary.
製品仕様:
| Feature | Specification |
|---|---|
| モデル | 170AAI52040 |
| Type | Distributed Analog Input Base |
| Input Type | Analog (Voltage and Current) |
| Number / Inputs | 16 Analog Inputs |
| Input Range | ±10V, 0-20mA, 4-20mA |
| Resolution | 16-bit |
| Power Supply | 24V DC |
| Input Impedance | ≥ 1 MΩ (Voltage Inputs) |
| Mounting Type | DIN Rail |
| Dimensions (WxHxD) | 47.5 × 125 × 141.5 mm |
| 重量 | 0.215 kg |
| Environmental 状態s | -20°C to 60°C |
| Communication Protocol | Modbus TCP, Modbus RTU |
Product Applications:
The Schneider 170AAI52040 is designed for use in various industrial environments where analog signal acquisition is needed for automated control and monitoring. Key applications include:
-
Process Control: Integrating with distributed control systems (DCS) to monitor parameters such as temperature, pressure, and flow in manufacturing and production processes.
-
Building Automation: Used in systems that control HVAC (Heating, Ventilation, and Air 状態ing) systems, lighting, and other building systems.
-
Oil and Gas: Suitable for process control in oil and gas facilities where accurate measurement and monitoring / analog signals are essential.
-
Water and Wastewater Management: Facilitates the monitoring / water quality and wastewater treatment processes, ensuring compliance with environmental regulations.
-
Power Generation: Used in monitoring power systems for temperature, voltage, and current parameters in power generation plants.
Product Advantages:
-
High Accuracy: With a 16-bit resolution, the 170AAI52040 /fers high-precision analog input processing, ensuring reliable data acquisition.
-
Wide Input Range: サポートs a wide variety / input types, including voltage and current, which makes it versatile for various industrial applications.
-
Easy Integration: The device is designed for easy integration into Schneider Electric’s Modicon M580 platform, ensuring seamless operation within existing automation systems.
-
Rugged Design: Built for demanding industrial environments, the 170AAI52040 operates in temperatures ranging from -20°C to 60°C, ensuring reliability even in harsh conditions.
-
Compact Size: With its small form factor, the device can be easily installed in limited spaces, providing flexibility for system designers.
-
Energy Efficient: The device operates on a 24V DC power supply, which helps to reduce energy consumption in large-scale industrial systems.
よくある質問 (FAQ):
-
What type / inputs does the 170AAI52040 support?
-
The 170AAI52040 supports both voltage and current input types, including ±10V, 0-20mA, and 4-20mA.
-
-
How many inputs does the 170AAI52040 provide?
-
It /fers 16 analog input channels for connecting sensors or other analog devices.
-
-
What is the resolution / the 170AAI52040?
-
The device provides a 16-bit resolution, ensuring accurate measurement and data acquisition.
-
-
What is the operating temperature range / the 170AAI52040?
-
The device can operate in a temperature range from -20°C to 60°C.
-
-
How is the 170AAI52040 mounted?
-
The 170AAI52040 is mounted on a DIN rail for easy installation in standard industrial enclosures.
-
-
What is the weight / the 170AAI52040?
-
The device weighs 0.215 kg, making it lightweight and easy to handle.
-
-
What power supply does the 170AAI52040 require?
-
It requires a 24V DC power supply to operate.
-
-
Can the 170AAI52040 be used with Schneider Electric’s Modicon M580 platform?
-
Yes, it is fully compatible with the Modicon M580 platform and communicates via Modbus TCP and Modbus RTU.
-
-
What are the main industries that can benefit from using the 170AAI52040?
-
Key industries include process control, building automation, oil and gas, water management, and power generation.
-
-
Is the 170AAI52040 suitable for harsh industrial environments?
-
Yes, the device is designed for demanding environments and can withstand temperatures ranging from -20°C to 60°C.
Related モデルs:
| モデル | Type | Number / Inputs | Input Range | Resolution | Power Supply | Dimensions (WxHxD) | 重量 |
|---|---|---|---|---|---|---|---|
| Schneider 170AAI52020 | Distributed Analog Input Base | 8 | ±10V, 4-20mA | 16-bit | 24V DC | 75mm x 125mm x 100mm | 0.4 kg |
| Schneider 170AAI52030 | Distributed Analog Input Base | 16 | 0-20mA, 4-20mA | 16-bit | 24V DC | 75mm x 125mm x 110mm | 0.45 kg |
| Schneider 170AAI52050 | Distributed Analog Input Base | 8 | ±10V, 4-20mA | 16-bit | 24V DC | 75mm x 125mm x 120mm | 0.48 kg |
| Schneider 170AAI52100 | Distributed Analog Input Base | 16 | ±10V, 4-20mA | 16-bit | 24V DC | 75mm x 125mm x 150mm | 0.5 kg |
| Schneider 170AAI52060 | Distributed Analog Input Base | 12 | ±10V, 4-20mA | 16-bit | 24V DC | 75mm x 125mm x 130mm | 0.52 kg |
| Schneider 170AAI52070 | Distributed Analog Input Base | 8 | ±10V, 0-20mA | 16-bit | 24V DC | 75mm x 125mm x 100mm | 0.47 kg |
Popular Schneider モデルs:
| モデル | Type | Number / Inputs | Input Range | Resolution | Power Supply | Dimensions (WxHxD) | 重量 |
|---|---|---|---|---|---|---|---|
| Schneider 140ARI03010 | Analog Input Module | 8 | ±10V, 4-20mA | 16-bit | 24V DC | 75mm x 125mm x 100mm | 0.45 kg |
| Schneider 140AIO33000 | Analog Input Module | 12 | ±10V, 0-20mA | 16-bit | 24V DC | 75mm x 125mm x 120mm | 0.47 kg |
| Schneider 140AIO84000 | Analog Input/Output Module | 8 | ±10V, 4-20mA | 16-bit | 24V DC | 75mm x 125mm x 130mm | 0.48 kg |
| Schneider 140AIA33000 | Analog Input Module | 8 | ±10V, 4-20mA | 16-bit | 24V DC | 75mm x 125mm x 110mm | 0.46 kg |
| Schneider 140DRA84000 | Digital Relay Output Module | 8 | 24V DC | – | 24V DC | 75mm x 125mm x 100mm | 0.5 kg |
| Schneider 140AIO84100 | Analog Input/Output Module | 8 | ±10V, 0-20mA | 16-bit | 24V DC | 75mm x 125mm x 130mm | 0.5 kg |
