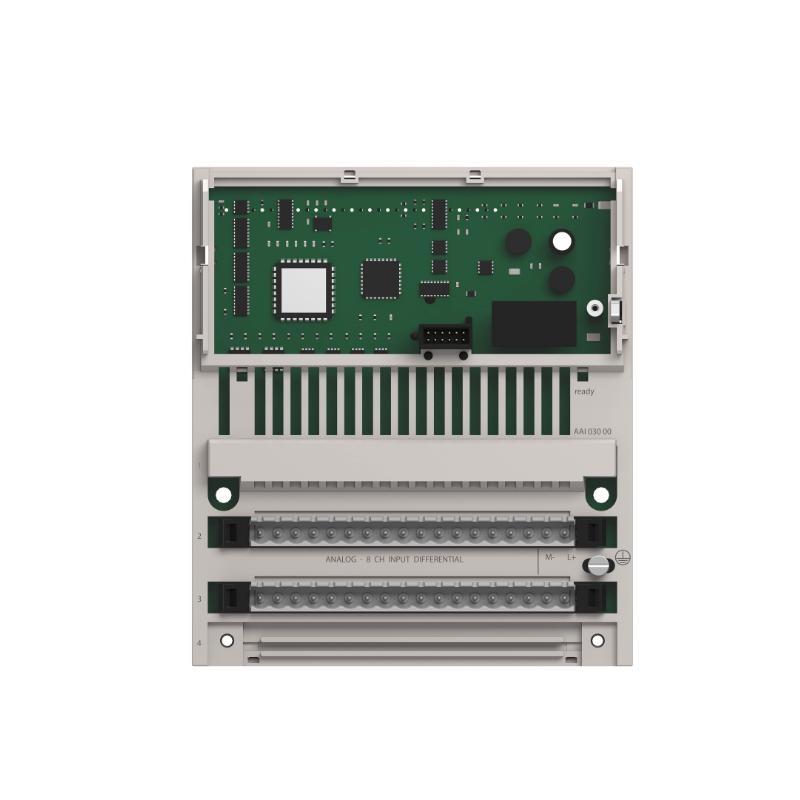

The Schneider Electric 170AAI03000 is a distributed analog input base module designed for use within the Modicon Momentum automation platform. Renowned for its compact design and modularity, this 台 serves as a 8-channel analog input module, enabling precise and reliable acquisition / analog signals from field devices such as transmitters, sensors, and process instruments.
The 170AAI03000 is specifically engineered for harsh industrial environments where performance, durability, and ease / integration are key. Operating under the ユニットy or Concept programming s/tware, it /fers seamless data acquisition and compatibility with other Momentum I/O modules and network adapters.
This module ensures high accuracy in analog signal conversion and is widely recognized for supporting various current and voltage input types, making it highly versatile in process control and automation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| メーカー | Schneider Electric |
| Product Series | Modicon Momentum |
| モデル Number | 170AAI03000 |
| Function | Distributed Analog Input Base |
| Analog Input Channels | 8 channels |
| Input Type | Voltage (0…10 V), Current (4…20 mA) |
| Input Impedance | 250 Ohms (current), >200 KOhms (voltage) |
| Resolution | 12-bit |
| Conversion Time | ≤ 1 ms/channel |
| Accuracy | ±0.5% full scale |
| Power Supply Voltage | 5 V DC (from base) |
| Mounting Type | DIN Rail or Panel Mount |
| Communication Interface | Via Momentum I/O base |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Protection Rating | IP20 |
| Approvals | CE, UL, CSA |
| Dimensions (W x H x D) | 47.5 × 125 × 141.5 mm |
| 重量 | 0.215 kg |
Applications
The 170AAI03000 module is widely utilized in various industrial sectors for reliable analog data acquisition. Typical applications include:
-
Manufacturing automation: Monitoring process variables such as temperature, pressure, and level.
-
Building automation systems: Capturing analog inputs from sensors for HVAC and lighting control.
-
Water and wastewater treatment: Integrating field signals into SCADA systems for real-time monitoring.
-
Food and beverage processing: Precision control / ingredients, temperatures, and flow rates.
-
Energy management systems: Data collection from transducers for power consumption analysis.
-
Oil and gas industries: Measurement / analog process signals from remote terminal 台s (RTUs).
Product Advantages
-
Compact & Modular Design: Ideal for installations with limited space, the Momentum form factor simplifies setup.
-
High Accuracy and Stability: Offers ±0.5% accuracy with 12-bit resolution for reliable signal conversion.
-
Flexible Signal サポート: Accepts both current and voltage input types, minimizing the need for signal conditioners.
-
Quick Installation: Designed for easy DIN rail or panel mounting; hot-swappable under power.
-
System Integration: Seamlessly works with Modicon PLC systems, enhancing overall automation scalability.
-
Industry Compliance: UL, CE, and CSA certifications ensure global compliance and safety.
よくある質問 (FAQ)
-
What type / signals can the 170AAI03000 accept?
It supports analog current (4–20 mA) and voltage (0–10 V) signals. -
Is the 170AAI03000 compatible with Modicon Quantum or Premium PLCs?
It is specifically designed for the Modicon Momentum platform but can interface with others via adapters. -
Can this module be used in outdoor environments?
It is not IP65-rated; for outdoor use, it should be placed in a protected enclosure. -
How do I configure the module in ユニットy Pro?
It can be configured using the Modicon Momentum hardware catalog in ユニットy Pro, with channel settings defined per application. -
Is the module hot-swappable?
Yes, it supports hot-swapping, allowing for maintenance without system downtime. -
Does it require external power supply?
No, it draws power directly from the base (5 V DC). -
What kind / input resolution does it /fer?
It features a 12-bit resolution for accurate analog signal measurement. -
What is the response time per channel?
The conversion time is less than or equal to 1 millisecond per channel. -
Can I use it in high-vibration environments?
Yes, but it’s advisable to use vibration-dampening mounting if the application demands it. -
How many modules can be installed on a single Momentum base?
Typically, one module per I/O base, but multiple I/O bases can be combined using network adapters.
Related モデルs (Same Series or Functionality)
| モデル | 説明 | Input Type | Channels | Mounting |
|---|---|---|---|---|
| 170AAI04000 | Analog Input Module, High-Density | Voltage/Current | 16 | DIN Rail |
| 170AAI52000 | RTD Input Module | RTD (Pt100, etc.) | 4 | DIN Rail |
| 170AAN01000 | Thermocouple Input Module | TC (J, K, T types) | 4 | DIN Rail |
| 170ADI35000 | Digital Input Module | Discrete | 32 | DIN Rail |
| 170AMM09000 | Mixed Analog I/O Module | AI & AO | 4 AI / 2 AO | DIN Rail |
| 170ENT11002 | Ethernet Network Adapter | – | – | Base-mounted |
Popular Schneider モデルs (High-Demand ユニットs)
| モデル | Product Type | Function | System Compatibility |
|---|---|---|---|
| BMXP342020 | Modicon M340 CPU | Processor Module | M340 Series |
| TM221CE16R | Modicon M221 PLC | Compact Controller | EcoStruxure Machine Expert |
| ATV320U15N4B | Variable Speed Drive | Motor Control (1.5 kW) | Altivar 320 |
| HMISTU855 | HMI Terminal | 5.7” Touchscreen HMI | Magelis STU |
| BMXART0814 | Analog Input Module | 8 Channels (Voltage/Current) | M340 Series |
| TSXDEY64D2K | Digital Input Module | 64 Digital Inputs | Modicon Premium |
