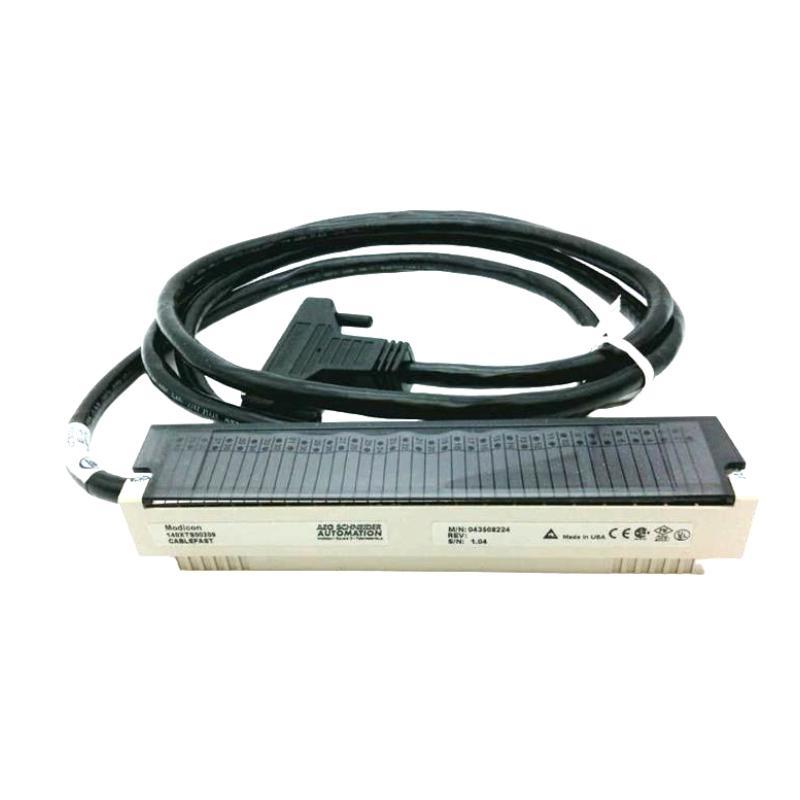

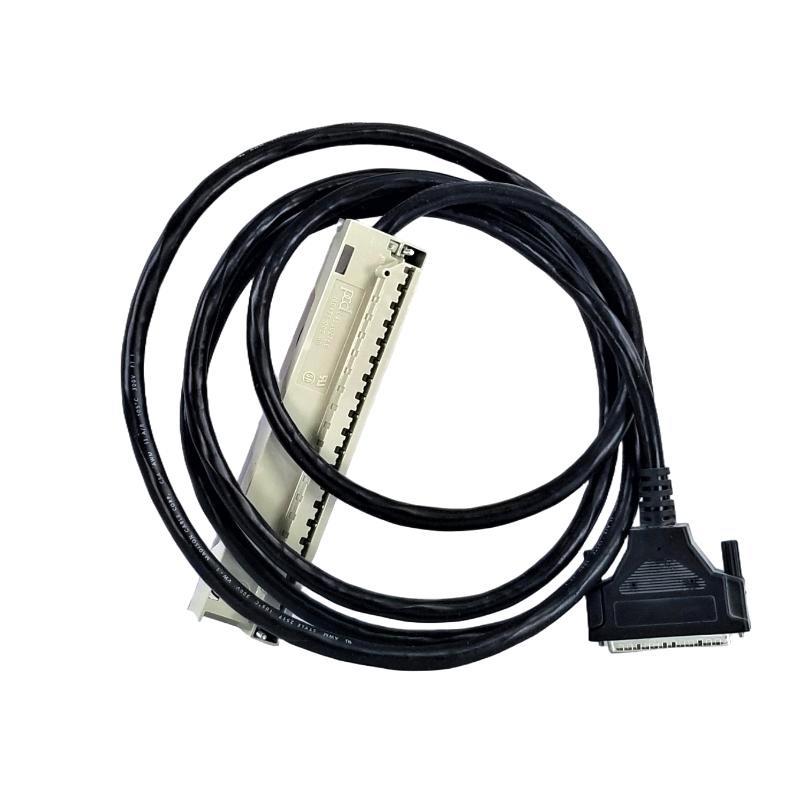

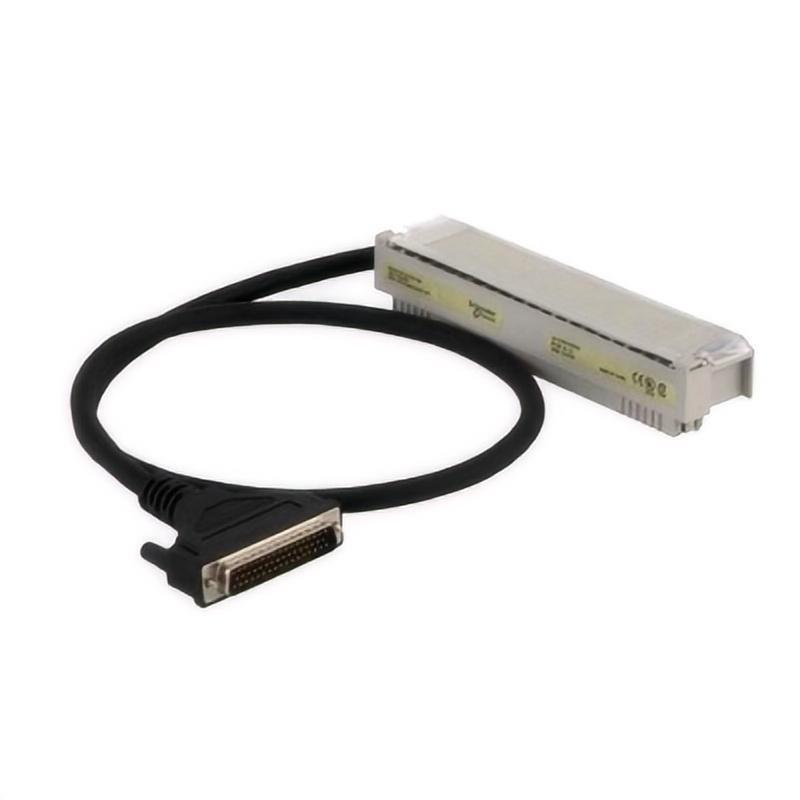

The Schneider 140XTS00209 is a 2.7-meter industrial CableFast system cable specifically designed for seamless integration within Schneider Electric’s Modicon Quantum platform. As part / the high-performance I/O cabling ecosystem, this pre-assembled cable simplifies the connection between I/O bases and interface modules, streamlining installation processes and minimizing wiring errors in complex industrial control systems.
With factory-terminated connectors, the 140XTS00209 enables faster deployment and ensures superior connection reliability. It is ideal for applications where system uptime, modularity, and cable organization are paramount. The robust design and EMI-shielded construction make it well-suited for use in manufacturing lines, energy infrastructure, and large-scale process automation.
Technical Specifications
| Parameter | 説明 |
|---|---|
| Product モデル | 140XTS00209 |
| Product Type | CableFast System Cable |
| メーカー | Schneider Electric |
| System Compatibility | Modicon Quantum I/O base modules |
| Cable Length | 2.7 meters (8.9 feet) |
| Connector Type | Factory-installed CableFast industrial connectors |
| Jacket Material | Thermoplastic shielded cable with durable insulation |
| Signal サポート | Analog and digital signal transmission |
| Shielding | Foil and braided shielding for EMI protection |
| Voltage Rating | 30V nominal (signal-level voltage) |
| Operating Temperature Range | -10°C to +60°C (14°F to 140°F) |
| Storage Temperature Range | -25°C to +85°C |
| Compliance Certifications | CE, UL Recognized, RoHS Compliant |
| Color | Black |
| Cable Diameter | 12 mm (0.47 inches) |
| 重量 | 0.915 kg |
| Mounting Application | Preconfigured for fast plug-and-play into I/O base modules |
Product Applications
-
Industrial Automation Systems: Enables quick and secure connection between controller and I/O bases.
-
Energy Sector Installations: Ideal for substations and renewable power control cabinets.
-
Food & Beverage Processing: サポートs hygienic and compact panel layouts requiring fast cable management.
-
Pharmaceutical Manufacturing: Reduces system wiring errors in clean-room control systems.
-
Oil & Gas Platforms: Provides vibration-resistant, shielded cabling in hazardous areas.
-
Material Handling Systems: Simplifies fieldbus wiring in conveyor and packaging systems.
Key Advantages
-
Pre-Terminated for Speed: Comes ready with connectors—no field crimping required, reducing installation time and labor.
-
Error Reduction: Designed to interface directly with CableFast-enabled I/O modules, avoiding wiring mismatches.
-
High Durability: Industrial-grade materials and shielding make the cable resilient to heat, EMI, and physical stress.
-
Neat Cable Management: Simplifies panel design by minimizing clutter and organizing signal paths effectively.
-
Standardized Across Systems: Integrates smoothly into all Modicon Quantum architectures using CableFast I/O.
-
Lower Total Cost / Ownership: Minimizes downtime, improves modularity, and streamlines troubleshooting.
よくある質問 (FAQ)
1. What does the 140XTS00209 cable connect to?
This cable is designed to connect Modicon Quantum I/O base modules with interface modules using the CableFast system.
2. Can I cut or modify the cable to shorten it?
No, the cable comes factory-terminated and should not be cut or altered, as this may affect signal integrity and void certification.
3. Is the cable shielded against electrical noise?
Yes, the cable includes foil and braided shielding to protect against EMI in industrial environments.
4. What happens if I use this cable in a high-vibration environment?
It is suitable for such conditions thanks to secure connectors and durable construction, ensuring signal integrity is maintained.
5. Is the 2.7m length standard, or are other lengths available?
Schneider /fers a range / CableFast cables in lengths from 0.5m up to 5.0m to accommodate various installations.
6. Can I use this cable with any Quantum module?
It is compatible with modules that support the CableFast interface, specifically designed for the Quantum series.
7. Does this cable support analog, digital, or both types / signals?
It supports both analog and digital signal transmission, depending on the I/O modules in use.
8. How should the cable be routed inside a panel?
It should be routed with minimal bending and away from power cables to maintain signal integrity.
9. Is this cable plug-and-play?
Yes, it features factory-installed connectors for direct, tool-free installation.
10. Can this cable be reused in future installations?
Yes, if the cable and connectors remain undamaged, it can be reused across Quantum systems.
Related モデルs from the Same Series
| モデル Number | 説明 | Cable Length | Compatible System |
|---|---|---|---|
| 140XTS00200 | CableFast System Cable | 2.0 meters | Modicon Quantum I/O |
| 140XTS00203 | CableFast System Cable | 2.7 meters | Modicon Quantum I/O |
| 140XTS00250 | CableFast System Cable | 2.5 meters | Modicon Quantum I/O |
| 140XTS00300 | CableFast System Cable | 3.0 meters | Modicon Quantum I/O |
| 140XTS00400 | CableFast System Cable | 4.0 meters | Modicon Quantum I/O |
| 140XTS00500 | CableFast System Cable | 5.0 meters | Modicon Quantum I/O |
Popular モデルs from Schneider Electric
| モデル Number | Product Type | 説明 |
|---|---|---|
| 140CPU65150 | Quantum CPU Module | High-performance processor for large automation |
| 140DAI55300 | Analog Input Module | 16-channel analog input for voltage/current signals |
| 140DDO35300 | Discrete Output Module | 32-point 24V DC discrete output |
| 140ACO13000 | Analog Output Module | 8-channel analog output, voltage/current |
| 140NOC78000 | Ethernet Communication Adapter | High-speed Ethernet/IP interface module |
| 140CRA31200 | Remote I/O Adapter | CRA for remote I/O on Quantum system |
