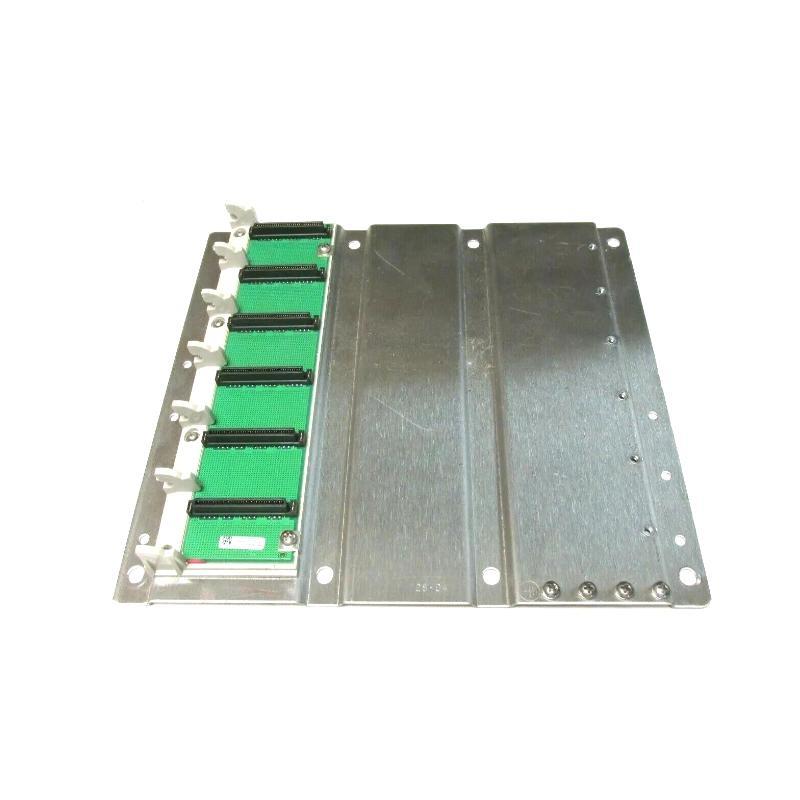

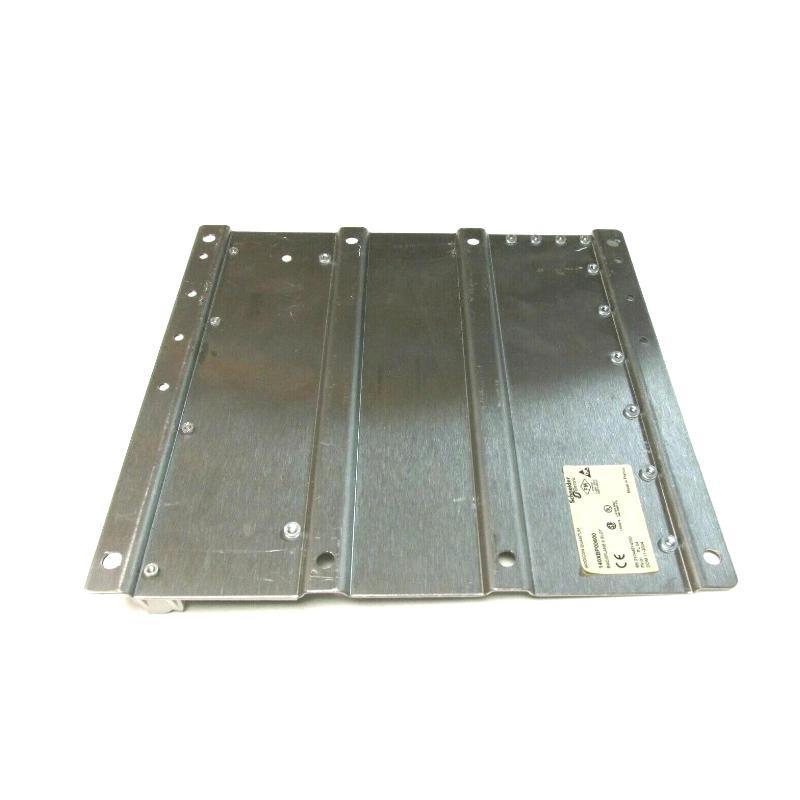

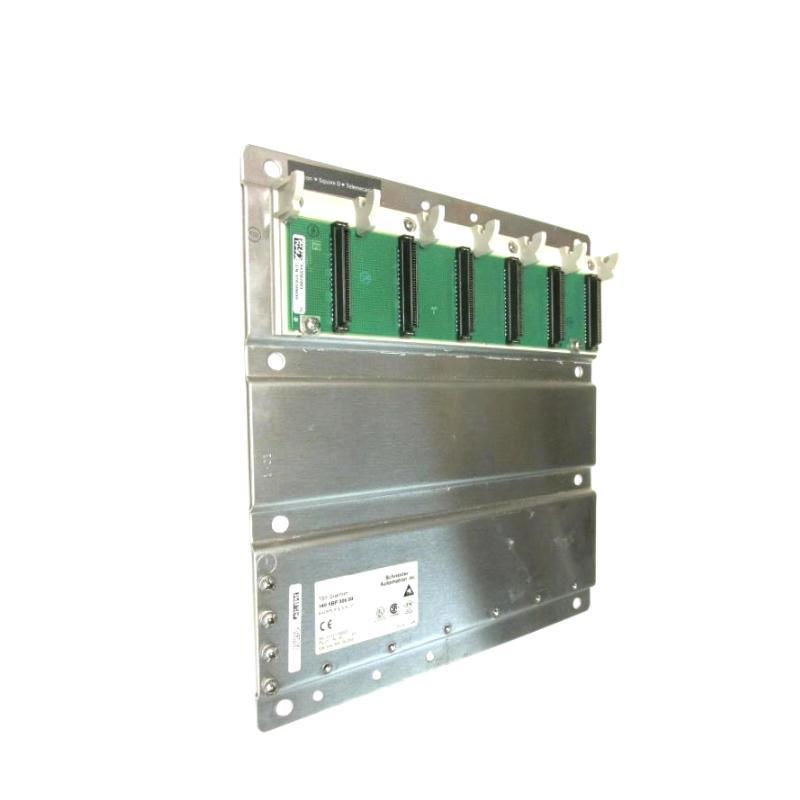

The Schneider Electric 140XBP00600 is a 6-slot backplane rack designed for the Modicon Quantum automation platform. Serving as a critical infrastructure component, this backplane provides the mechanical and electrical interconnection between various Quantum modules, such as CPUs, power supplies, I/O modules, and communication adapters.
Designed for industrial automation systems, the 140XBP00600 allows users to organize their system modules in a compact, secure, and highly reliable format. The 6-slot configuration is ideal for smaller to medium-sized control systems where limited module count or footprint is a requirement. It supports high-speed data exchange among modules via the integrated internal bus and is fully compatible with other Modicon Quantum components.
Backed by Schneider Electric’s engineering standards, this backplane rack ensures long-term durability, ease / installation, and seamless operation in demanding environments.
製品仕様
| Parameter | 説明 |
|---|---|
| モデル Number | 140XBP00600 |
| Product Type | Rack Backplane |
| Slot Count | 6 slots |
| Series Compatibility | Modicon Quantum |
| Bus Type | Integrated high-speed Modicon Quantum bus |
| Module Compatibility | サポートs CPUs, I/O, Power Supply, Comm Modules |
| Mounting Type | Panel Mount |
| Power Supply Placement | Left slot reserved for power supply |
| Material | Industrial-grade aluminum frame |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (HxWxD) | 265 x 29.1 x 290 mm |
| 重量 | 0.64 kg |
| Certifications | CE, UL, CSA, ATEX |
| Cooling | Natural convection (no fan required) |
Product Applications
The 140XBP00600 backplane is widely implemented in industrial automation solutions where modularity and control system scalability are required. Typical applications include:
-
Discrete and process manufacturing systems
-
Water and wastewater treatment facilities
-
Automotive and assembly line automation
-
Power generation and distribution systems
-
Chemical and petrochemical plants
-
Food and beverage processing plants
Product Advantages
-
Robust Industrial Design
Manufactured with high-grade materials, it ensures reliable operation even in harsh industrial conditions. -
Optimized Slot Configuration
Six slots provide balanced capacity for compact systems without overextending space or cost. -
Easy Integration
Seamlessly integrates into existing Quantum control architectures, reducing deployment time. -
Tool-Free Installation
Module insertion and removal can be done without special tools, enabling fast service and maintenance. -
Secure Mechanical Fit
Lock-in slots guarantee firm module connections, minimizing vibration and operational disruptions. -
Low Maintenance
Passive backplane with no moving parts ensures minimal upkeep and fewer failure points. -
Highly Scalable
Can be combined with other backplanes (e.g., 10-slot or 16-slot) for future system expansion.
よくある質問 (FAQs)
-
What type / modules are compatible with the 140XBP00600 backplane?
It supports Modicon Quantum modules such as CPUs, power supplies, discrete and analog I/Os, and communication modules. -
Is the power supply slot fixed or configurable?
The left-most slot is reserved for the power supply and is not configurable. -
Can this rack be installed horizontally and vertically?
While typically mounted horizontally, it can be mounted vertically if proper ventilation is ensured. -
Is there any active circuitry in the backplane?
No, it is a passive backplane and serves only as a mechanical and electrical interface. -
Can I connect multiple backplanes together?
Yes, through fiber or coaxial cable expansion modules, multiple racks can be interconnected. -
Does it include any protective cover or enclosure?
No, enclosures must be ordered separately based on the installation environment. -
What is the maintenance requirement for this backplane?
Very low; occasional dusting and visual inspections are typically sufficient. -
What material is the frame made /?
The frame is made / industrial-grade aluminum for enhanced durability and corrosion resistance. -
How can I identify each slot?
Each slot is clearly numbered and labeled for proper module positioning and system documentation. -
Is the 140XBP00600 still supported by Schneider Electric?
Yes, it remains actively supported and is part / Schneider’s long-term industrial automation product range.
