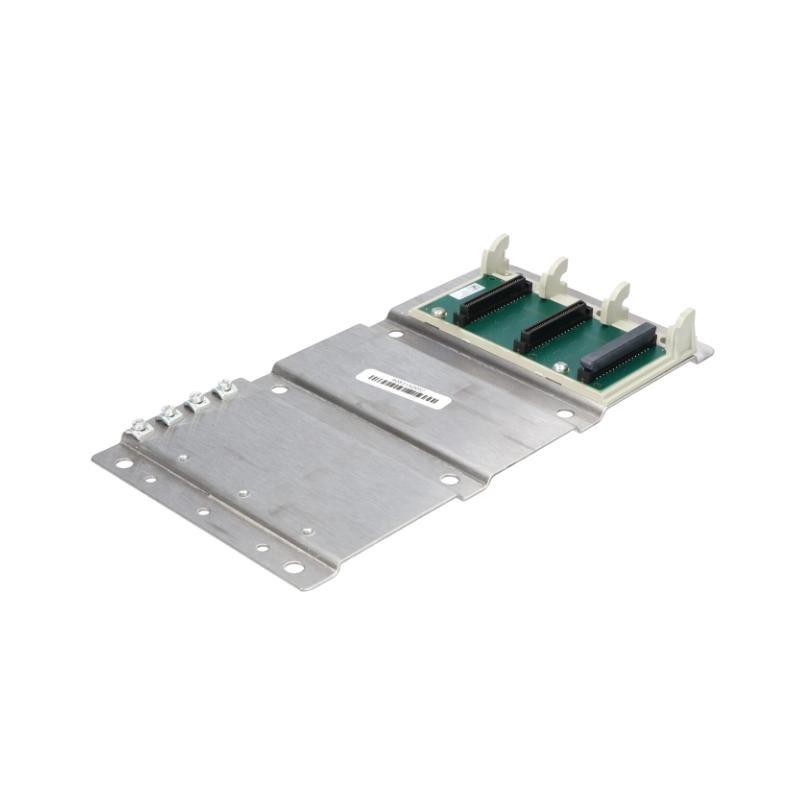

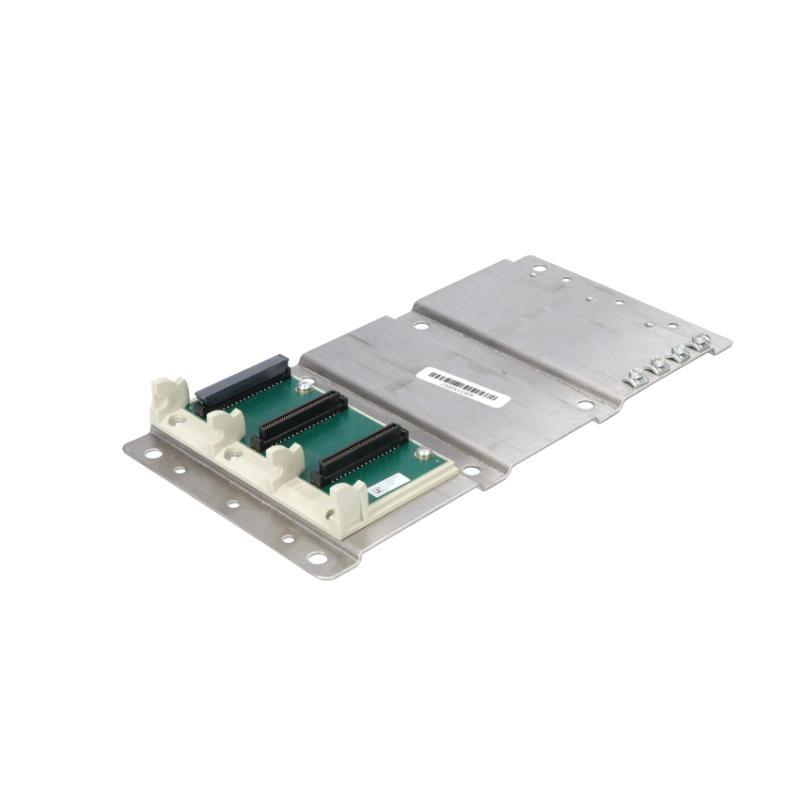

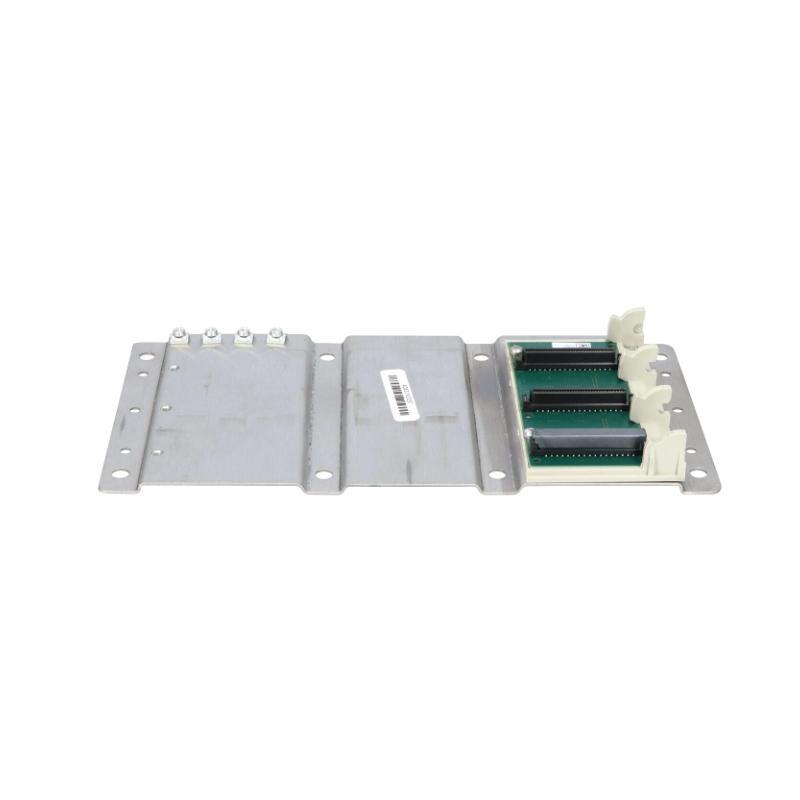

The Schneider 140XBP00300 is a high-performance rack backplane designed for use with the Modicon Quantum series / automation controllers. As an essential part / the Quantum platform, this backplane serves as the physical and electrical foundation that interconnects Quantum modules, including CPUs, power supplies, I/O modules, communication adapters, and special function modules.

The 140XBP00300 model specifically supports 3 module slots, making it ideal for compact automation solutions or test environments where limited space and module count are sufficient. It /fers backplane bus communication, module retention, and mechanical alignment in one robust 台. Built to Schneider Electric’s strict quality standards, this backplane delivers dependable performance in demanding industrial settings.

製品仕様

Product Applications

The 140XBP00300 backplane is widely used across various industrial applications that rely on Modicon Quantum systems. Its 3-slot configuration suits environments that require limited expansion or serve specialized control purposes, such as:

• Compact Industrial Automation Systems – Used where only a few I/O or communication modules are needed.

• Test Benches and Pilot Systems – Ideal for lab setups, prototype systems, or educational environments.

• Substation and Utility Panels – Houses critical communication or monitoring modules in energy facilities.

• OEM Equipment Integration – Embeds Quantum functionality into OEM-designed control panels.

• Machine Control ユニットs – Powers and connects modules used in individual or stand-alone machines.

• Process Control Skids – Compact enough for deployment in small process automation panels.

Product Advantages

• Compact Form Factor: サポートs full Quantum functionality in just three slots, saving panel space.

• Modular Compatibility: Seamlessly connects all standard Quantum modules including CPU, power, and I/O.

• Mechanical Durability: Built with industrial-grade materials for long-term operation in harsh conditions.

• Reliable Backplane Bus: Ensures high-speed, synchronized communication between all installed modules.

• Easy Mounting: Mounts securely inside standard control enclosures or back panels.

• Reduced Footprint: Suitable for applications that require only limited Quantum expansion.

• Simplified Integration: Enables plug-and-play installation with no need for custom connectors or wiring.

• Certified for Industry Use: Meets international standards including UL, CE, and CSA certifications.

• サポートs Power Redundancy: Compatible with Schneider redundant power supply configurations.

• Proven Schneider Engineering: Backed by a global brand known for automation reliability and innovation.

よくある質問 (FAQ)

1. What is the primary use / the 140XBP00300 backplane?
   It is used to host and connect up to three Modicon Quantum modules in a compact rack.

2. Which modules can be inserted into this backplane?
   It supports Quantum CPUs, I/O modules, power supplies, and communication adapters.

3. Is this backplane compatible with redundant power supplies?
   Yes, it supports power redundancy using Quantum power supply models like 140CPS12420.

4. Can it be installed horizontally or vertically?
   Typically mounted horizontally in control panels, but orientation depends on thermal design.

5. Does it include connectors or terminal blocks?
   No terminal blocks are included; modules plug directly into the backplane.

6. How is communication between modules handled?
   Through the integrated Quantum backplane bus system.

7. Is the 3-slot version expandable later?
   No, for more slots a different backplane (e.g., 10-slot or 16-slot) is required.

8. Is this product still supported by Schneider Electric?
   Yes, it remains part / Schneider’s long-term supported Quantum platform.

9. Can it be used with M580 or M340 systems?
   No, it is exclusive to the Quantum series.

10. Does it have any protective coatings for harsh environments?
    It is built to industrial-grade standards but does not include conformal coatings.

Recommended Related モデルs (Same Series or Function)

Recommended Popular Schneider モデルs (その他 Functions)
