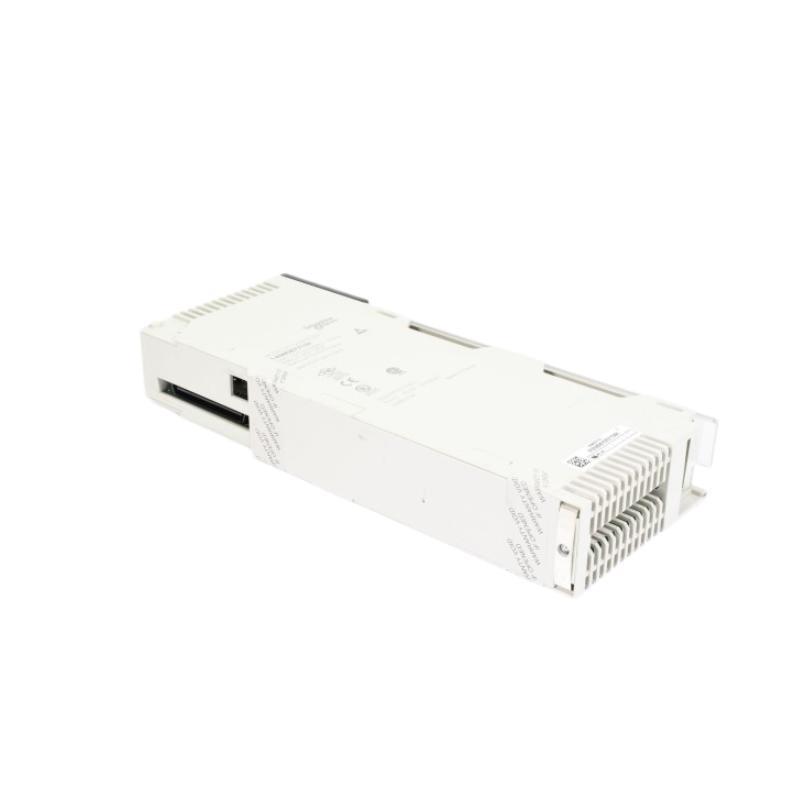

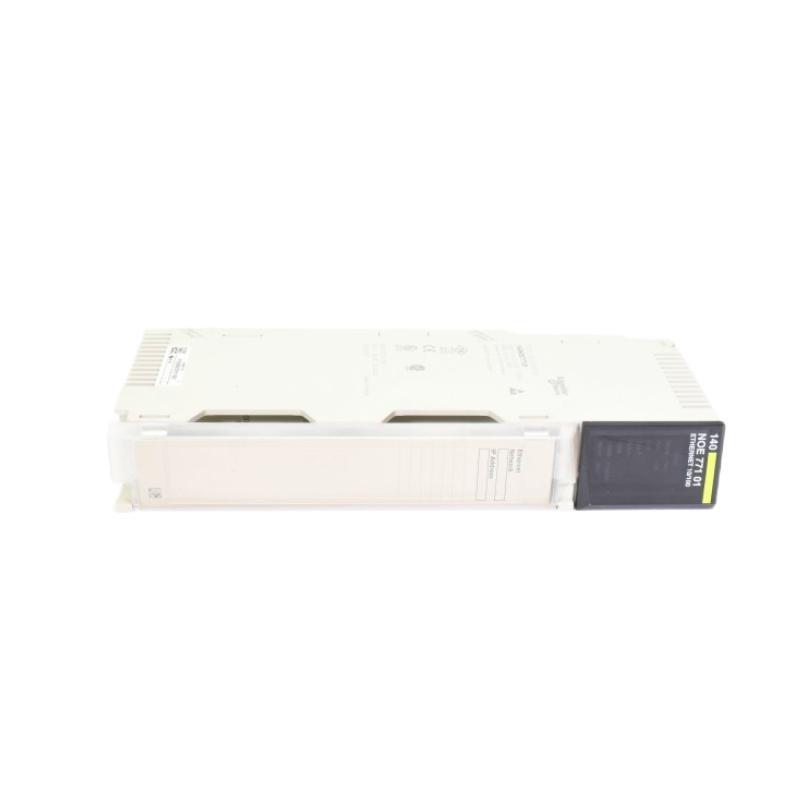

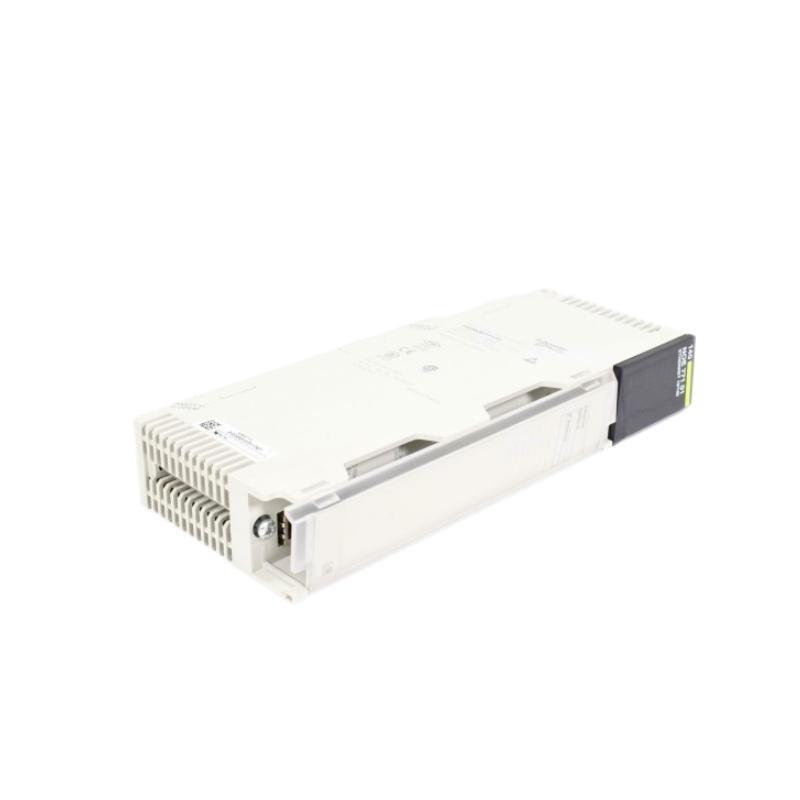

Schneider 140NOE77101 Ethernet Network TCP/IP Module

製品紹介

The Schneider 140NOE77101 Ethernet Network TCP/IP Module is a high-performance industrial communication module designed for seamless Ethernet connectivity within Schneider Electric’s Modicon Quantum PLC platform. This module provides a reliable and robust Ethernet interface, enabling efficient communication between controllers, HMI systems, and supervisory control systems over TCP/IP networks.

The 140NOE77101 module is engineered to support Modbus TCP/IP communication, /fering a versatile solution for connecting various automation devices across distributed control systems. With dual RJ45 Ethernet ports, this module enables flexible network configurations, including redundancy setups for enhanced reliability. The 140NOE77101 is designed to operate in a wide range / industrial environments, delivering exceptional network performance with high-speed data transfer capabilities.

Ideal for applications that require fast and dependable communication, the module supports integration into a variety / network architectures and provides diagnostics through LED indicators and a web-based interface. Its modular design ensures easy integration with existing Modicon Quantum racks and facilitates rapid deployment.

Technical Specifications

Applications

The 140NOE77101 Ethernet Network TCP/IP Module is designed for a broad range / industrial applications, particularly where reliable Ethernet connectivity is required for Modicon Quantum PLC systems. Some key application areas include:

• Process Control: Provides reliable communication in large process control systems such as oil & gas, petrochemical, and chemical plants.

• Factory Automation: Ideal for industrial machines and automated lines, providing a robust interface for real-time data exchange.

• Energy and Utilities: サポートs networked communication in electrical substations and power generation facilities, ensuring seamless integration into SCADA systems.

• Building Automation: Used in building management systems (BMS) for integrating HVAC, lighting, and other building control systems over Ethernet networks.

• OEM Equipment Control: Provides a standard Ethernet interface for integration into OEM machinery and equipment.

• SCADA Systems: Facilitates communication between control devices and supervisory control and data acquisition (SCADA) systems.

• Remote Diagnostics and Maintenance: With embedded web functionality, users can monitor network and system performance remotely and receive alerts.

Advantages

• Dual Ethernet Ports: Provides redundancy and network segmentation capabilities, ensuring continuous communication even in the event / a network failure.

• Modbus TCP/IP サポート: Enables smooth integration with other industrial devices using Modbus TCP, ensuring compatibility with a wide range / automation and control systems.

• Web-Based Diagnostics: The embedded FactoryCast HMI web interface allows for real-time monitoring, diagnostics, and troubleshooting via a standard web browser.

• Flexible Configuration: サポートs both DHCP and static IP addressing, providing ease / use for diverse network environments.

• Industrial-Grade Durability: Built to withstand harsh industrial conditions, with a wide operating temperature range and vibration resistance.

• Plug-and-Play Integration: Easy to install and integrate with Modicon Quantum systems, minimizing setup time and simplifying system expansion.

• Reduced Downtime: The module provides valuable diagnostics and status indicators to proactively identify and resolve network issues, reducing the risk / unexpected downtime.

• Compact and Efficient: Small form factor that allows it to fit into tight spaces within existing system racks without compromising performance.

よくある質問 (FAQ)

1. Q: What is the primary function / the 140NOE77101 module?
   A: The 140NOE77101 module provides Ethernet connectivity for Modicon Quantum PLCs, enabling communication over TCP/IP networks using the Modbus TCP protocol.

2. Q: How many Ethernet ports does the module have?
   A: It has two RJ45 Ethernet ports, which can be configured for redundancy or network segmentation.

3. Q: Can this module support Modbus RTU or other protocols?
   A: No, this module only supports Modbus TCP/IP communication over Ethernet.

4. Q: Does the 140NOE77101 module have a web interface for diagnostics?
   A: Yes, it includes an embedded FactoryCast HMI web server for real-time monitoring and diagnostics.

5. Q: Is this module compatible with all Modicon Quantum CPUs?
   A: Yes, the module is designed to integrate seamlessly with the Modicon Quantum series, and it is fully compatible with various Quantum CPUs.

6. Q: How is the module powered?
   A: The module is powered through the Modicon Quantum backplane, drawing approximately 4.5 W / power during operation.

7. Q: What is the operating temperature range / this module?
   A: The module can operate in temperatures ranging from 0°C to 60°C (32°F to 140°F).

8. Q: Can the module be used in a redundant network setup?
   A: Yes, the dual Ethernet ports can be used for network redundancy, ensuring continuous communication even if one port or network fails.

9. Q: Does this module support both DHCP and static IP?
   A: Yes, it supports both DHCP (for automatic IP assignment) and static IP configuration.

10. Q: How easy is it to integrate this module into an existing system?
    A: The 140NOE77101 module is designed for plug-and-play integration with the Modicon Quantum system, ensuring minimal setup time and ease / deployment.
