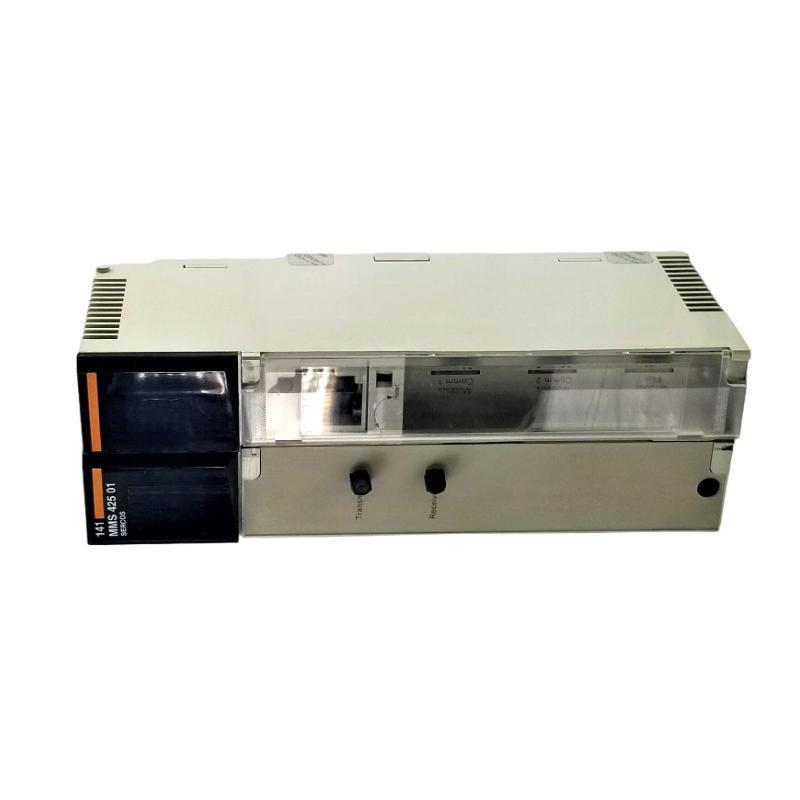

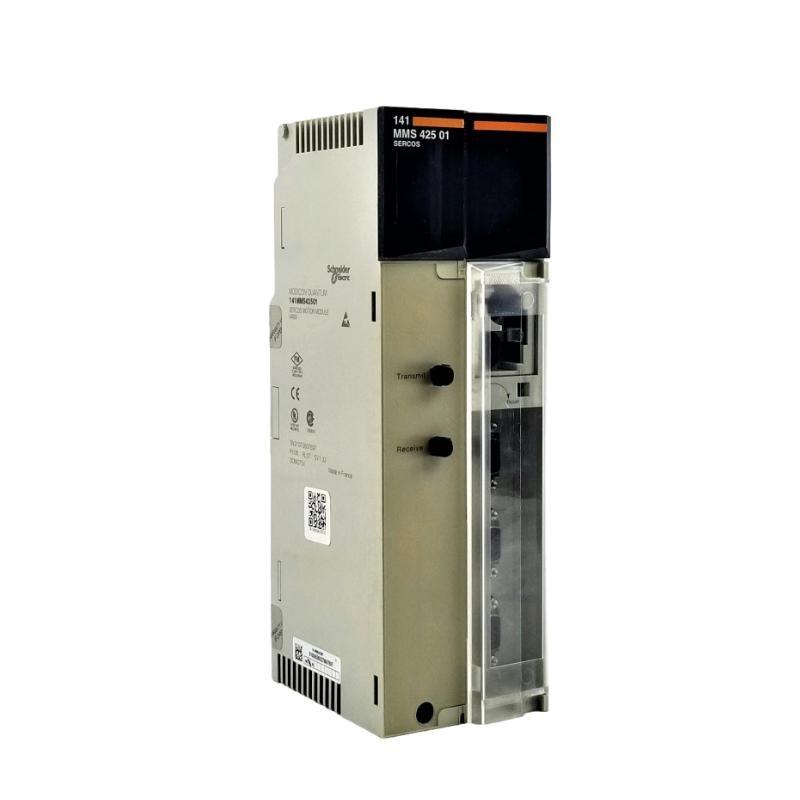

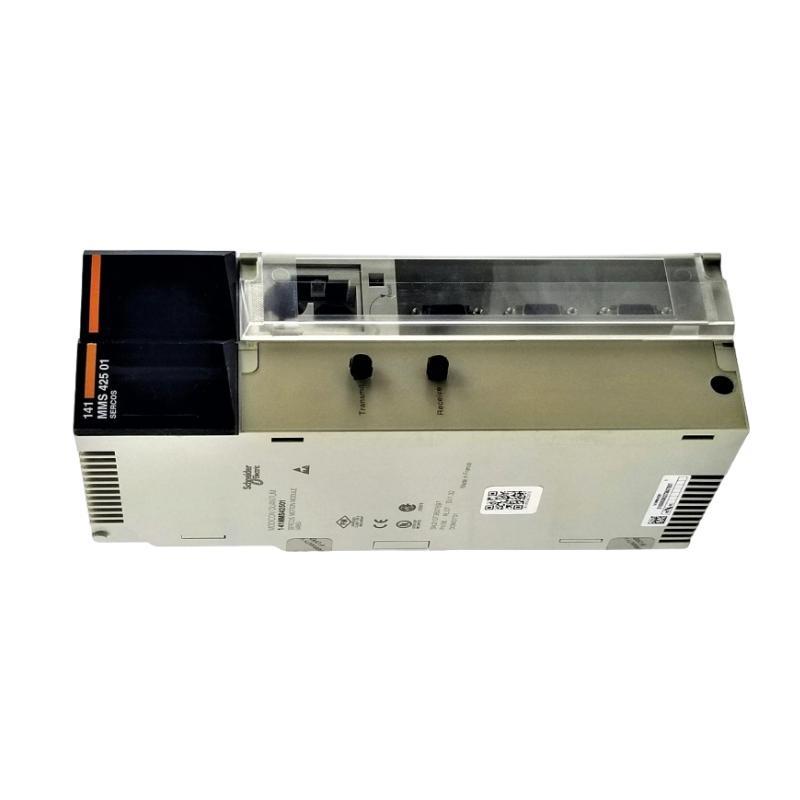

The Schneider 140MMS42500 multi-axis motion controller is an advanced automation module designed for precise multi-axis motion control in industrial machinery. Part / the Schneider Electric Modicon family, it enables high-speed coordination / multiple axes, including linear, rotary, and robotic motion. The module seamlessly integrates with PLCs, servo drives, and feedback devices to execute complex motion sequences with high precision. Its high-performance processor and deterministic control algorithms enable simultaneous control / multiple axes, making it ideal for applications such as packaging machinery, robotics, CNC systems, and material handling. Even in harsh industrial environments, the 140MMS42500 ensures smooth motion, fast cycle times, and precise positioning.
Technical Specifications
| scope | describe |
|---|---|
| モデル | 140mm42500 |
| Module Type | Multi-axis motion controller |
| サポートed axes | Up to 8 axes (configurable) |
| Type / exercise | Linear, rotary, robotic |
| processor | High-speed 32-bit processor with real-time motion control |
| Input/Output | Digital and analog I/O for motion feedback and command signals |
| communicate | Backplane bus interface to PLC, Ethernet optional |
| Programming | Compatible with Schneider programming languages (ST, FBD, LAD) |
| Power Supply | 24V DC |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | −40 °C to +85 °C |
| Humidity | 5% – 95% non-condensing |
| Diagnostics | LED indicators for power, axis status, and error detection |
| Mounting | DIN rail or panel mount |
| Dimensions (L × W × H) | 103.9 × 40.3 × 250 mm |
| 重量 | 0.3 kg |
| Compliance | CE, UL, RoHS |
Applications
The 140MMS42500 module is used in industries that require coordinated motion control / multiple axes:
-
Packaging Machinery: Coordinated control / conveyors, pick-and-place arms, and labeling 台s.
-
Robotics: Controlling articulated robots and robotic arms with high precision.
-
CNC Machines: Multi-axis milling, cutting, and engraving applications.
-
Material Handling: Conveyors, automated storage, and retrieval systems.
-
Semiconductor Manufacturing: Precise wafer handling and positioning systems.
-
Printing and Textile Machines: Synchronized multi-axis movement for high-speed production.
Advantages
-
High-Precision Motion Control: Real-time algorithms provide accurate positioning and smooth motion.
-
Multi-Axis Coordination: サポートs up to 8 axes simultaneously for complex motion sequences.
-
Flexible Integration: Compatible with Schneider PLCs and multiple servo drives or feedback devices.
-
Fast Processing: High-speed 32-bit processor reduces latency and improves response time.
-
Robust Diagnostics: Built-in LED indicators and error reporting facilitate maintenance and troubleshooting.
-
Flexible Mounting: サポートs DIN rail or panel installation to fit various control setups.
-
Scalable Performance: Can be used in small machines or large industrial automation systems.
-
Industrial Reliability: Designed for continuous operation in demanding environments.
FAQ
-
How many axes can the 140MMS42500 control simultaneously?
The module supports up to 8 independent axes, allowing precise coordinated motion for complex machinery. -
What types / motion can it manage?
It handles linear, rotary, and robotic motion, suitable for a wide range / industrial applications. -
How is the module powered?
It operates on a 24 V DC supply, powering both the controller and its communication interfaces. -
Can it interface with Schneider PLCs?
Yes, it connects via the backplane bus and integrates seamlessly with Quantum and Premium series PLCs. -
Does the module provide diagnostics?
Yes, LED indicators show power, axis status, and error conditions for easy monitoring. -
What types / programming are supported?
It supports Schneider programming languages including Structured Text (ST), Function Block Diagram (FBD) and Ladder Diagram (LAD). -
Can it handle high-speed motion applications?
Yes, the high-speed 32-bit processor ensures fast response times and precise real-time motion control. -
What I/O options are available?
The module provides digital and analog input/output for motion feedback, sensor, and command signals. -
Is this module suitable for harsh industrial environments?
Yes, it operates over a temperature range / 0°C to +55°C and a humidity range / 5%–95% non-condensing, ensuring reliable performance. -
How is the module installed in the control system?
It supports DIN rail and panel mounting, allowing flexible integration into various industrial control settings.
Related Schneider Motion Modules
| モデル | describe |
|---|---|
| 140MMS42000 | Basic multi-axis motion controller, 4 axes |
| 140MMS42100 | Expanded multi-axis controller, supports 6 axes |
| 140MMS42200 | 4-axis high-speed motion controller |
| 140mm MS42300 | Multi-axis controller with additional feedback support |
| 140MMS42400 | Advanced 6-axis motion controller with integrated diagnostics |
| 140mm 42600 | High-performance motion controller for robotics applications |
Popular Schneider modules
| モデル | Application Highlights |
|---|---|
| 140CPU65160 | Quantum CPU with integrated motion control |
| 140DDI35300 | High-density digital input modules |
| 140DDO35300 | High-speed digital output module |
| 140ADI92200 | High-precision analog input module |
| 140NOE77101 | Ethernet communication interface module |
| 140CPS11400 | PLC network power module |
