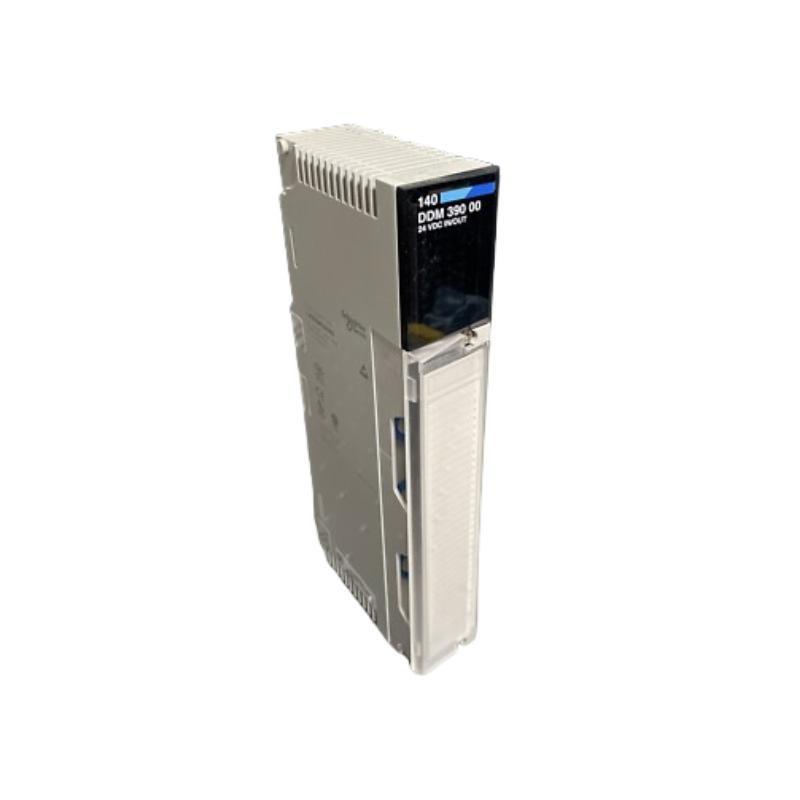

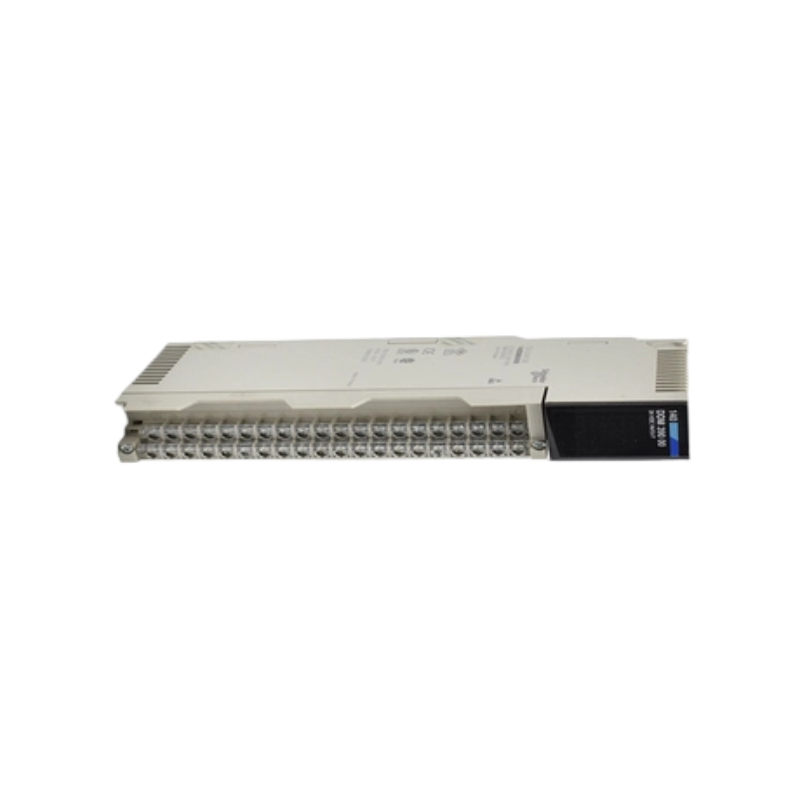

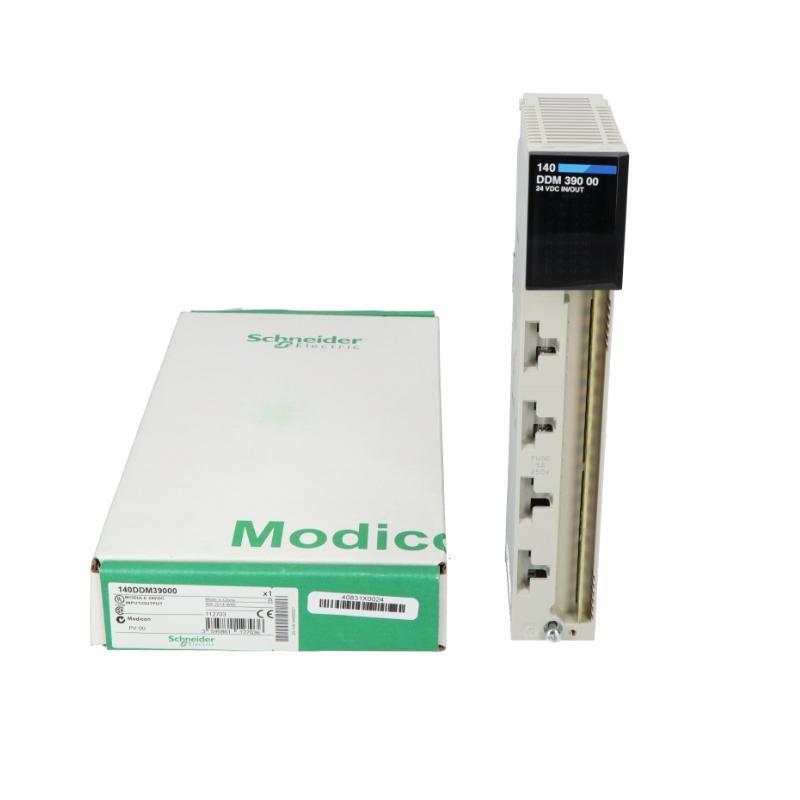

The Schneider 140DDM39000C is a discrete combination output module designed for Modicon Quantum automation systems. It integrates both AC and DC output channels, making it ideal for complex control applications that require a mixture / signal types. This module is engineered to deliver reliable performance, fast response, and long-term stability in demanding industrial environments.
Built for integration in large-scale programmable logic controller (PLC) systems, the 140DDM39000C provides 32 output points, which are divided into 16 AC and 16 DC outputs. These channels are isolated in groups to protect against electrical faults and ensure system safety. Its robust housing, modular configuration, and compatibility with the Quantum series make it a favored choice for process and discrete manufacturing sectors.
Technical Specifications
| Parameter | Value |
|---|---|
| モデル Number | 140DDM39000C |
| Product Type | Discrete Combination Output Module |
| Number / Output Channels | 32 (16 AC, 16 DC) |
| Output Voltage (AC) | 120 VAC nominal |
| Output Voltage (DC) | 24 VDC nominal |
| Output Current (AC) | 0.5 A per channel |
| Output Current (DC) | 0.5 A per channel |
| Isolation | Yes, group isolation (4 groups) |
| Connector Type | Removable terminal block |
| Mounting Type | Rack-mounted (Quantum backplane) |
| Module Width | Standard Quantum slot |
| Dimensions (W x H x D) | 40 mm x 172 mm x 126 mm |
| 重量 | Approx. 0.75 kg (1.65 lbs) |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Certifications | CE, UL, CSA, RoHS compliant |
Product Advantages
-
Hybrid Output Capability: Combines AC and DC discrete outputs, reducing the number / modules needed in hybrid environments.
-
Isolation for Protection: Group-isolated outputs enhance system safety and help prevent cross-channel interference.
-
High Reliability: Designed for continuous operation in industrial environments, ensuring stable long-term performance.
-
Rack Compatibility: Fits seamlessly into Modicon Quantum racks, allowing easy integration and replacement.
-
Diagnostic LEDs: Equipped with onboard status indicators for quick troubleshooting and channel monitoring.
-
Space Efficiency: Compact design provides high channel density without compromising signal integrity.
Applications
-
Automated Manufacturing: Suitable for machinery requiring both AC control (e.g., solenoids) and DC control (e.g., logic signaling).
-
Oil & Gas Processing Plants: Ideal for distributed control systems (DCS) needing reliable field signal actuation.
-
Water Treatment Facilities: Controls various motor-driven actuators and valves with mixed-voltage requirements.
-
Pharmaceutical Automation: Facilitates precise control / packaging and conveyor mechanisms.
-
Food & Beverage Industry: Used in batch processing lines that operate a variety / actuator types.
-
Building Automation Systems: サポートs energy management systems with dual-voltage output needs.
よくある質問 (FAQ)
Q1: What is the main function / the 140DDM39000C module?
A1: It provides both AC and DC discrete output control channels within a single Quantum-series module.
Q2: How many output channels does the module support?
A2: It supports 32 outputs: 16 AC and 16 DC, grouped for electrical isolation.
Q3: Can I hot-swap this module in a live Quantum rack?
A3: No, the module should only be installed or removed when the rack is powered down to ensure safety.
Q4: What is the maximum current output per channel?
A4: Each output channel supports up to 0.5 A maximum load.
Q5: Does this module /fer short-circuit protection?
A5: Yes, group-based protection helps isolate faults, but additional external fusing is recommended.
Q6: Is this module suitable for use in hazardous areas?
A6: While rugged, use in hazardous areas requires external certification and proper housing.
Q7: What is the physical size / the module?
A7: The dimensions are 132 x 49 x 185 mm.
Q8: Does it support removable terminal blocks for wiring?
A8: Yes, the module features plug-in terminal blocks for easy connection and maintenance.
Q9: What is the temperature rating for operation?
A9: It is rated for operation from 0°C to 60°C.
Q10: Is this module compatible with ユニットy Pro or EcoStruxure Control Expert?
A10: Yes, it is fully supported in both s/tware environments for configuration and diagnostics.
Recommended Same-Series or Related モデルs
-
Schneider 140DDI35300 – Discrete input module, 32-channel, 24 VDC
-
Schneider 140DDO35300 – Discrete output module, 32-channel, 24 VDC
-
Schneider 140DDO36400 – High current output module, 32-channel, 24 VDC
-
Schneider 140DDI84100 – Isolated input module, 16-channel, 120 VAC
-
Schneider 140DAI74000 – Analog input module, 8-channel, 4–20 mA
-
Schneider 140DRA84000 – Relay output module, 8-channel
Popular モデルs from the Same ブランド
| モデル Number | Type | Channels | Voltage | Size (W×H×D, mm) | 重量 (kg) |
|---|---|---|---|---|---|
| 140CPU65160 | CPU Module | N/A | N/A | 66×172×150 | 0.85 |
| 140DDO36400 | Discrete Output Module | 32 (DC) | 24 VDC | 40×172×126 | 0.75 |
| 140DAI55300 | Analog Input Module | 16 (current) | 4–20 mA | 40×172×126 | 0.75 |
| 140DDI84100 | Discrete Input Module | 16 (isolated) | 120 VAC | 40×172×126 | 0.72 |
| 140CHS32000 | I/O Base/Terminal Strip | — | — | 40×172×50 | 0.30 |
| 140ACO13000 | Analog Output Module | 8 (current) | 4–20 mA | 40×172×126 | 0.76 |
| 140NOE77101 | Ethernet Communication Module | — | — | 40×172×126 | 0.78 |
| 140CRP93200 | Remote I/O Drop Adapter | — | — | 40×172×126 | 0.70 |
