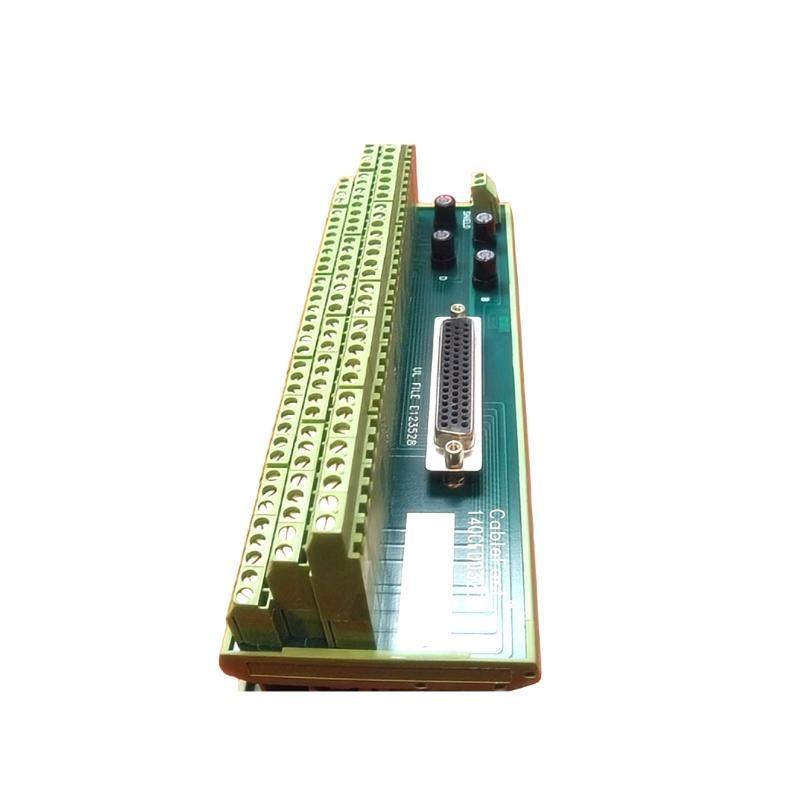

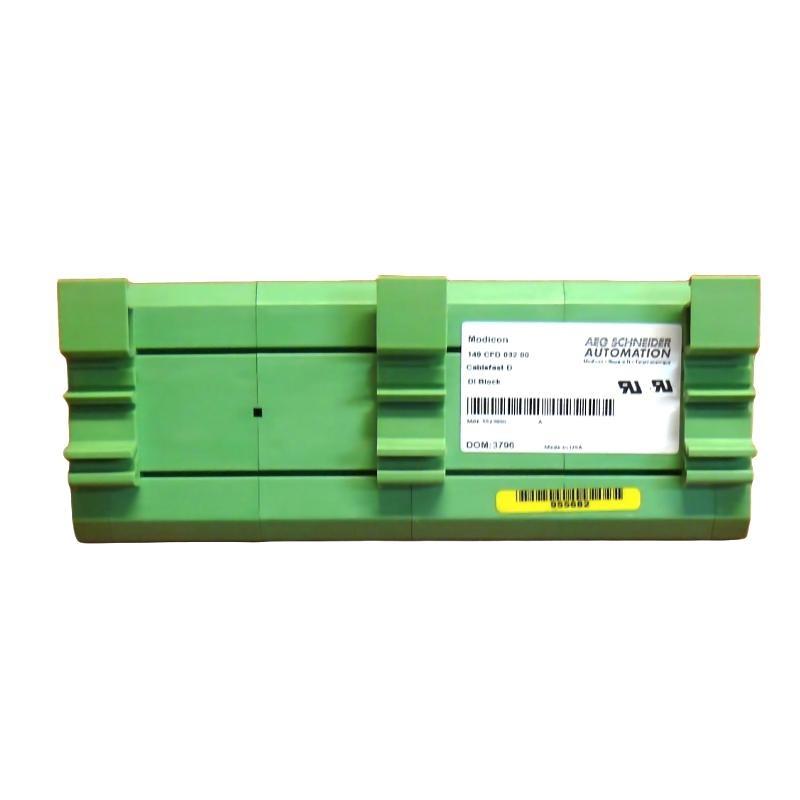

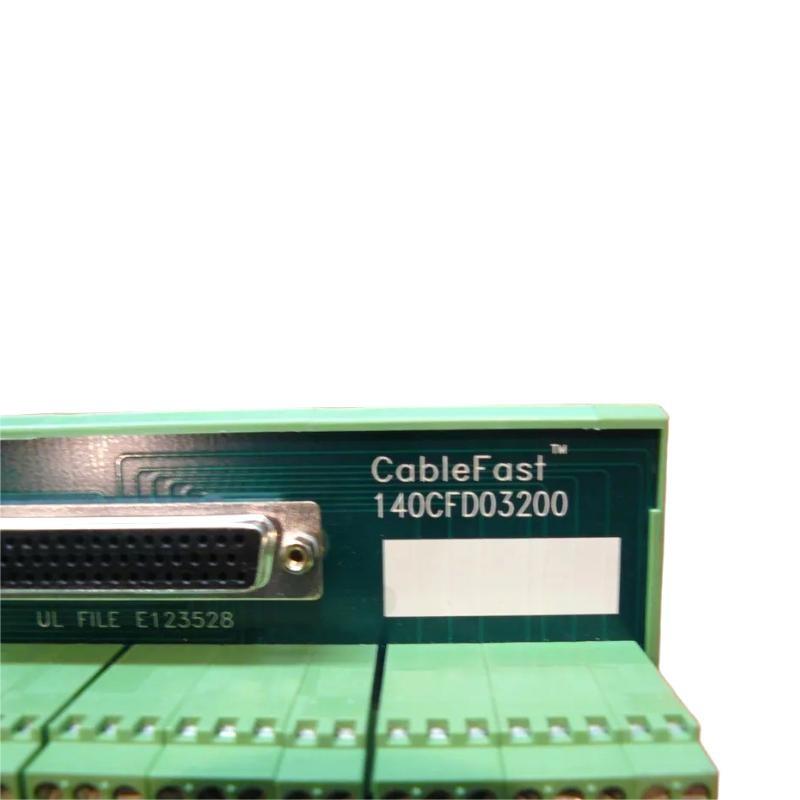

The Schneider 140CFD03200 CableFast Terminal Block is a reliable and efficient push-in type terminal block designed to streamline wiring processes in industrial automation and electrical distribution systems. As part / Schneider Electric’s CableFast range, this terminal block focuses on simplifying installation while providing secure, high-quality electrical connections. It /fers a practical solution for pr/essionals seeking to reduce wiring time without compromising on connection reliability and safety.
Its compact design, combined with push-in spring connection technology, makes it ideal for dense wiring environments such as control panels, switchgear assemblies, and distribution boards. This terminal block supports a broad range / conductor sizes, ensuring versatile use across various industrial sectors.
製品仕様
| Parameter | Details |
|---|---|
| Product Name | Schneider 140CFD03200 CableFast Terminal Block |
| モデル Number | 140CFD03200 |
| Terminal Type | Push-in spring connection |
| Number / Poles | 3 poles |
| Rated Current | 32 A |
| Rated Voltage | 600 V (UL), 800 V (IEC) |
| Conductor Cross-section | 0.2 mm² to 4 mm² (AWG 24-12) |
| Mounting | 35 mm DIN rail |
| Housing Material | Polyamide |
| お問い合わせ Material | Nickel-plated brass |
| Operating Temperature Range | -40 °C to +105 °C |
| Standards Compliance | IEC 60947-7-1, UL 1059, CSA C22.2 |
| Dimensions (H x W x D) | 105 x 180 x 270 mm |
| 重量 | 0.907 kg |
Applications
The 140CFD03200 terminal block is suitable for a wide array / industrial and commercial applications, including:
-
Automation Control Panels: For connecting sensors, actuators, and controllers efficiently.
-
Electrical Distribution Systems: Used in compact and dense wiring setups within distribution boards.
-
Building Automation: Applicable in HVAC systems, lighting controls, and security installations.
-
Machinery and Equipment Manufacturing: Facilitates quick wiring and serviceability in production machines.
-
Renewable Energy Systems: Ensures reliable electrical connections in solar and wind power installations.
-
Process Industry: サポートs wiring needs in chemical, pharmaceutical, and food processing plants.
Advantages
-
Push-In Technology: Enables fast, tool-free insertion and removal / wires, cutting installation time significantly.
-
Compact and Modular: 保存s panel space while allowing easy extension with additional blocks.
-
Secure Electrical お問い合わせ: Spring clamp mechanism ensures consistent and vibration-resistant connections.
-
Versatile Cable Compatibility: Accommodates a range / conductor types and sizes from fine stranded to solid wires.
-
Robust Construction: Durable polyamide housing and corrosion-resistant nickel-plated brass contacts ensure longevity.
-
High Safety Compliance: Meets international standards for electrical safety and performance.
-
Easy Maintenance: Simplifies troubleshooting and rewiring with quick-release cable removal.
-
Clear Labeling Zones: Marking areas facilitate circuit identification and organization.
-
Standard DIN Rail Mounting: Fits easily into existing panel infrastructures.
-
Reduced Wiring Errors: Push-in connections minimize loose wire issues, improving system reliability.
FAQ
1. What types / wires can be used with the 140CFD03200 terminal block?
It supports solid, stranded, and flexible wires within 0.2 mm² to 4 mm² (AWG 24 to 12).
2. Is any special tool needed to insert or remove wires?
No special tools are required; the push-in spring connection allows tool-free wiring.
3. What is the rated current and voltage for this terminal block?
The rated current is 32 A, and the rated voltage is 600 V (UL) / 800 V (IEC).
4. How is the terminal block mounted?
It is designed for standard 35 mm DIN rail mounting.
5. What environmental conditions can this product operate in?
It operates reliably between -40 °C and +105 °C.
6. How does the push-in connection ensure secure contact?
A spring mechanism maintains constant pressure on the wire for reliable and vibration-resistant contact.
7. Is this product certified to industry standards?
Yes, it meets IEC 60947-7-1, UL 1059, and CSA C22.2 certifications.
8. How can I identify individual connections?
The block has clear labeling zones for easy circuit identification.
9. Can this terminal block be used for high-density wiring?
Yes, its compact design suits dense wiring environments.
10. What materials are used for the terminal block housing and contacts?
The housing is polyamide, and the contacts are nickel-plated brass for corrosion resistance.
Related モデルs (Same Series or Similar Type)
| モデル Number | 説明 |
|---|---|
| 140CFD02400 | 2-pole CableFast Terminal Block, 24 A |
| 140CFD04000 | 4-pole CableFast Terminal Block, 40 A |
| 140CFD06300 | 6-pole CableFast Terminal Block, 63 A |
| 140CFC03200 | 3-pole CableFast Terminal Block, Push-in |
| 140CFB03200 | 3-pole CableFast Bridge Terminal Block |
| 140CFH03200 | 3-pole CableFast Feed-Through Terminal Block |
Popular Schneider Terminal Blocks (Same ブランド)
| モデル Number | 説明 |
|---|---|
| 140CSA01200 | 12-position Screw Terminal Block |
| 140CSA03200 | 32-position Screw Terminal Block |
| 140CTA02100 | Terminal Block Adapter |
| 140CRT07000 | Terminal Block End Plate |
| 140CTA00100 | Terminal Block Test Plug |
| 140CSA06100 | 61-position Screw Terminal Block |
