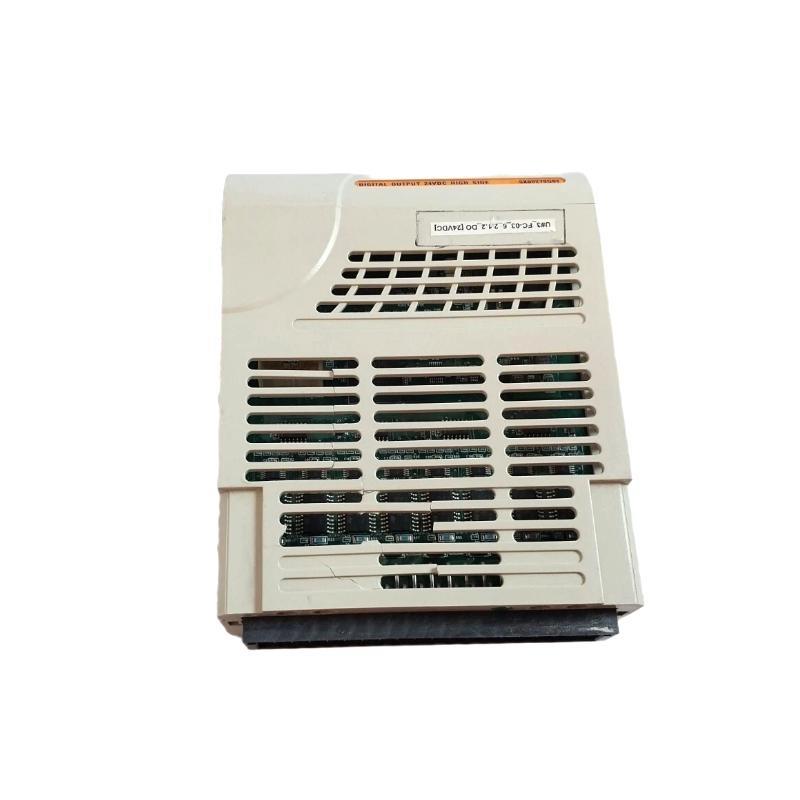

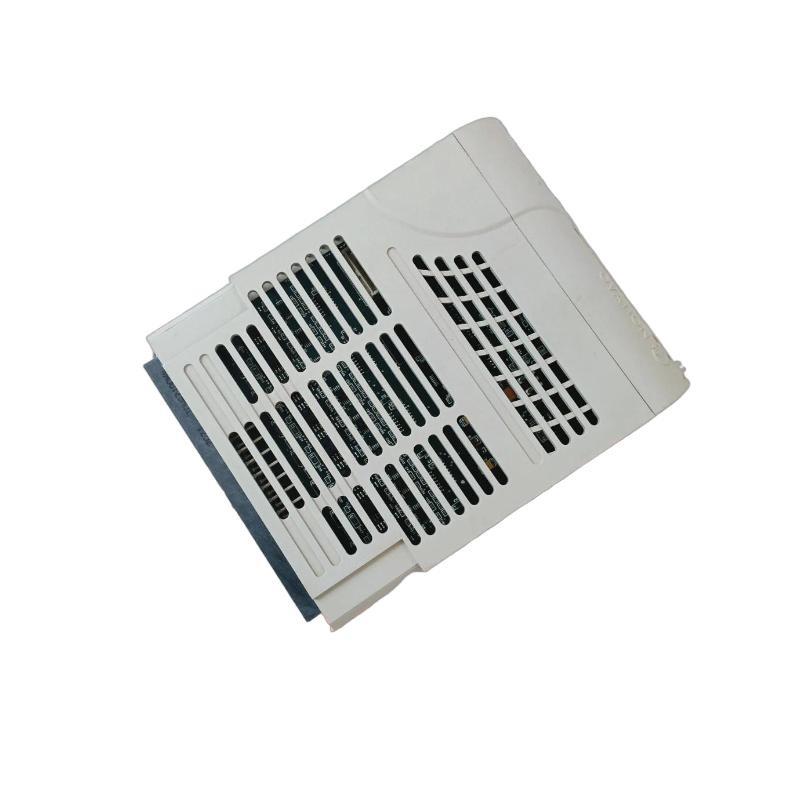

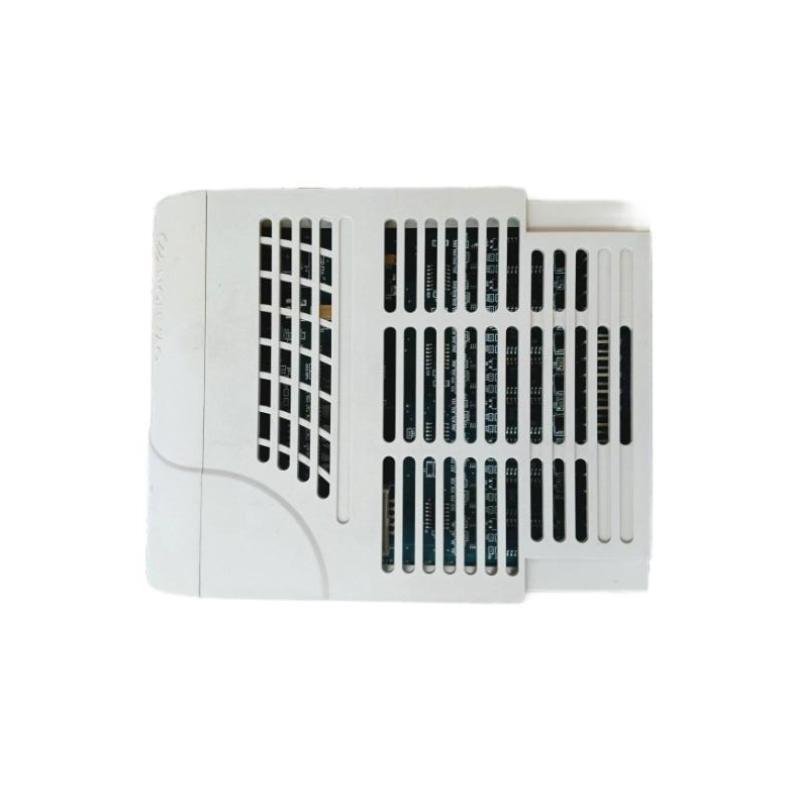

Ovation 5X00270G01 Redundant Digital Output Module

製品紹介

The Ovation 5X00270G01 Redundant Digital Output Module is a vital component in Emerson’s Ovation™ distributed control system (DCS), designed to deliver highly reliable digital output functionality in mission-critical automation environments. Its standout feature is its redundant architecture, which ensures uninterrupted operation even in the event / a primary module failure.

This module is engineered to control binary actuators and devices such as relays, solenoids, and contactors with absolute reliability. It is widely used in power generation, water treatment, and heavy industrial control systems where digital control signals must be delivered consistently and without failure. The 5X00270G01 not only supports fail-safe switching, but also provides clear diagnostic feedback and automatic fault isolation to ensure system availability.

With built-in logic isolation, watchdog monitoring, and intelligent fault-tolerant design, this module is an essential asset in any Ovation-based redundant control system where reliability is paramount.

製品仕様

Product Applications

The 5X00270G01 is widely deployed in industrial environments where high reliability and continuous operation are required. Its redundant capability and robust output performance make it ideal for:

• Power Generation Plants: Controls breakers, valves, interlocks, and emergency shutdown circuits in fossil, nuclear, and renewable plants.

• Water and Wastewater Treatment: Operates pump start/stop, blower controls, motor starters, and remote gate actuators.

• Oil & Gas Pipelines: Manages valve sequencing, alarms, and actuator control in remote transmission stations.

• Chemical Processing ユニットs: Handles binary actuator commands in safety systems and chemical dosing operations.

• Steel & Cement Plants: Used in controlling conveyors, chute gates, and production line equipment.

• Mission-Critical Infrastructure: Airports, data centers, and utilities requiring zero-loss control systems.

Product Advantages

• True Redundant Architecture: The module supports primary/backup redundancy with automatic switchover, eliminating single points / failure.

• Real-Time Diagnostics: Built-in monitoring / each output channel for short circuit, open circuit, and abnormal load conditions.

• Flexible Channel Configuration: Offers 16 or 32 output channels depending on application needs, reducing footprint and complexity.

• Electrical Isolation: High-grade optical isolation prevents ground loops and protects control electronics from transients.

• Hot-Swappable Design: Modules can be replaced without shutting down the system, ideal for 24/7 plant environments.

• Robust Industrial Build: Designed to perform reliably in challenging conditions with temperature, humidity, and EMI resilience.

• System Compatibility: Seamlessly integrates into any Ovation control system environment.

• Fail-Safe Logic サポート: Ensures safe output state transitions during abnormal conditions.

• LED Status Indicators: Simplifies troubleshooting with individual output and module-level indicators.

• Compliance and Safety: Meets international certifications for use in global installations.

よくある質問 (FAQ)

1. What does “redundant” mean in the context / this module?
Redundancy means the module has a primary and a backup 台 working together. If the primary fails, the backup takes over automatically to prevent any disruption in outputs.

2. Can I replace the module while the system is running?
Yes, the 5X00270G01 supports hot-swapping. In a redundant configuration, one module can be removed and replaced without shutting down the control system.

3. What type / devices can this output module control?
It can control binary devices such as relays, solenoids, motor starters, and contactors—any device requiring an on//f signal.

4. Is this module suitable for safety-critical applications?
Yes, it’s designed for high-reliability environments including safety interlocks and shutdown systems, though safety certifications should be confirmed per project.

5. How does the module detect faults on its outputs?
It uses internal diagnostic circuits to identify short circuits, open loads, or abnormal power draw on each output channel.

6. Does the module require configuration before use?
Yes, it must be configured using Emerson’s Ovation s/tware tools to assign channels and output logic per system design.

7. Can I use it in outdoor installations?
The module must be installed inside an enclosure. While the 台 is rugged, it carries an IP20 rating and requires environmental protection.

8. How many channels are included in the module?
Depending on configuration, the module can support 16 or 32 digital output channels.

9. What kind / isolation does it provide?
The outputs are optically isolated from control circuits, protecting against voltage spikes and reducing EMI issues.

10. How long is the typical service life / the module?
With proper environmental conditions and maintenance, it typically lasts 10 to 15 years or longer.
