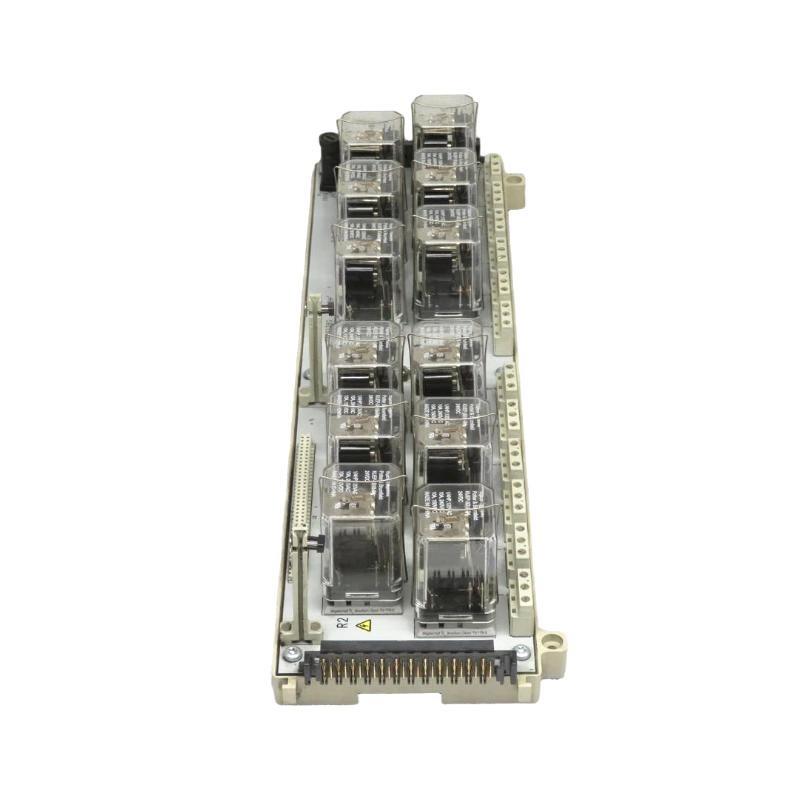

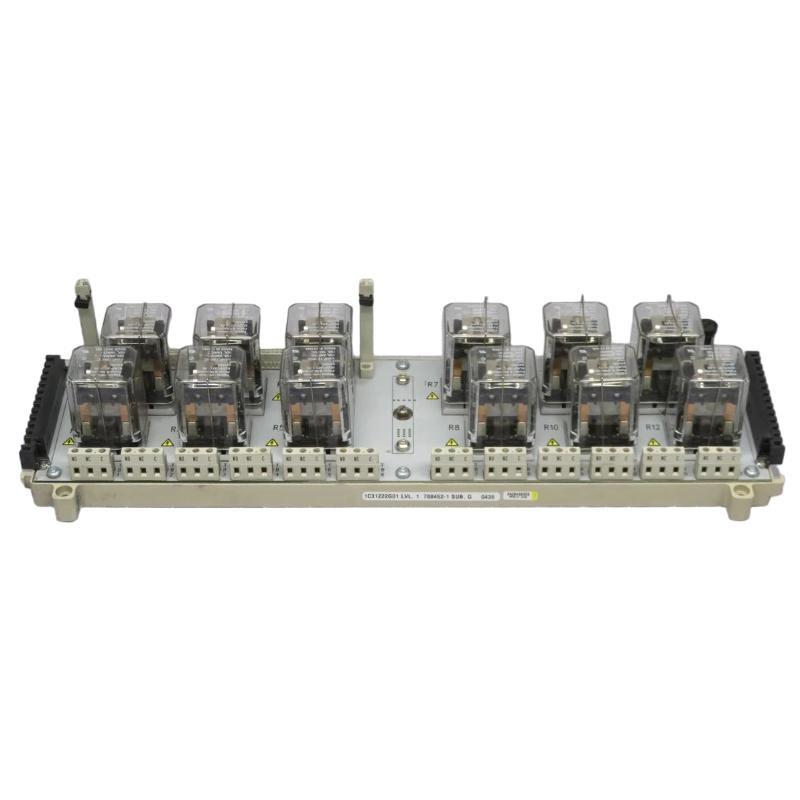

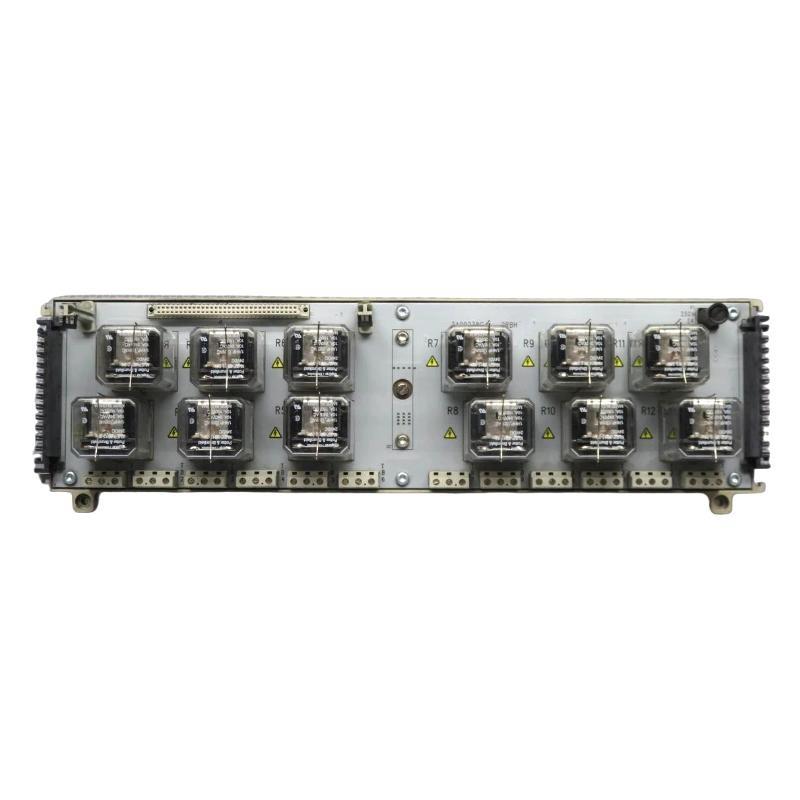

Ovation 5A26458G01 Relay Output Base

製品紹介

The Ovation 5A26458G01 Relay Output Base is a high-performance module designed for Ovation™ distributed control systems. It provides a reliable interface for relay output modules, enabling secure switching / external devices such as alarms, indicators, actuators, and other industrial equipment. Built for robust operation in demanding environments, the 5A26458G01 ensures precise signal transmission, high electrical isolation, and seamless integration with Ovation I/O systems. Its modular design facilitates easy installation and maintenance in control panels and automation racks.

Product Parameters

Applications

• Distributed Control Systems – Provides reliable relay outputs for Ovation controllers and I/O modules.

• Industrial Automation – Controls alarms, indicator lights, actuators, and other equipment.

• Power Generation – Interfaces with turbine, boiler, and auxiliary system alarms.

• Oil & Gas – Manages output signals to safety, alarm, and actuator systems in harsh environments.

• Water & Wastewater Treatment – Controls pumps, valves, and monitoring devices.

• Building Automation – Used for signaling and control in HVAC, fire protection, and energy management systems.

Advantages

• Reliable Output Switching – Provides stable relay operation with SPDT contacts.

• High Electrical Isolation – 1500 VAC isolation protects control circuits from high-voltage transients.

• Modular Design – Facilitates easy integration, installation, and replacement in control racks.

• Wide Operating Range – Operates reliably between –20 °C and +60 °C, with 5–95 % humidity.

• Versatile Mounting Options – サポートs both DIN rail and panel mount installation.

• Compatible with Ovation Control Signals – Ensures seamless integration with Ovation controllers and I/O modules.

• Industrial-Grade Construction – Silver alloy contacts provide long-term performance under high switching cycles.

• Certified Safety Compliance – CE, UL, and CSA approvals for industrial environments.

FAQ

1. How many output channels does the 5A26458G01 provide?
   The module provides 8 relay output channels suitable for switching external devices.

2. What is the maximum voltage the relays can switch?
   Each relay can switch up to 250 VAC or 30 VDC safely.

3. What is the maximum current for each relay output?
   The relay outputs support up to 2 A per channel.

4. What type / relay contacts are used?
   The module uses SPDT (Single Pole Double Throw) silver alloy contacts for reliable switching.

5. Is the module compatible with Ovation control signals?
   Yes, it is designed to interface directly with Ovation 24 VDC control signals.

6. What isolation voltage is provided between control and relay contacts?
   The module provides 1500 VAC isolation to protect control circuits.

7. Can the module operate in high humidity or temperature environments?
   Yes, it operates in –20 °C to +60 °C and 5–95 % non-condensing humidity.

8. How is the module mounted in control panels?
   It supports both DIN rail and panel mount installations.

9. Is it suitable for industrial automation applications?
   Yes, it is designed for use with alarms, actuators, indicators, and other industrial devices.

10. Which Ovation system components can this module interface with?
    It interfaces with Ovation relay output modules, controllers, and distributed I/O systems.
