Ovation 1X00417H02 Power Supply

製品紹介

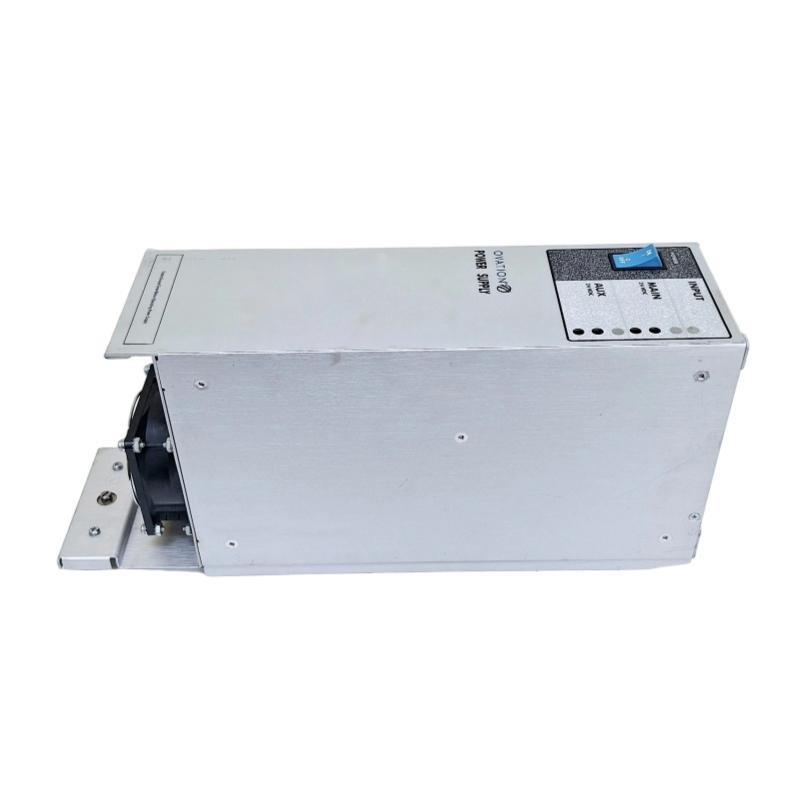

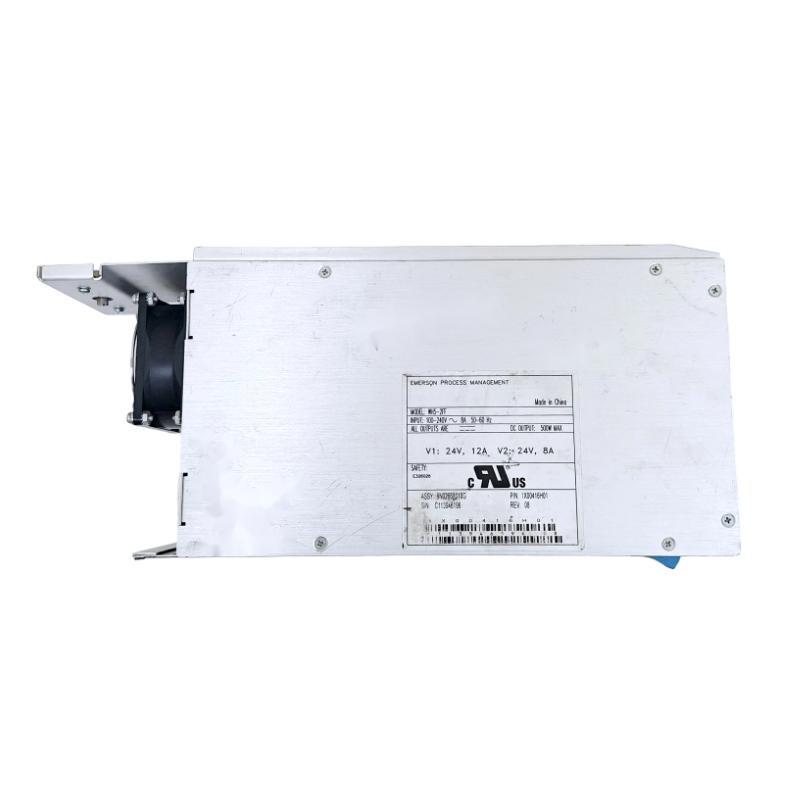

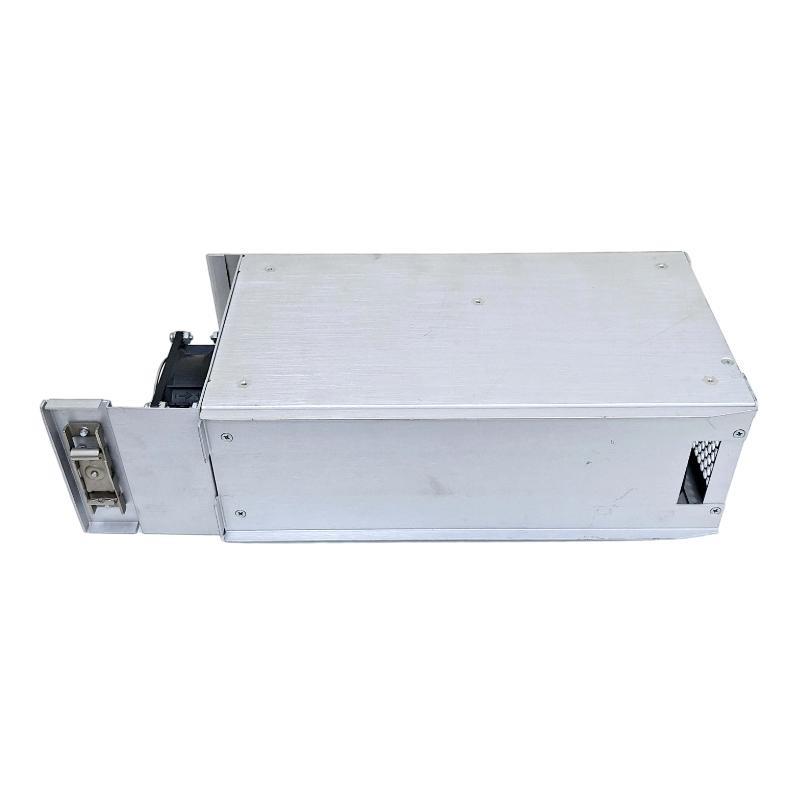

The Ovation 1X00417H02 Power Supply is a robust DC power module engineered for Ovation™ distributed control systems. It provides stable and reliable power to input/output modules, controllers, and communication interfaces in demanding industrial environments. The module is designed to ensure continuous operation with high efficiency and built-in electrical protections, making it suitable for critical process control applications in power generation, water/wastewater treatment, oil & gas, and industrial automation.

Product Parameters

Applications

• Distributed Control Systems – Supplies regulated DC power to Ovation I/O and controller modules.

• Power Generation – Ensures uninterrupted operation / turbine, boiler, and auxiliary control modules.

• Water & Wastewater Treatment – Powers automation modules and monitoring systems reliably.

• Oil & Gas Facilities – Provides power for control and safety modules in harsh environments.

• Industrial Automation – Powers critical process controllers, sensors, and actuators.

• Building Automation – サポートs Ovation modules used in HVAC, fire protection, and energy monitoring.

Advantages

• High Output Capacity – サポートs 10 A maximum current to power multiple system modules.

• Stable 24 VDC Supply – Maintains tight voltage regulation (±2 %) under varying load conditions.

• High Efficiency – ≥90 % power conversion reduces heat generation and operational costs.

• Comprehensive Protection Features – Safeguards connected devices against overvoltage, overload, short-circuit, and thermal faults.

• Wide AC Input Range – Operates reliably with global power systems ranging from 85–265 VAC.

• Redundant Bus Compatibility – Fully compatible with Ovation redundant I/O bus for high availability systems.

• Hot-Swappable – Can be replaced without shutting down the control system.

• Certified for Hazardous Locations – CE, UL, CSA, and ATEX Zone 2 approvals enable safe industrial deployment.

FAQ

1. What is the nominal output voltage / the 1X00417H02?
   The module provides a stable 24 VDC output suitable for powering Ovation I/O and controllers.

2. What is the maximum output current it can deliver?
   The power supply can deliver up to 10 A to connected system components.

3. Which AC input voltages are supported?
   The module supports a wide input range / 85–265 VAC at 50/60 Hz.

4. Does the module include protection features?
   Yes, it /fers overvoltage, overload, short-circuit, and thermal protection to safeguard devices.

5. Can it operate in extreme temperature and humidity conditions?
   Yes, it functions reliably from –20 °C to +60 °C and 5–95 % non-condensing humidity.

6. Is the 1X00417H02 compatible with redundant Ovation buses?
   Yes, it integrates seamlessly with the Ovation redundant I/O bus.

7. What is the efficiency / this power supply module?
   The module has a power conversion efficiency / ≥90 %, minimizing heat generation.

8. Can it be replaced while the system is running?
   Yes, it is hot-swappable for maintenance without interrupting operations.

9. Is the module suitable for hazardous areas?
   Yes, it meets CE, UL, CSA, and ATEX Zone 2 certifications.

10. Which Ovation system components can it power?
    It supplies power to controllers, discrete and analog I/O modules, and communication interfaces.

Recommended Related モデルs

Popular Emerson/Ovation モデルs
