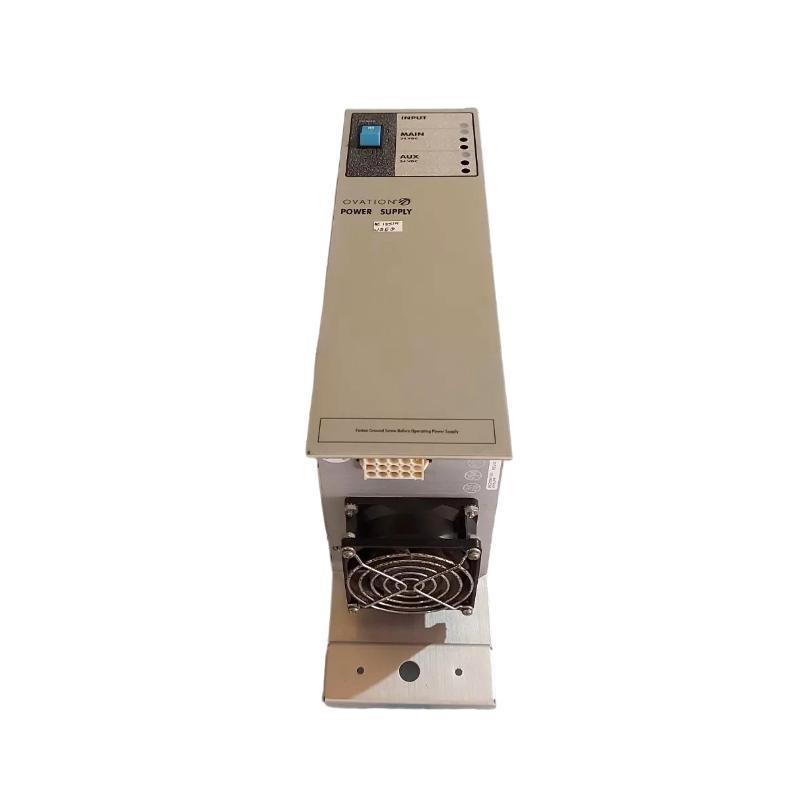

The Ovation 1X00126H02 Power Supply Module is an industrial-grade power conversion and distribution 台 designed specifically for Emerson’s Ovation Distributed Control System (DCS). It provides a stable and regulated DC supply to controllers, I/O modules, and communication devices throughout a control network. Built to withstand the demanding conditions / power plants, water treatment facilities, and heavy industrial automation, the 1X00126H02 ensures reliable operation even under high electrical noise, wide temperature variations, and continuous 24/7 service requirements. Its compact form factor and modular architecture allow fast installation and easy replacement, minimizing downtime in critical operations.
製品仕様
| Parameter | Details |
|---|---|
| モデル Number | 1X00126H02 |
| Product Type | Regulated DC Power Supply Module |
| Input Voltage Range | 85–264 VAC, 47–63 Hz |
| Output Voltage | 24 VDC nominal |
| Output Current | 10 A continuous |
| Efficiency | ≥ 90% |
| Ripple/Noise | < 50 mVp-p |
| Hold-Up Time | > 20 ms at full load |
| Protection Features | Over-voltage, over-current, short-circuit, and thermal shutdown |
| Cooling Method | Natural convection |
| Indicators | Front-panel LEDs for power status, fault, and load conditions |
| Communication | Status monitoring via Ovation backplane |
| Operating Temperature | –40 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5–95% non-condensing |
| Dimensions (L × W × H) | 130 × 50 × 160 mm |
| 重量 | 0.6 kg |
| Compliance | CE, UL, RoHS |
Applications
-
Power Generation Plants – Supplies stable DC power to Ovation controllers, field I/O, and redundant communication networks in turbine and boiler control systems.
-
Water and Wastewater Treatment – Ensures uninterrupted operation / pumps, valves, and supervisory controls in harsh environments.
-
Petrochemical and Refining – Provides clean, noise-free power for process control equipment where electromagnetic interference is common.
-
Industrial Automation – サポートs PLCs, SCADA interfaces, and distributed sensor networks requiring high reliability.
-
Transportation and Infrastructure – Maintains reliable DC power for critical monitoring equipment in tunnels, subways, and rail systems.
-
Data Acquisition Systems – Feeds precision instrumentation and analytical equipment with stable power for accurate measurements.
Advantages
-
High Reliability – Engineered for continuous 24/7 operation with built-in protection and redundant capability.
-
Wide Input Range – Accepts global AC supply variations, simplifying installation in different regions.
-
Efficient Performance – High conversion efficiency reduces heat generation and energy costs.
-
Comprehensive Protection – Over-voltage, over-current, and thermal safeguards protect connected loads.
-
Easy Integration – Standard Ovation backplane interface for plug-and-play installation.
-
Compact and Rugged – Slim pr/ile saves cabinet space and withstands vibration and temperature extremes.
FAQ
-
What type / output voltage regulation does the 1X00126H02 provide?
It uses high-precision feedback control to maintain a stable 24 VDC output within ±1% under varying load conditions. -
Does the module support hot-swap installation?
Yes, it can be inserted or removed from an energized Ovation chassis without disrupting other modules. -
What kind / protection is built into this power supply?
Integrated over-voltage, over-current, short-circuit, and over-temperature protection ensure safe operation and automatic recovery. -
Can the status / the power supply be monitored remotely?
Absolutely. It reports operational and fault conditions through the Ovation backplane for SCADA or HMI monitoring. -
What is the hold-up time during an AC input interruption?
At full load the module maintains output for at least 20 ms, preventing system resets during short power dips. -
Is parallel operation for higher current possible?
Yes, multiple modules can be paralleled for load sharing when higher DC output capacity is required. -
How is cooling achieved in continuous operation?
The module relies on natural convection through a well-ventilated chassis, eliminating fan maintenance. -
Does it provide galvanic isolation between input and output?
Yes, it includes transformer isolation exceeding 3 kV for enhanced safety and noise imm台y. -
What diagnostic indicators are available?
Front LEDs display power-on, fault, and load conditions, and additional alarms can be read through system diagnostics. -
Is there support for redundant power configurations?
The module can operate in N+1 redundancy when paired with identical 台s to maximize uptime.
