Product Overview

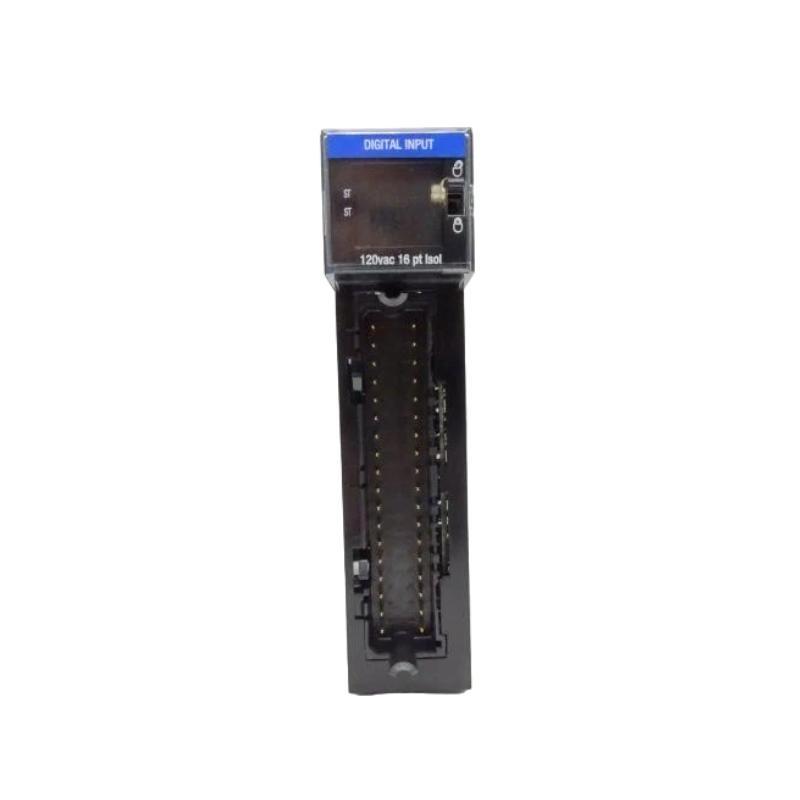

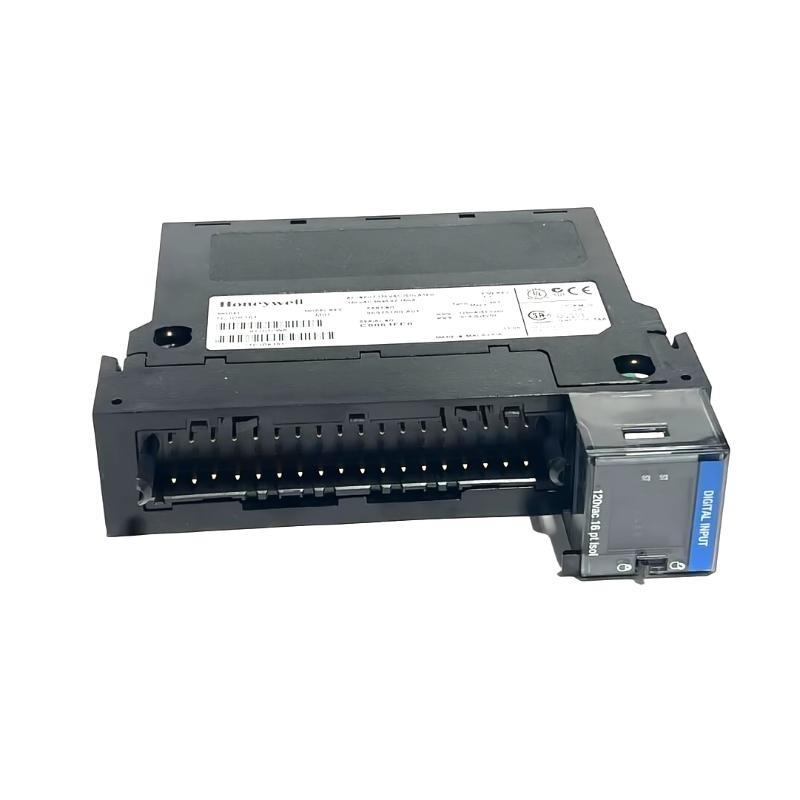

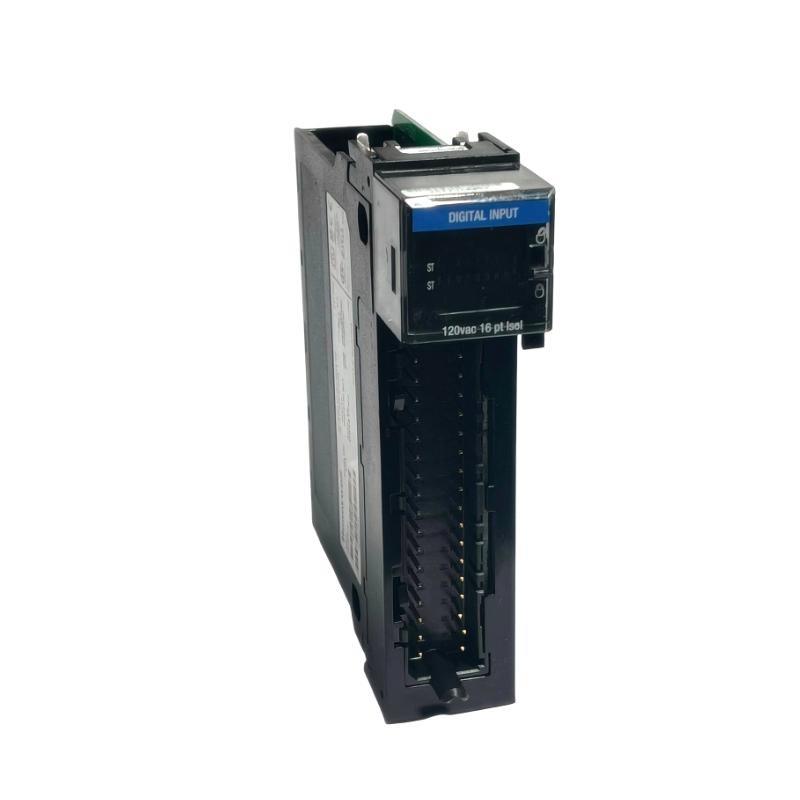

The Honeywell TC-IDK161 AC Input Module is designed to provide reliable and efficient integration / AC signals into Honeywell’s automation and control systems. This module plays a crucial role in industries where monitoring and controlling AC-powered devices are required. Its design ensures compatibility with Honeywell’s advanced control systems, making it an ideal choice for industrial automation, power distribution, and process control.
This module serves as a bridge between AC input devices (such as sensors, switches, and other field equipment) and the control system, allowing real-time monitoring and management / various operational parameters. It is built to meet the demands / critical infrastructure, ensuring operational stability and flexibility in diverse environments.
製品仕様
| Feature | Specification |
|---|---|
| Product Type | AC Input Module |
| モデル Number | TC-IDK161 |
| Input Type | AC Input |
| Number / Inputs | 16 |
| Input Voltage | 110–240 VAC ± 10% |
| Frequency Range | 50/60 Hz |
| Dimensions (L x W x H) | 35 x 140 x 145 mm |
| 重量 | 0.2 kg |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Status Indicator | 16 individual LEDs for each input |
| Compatibility | Compatible with Honeywell Experion PKS & TPS systems |
| Surge Protection | Integrated surge protection for each input |
Applications
The Honeywell TC-IDK161 AC Input Module is designed for various applications in industrial environments where AC signals need to be processed and integrated into control systems. Common use cases include:
-
Power Distribution Systems
Used in power monitoring and distribution networks to integrate AC signals from circuit breakers, meters, or transformers into the control system for accurate data processing and control. -
Building Management Systems (BMS)
Utilized for integrating signals from HVAC systems, lighting, and other AC-powered equipment in large-scale building automation systems. -
Industrial Automation
Essential in manufacturing processes where AC-powered devices, such as motors and actuators, need to be monitored and controlled for efficient system operation. -
Energy Management
The TC-IDK161 module aids in energy monitoring and optimization by collecting data from energy meters, providing real-time analytics and performance insights. -
Safety and Alarm Systems
It enables integration / AC signal-based safety devices like emergency alarms, smoke detectors, or security systems into central control platforms.
Advantages
-
High Reliability
The TC-IDK161 is engineered to withstand harsh industrial environments, providing reliable input signal conversion even under fluctuating power conditions. -
Versatile Input Range
With a wide input voltage range (110–240 VAC) and frequency support (50/60 Hz), this module can be used in a variety / industrial applications across different regions and system configurations. -
Surge Protection
Built-in surge protection ensures that the module can handle electrical spikes, protecting both the device and the control system from transient voltage spikes. -
Compact and Space-Efficient
Despite its robust functionality, the TC-IDK161 /fers a compact design that allows for easy installation in confined spaces, saving valuable panel space. -
Enhanced Integration with Honeywell Systems
Fully compatible with Honeywell’s Experion PKS and TPS systems, this module seamlessly integrates with existing infrastructure for a smooth operational experience. -
Easy Troubleshooting
Each input is equipped with an LED indicator, making it easy to monitor the status / each input and troubleshoot potential issues quickly without specialized equipment. -
Wide Temperature Tolerance
The module operates in a wide range / temperatures, from -20°C to 60°C, making it suitable for a variety / industrial conditions, including harsh outdoor environments.
FAQ (よくある質問)
1. What type / inputs does the TC-IDK161 module support?
The module supports 16 individual AC inputs for integrating signals from AC-powered devices such as motors, alarms, and switches.
2. What is the input voltage range for the TC-IDK161?
The module supports an input voltage range / 110–240 VAC ± 10%.
3. What is the frequency range supported by this module?
It supports frequencies / 50/60 Hz.
4. Can the TC-IDK161 be used in outdoor environments?
Yes, the module can function in temperatures ranging from -20°C to 60°C, making it suitable for both indoor and outdoor use in industrial applications.
5. Does the TC-IDK161 have surge protection?
Yes, the module includes built-in surge protection for each input, protecting the module and connected equipment from voltage spikes.
6. How many inputs are available on the TC-IDK161?
The TC-IDK161 /fers 16 individual AC input channels.
7. Is the TC-IDK161 compatible with Honeywell’s Experion PKS system?
Yes, the TC-IDK161 is designed to be fully compatible with Honeywell’s Experion PKS and TPS control systems.
8. What is the weight / the TC-IDK161 module?
The TC-IDK161 weighs 0.2 kg.
9. What type / status indicators are available on the module?
Each input channel has an individual LED indicator for easy monitoring / input status.
10. How does the TC-IDK161 integrate with industrial automation systems?
The module integrates seamlessly with Honeywell’s control systems, providing reliable AC input data to the system for monitoring and control purposes.
Related モデルs
| モデル | 説明 | Inputs | Voltage | Dimensions (L x W x H) | 重量 |
|---|---|---|---|---|---|
| TC-IDK162 | 32-Input AC Input Module | 32 | 110–240 VAC | 7.5″ x 4.3″ x 3.0″ | 1.00 kg |
| TC-IDK160 | 8-Input AC Input Module | 8 | 110–240 VAC | 6.5″ x 4.0″ x 2.9″ | 0.50 kg |
| TC-IDK164 | 16-Input AC Input with Relay Outputs | 16 | 110–240 VAC | 7.5″ x 4.3″ x 3.5″ | 0.80 kg |
| TC-IDK170 | High-Density AC Input Module | 64 | 110–240 VAC | 10.0″ x 5.0″ x 3.5″ | 1.50 kg |
| TC-IDK168 | Isolated AC Input Module | 16 | 110–240 VAC | 7.5″ x 4.3″ x 2.9″ | 0.75 kg |
| TC-IDK150 | Digital and AC Input Hybrid Module | 32 | 110–240 VAC | 7.0″ x 4.2″ x 3.0″ | 0.70 kg |
Popular Honeywell モデルs
| モデル | 説明 | Inputs | Voltage | Dimensions (L x W x H) | 重量 |
|---|---|---|---|---|---|
| HC900 | Process Control System | 8-32 | 24 VDC | 12.0″ x 6.0″ x 3.5″ | 1.80 kg |
| ControlEdge PLC | Edge Computing PLC | 16-64 | 24–48 VDC | 11.5″ x 8.0″ x 4.0″ | 1.50 kg |
| S88 | Safety System Controller | 16 | 24 VDC | 10.0″ x 6.0″ x 4.5″ | 1.25 kg |
| ExD | Explosion-Pro/ Digital Input Module | 16 | 24 VDC | 7.25″ x 4.50″ x 3.00″ | 0.80 kg |
| W5000 | Industrial Control and Monitoring System | 32 | 24 VDC | 8.5″ x 4.5″ x 3.2″ | 0.95 kg |
| VISTA | Advanced Control System | 8-64 | 24 VDC | 7.25″ x 4.15″ x 3.50″ | 0.90 kg |
