Product 説明

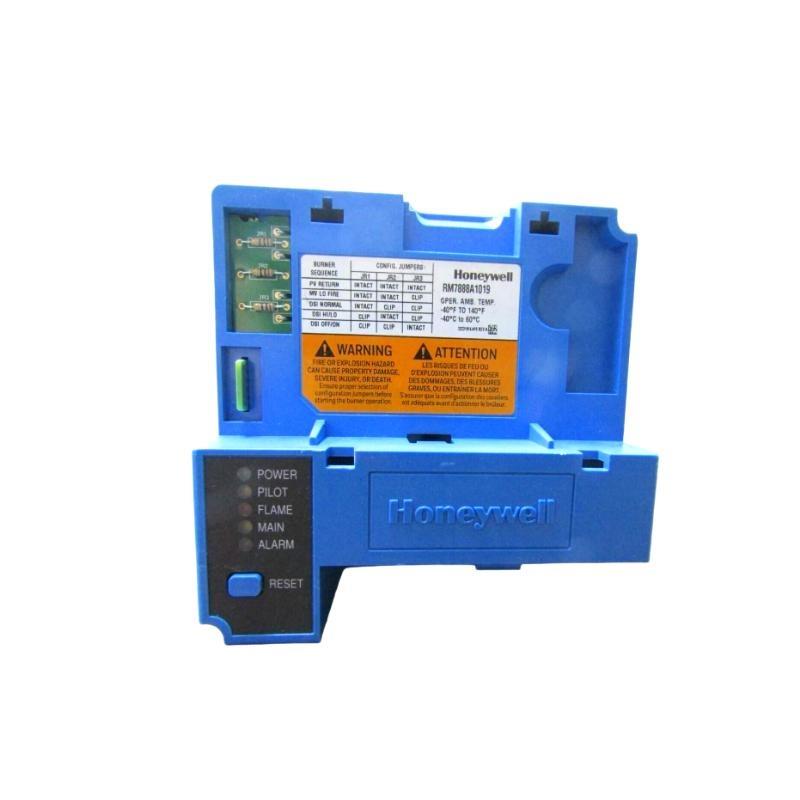

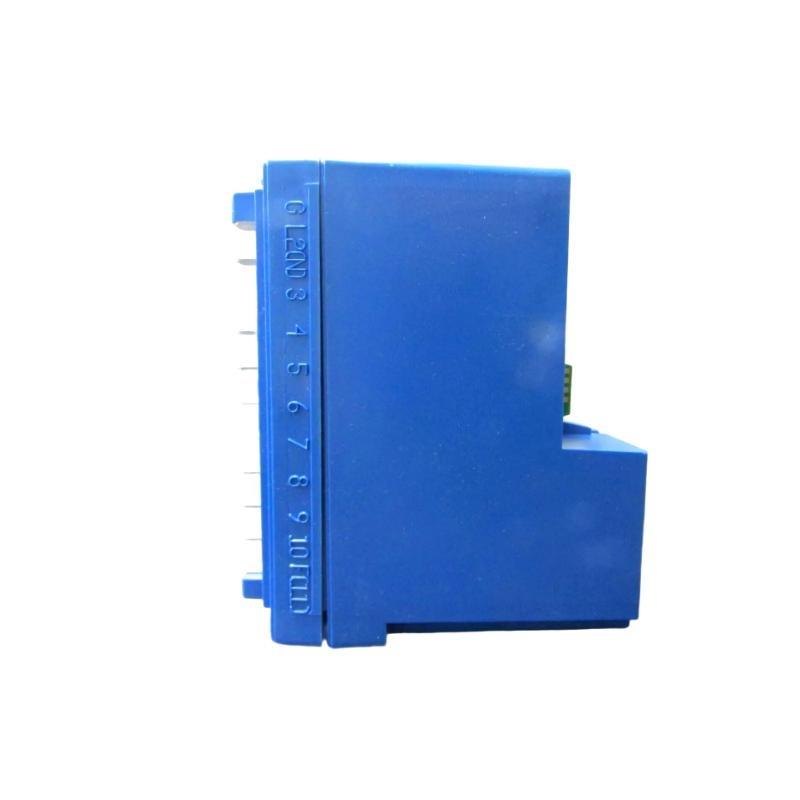

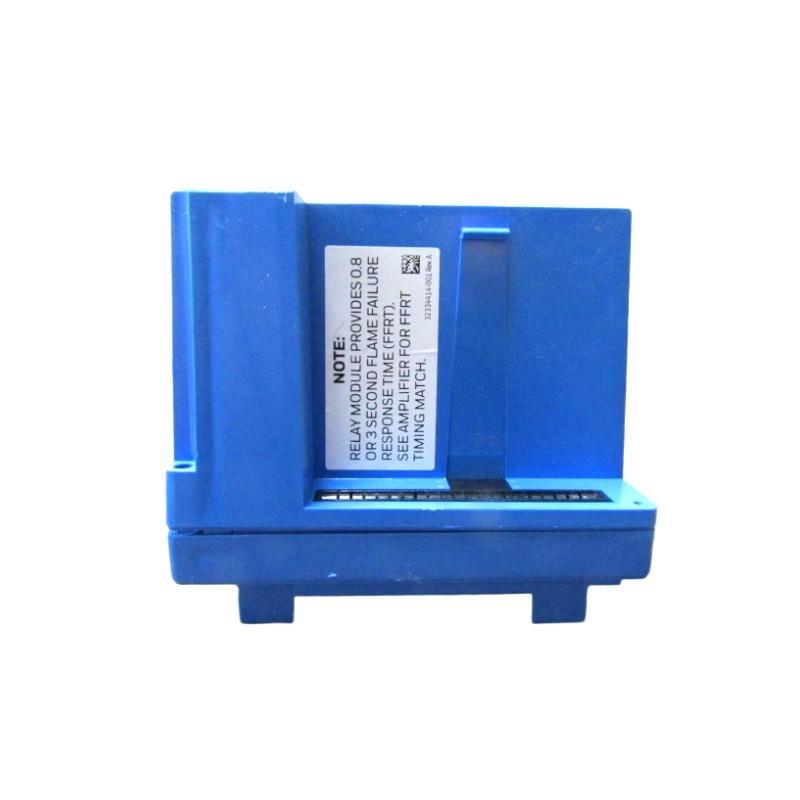

The Honeywell RM7888A1019 is a microprocessor-based burner control designed to provide automatic burner sequencing, flame supervision, system status indication, and system or self-diagnostics. It is ideal for industrial and commercial burner applications requiring reliable safety and performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル | RM7888A1019 |
| Control Type | Microprocessor Burner Control |
| Power Supply | 120/230 VAC, 50/60 Hz |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting | Panel-mounted |
| Dimensions | 127 × 127 × 133 mm |
| 重量 | 0.83 kg |
| Flame Detection Inputs | Compatible with rectification and UV detectors |
| Status Display | LED indicators and optional display module |
| Safety Standards | UL/cUL recognized, CE compliant |
Applications
-
Industrial burners for boilers, furnaces, and kilns.
-
Commercial heating systems.
-
Process heating in petrochemical, food, and pharmaceutical industries.
-
Systems requiring precise sequencing and flame supervision.
Advantages
-
Microprocessor-based high reliability.
-
Advanced diagnostics and error codes for quick troubleshooting.
-
Compact design with simple panel mounting.
-
LED indicators for easy system status monitoring.
-
Compatible with a wide range / flame detectors.
-
Meets international safety standards.
FAQ
Q1: What is the power supply voltage for the RM7888A1019?
A1: It operates on 120/230 VAC, 50/60 Hz.
Q2: What flame detectors are compatible?
A2: It works with rectification and ultraviolet (UV) flame detectors.
Q3: Does it include a display?
A3: It supports an optional display module for detailed diagnostics.
Q4: Can it operate in freezing temperatures?
A4: Yes, it functions down to -40°C.
Q5: Is the control UL and CE certified?
A5: Yes, it meets UL/cUL and CE standards.
Q6: How is system status indicated?
A6: Through built-in LED indicators and optional display.
Q7: What is the typical application?
A7: Burners in industrial and commercial heating processes.
Q8: Is it easy to install?
A8: Yes, it features a panel-mount design with clear wiring instructions.
Q9: What is the 台’s weight?
A9: The 台 weighs approximately 0.83 kg.
Q10: What temperatures can it be stored in?
A10: Storage temperatures range from -40°C to +85°C.
Related モデルs
| モデル | 説明 | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| RM7800L1075 | Burner Control with Display | 127×127×133 | 0.83 |
| RM7885A1001 | Primary Burner Control | 127×127×133 | 0.83 |
| RM7840L1075 | Flame Detector Control | 127×127×133 | 0.83 |
| RM7890A1015 | Primary Safety Control | 127×127×133 | 0.83 |
| RM7800G1001 | Microprocessor Based Control | 127×127×133 | 0.83 |
| RM7800L1059 | Burner Control w/ Annunciator | 127×127×133 | 0.83 |
Popular Honeywell モデルs
| モデル | 説明 | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| R7847A1023 | Ultraviolet Flame Detector | 38×38×127 | 0.45 |
| R7795B1013 | Flame Amplifier Module | 51×102×76 | 0.3 |
| C7012A1104 | UV Flame Sensor | 127×76×51 | 0.6 |
| S7800A1142 | Display Module | 102×102×51 | 0.4 |
| R7861A1024 | Infrared Flame Detector | 38×38×102 | 0.45 |
| C7915A1029 | Self-Check UV Scanner | 152×64×64 | 0.6 |
