Product Overview

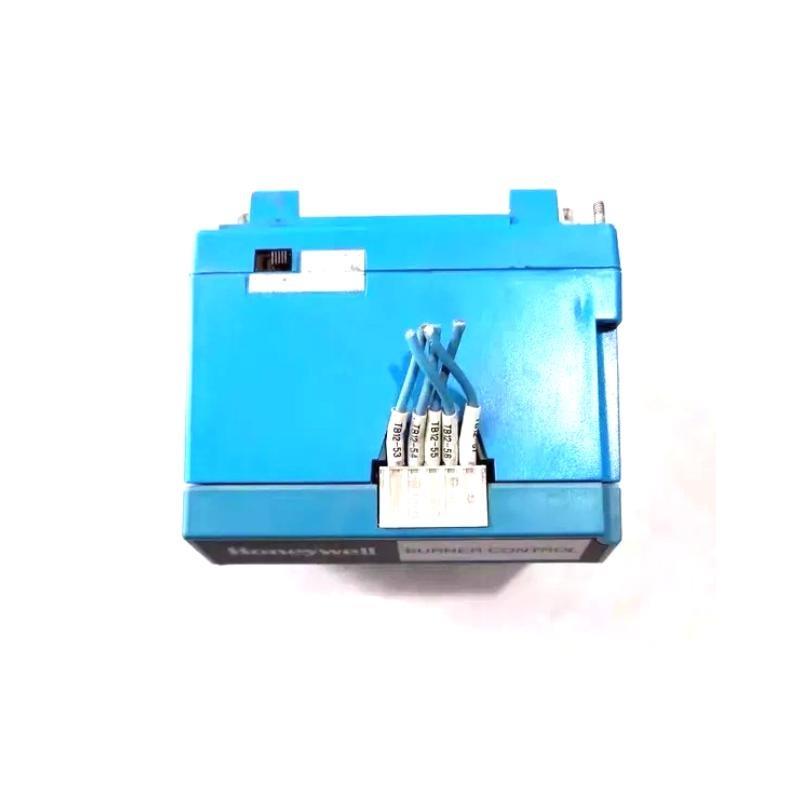

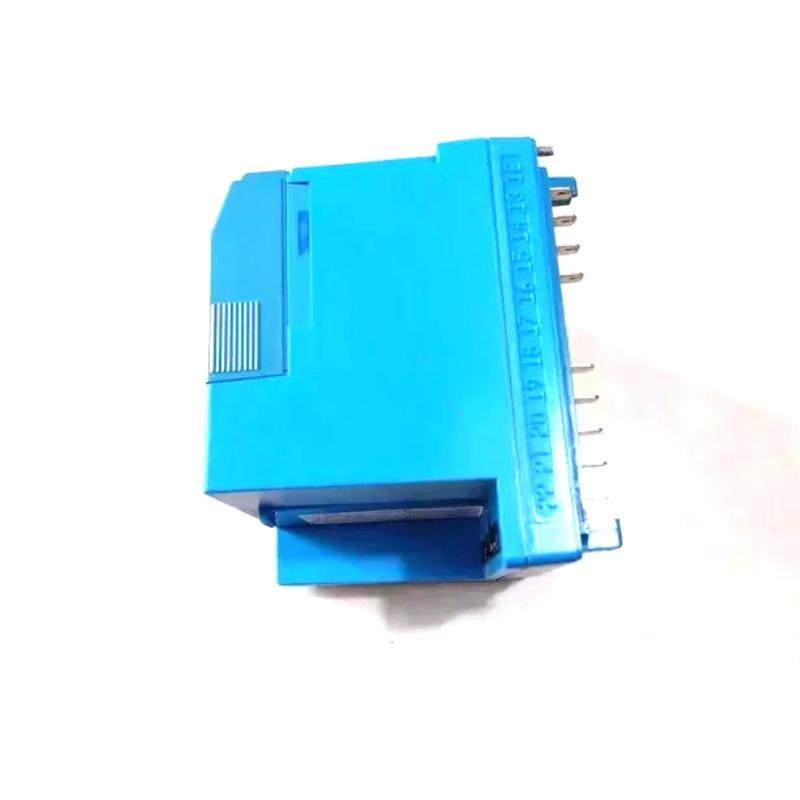

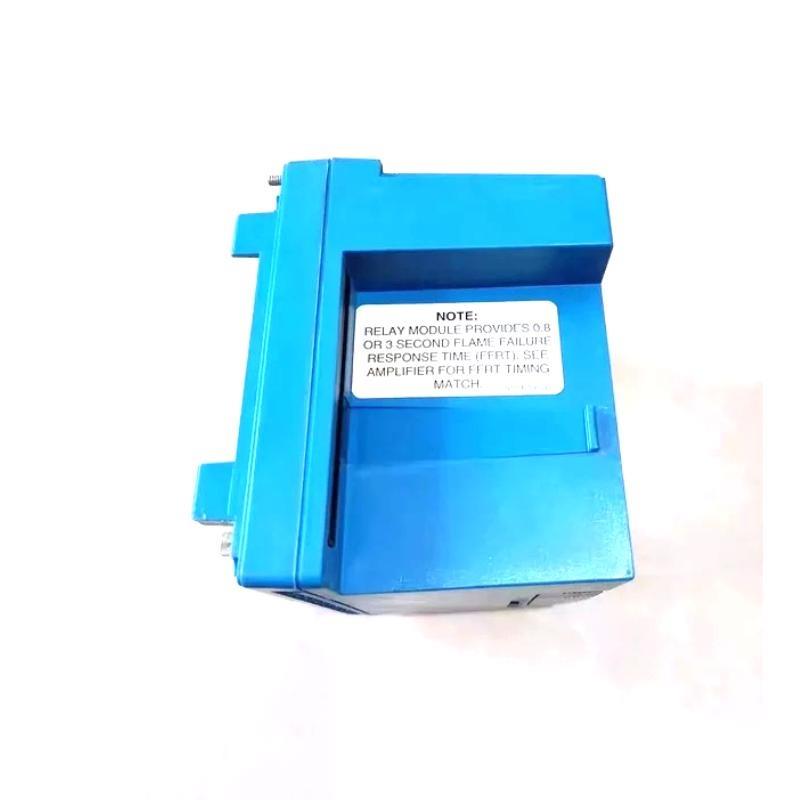

The Honeywell RM7800L1053 is a microprocessor-based integrated burner control designed for automatic sequencing, flame supervision, system diagnostics, and safety monitoring / industrial gas, oil, or combination burners. It ensures reliable operation with advanced safety and diagnostic features, supporting single burner systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Power Supply | 120 Vac (+10/-15%), 50/60 Hz |
| Power Consumption | Max 10 W (Relay Module) |
| Ambient Operating Temp. | -40°F to 140°F (-40°C to 60°C) |
| Storage Temperature | -40°F to 150°F (-40°C to 66°C) |
| Humidity | 85% RH continuous, non-condensing |
| Mounting | Panel or wall mount with Q7800 subbase |
| Communication | Modbus™ compatible |
| Safety Integrity Level | SIL 3 capable |
| Dimensions (H×W×D) | 127 × 127 × 133 mm |
| 重量 | 0.7 kg |
Applications
-
Industrial boilers and burners
-
Process heaters
-
Power plant burners
-
Single burner gas, oil, or combination fuel systems
-
Applications requiring SIL 3 safety compliance
Key Advantages
-
SIL 3 capable for high safety integrity
-
Advanced diagnostics and fault history storage
-
First-out annunciation and expanded system status
-
Adjustable post purge and valve proving options
-
Non-volatile memory retains critical data
-
サポートs remote reset and communication
-
Compact and robust for industrial environments
FAQ
Q1: What type / fuel systems does the RM7800L1053 support?
A1: It supports gas, oil, and combination single burner systems.
Q2: Is the RM7800L1053 SIL 3 capable?
A2: Yes, when used in a properly designed safety system.
Q3: Can it retain fault history after a power loss?
A3: Yes, it has non-volatile memory to store history and status.
Q4: What is the maximum ambient operating temperature?
A4: It operates up to 140°F (60°C).
Q5: Does it support communication with external systems?
A5: Yes, it has Modbus™ interface capability.
Q6: What is the post purge adjustment range?
A6: Up to 60 minutes, with 15 seconds as the default setting.
Q7: Is remote reset available?
A7: Yes, remote reset is an optional feature.
Q8: How is safety ensured during operation?
A8: Through dynamic self-checks, hardware monitoring, and tamper-resistant logic.
Q9: What kind / mounting options are available?
A9: It can be panel mounted or wall mounted using the appropriate subbase.
Q10: What is the weight / the module?
A10: It weighs approximately 0.7 kg.
Recommended Related モデルs
| モデル | 説明 | Dimensions (mm) | 重量 |
|---|---|---|---|
| RM7800E1012 | Relay Module (Gas) | 127 × 127 × 133 | 0.7 kg |
| RM7800G1003 | Relay Module (Oil) | 127 × 127 × 133 | 0.7 kg |
| RM7800M1019 | Relay Module (On/Off systems) | 127 × 127 × 133 | 0.7 kg |
| RM7800L1087 | Relay Module with VPS | 127 × 127 × 133 | 0.7 kg |
| S7800A1001 | Keyboard Display Module | 127 × 127 × 30 | 0.1 kg |
| S7810M1003 | Modbus Communication Module | 127 × 127 × 30 | 0.1 kg |
Popular Honeywell モデルs
| モデル | 説明 | Dimensions (mm) | 重量 |
|---|---|---|---|
| RM7890A1015 | Primary Burner Control | 127 × 127 × 133 | 0.7 kg |
| RM7895A1014 | Integrated Burner Control | 127 × 127 × 133 | 0.7 kg |
| RM7823A1011 | Relay Module | 127 × 127 × 133 | 0.7 kg |
| RM7838A1014 | Relay Module for Oil Burners | 127 × 127 × 133 | 0.7 kg |
| R7861A1026 | Flame Amplifier UV | 50 × 50 × 80 | 0.1 kg |
| S7800A1142 | Keyboard Display (VPS support) | 127 × 127 × 30 | 0.1 kg |
