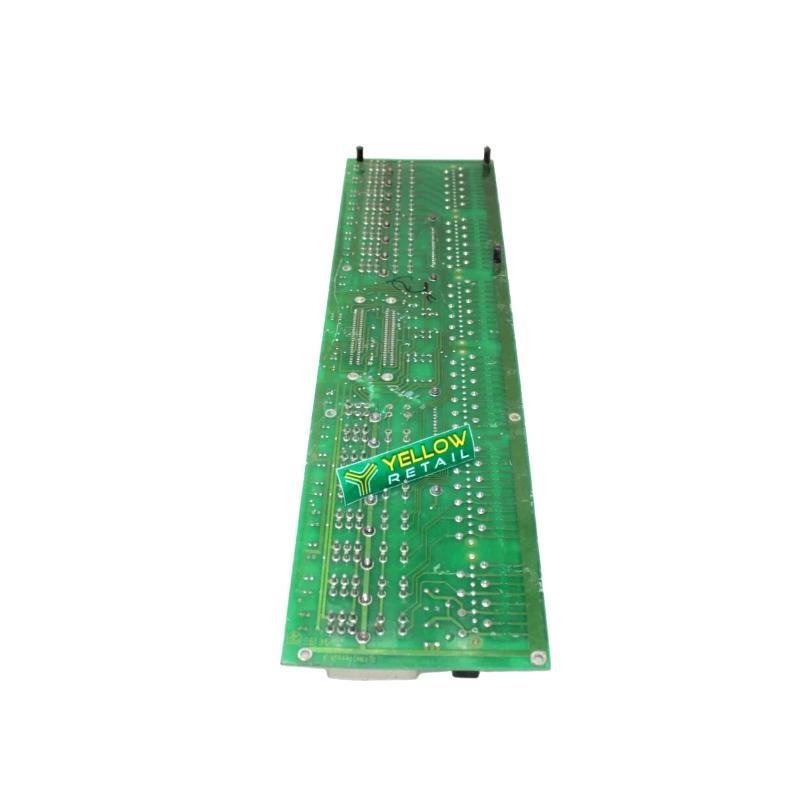

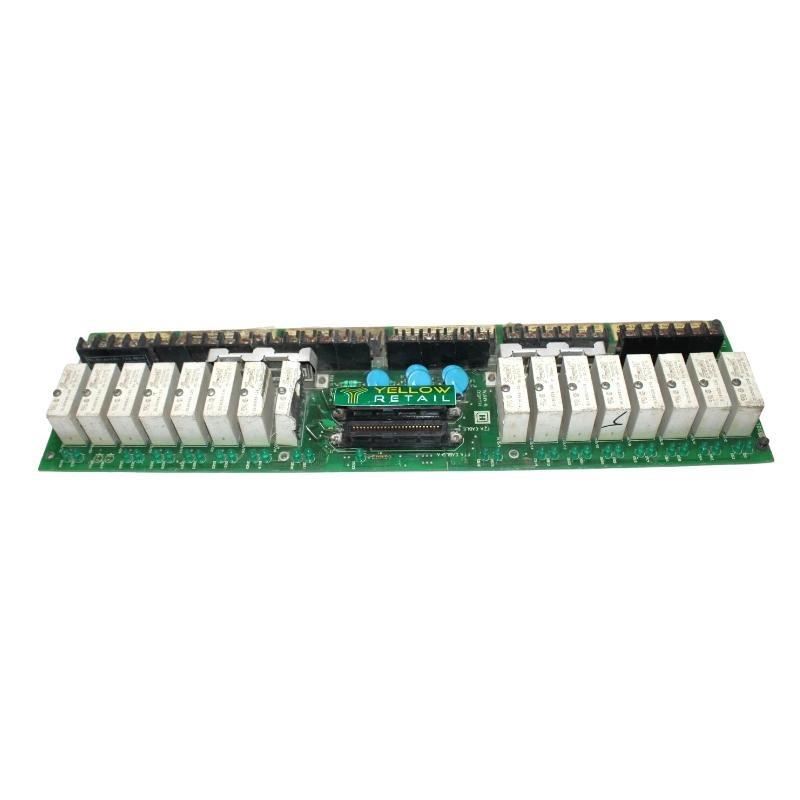

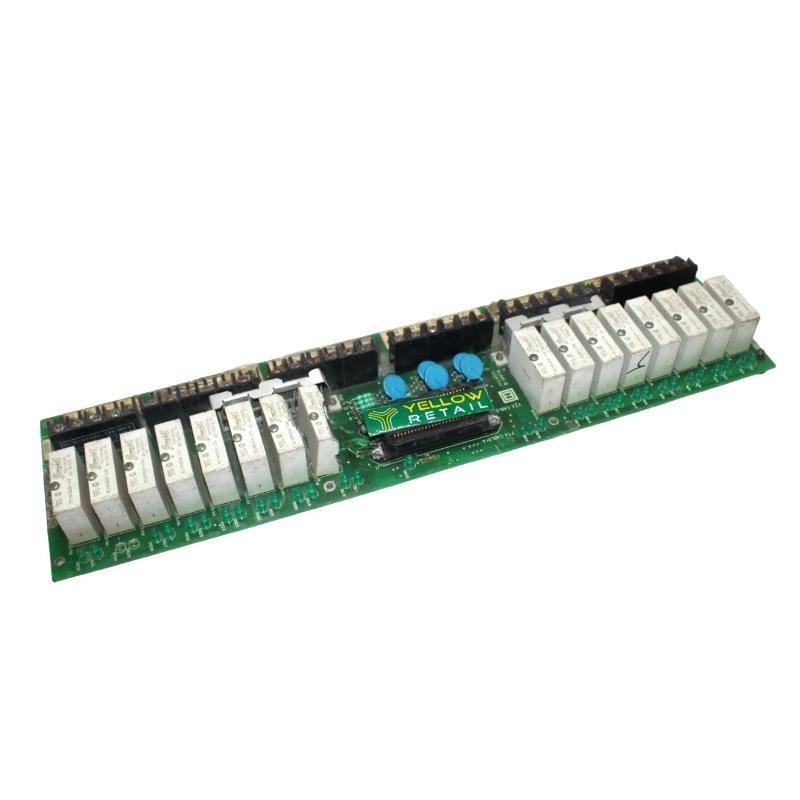

The Honeywell MU-TDID52 51304441-225 Digital Input Module is a high-performance digital input module designed for use in industrial automation systems. This module is part / Honeywell’s wide range / input/output modules, /fering reliable and accurate digital signal processing in demanding environments. The MU-TDID52 51304441-225 module is engineered to handle a wide array / digital inputs, making it suitable for use in process control, machine automation, and other industrial applications that require the reliable monitoring / digital signals.
This input module supports up to 32 digital input channels, /fering flexible connectivity for monitoring and controlling on//f signals from various field devices such as switches, sensors, and relays. It is designed to integrate seamlessly into Honeywell’s control systems, providing fast and accurate data transmission for real-time decision-making and automated control.
The MU-TDID52 is built with rugged durability to withstand harsh industrial environments. It operates efficiently in high-temperature conditions, making it ideal for use in diverse industrial and process automation systems. With its ease / integration and reliability, this module helps reduce system complexity and improve operational efficiency.
Technical Specifications
| Parameter | 説明 |
|---|---|
| モデル Number | MU-TDID52 51304441-225 |
| Input Channels | 32 Digital Inputs |
| Input Voltage Range | 24V DC ±20% |
| Input Type | Sinking or Sourcing Digital Inputs |
| Input Impedance | 10 kΩ |
| Operating Voltage | 24V DC ±20% |
| Power Consumption | 100mA at 24V DC |
| Temperature Range | -20°C to +60°C |
| Dimensions (L x W x H) | 462.3 x 120.7 mm |
| 重量 | 0.68 kg |
| Mounting Type | DIN Rail Mountable |
| Compliance | CE, UL, RoHS, and other industry standards |
| Indicator Type | LED indicators for status indication |
| Protection Class | IP20 (For indoor use only) |
| Response Time | < 1ms (Fast response for real-time control) |
Applications
The Honeywell MU-TDID52 51304441-225 Digital Input Module is designed for a variety / industrial automation and control applications. Its ability to handle up to 32 digital input signals makes it highly effective in scenarios where numerous digital signals must be monitored and processed. Some / the key applications include:
-
Industrial Automation Systems: This module is widely used in automated systems to monitor digital signals from devices such as relays, switches, and sensors, ensuring seamless integration with larger control systems.
-
Process Control: It is ideal for real-time monitoring / on//f signals in process control applications, helping to ensure smooth operation / industrial processes.
-
Machine Control Systems: Used in machine automation systems to monitor and control the operation / machines by capturing on//f digital signals from various sources.
-
Control Panels: Employed in control panels for monitoring digital inputs from field devices, improving operational efficiency and accuracy in data handling.
-
Alarm and Fault Monitoring: The module is used in safety systems to monitor alarms, fault indicators, and emergency stop signals, ensuring timely responses to critical system events.
-
PLC Integration: Integrated with PLC systems for collecting digital inputs from a range / connected field devices, enabling real-time decision-making in automation processes.
Advantages
-
High Channel Density: The MU-TDID52 /fers support for up to 32 digital input channels, providing a highly efficient solution for handling multiple signals in a compact module.
-
Reliable Performance: Designed for reliable operation in harsh industrial environments, the module ensures consistent signal processing with minimal downtime, even under extreme conditions.
-
Flexible Input Configuration: The module supports both sinking and sourcing input types, providing greater flexibility in choosing compatible devices and sensors.
-
Fast Response Time: With a response time / less than 1ms, the MU-TDID52 ensures real-time data processing, making it ideal for systems requiring fast reactions and control.
-
Low Power Consumption: The module consumes just 100mA at 24V DC, /fering energy-efficient performance while maintaining high processing capabilities.
-
Easy Installation: The MU-TDID52 is designed for easy DIN rail mounting, simplifying the installation process and reducing the complexity / system integration.
-
Status Indicators: The built-in LED indicators provide real-time status updates, allowing operators to monitor the module’s performance and quickly identify issues.
-
Temperature Resistance: With an operating temperature range / -20°C to +60°C, the module can perform effectively in diverse and challenging industrial environments.
-
Compact Design: The module’s compact form factor (462.3 x 120.7 mm) makes it easy to install in tight spaces, ensuring a neat and organized control panel.
-
Compliance with Industry Standards: The MU-TDID52 is CE, UL, and RoHS certified, ensuring it meets the required safety and environmental standards.
よくある質問 (FAQs)
1. What is the Honeywell MU-TDID52 51304441-225 Digital Input Module used for?
The MU-TDID52 is used to monitor and process digital signals from various field devices such as sensors, switches, and relays, enabling real-time control in automation and process control systems.
2. How many digital input channels does the MU-TDID52 support?
The module supports up to 32 digital input channels.
3. What is the input voltage range for the MU-TDID52?
It operates within a 24V DC ±20% voltage range.
4. Can the MU-TDID52 handle both sinking and sourcing digital inputs?
Yes, it supports both sinking and sourcing digital inputs, /fering flexibility for various field devices.
5. What is the power consumption / the MU-TDID52?
The MU-TDID52 consumes 100mA at 24V DC.
6. What is the response time / the MU-TDID52 module?
The response time is less than 1ms, allowing for real-time signal processing in fast control systems.
7. How is the MU-TDID52 module installed?
The module is DIN rail mountable, making it easy to install in industrial control panels or automation systems.
8. What are the dimensions / the MU-TDID52?
The module has dimensions / 462.3 x 120.7 mm.
9. Is the MU-TDID52 suitable for use in outdoor environments?
No, the module is rated IP20, meaning it is intended for indoor use only.
10. Does the MU-TDID52 comply with international safety standards?
Yes, the module is CE, UL, and RoHS certified, ensuring it meets international safety, quality, and environmental standards.
Related モデルs from the Same Series
| モデル Number | 説明 | Input Channels | Voltage Rating | 重量 |
|---|---|---|---|---|
| MU-TDID51 51304441-199 | Digital Input Module (16 Channels) | 16 channels | 24V DC | 300g |
| MU-TDID53 51304441-201 | Digital Input Module (48 Channels) | 48 channels | 24V DC | 380g |
| MU-TDID54 51304441-202 | Digital Input Module (64 Channels) | 64 channels | 24V DC | 420g |
| MU-TDID55 51304441-203 | Digital Input Module (96 Channels) | 96 channels | 24V DC | 450g |
| MU-TDID56 51304441-204 | Digital Input Module (128 Channels) | 128 channels | 24V DC | 480g |
| MU-TDID57 51304441-205 | Digital Input Module (256 Channels) | 256 channels | 24V DC | 500g |
