製品紹介

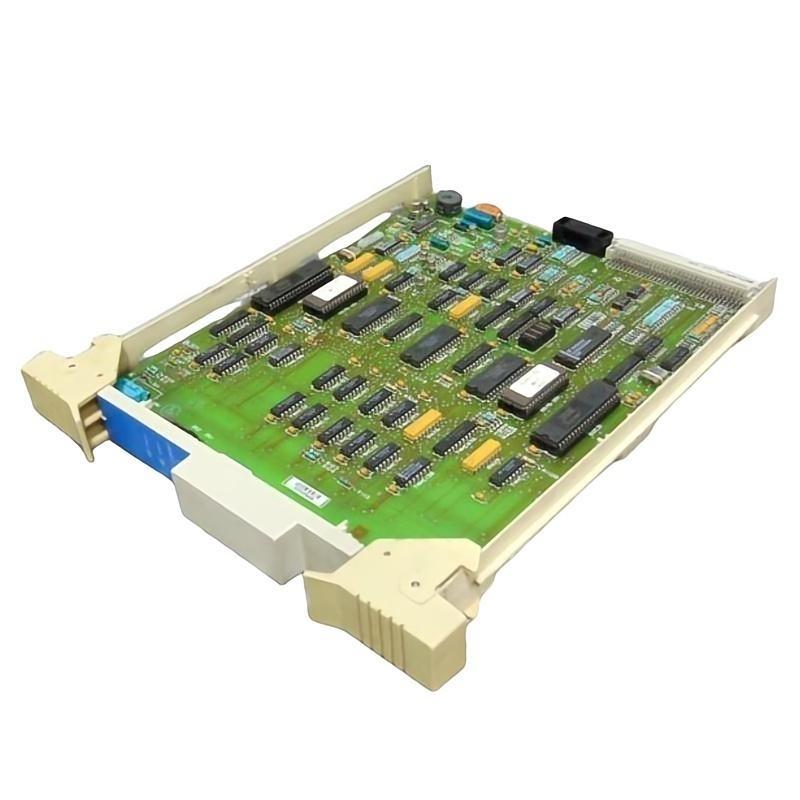

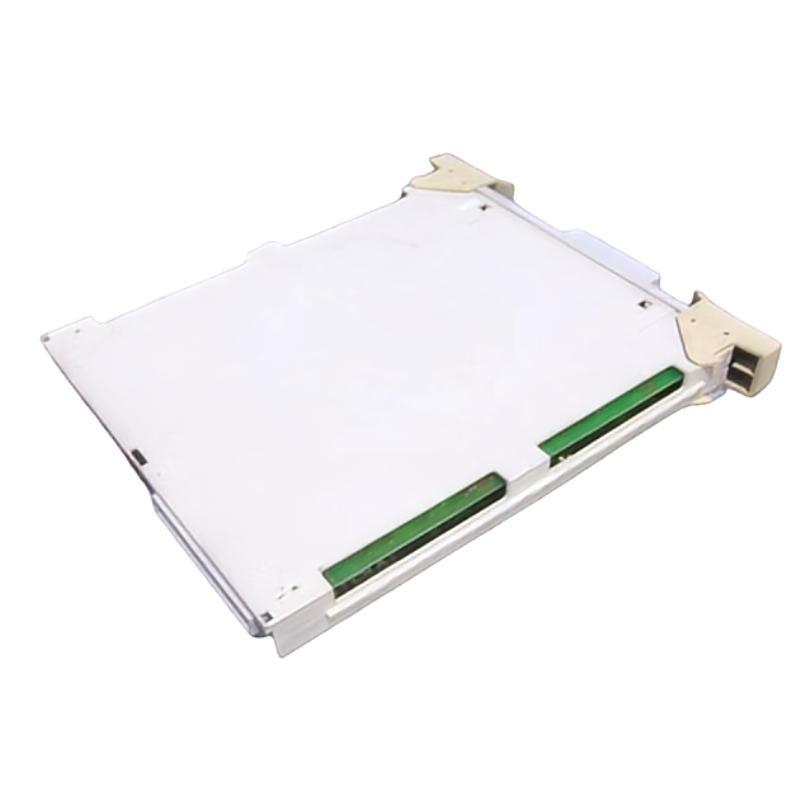

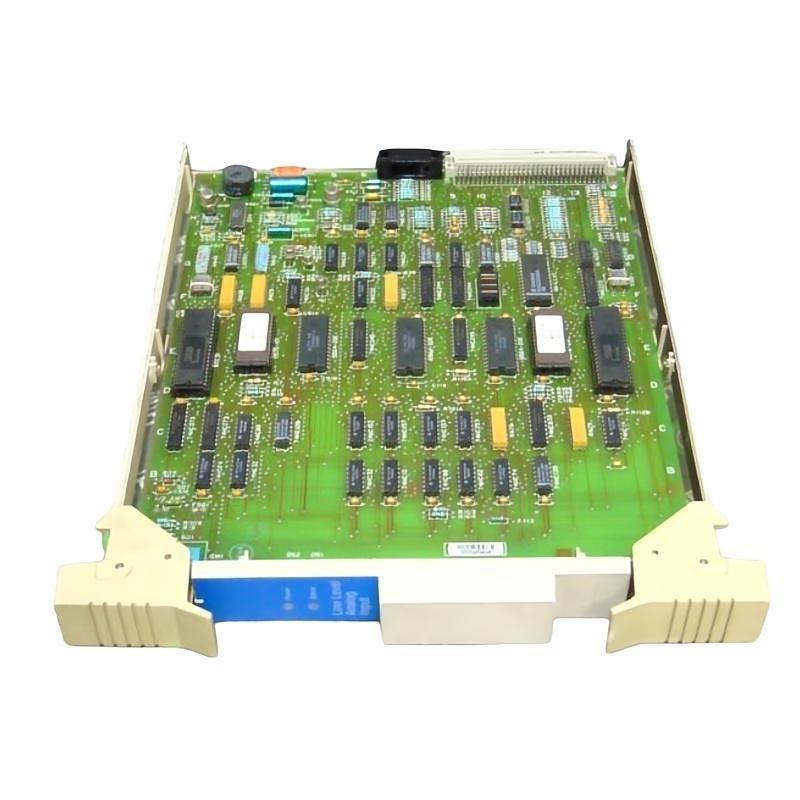

The Honeywell MU-PAIL02 (品番. 51304481-100) is a precision-engineered Low Level Analog Input Module designed for use in Honeywell’s TPS (TotalPlant Solution) or Experion PKS systems. It is used to accurately acquire low-level analog signals from field instruments such as thermocouples, RTDs, strain gauges, and other transducers that produce millivolt-level outputs.
This module is part / Honeywell’s high-integrity I/O subsystem, /fering enhanced signal fidelity, advanced noise rejection, and channel isolation. Each input channel features individual analog-to-digital conversion, enabling real-time, high-resolution monitoring with minimal signal distortion. The MU-PAIL02 plays a critical role in applications where precise analog measurements are required for closed-loop control, data acquisition, and diagnostics.
製品仕様
| Parameter | Details |
|---|---|
| モデル Number | MU-PAIL02 |
| 型番 | 51304481-100 |
| メーカー | Honeywell |
| Module Type | Low Level Analog Input Module |
| System Compatibility | TPS (TotalPlant Solution), Experion PKS |
| Input Type | Low-level analog signals (mV range) |
| Number / Channels | 8 channels (differential or single-ended selectable) |
| Input Range | -25 mV to +25 mV (typical), configurable per channel |
| Input Impedance | >10 MΩ |
| Resolution | 16-bit A/D conversion |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Sampling Rate | 10 samples/second per channel (typical) |
| Accuracy | ±0.05% / full-scale (typical) |
| Filtering | Digital filtering and common-mode rejection |
| Diagnostics | Open circuit, out-/-range, overvoltage detection |
| Status Indication | Channel health, module OK, and fault LEDs |
| Power Consumption | Approx. 3 W |
| Hot Swappable | Yes |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 130 x 35 x 110 mm |
| 重量 | 0.45 kg |
| Certifications | CE, UL, CSA, Class 1 Div 2 (when used in certified enclosure) |
Product Applications
The MU-PAIL02 module is essential for acquiring precision analog signals in critical industrial environments. It is ideal for:
-
Thermocouple Measurements
Used in temperature monitoring where signal levels are in millivolts and require high-resolution acquisition. -
Strain Gauge Monitoring
Enables structural stress monitoring in civil, aerospace, and mechanical systems. -
Process R&D and Laboratory Systems
Collects high-resolution analog data for research and testing environments. -
Petrochemical and Refining Plants
Monitors catalyst bed temperatures or pressure drops that require low signal conditioning. -
Nuclear and Power Generation Facilities
Interfaces with sensitive detectors and low-level transducers in safety-critical processes. -
Precision Weighing Systems
Converts mV signals from load cells into usable control inputs.
Product Advantages
-
High Signal Accuracy
Offers 16-bit resolution with low noise, enabling detection / minute signal variations. -
Advanced Channel Isolation
Prevents signal interference and ground loop issues, ensuring signal integrity. -
Flexible Signal サポート
Compatible with various low-level signal sources including mV-output sensors and custom transducers. -
Diagnostics and Status Monitoring
Built-in fault indicators and signal diagnostics ensure operational transparency. -
Reduced Downtime
Hot-swappable design allows for module replacement without halting the system. -
Integrated Filtering
Digital filtering and common-mode rejection provide clean signal acquisition even in noisy environments. -
Compact and Modular Design
Fits seamlessly into existing Honeywell I/O racks with minimal space requirements.
FAQ
-
What is the maximum input voltage that MU-PAIL02 can tolerate without damage?
The input channels can typically withstand ±30 VDC transient overloads, but continuous operation should remain within ±25 mV. -
Is the module capable / detecting open circuit conditions on all channels?
Yes, each channel has built-in diagnostics for open circuit detection. -
How is signal isolation achieved on this module?
The module /fers galvanic isolation between each channel and the backplane, as well as between channels. -
Can this module accept thermocouple signals directly?
Yes, it is designed to interface directly with thermocouples without requiring external signal conditioning. -
Does the MU-PAIL02 perform linearization for thermocouples?
No, linearization is handled at the control processor level, not within the module itself. -
What is the noise rejection capability / the MU-PAIL02?
The module employs digital filtering with excellent common-mode rejection (>100 dB typical). -
Can it be used in a redundant configuration?
Yes, when used with redundant I/O backplanes and system configuration, it supports fault-tolerant deployment. -
What is the input impedance / each channel?
Greater than 10 MΩ, ensuring minimal loading on connected sensors. -
Is calibration required for each channel?
Factory calibrated; field recalibration is generally not required unless performance deviation is observed. -
What is the maximum cable length supported for sensor connections?
Cable lengths depend on signal type and shielding, but typically up to 100 meters with shielded twisted pair is supported for low-noise operation.
Related モデルs (Same Series or Function)
| モデル Number | 説明 | Input Type | Channels | System |
|---|---|---|---|---|
| MU-PAIH03 (51454469-175) | High-Level Analog Input Module | 4–20 mA, ±10 VDC | 8 | TPS/Experion |
| MU-PAOH03 (51304493-200) | Analog Output Module | 4–20 mA | 8 | TPS/Experion |
| MU-PDIO02 (51304511-100) | Digital I/O Module | Discrete I/O | 16 | TPS/Experion |
| MU-TAIH03 (51305865-275) | Thermocouple Input Module | Type J/K/T thermocouples | 8 | TPS/Experion |
| MU-PAOX03 (51454475-175) | Isolated Analog Output Module | 4–20 mA | 8 | TPS/Experion |
| MU-TDIO02 (51305900-175) | Mixed Digital I/O Module | Dry contact, relay | 16 | TPS/Experion |
Popular Honeywell モデルs
| モデル Number | 説明 | Type | Application |
|---|---|---|---|
| C300 Controller | Modular Process Controller | Controller | Distributed Control Systems |
| SMV800 | Smart Multivariable Transmitter | Flow/DP Transmitter | Flow and Pressure Monitoring |
| STT850 | Temperature Transmitter | Smart Field Device | Temperature Monitoring |
| HC900 Hybrid Controller | Logic and Process Controller | Hybrid Controller | Batch, Thermal, and Logic Control |
| FSC Safety System | Triple Modular Redundancy Safety Controller | TMR Safety System | ESD and Process Safety Systems |
| 51199929-100 | IOP Board for C300 | I/O Interface Processor | Experion PKS Systems |
