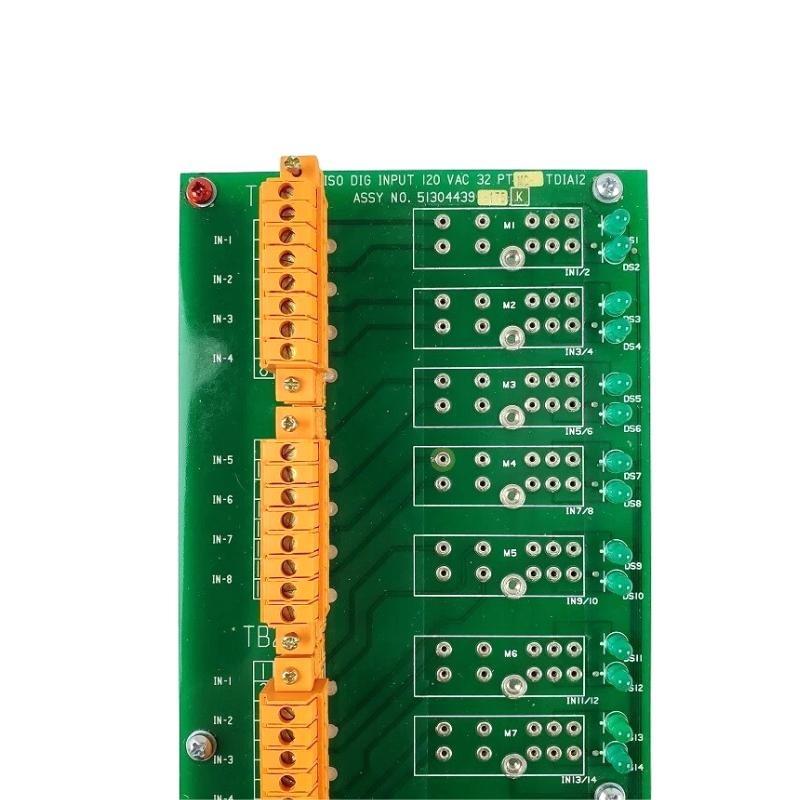

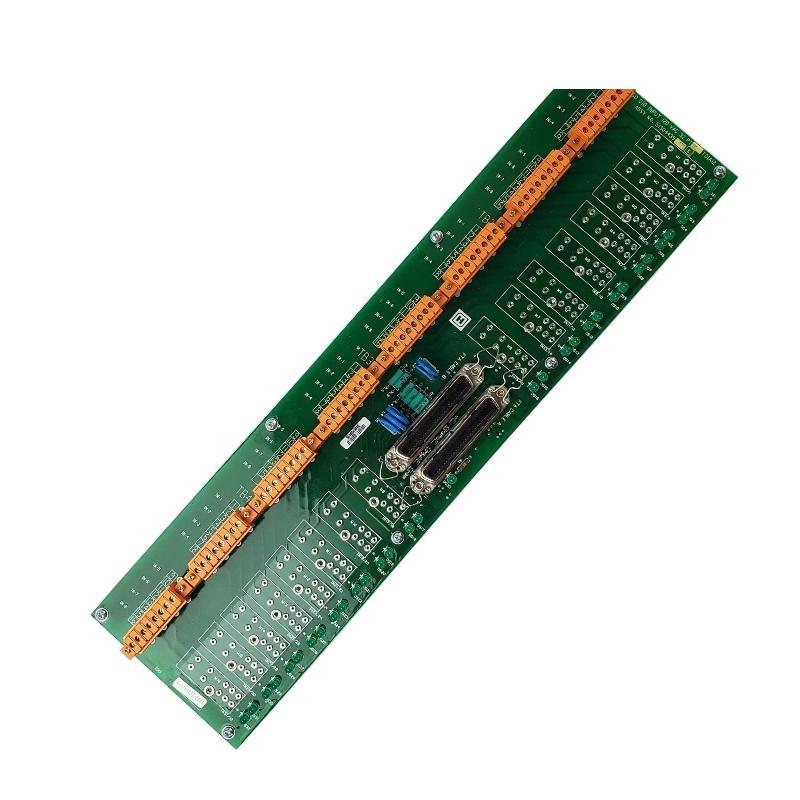

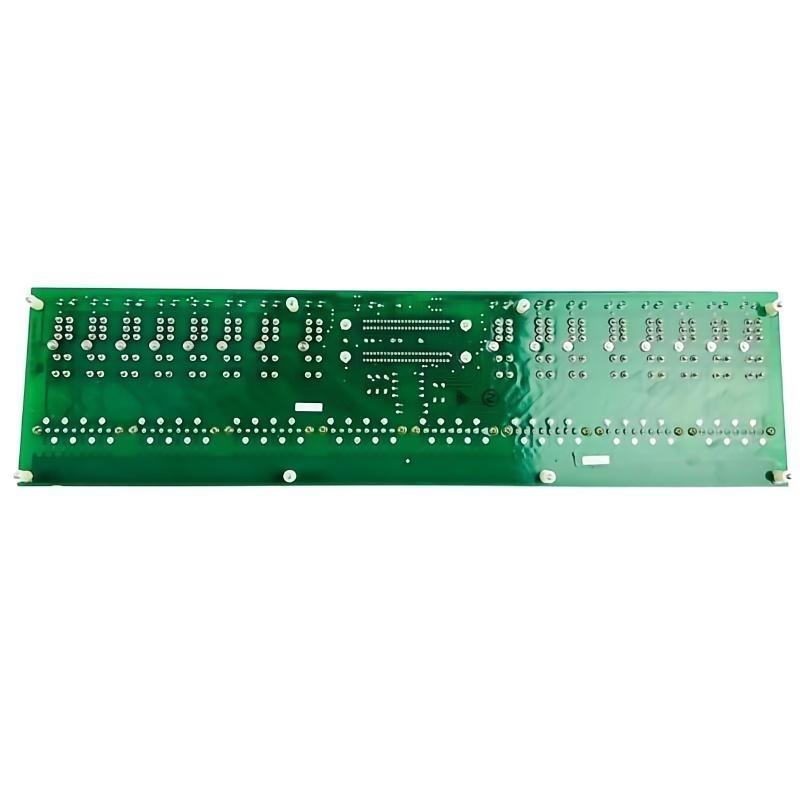

The Honeywell MC-TDIA12 51304439-175 Isolated Digital Input Module is a precision-engineered module designed to integrate with Honeywell’s TDC 3000, Experion PKS, and compatible distributed control systems. It is specifically designed to receive and process discrete digital signals from field devices, providing isolated input channels to ensure reliable operation in electrically noisy industrial environments.
With 12 input channels, the MC-TDIA12 allows control systems to monitor switches, relays, and contact signals with high accuracy and speed. Its full channel-to-bus isolation ensures that electrical faults in field wiring do not propagate into the control system. Built-in diagnostics provide status reporting and fault detection for improved system reliability and proactive maintenance.
The module is ideal for industries where high availability, signal integrity, and rapid digital response are critical for process monitoring and control.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | MC-TDIA12 51304439-175 |
| Product Type | Isolated Digital Input Module |
| Compatible Systems | Honeywell TDC 3000 / Experion PKS Series |
| Input Channels | 12 isolated digital input channels |
| Input Signal Type | Dry contact, transistor, or relay contact signals |
| Input Voltage Range | 24 V DC nominal (12–30 V DC) |
| Isolation Voltage | 1500 V DC channel-to-bus |
| Input Current | 4 mA typical per channel |
| Response Time | <5 ms per channel |
| Debounce Time | 10 ms (configurable) |
| Power Supply | 24 V DC nominal |
| Power Consumption | <5 W |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –20 °C to +70 °C |
| Humidity | 10–90 % RH (non-condensing) |
| Diagnostics | Channel status, communication check, self-test |
| Mounting | Plug-in module for Honeywell I/O chassis |
| Dimensions | 230 x 123 x 20 mm |
| 重量 | 0.862 kg |
| Certifications | CE, UL, CSA, FCC Class A |
Applications
The MC-TDIA12 module is widely used in industrial automation systems where reliable digital signal acquisition is essential:
-
Petrochemical and Refining: Monitoring safety interlocks, limit switches, and emergency shutdown signals.
-
Power Generation: Receiving status inputs from turbine controls, breaker positions, and auxiliary systems.
-
Chemical and Pharmaceutical Plants: Monitoring digital sensors and equipment interlocks to maintain process safety.
-
Water and Wastewater Treatment: Acquiring discrete inputs from level switches, pump status, and flow alarms.
-
Oil and Gas: Interface with field relays, solenoids, and emergency shutdown devices.
-
Laboratories and Pilot Plants: Digital monitoring / experimental or test equipment requiring isolated signal integrity.
Advantages
-
High Signal Integrity: Fully isolated input channels protect against electrical interference and ground loops.
-
Fast Response: Response times under 5 ms ensure accurate and timely signal acquisition.
-
Flexible Input Types: Accepts dry contact, transistor, and relay input signals, adaptable to diverse field devices.
-
Comprehensive Diagnostics: Self-test and channel status reporting reduce downtime and maintenance effort.
-
System Reliability: Channel-to-bus isolation enhances control system safety and protects against field faults.
-
Compact and Modular: Designed for dense installation within Honeywell I/O racks.
-
Rugged Industrial Design: Resistant to vibration, temperature variation, and electrical noise common in industrial environments.
-
Seamless Integration: Compatible with Honeywell TDC 3000, Experion PKS, and similar control systems.
FAQ
-
How many digital input channels does the MC-TDIA12 provide?
It provides 12 fully isolated input channels for discrete signal acquisition. -
What types / digital signals can the module process?
It can process dry contact, transistor, and relay contact signals. -
Is each input channel isolated?
Yes, each channel is electrically isolated from the bus and other channels. -
What is the typical response time for digital inputs?
The module has a response time / less than 5 milliseconds per channel. -
What is the input voltage range?
Nominal 24 V DC, with a valid operating range / 12–30 V DC. -
Does the module include diagnostic functions?
Yes, it provides self-test routines, channel status monitoring, and communication error detection. -
Can the debounce time for inputs be configured?
Yes, the module allows a debounce time / 10 ms, which can be configured based on application needs. -
Is the MC-TDIA12 compatible with redundant systems?
Yes, it supports integration into redundant I/O architectures for high-availability control systems. -
How does the module maintain reliability in electrically noisy environments?
Full channel-to-bus isolation and robust filtering protect signal integrity from noise and transients. -
Can it interface with older Honeywell TDC 3000 systems?
Yes, it is fully compatible with TDC 3000 and Experion PKS platforms without modification.
