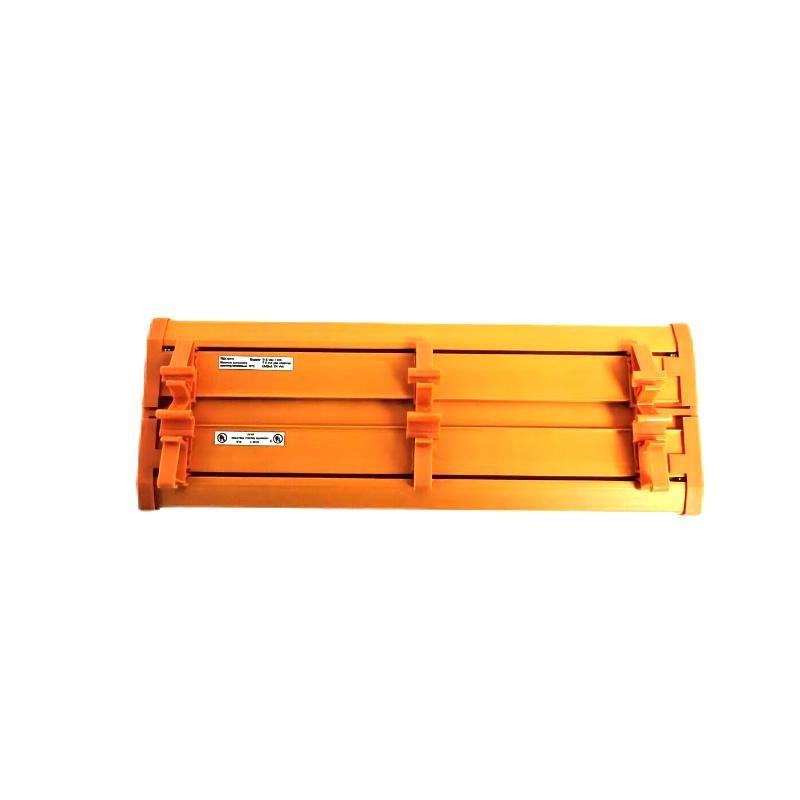

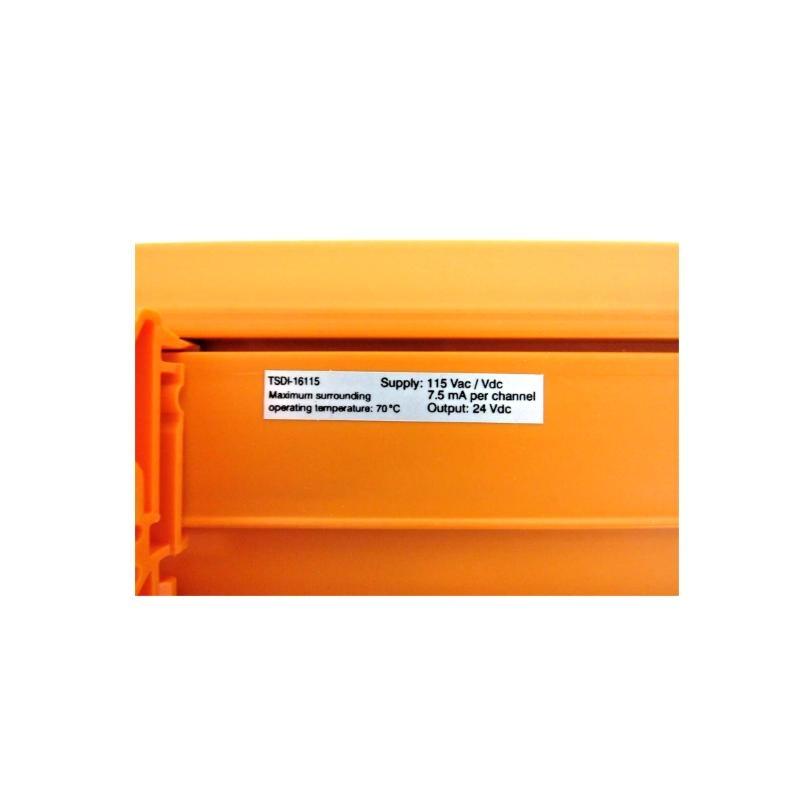

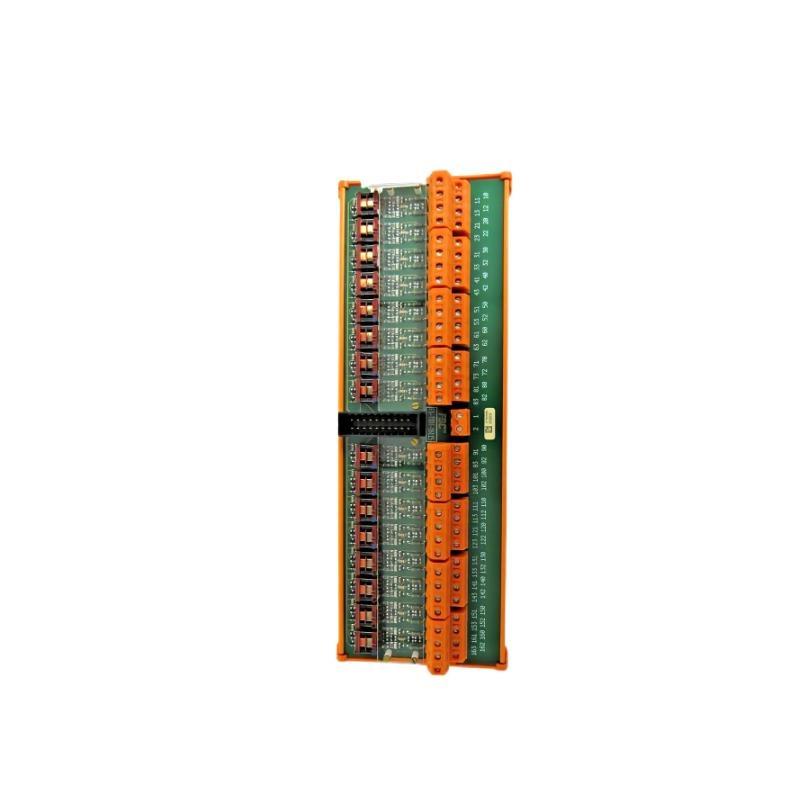

The Honeywell FS-TSDI-16115 is a Safe Digital Input FTA (Field Terminal Assembly) Module, specifically designed for Honeywell’s Safety Manager™ platform. This module plays a pivotal role in safety instrumented systems (SIS) by safely acquiring digital input signals from field devices such as limit switches, emergency shutdown devices, and other binary sensors. It is an integral component in mission-critical applications where SIL (Safety Integrity Level) certifications are required.
The FS-TSDI-16115 module ensures reliable transmission / signals while maintaining galvanic isolation between field and control systems. This enables seamless and safe operation within harsh industrial environments such as petrochemical plants, power generation facilities, and /fshore platforms.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | FS-TSDI-16115 |
| Product Type | Safe Digital Input Field Terminal Assembly (FTA) |
| Channels | 16 isolated digital input channels |
| Input Type | Voltage-free contact or electronic inputs |
| Nominal Voltage | 24 VDC |
| Input Signal Range | 18–30 VDC |
| Input Current | 2 mA (typical) |
| Galvanic Isolation | Yes (channel-to-channel and channel-to-system) |
| Safety Compliance | IEC 61508 (up to SIL3), TUV-certified |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Mounting Type | DIN rail |
| Housing Material | Flame-retardant thermoplastic |
| Protection Rating | IP20 |
| Dimensions (W x H x D) | 300 × 109 × 68 mm |
| 重量 | 0.31 kg |
Product Applications
The FS-TSDI-16115 module is used in a variety / industrial safety and automation applications, including but not limited to:
-
Emergency shutdown (ESD) systems
-
Fire and gas detection systems
-
Burner management systems
-
Turbo machinery protection
-
High-integrity pressure protection systems (HIPPS)
-
Safety interlocks for critical processes
-
Remote I/O safety systems in hazardous locations
-
Offshore oil and gas production control
Product Advantages
-
High Safety Integrity: Certified for use in SIL3 applications according to IEC 61508, making it suitable for critical safety instrumented systems.
-
16 Isolated Inputs: Offers multiple isolated channels to reduce interference and prevent fault propagation.
-
Reliable Signal Acquisition: Designed for dependable, high-speed acquisition / digital signals in noisy industrial environments.
-
Modular and Scalable: Easily integrates with Honeywell’s Safety Manager™ system, providing flexibility in system design.
-
Robust Environmental Resistance: Built to withstand a wide range / temperatures and humidity levels, suitable for harsh environments.
-
Compact DIN-Rail Design: 保存s cabinet space and simplifies installation.
-
TUV-Certified: Ensures compliance with international safety standards.
-
Fail-Safe Operation: Built-in diagnostics and redundancy support ensure high availability and fault tolerance.
よくある質問 (FAQ)
-
What is the primary function / the FS-TSDI-16115?
It functions as a field terminal assembly module that collects safe digital input signals from field devices for use in safety-critical systems. -
Can this module be used in SIL3 safety applications?
Yes, it is fully certified for SIL3 applications according to IEC 61508 standards. -
How many digital input channels does this module support?
The FS-TSDI-16115 supports 16 isolated digital input channels. -
Is this module compatible with other Honeywell platforms?
It is designed primarily for Honeywell’s Safety Manager™ but may also be adapted to other Honeywell safety systems. -
What type / input signals can it handle?
It can handle voltage-free contact signals and electronic inputs within the 18–30 VDC range. -
Does the module provide channel-to-channel isolation?
Yes, each channel is galvanically isolated to ensure safe and independent signal processing. -
Can the FS-TSDI-16115 operate in high-humidity environments?
Yes, it supports up to 95% non-condensing humidity. -
What are the mounting requirements for this module?
It is designed for standard DIN-rail mounting. -
Does it have diagnostic capabilities?
Yes, it features built-in diagnostics for enhanced fault detection and reliability. -
Is the module hot-swappable?
No, power should be removed before replacing or installing the module to ensure safe operation.
Related モデルs (Same Series or Functionally Similar)
| モデル Number | 説明 | Number / Channels | Application Focus |
|---|---|---|---|
| FS-TSAI-1620 | Safe Analog Input FTA Module | 16 AI | Analog signal acquisition |
| FS-TSDO-0820 | Safe Digital Output FTA Module | 8 DO | Safety-related digital outputs |
| FS-TSAO-0820 | Safe Analog Output FTA Module | 8 AO | Analog control outputs |
| FS-IOAI-1610 | Intelligent Analog Input Module | 16 AI | High-accuracy analog monitoring |
| FS-IOAO-0810 | Intelligent Analog Output Module | 8 AO | Analog actuator control |
| FS-DPM-0200 | Dual Power Module for Safety Manager | N/A | Power redundancy |
Popular Honeywell モデルs (Different Series/Applications)
| モデル Number | 説明 | System Compatibility | Key Function |
|---|---|---|---|
| CC-TDIL01 | Digital Input Module, 24 VDC | Experion PKS, C300 | Non-safety digital input |
| CC-TDOB01 | Digital Output Module, 24 VDC | Experion PKS, C300 | Non-safety digital output |
| MC-PAIH03 | Analog Input Module | Experion LX, TPS | Standard analog input |
| 51401583-100 | Analog Output Module, 4-20mA | Experion LX | Industrial analog output |
| FC-TPSU-2430 | Power Supply ユニット | Safety Manager | Power regulation |
| 51304493-100 | Redundant CPU Processor ユニット | Safety Manager | Central safety processing |
