Product 説明

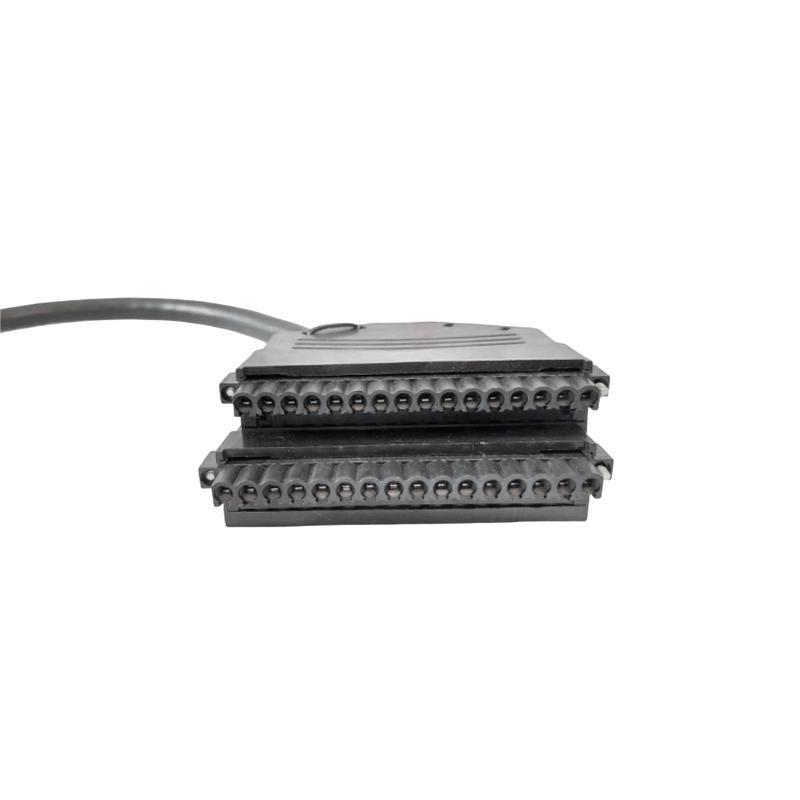

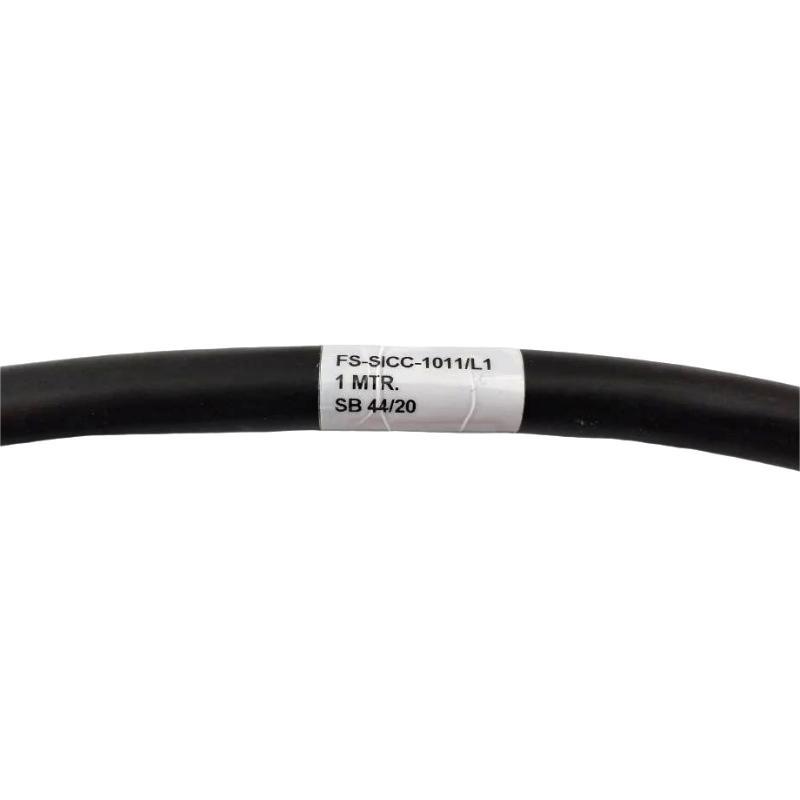

The Honeywell FS-SICC-1011 is a System Interconnection Cable (SIC) designed for connecting Safety Manager (SM) chassis IO modules to Field Termination Assemblies (FTA). One end / the cable has an IO connector, and the other end terminates in a female 20-pin FTA connector. It ensures robust signal transmission with shielding for reliability in safety-critical applications.
Technical Specifications
| Parameter | Value |
|---|---|

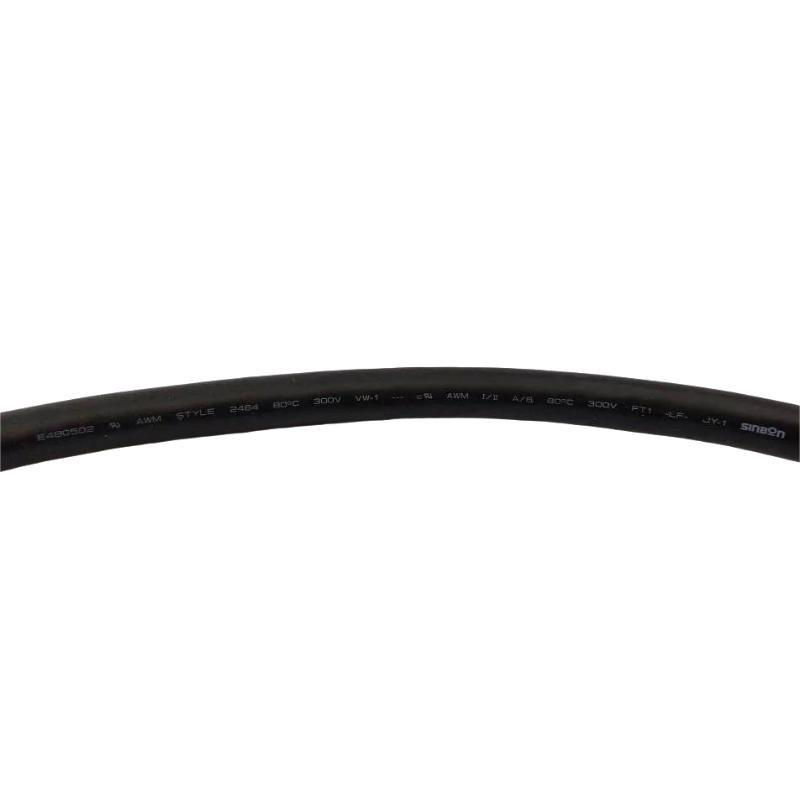

| Cable type | 20 × AWG 22 (0.34 mm²), double shielded |
| Outer diameter | 9.93 mm (0.39 in) |
| 対応可能 lengths | Optional (3.25m, 5m, 6m, 8m, 10m, 15m, 20m, 25m, 30m) |
| Electrical interface | IO connector to 20-pin FTA |
| Delivery weight | 3 kg |
| Temperature range | – |
| Dimensions | Length: as specified, Diameter: 9.93 mm |
Applications
-
Used in Safety Manager systems to connect IO modules to FTAs.
-
Suitable for safety-critical environments such as oil & gas, chemical plants, and power generation facilities.
-
Ensures high integrity signal routing between controller backplanes and field wiring terminations.
Advantages
-
Provides secure, shielded signal connection between components.
-
サポートs various lengths to fit different installation scenarios.
-
Designed for high reliability and safety compliance.
-
Simplifies installation by matching Honeywell SM system architecture.
FAQ
Q1: What is the main use / FS-SICC-1011?
A1: To connect SM chassis IO modules to field termination assemblies securely.
Q2: What is the cable type and shielding?
A2: It uses 20×AWG22 double-shielded wires for noise imm台y.
Q3: What lengths are available?
A3: It is /fered in multiple lengths from 3.25m to 30m.
Q4: Is this cable compatible with all Honeywell SM systems?
A4: Yes, it is designed for SM systems using FTAs with 20-pin connectors.
Q5: What is the delivery weight?
A5: Approximately 3 kg per cable.
Q6: Is the cable pre-terminated?
A6: Yes, it comes with pre-installed connectors on both ends.
Q7: Can it be used in harsh environments?
A7: Yes, the shielding and construction allow use in industrial settings.
Q8: How many conductors does it have?
A8: It has 20 conductors corresponding to 20 pins.
Q9: Is it easy to install?
A9: Yes, the standard connectors simplify installation.
Q10: Does it meet safety certifications?
A10: Yes, it is designed for safety system compliance.
Recommended Related or Same-Series モデルs
| モデル | 説明 | Length Options | 重量 |
|---|---|---|---|
| FS-SICC-0001/Lx | SIC cable for SM chassis IO | Optional | ~3 kg |
| FS-SICC-1002/Lx | SIC for SM universal IO | Optional | ~3 kg |
| FS-SICC-2001/Lx | SIC for SM universal IO | Optional | ~3 kg |
| FS-SICP-0001/Lx | SIC with crimp pins (no FTA) | Optional | ~3 kg |
| FS-SICP-0002/L3 | SIC for CP backplane inputs | 3m | ~3 kg |
| CA-HWC300-AIO-DIO-xM | SIC for universal IO to IOTAs | Optional | ~3 kg |
Recommended Popular Honeywell モデルs
| モデル | 説明 | Dimensions (mm) | 重量 |
|---|---|---|---|
| FC-RUSIO-3224 | Universal IO Module, 32 channels | 145×165.1×72.4 | 0.66 kg |
| FC-IOTA-R24 | Redundant IO Termination Assembly | 64×120.7×293.4 | 0.46 kg |
| FC-IOTA-NR24 | Non-redundant IO Termination | 64×120.7×293.4 | 0.46 kg |
| RUSFDU-01 | Remote Safe Field Device ユニット | 600×600×210 | 39.3 kg |
| RUSFDU-02 | Remote Safe Field Device ユニット | 600×600×210 | 40 kg |
| MTL 24571 | Surge Protection Module | 129×25.4×57.3 | 0.09 kg |
