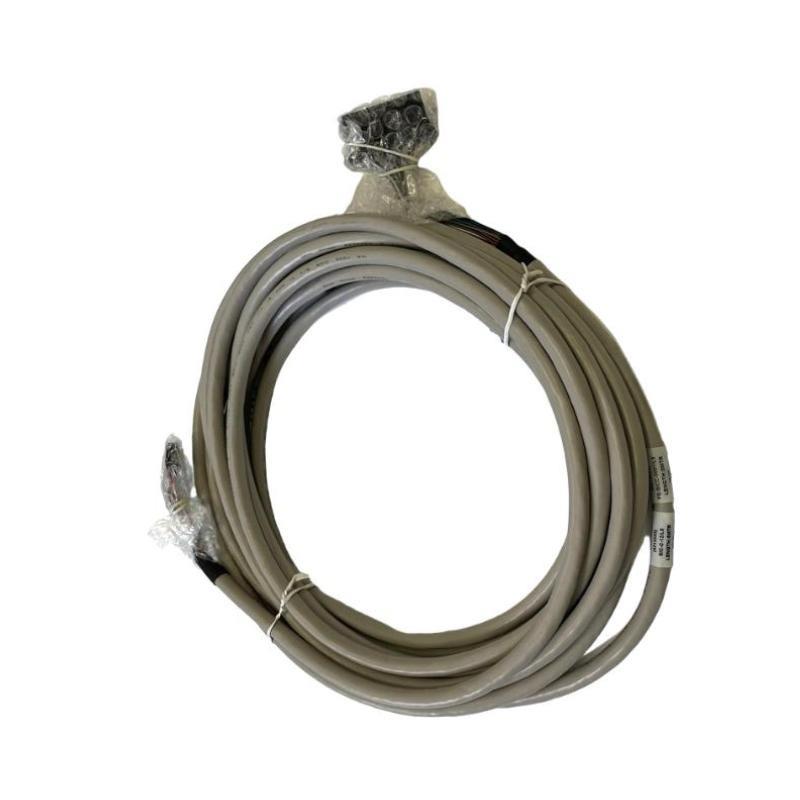

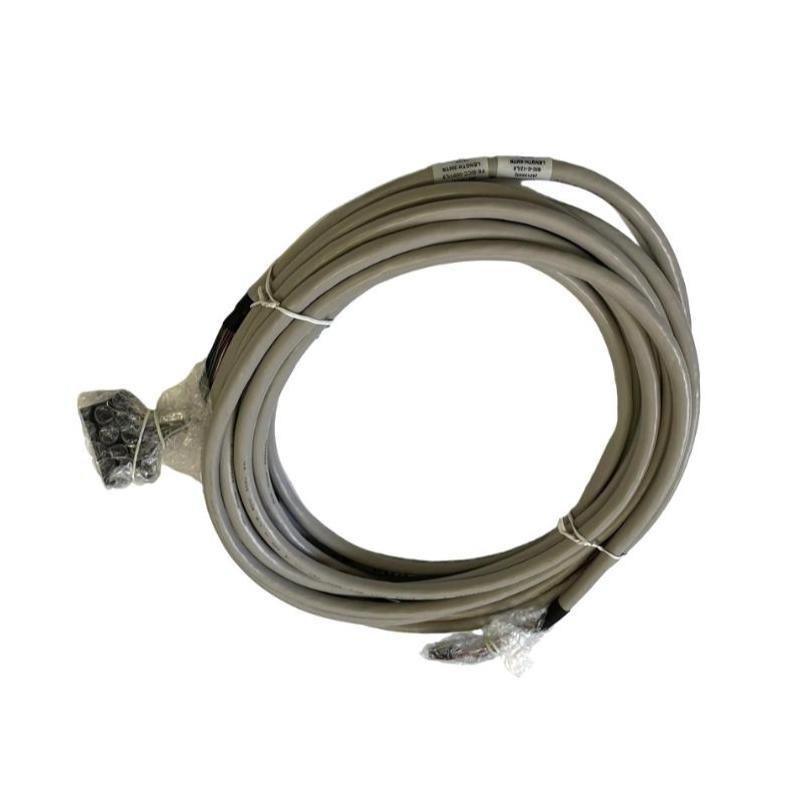

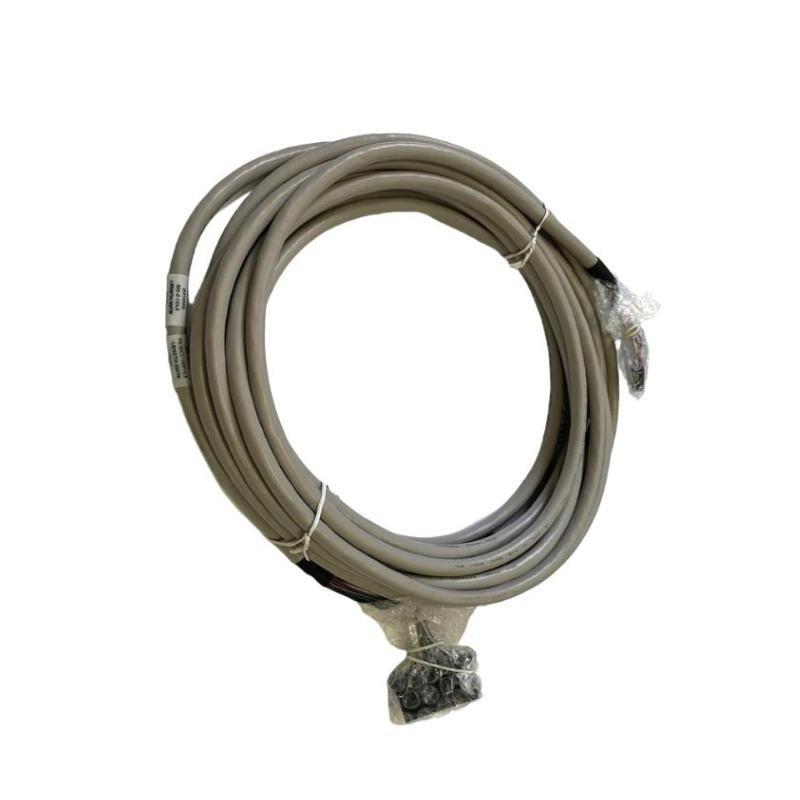

The Honeywell FS-SCSB-2011CD Cable is a premium-grade industrial signal and control cable specifically designed for Honeywell’s FS Series safety and control systems. Engineered to maintain high-performance communication in challenging industrial environments, this cable ensures reliable signal transmission with exceptional resistance to electrical noise, electromagnetic interference (EMI), and harsh environmental conditions.
Constructed with high-quality conductors, robust shielding, and a durable outer jacket, the FS-SCSB-2011CD supports flexible installation across various plant layouts. It is particularly suitable for mission-critical applications such as process automation, emergency shutdown (ESD), and fire & gas systems, where consistent and secure data transmission is vital. The cable can be ordered in customized lengths to meet different project requirements, making it adaptable to both small-scale and large-scale installations.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル | FS-SCSB-2011CD |
| Type | Shielded Signal & Control Cable |
| Cable Length | Optional (custom lengths available) |
| Conductor Material | Tinned copper, high conductivity |
| Conductor Size | 20 AWG stranded (typical) |
| Insulation | Cross-linked polyethylene (XLPE) |
| Shielding | Overall aluminum/polyester foil with tinned copper drain wire |
| Outer Jacket | Industrial-grade PVC, flame-retardant |
| Operating Voltage | Up to 300 V |
| Temperature Range | –40 °C to +90 °C |
| Capacitance | ≤ 60 pF/m |
| Characteristic Impedance | 120 Ω nominal |
| Bend Radius | Minimum 10× cable diameter |
| Dimensions | Diameter approx. 8 mm (varies with conductor count) |
| 配送 重量 | 3 kg |
| Standards | RoHS compliant, UL/CSA certified |
| Color | Standard black or gray jacket |
Applications
The FS-SCSB-2011CD Cable is widely used across multiple industries and applications requiring stable and secure signal or control transmission:
-
Process Control Systems: Connects controllers, sensors, and actuators in chemical, pharmaceutical, and oil & gas plants.
-
Emergency Shutdown (ESD) Systems: Reliable wiring for ESD logic solvers and critical shutdown mechanisms.
-
Fire & Gas Safety Systems: Links fire detection modules and gas monitoring devices to central control panels.
-
Industrial Automation: サポートs PLC and DCS communication, field device wiring, and remote I/O networks.
-
Power Generation Facilities: Ensures precise control / turbines and auxiliary equipment.
-
Marine & Offshore Platforms: Resistant to vibration and moisture for demanding /fshore installations.
Advantages
-
High Signal Integrity: Advanced shielding minimizes crosstalk and EMI, maintaining signal clarity.
-
Flexible Length Options: Customizable lengths reduce waste and simplify planning.
-
Durable Construction: Flame-retardant jacket and XLPE insulation provide long service life in harsh environments.
-
Easy Installation: Compact diameter and smooth jacket allow simple routing through conduits and trays.
-
Environmental Resilience: Withstands temperature extremes, mechanical stress, and industrial chemicals.
-
Wide Compatibility: Fully compatible with Honeywell FS Series modules and other industrial control equipment.
-
Low Capacitance: Maintains high-speed communication over long distances.
-
Reliable Grounding: Tinned copper drain wire ensures proper grounding and shielding continuity.
FAQ
-
What type / shielding is used in the FS-SCSB-2011CD Cable?
It uses an aluminum/polyester foil shield with a tinned copper drain wire for optimal EMI protection. -
Is the cable flame-retardant?
Yes, the PVC outer jacket is flame-retardant and meets industrial safety standards. -
What is the maximum operating voltage?
The cable supports up to 300 V for signal and control applications. -
Can this cable be installed in outdoor environments?
Yes, its rugged construction and UV-resistant jacket allow for outdoor and indoor use. -
What is the recommended minimum bend radius during installation?
At least 10 times the cable’s outer diameter to prevent conductor damage. -
Is the conductor material tinned copper?
Yes, stranded tinned copper conductors provide superior conductivity and corrosion resistance. -
Does it support long-distance signal transmission?
Yes, the low capacitance design allows reliable communication over extended cable runs. -
Is the cable compatible with Honeywell FS Series safety systems?
Absolutely, it is designed specifically for FS Series controllers and I/O modules. -
What temperature range can the cable withstand?
It operates reliably from –40 °C to +90 °C. -
Can the cable be ordered in custom lengths?
Yes, it can be supplied in any length required to fit project specifications.
