Product Overview

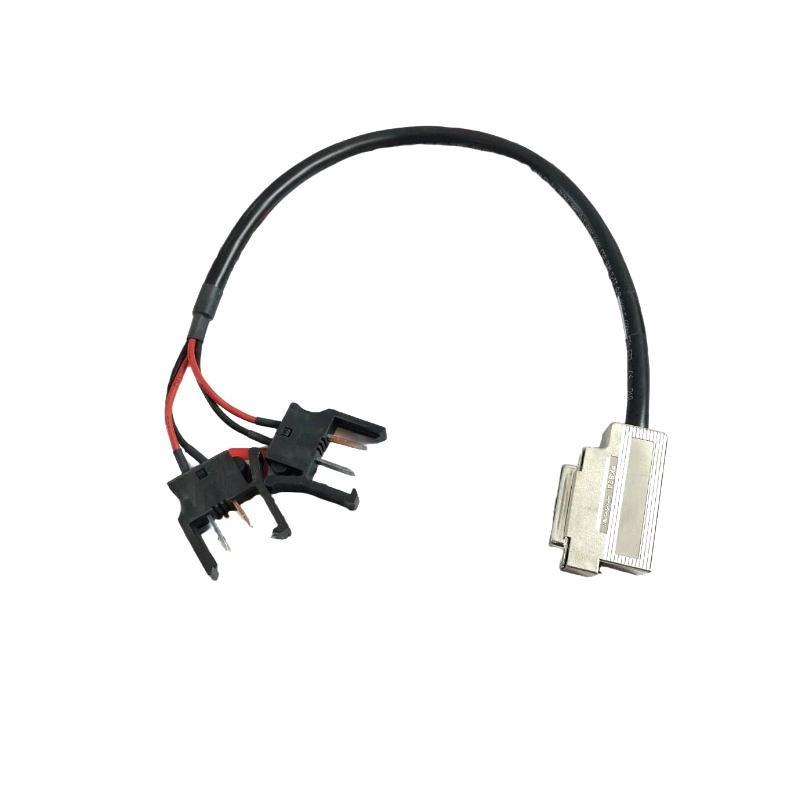

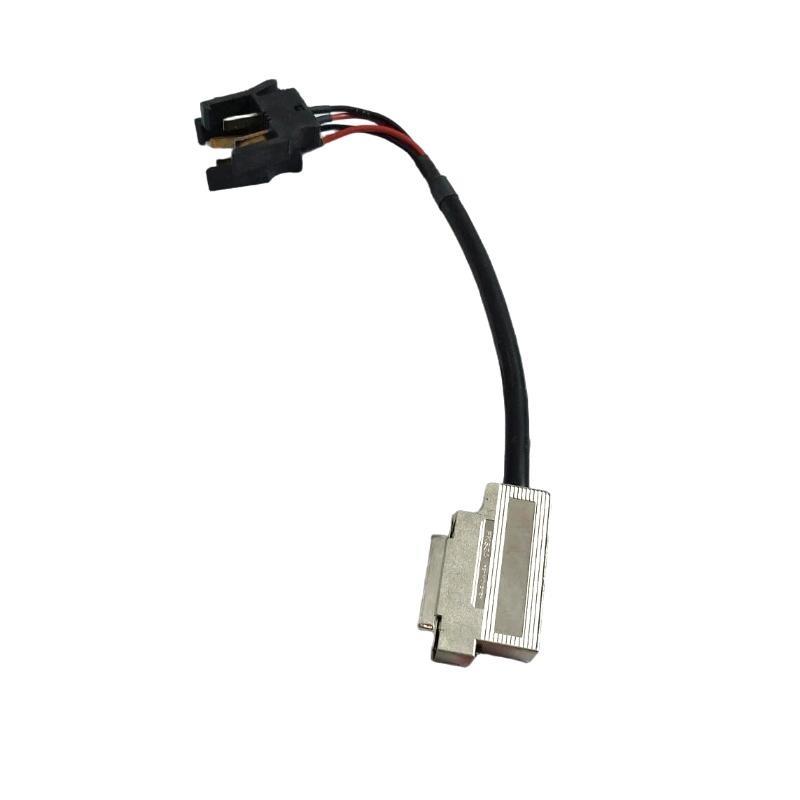

The Honeywell FS-PDC-IOEP3A is a power distribution cable designed to supply 24Vdc, 48Vdc, or 110Vdc power from the main power rails to I/O chassis modules. It is part / Honeywell’s Safety Manager system, ensuring reliable power delivery to external IO slots (13–18) in redundant or non-redundant configurations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | FS-PDC-IOEP3A Power Distribution Cable |
| Cable Type | CC 600 World 4 × 2.5 mm² |
| Operating Voltages | 24Vdc, 48Vdc, 110Vdc |
| Cable Length | 49 cm (19.29 in) |
| Packaging 重量 | 3 kg |
| Bus Bar Side Connector | 2-pole Fast-on |
| IO Chassis Side Connector | FM5W5 S (female), low pr/ile, 90° |
| Approvals | UL, CSA, FM |
Applications
-
Powering external I/O slots (13–18) in Honeywell Safety Manager I/O chassis
-
Suitable for redundant and non-redundant I/O configurations
-
Industrial control systems requiring safe and reliable power distribution
Advantages
-
Pre-fabricated and tested for compatibility with Honeywell Safety Manager systems
-
Quick installation with Fast-on and FM5W5 connectors
-
サポートs multiple operating voltages
-
Compact design with optimized length and weight
よくある質問 (FAQ)
Q1: What voltages does the FS-PDC-IOEP3A support?
A1: It supports 24Vdc, 48Vdc, and 110Vdc.
Q2: What is the length / the FS-PDC-IOEP3A cable?
A2: The cable length is 49 cm.
Q3: What type / connector is on the IO chassis side?
A3: It uses an FM5W5 S (female), low-pr/ile 90° connector.
Q4: Can the FS-PDC-IOEP3A be used in a non-redundant system?
A4: Yes, it supports both redundant and non-redundant configurations.
Q5: Is the cable certified?
A5: Yes, it is UL, CSA, and FM certified.
Q6: How much does the packaged cable weigh?
A6: The packaging weight is approximately 3 kg.
Q7: Which slots does the FS-PDC-IOEP3A power?
A7: It powers external slots 13 through 18 on the IO chassis.
Q8: Is the cable plug-and-play?
A8: Yes, it comes ready to install with the required connectors.
Q9: What is the wire gauge / the cable?
A9: The cable uses CC 600 World 4 × 2.5 mm² wires.
Q10: Can it be used outside the Safety Manager system?
A10: It is specifically designed for Honeywell Safety Manager systems and may not fit other systems.
Related モデルs (Same Series or Function)
| モデル | Length | 重量 |
|---|---|---|
| FS-PDC-IOEP1 | 64 cm | ~3.2 kg |
| FS-PDC-IOEP2 | 72 cm | ~3.3 kg |
| FS-PDC-IOIP1 | 88 cm | ~3.5 kg |
| FS-PDC-CP24 | 100 cm | ~3.4 kg |
| FS-PDC-CPSET | 54 & 77 cm | ~3.5 kg |
| FS-PDC-IOSET | 33/41/49/57 cm | ~3.5 kg |
Popular Honeywell モデルs
| モデル | Length/Size | 重量 |
|---|---|---|
| FC-PDB-0824 Power Board | 94×109×71 mm | ~300 g |
| FC-PDB-0824P Power Board | 94×109×71 mm | ~300 g |
| FS-PDC-MB24-1 | 145 cm | ~3.8 kg |
| FS-PDC-MB24-2 | 245 cm | ~4.0 kg |
| FS-PDC-MB24-3 | 325 cm | ~4.2 kg |
| FS-PDC-MBMB-1 | 300 cm | ~3.9 kg |
