製品紹介

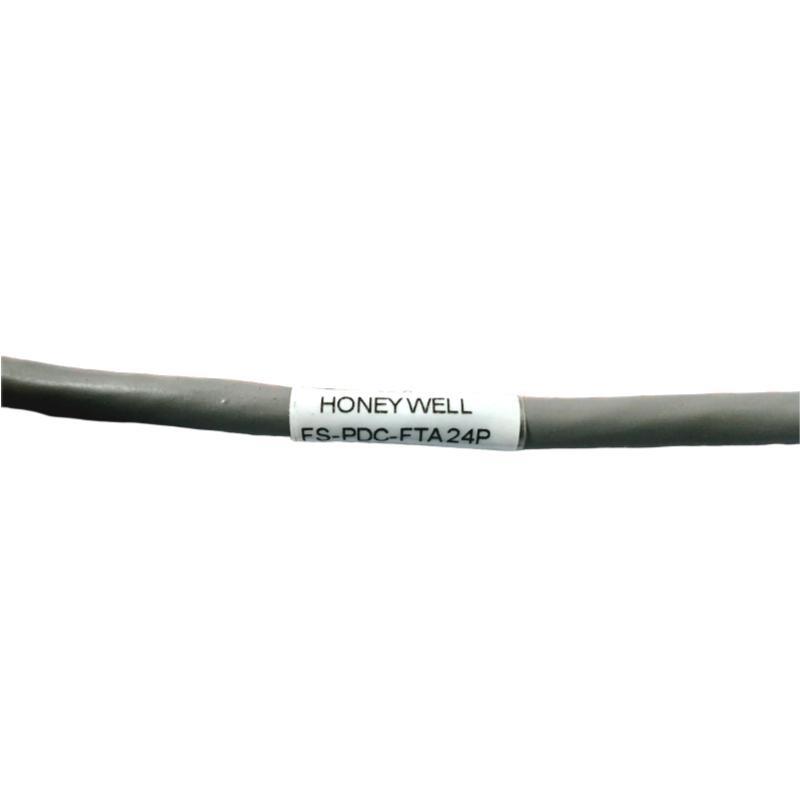

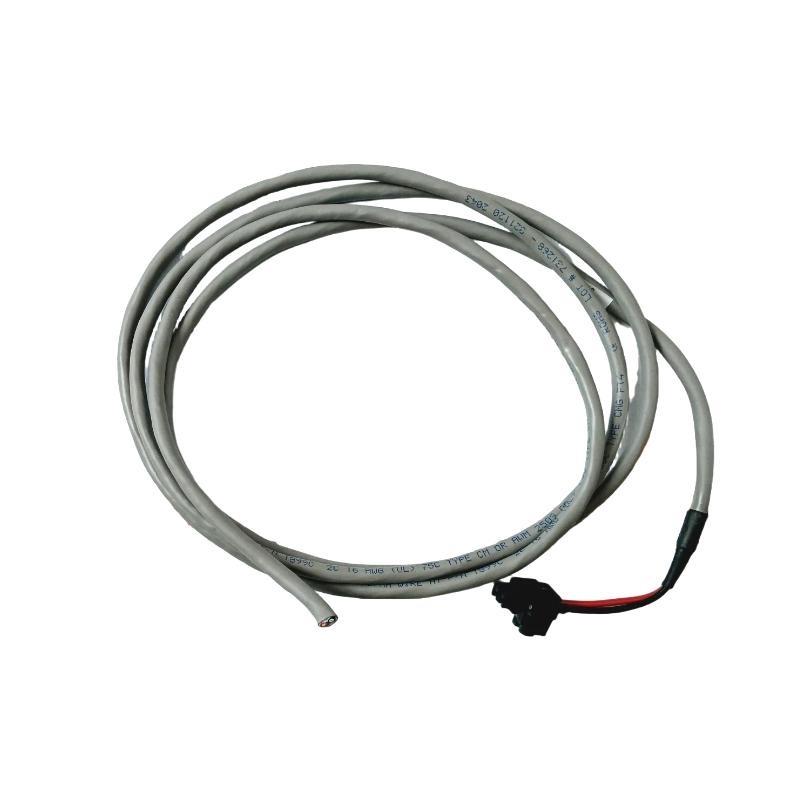

The Honeywell FS-PDC-FTA24P Power Distribution Cable is a critical component used in distributed control systems (DCS), particularly within Honeywell’s Safety Manager and Fail-Safe Controller (FSC) platforms. Engineered for reliability, this cable facilitates power distribution between the Power Distribution Component (FS-PDC) and the Field Terminal Assembly (FTA). The FS-PDC-FTA24P is designed to meet stringent industrial standards, making it suitable for mission-critical applications across various sectors including petrochemical, oil & gas, power generation, and industrial automation.
Constructed with industrial-grade materials and precise manufacturing, the FS-PDC-FTA24P ensures stable voltage transmission, minimal interference, and long-term operational stability even in harsh environments. It supports 24V DC distribution, and its flexible length and rugged jacket enable it to be deployed in challenging setups.
製品仕様
| Parameter | 説明 |
|---|---|
| モデル | FS-PDC-FTA24P |
| メーカー | Honeywell |
| Type | Power Distribution Cable |
| Function | Connects FS-PDC to FTA for 24V DC power supply |
| Voltage Rating | 24V DC |

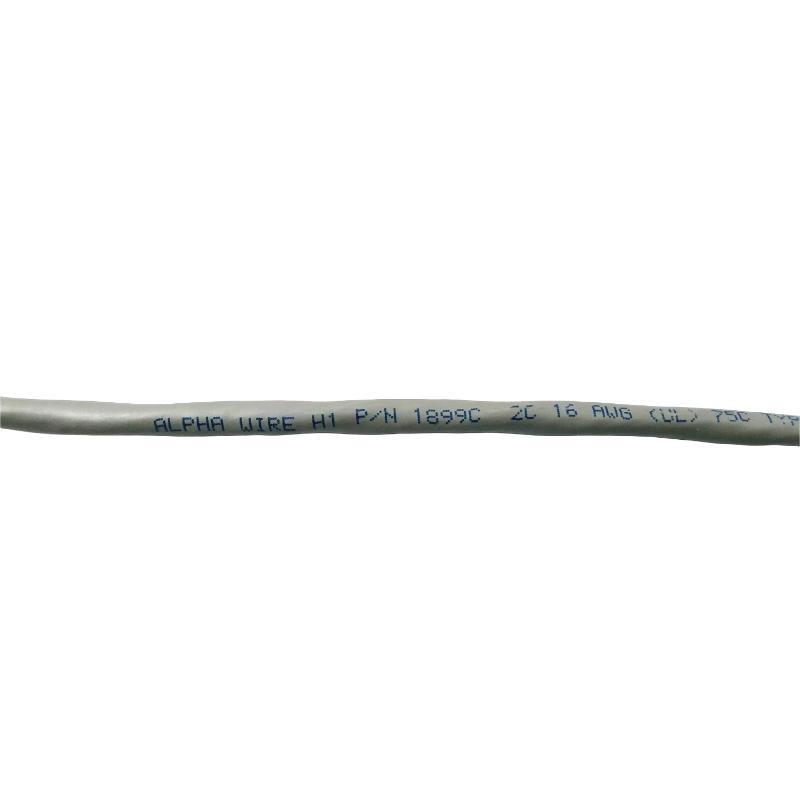

| Cable Type | Shielded twisted pair, industrial grade |
| Number / Conductors | 2–4 (based on custom configuration) |
| Connector Type | Molded plugs (compatible with Honeywell FS series) |
| Operating Temperature | -40°C to +85°C |
| Insulation Material | High-temperature PVC or Polyolefin |
| Shielding | Braided + foil shield |
| Flame Retardant | Yes (meets UL94-V0) |
| Outer Jacket Material | Thermoplastic Elastomer (TPE) |
| Cable Length | 2 meters |
| 重量 | 0.85 kg |
| Compliance Standards | CE, RoHS, UL certified |
Product Applications
The FS-PDC-FTA24P cable is engineered for specialized use in Honeywell control systems. Common application scenarios include:
-
Distributed Control Systems (DCS): Seamless 24V power supply routing in Honeywell Safety Manager systems.
-
Emergency Shutdown Systems (ESD): Reliable voltage transfer between FS-PDC and I/O interfaces in shutdown logic.
-
Industrial Automation: Connecting central power 台s to remote field terminal assemblies (FTA).
-
Oil & Gas Plants: High-reliability connections in safety instrumentation systems.
-
Power Plants: Integration into process safety systems.
-
Refineries and Chemical Plants: Long-term durable deployment in harsh industrial conditions.
Product Advantages
-
High Reliability: Designed to operate reliably in mission-critical safety applications.
-
Industrial-Grade Build: Withstands harsh environments, temperature extremes, and EMI.
-
Honeywell Compatibility: Specifically optimized for FS series modules ensuring plug-and-play compatibility.
-
Noise Resistance: Dual shielding protects against electrical noise and signal degradation.
-
Custom Lengths: 対応可能 in standard and customized lengths to suit various setups.
-
Easy Installation: Pre-molded connectors reduce installation time and ensure secure fit.
-
Long Service Life: Durable materials enhance product lifespan and reduce maintenance needs.
よくある質問 (FAQs)
1. What systems is the FS-PDC-FTA24P cable compatible with?
It is designed primarily for Honeywell FSC and Safety Manager systems, particularly in applications involving FS-PDC and FTAs.
2. What is the voltage rating / this cable?
The cable supports 24V DC voltage distribution.
3. How long is the cable?
The cable 2 meters.
4. What certifications does the FS-PDC-FTA24P meet?
It meets CE, RoHS, and UL certifications, and complies with industrial flame-retardant standards.
5. Can this cable be used outdoors?
While it’s designed for industrial environments, it should be enclosed or shielded if exposed directly to outdoor elements.
6. What type / shielding does the cable use?
It uses both braided and foil shielding to provide excellent noise imm台y.
7. What kind / connectors are used?
It uses molded plug connectors tailored for FS-PDC and FTA modules, ensuring secure connections.
8. What is the operating temperature range?
The cable functions reliably between -40°C and +85°C.
9. Can I install this cable myself or do I need a technician?
Installation is straightforward, but a certified technician is recommended to ensure correct integration.
10. Is the cable hot-swappable?
No, the cable should be installed or replaced with power /f for safety and system integrity.
Related or Similar モデルs
| モデル | 説明 | Cable Length | Application |
|---|---|---|---|
| FS-PDC-FTA24 | Power cable for FS-PDC to FTA, standard version | 3m | Honeywell FSC systems |
| FS-PDC-FTA24C | Shielded version with enhanced EMI resistance | 5m | EMI-sensitive industrial applications |
| FS-POW-CAB-03 | Power cable, 24V distribution, industrial grade | 3m | General industrial 24V power routing |
| 51410070-175 | Honeywell system interconnect cable | 1.5m | Safety Manager modules |
| FS-POW-DIST-CABLE | Multi-FTA 24V distribution cable | 10m | Distributed FTAs in DCS setups |
| FTA-CABLE-HW-01 | Interface cable for Honeywell I/O systems | 2m | Control module to I/O connection |
Popular モデルs from Honeywell
| モデル | 説明 | カテゴリー | Key Features |
|---|---|---|---|
| CC-PAOH01 | Output Module – Analog | Control I/O | 8-channel analog output, redundancy support |
| CC-PCNT01 | Pulse Counter Module | Control I/O | Pulse counting & frequency measurement |
| FC-SDO-0824 | Digital Output Module, 8 channel | Safety Systems | Fast switching, fail-safe rated |
| 51405038-175 | Shielded cable, Honeywell PKS | Connectivity | High shielding, vibration resistance |
| TK-FTEB01 | FTE Bridge Module for Ethernet | Network Communications | Dual Ethernet bridge, Honeywell-compatible |
| CC-PAIN01 | Analog Input Module | Control I/O | 8-channel AI with HART support |
