Product Overview

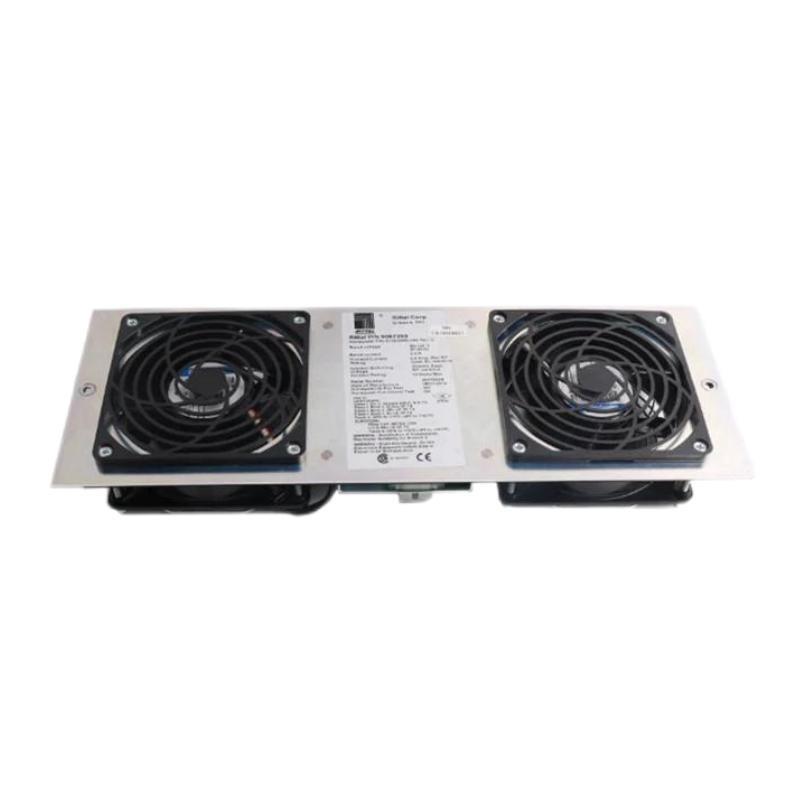

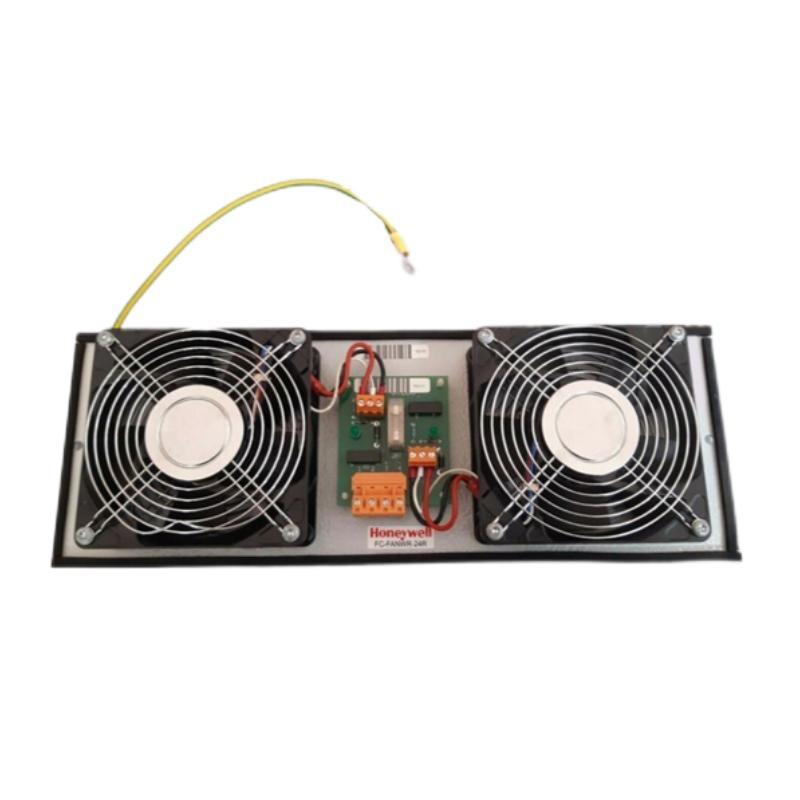

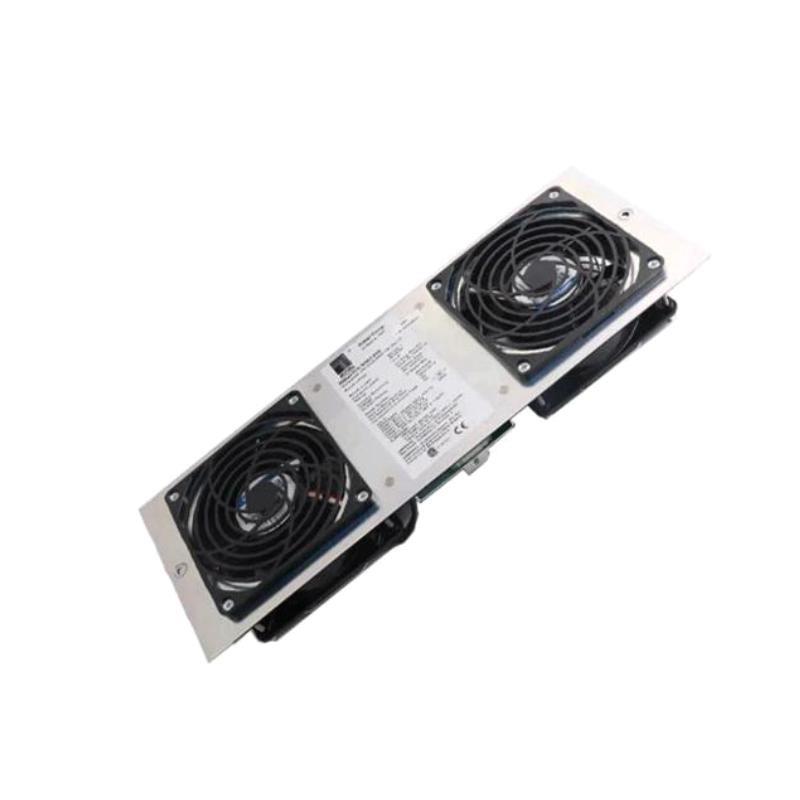

The Honeywell FS-FANWR-24R is a high-efficiency fan assembly kit designed for use in Honeywell’s industrial control systems, particularly those operating in thermally sensitive environments. This fan 台 ensures optimal temperature regulation by enhancing airflow within enclosures housing critical hardware components such as power modules, processors, and I/O terminals.
As part / Honeywell’s Safety Manager and Experion PKS hardware ecosystem, the FS-FANWR-24R is an essential accessory for maintaining system uptime and performance. It is typically installed in system racks or cabinets to ensure that the operational temperature remains within manufacturer-recommended limits, thus preventing overheating, reducing component aging, and increasing the overall reliability / the control system.
Technical Specifications
| Parameter | 説明 |
|---|---|
| モデル Number | FS-FANWR-24R |
| メーカー | Honeywell |
| Product Type | Industrial Fan Assembly Kit |
| Application | Cooling / ventilation for control system enclosures |
| Power Supply Voltage | 24 VDC |
| Number / Fans | 2 (pre-assembled with wiring and connector) |
| Airflow | Approx. 110 CFM (combined) |
| Noise Level | < 42 dBA |
| Mounting Method | Panel or rack-mounted (rear wall or side panel) |
| Material | Aluminum casing with plastic fan blades |
| Connector Type | Pre-wired with quick-connect terminal |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Certifications | CE, UL, RoHS compliant |
| Dimensions (W × H × D) | 391 × 142 × 51 mm |
| 重量 | 1.7 kg |
Applications
The FS-FANWR-24R is widely used in temperature-sensitive industrial control environments where thermal management is vital:
-
Safety Systems Enclosures
Prevents thermal shutdowns / safety-critical processors and I/O systems. -
DCS and PLC Cabinets
Assists in maintaining consistent airflow in high-density signal processing environments. -
Power Supply ユニットs
Installed adjacent to power modules that generate excess heat under full load conditions. -
Remote Terminal ユニットs (RTUs)
Deployed in field enclosures exposed to varying ambient temperatures. -
Server Rooms & Network Panels
Supplements ventilation in network rack configurations hosting Honeywell communication modules. -
Hazardous Area Control Panels
Used in conjunction with flamepro/ or purged enclosures where passive ventilation is not enough.
Product Advantages
-
Efficient Thermal Management
Dual high-performance fans deliver targeted airflow, ensuring critical components remain cool under load. -
Compact and Lightweight
Designed for easy integration into crowded control panels without consuming excessive space. -
Pre-Assembled for Quick Installation
Shipped as a complete kit with wiring and mounting accessories, saving time during deployment. -
Low Noise Operation
Runs quietly under 42 dBA, suitable for sound-sensitive environments like control rooms. -
Durability and Longevity
Built from industrial-grade materials to support continuous 24/7 operation over extended periods. -
Regulatory Compliance
Meets CE, UL, and RoHS standards, ensuring quality, safety, and environmental responsibility.
よくある質問 (FAQ)
-
What is the FS-FANWR-24R used for?
It’s a dual-fan assembly designed to provide cooling for Honeywell control system enclosures. -
Can the fans run continuously?
Yes, they are rated for continuous 24/7 operation and designed for industrial endurance. -
How is the fan assembly powered?
It operates on a 24 VDC supply, commonly available within Honeywell cabinet wiring systems. -
Does this kit include mounting hardware?
Yes, the FS-FANWR-24R comes pre-assembled with mounting screws and quick-connect wiring. -
Can it be installed on any side / the enclosure?
Typically, it is mounted on rear or side panels, but placement depends on airflow design. -
Is the 台 loud during operation?
No, it operates at a low noise level (<42 dBA), suitable even for control room environments. -
What kind / maintenance does it require?
Periodic cleaning / dust and inspection / fan bearings every 6–12 months is recommended. -
Does it support temperature control?
No thermostat is included; however, it can be connected to an external thermal relay for control. -
Can I use it with third-party systems?
While optimized for Honeywell enclosures, it can be used in other 24V DC-powered industrial cabinets. -
Is the FS-FANWR-24R hot-swappable?
No, it should be powered down before replacement to avoid electrical hazards.
Related モデルs (Same Series or Functionality)
| モデル | 説明 | Voltage | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| FS-FANWR-12R | 12 VDC Fan Assembly for Compact Enclosures | 12 VDC | 200 × 90 × 40 | 0.7 kg |
| FS-FANWR-24L | 24 VDC Low-Noise Fan Kit for Server Cabinets | 24 VDC | 240 × 85 × 35 | 0.75 kg |
| FS-FANMOD-0001 | Modular Fan Tray for Multi-Rack Systems | 24 VDC | 420 × 110 × 45 | 1.4 kg |
| FS-FANCTRL-001 | Fan Controller Module with Thermostat Input | 24 VDC | 100 × 50 × 30 | 0.25 kg |
| FS-FANWR-110R | 110 VAC Fan Assembly for Legacy Cabinets | 110 VAC | 250 × 100 × 50 | 1.0 kg |
| FS-VNTKIT-0003 | Ventilation Kit for Enclosure Cooling | Passive | 300 × 100 × 40 | 0.6 kg |
Popular Honeywell モデルs (Same ブランド)
| モデル | 説明 | Primary Use | 重量 |
|---|---|---|---|
| FC-TSDI-1624 | 16-channel digital input termination 台 | Field signal input | 1.5 kg |
| FC-TSDO-3216 | 32-channel digital output termination 台 | Discrete signal control | 1.8 kg |
| FC-TSPO-1000 | Power Supply Module | Power distribution | 2.0 kg |
| FC-TSRM-2200 | Remote I/O Module | Distributed I/O processing | 2.5 kg |
| FS-CPCHAS-0002 | 8-slot chassis for control processors | Modular processor mounting | 5.5 kg |
| FC-TSPD-3216 | Analog signal termination assembly | Analog field input | 2.0 kg |
