製品紹介

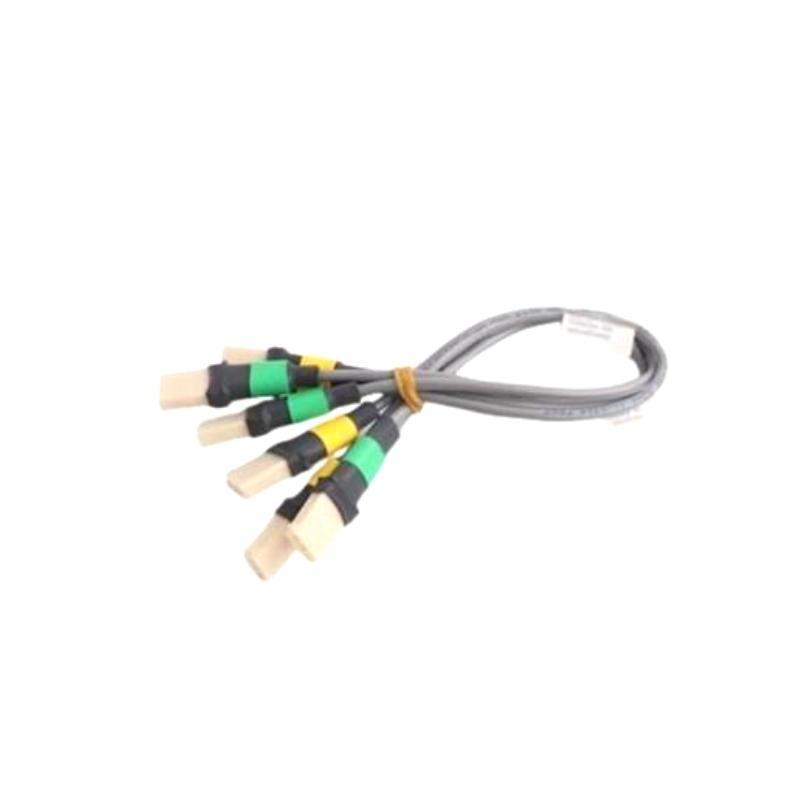

The Honeywell FS-CCI-HSE-02 is a high-speed Ethernet (HSE) communication cable set designed for industrial automation systems. It comprises two shielded twisted pair (STP) cables used to connect the high-speed Ethernet channels / the Universal Safety Interface (USI-0002) to a galvanically isolated Ethernet interface, such as an approved switch. This cable set ensures reliable and efficient data transmission between devices in harsh industrial environments.
製品仕様
| Parameter | Specification |
| Cable Type | Shielded Twisted Pair (STP) |
| Number / Conductors | 4 |
| Wire Gauge | 22 AWG |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Flame Retardant | Yes |
| Plenum-Rated | Yes |
| Length | Varies depending on supplier |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Cable Length | 2.25 m |
| 重量 | 0.2 kg |
| Certifications | RoHS, CE, UL-compliant |
| Environmental Protection | Suitable for indoor industrial environments; resistant to chemicals and abrasion |
Product Applications
-
Industrial Automation: Connecting sensors, actuators, and other devices in automation systems.
-
Building Automation: Linking control panels, thermostats, and related devices.
-
Security Systems: Connecting cameras, alarms, and other security devices.
-
Data Acquisition: Facilitating connections between data acquisition systems and sensors.
-
Safety Systems: Ensuring reliable communication in safety-critical applications.
Product Advantages
-
Durability: Resistant to chemicals, oils, and abrasion, making it suitable for harsh environments.
-
EMI/RFI Protection: Shielding protects against electromagnetic and radio frequency interference.
-
Plenum-Rated: Safe for use in air handling spaces due to low flame spread and smoke generation.
-
Flexibility: Easy installation in tight spaces due to its flexible design.
-
High-Speed Performance: Optimized for fast and efficient data exchange between connected devices.
Latest News Titles
-
Honeywell Enhances Industrial Connectivity with FS-CCI-HSE-02 Cable Set
-
New High-Speed Ethernet Cable Set Released for Safety Manager Systems
-
FS-CCI-HSE-02 Gains Popularity in Industrial Automation Applications
-
Honeywell’s Latest Cable Set Meets Demands / Harsh Industrial Environments
-
FS-CCI-HSE-02: A Reliable Solution for Industrial Communication Needs
よくある質問 (FAQ)
1. What is the maximum data transfer rate supported by the FS-CCI-HSE-02 cable?
The FS-CCI-HSE-02 cable supports standard 100 Mbps Ethernet communication, ensuring fast and reliable data transmission for industrial control environments.
2. Is the FS-CCI-HSE-02 shielded for industrial EMI protection?
Yes, the cable includes industrial-grade shielding to minimize electromagnetic interference (EMI), which is essential for maintaining signal integrity in high-noise plant environments.
3. What devices are typically connected using this communication cable?
This cable is used to connect Honeywell’s USI modules, C300 controllers, or other Field Control Interface (FCI) components within the Experion PKS or Safety Manager platform.
4. Can this cable be installed in hazardous areas or explosive zones?
Not by default. For use in hazardous or explosive zones, the installation must conform to the area classification and additional conduit or explosion-pro/ barriers may be required.
5. Does the FS-CCI-HSE-02 come with factory termination, or must it be field-terminated?
The cable is pre-terminated at the factory with RJ45 industrial-grade connectors, eliminating the need for field termination and ensuring optimal performance out / the box.
6. How flexible is this cable in tight cabinet layouts?
The cable uses a semi-flexible industrial sheath, allowing it to be routed in standard cabinet enclosures with a minimum bend radius / 5 cm, making it suitable for space-constrained installations.
7. What is the expected lifecycle / this communication cable under continuous operation?
Under normal conditions, the FS-CCI-HSE-02 has a lifecycle / over 10 years, assuming proper cable routing, ambient temperature control, and minimal physical stress.
8. Is this cable hot-swappable during system maintenance?
No, disconnecting or replacing this cable while the system is energized can disrupt communication. Proper shutdown procedures must be followed before making changes.
9. Can the FS-CCI-HSE-02 be extended using standard Ethernet couplers?
While technically possible, Honeywell recommends using only approved extension cables or modules to maintain network integrity and certification compliance.
10. Are there any compatibility concerns with third-party switches or routers?
Yes, although the cable uses standard Ethernet, communication protocols and timing requirements are specific to Honeywell systems. Compatibility with third-party network hardware should be validated on a case-by-case basis.
Related モデルs (Same Series or Communication Cable カテゴリー)
| モデル Number | 説明 | Cable Type | Typical Use Case |
| FS-CCI-HSE-01 | High-Speed Ethernet Cable Set for USI-0001 | STP Ethernet Cable Set | For connecting USI-0001 modules |
| FS-CCI-HSE-05 | 0.5m Ethernet Cable Set | Short-Length STP Cable | Compact installations or testing setups |
| FS-CCI-HSE-10 | 1.0m Ethernet Cable Set | Standard-Length STP Cable | General communication between control modules |
| FS-CCI-HSE-15 | 1.5m Ethernet Cable Set | Mid-Length STP Cable | Medium-length system setups |
| FS-CCI-HSE-20 | 2.0m Ethernet Cable Set | Extended-Length STP Cable | Interconnecting components across longer spans |
| FS-CCI-HSE-30 | 3.0m Ethernet Cable Set | Long-Length STP Cable | Large cabinet-to-cabinet communications |
| FS-CCI-UNI-02 | Universal Industrial Communication Cable | Shielded Communication Line | For various Honeywell control platforms |
| FC-CCI-HSE-EX | Explosion-Pro/ HSE Communication Cable (optional) | STP with Protective Jacket | Hazardous environments with explosion protection |
Popular Honeywell Automation モデルs (Across 製品カテゴリー)
| モデル Number | 説明 | カテゴリー | Application |
| CC-TDIL01 | Digital Input Module | I/O Module | Experion and Safety Manager input acquisition |
| CC-PDOB01 | Digital Output Module | I/O Module | Relay signal output control in DCS/PLC |
| MC-TDOY22 | 24V Digital Output Module | Safety I/O | Safety Manager systems |
| TC-IAH061 | Analog Input Module (HART compatible) | Analog I/O | Field signal acquisition with diagnostics |
| CC-PCF901 | ControlNet Fiber Module | Communication Module | Redundant fiber-optic communication |
| C300 Controller | Process Automation Controller | Process Controller | Core / the Experion PKS platform |
| CC-TCNT01 | ControlNet Interface Module | Network Module | Real-time deterministic control networking |
| FC-SDIL-1608 | Field Control Digital Input Module (16 ch) | Fieldbus Module | For distributed control systems (FSC compatible) |
